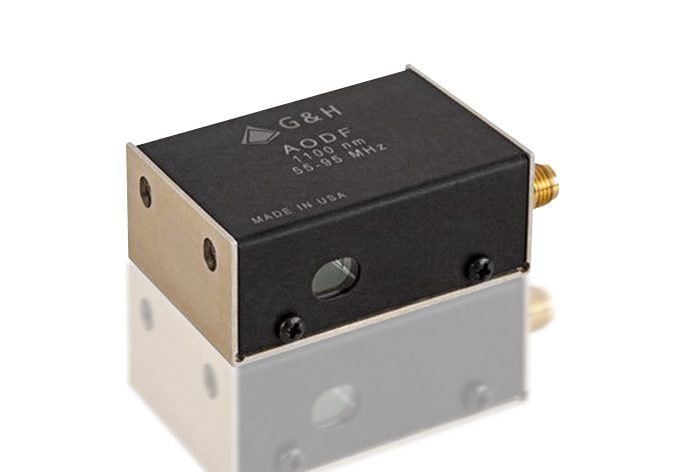

Wavelength 266-1100 nm; Type IR, Visible, UV, Mid-IR; Scan Angle 4,9-60 mrad; Active Aperture 1.0-60 mm; Operating Frequency 9.4 µm-432 MHz; Optical Material Germanium, Sapphire, Fused Silica, Crystalline Quartz, Tellurium Dioxide G&H acousto-optic deflectors (AODF) provide precise spatial control of an optical beam, whether performing 1D or 2D scanning or executing beam deflection through a fixed angle. The acousto-optic deflectors offer highly uniform diffraction efficiency across the full scan angle, with consistent power throughput for scanning applications like material processing and digital imaging. Gooch & Housego offers a wide range of standard deflectors and RF drivers for wavelengths from 266-1500 nm. Key Features: Visible and NIR wavelength products based on tellurium dioxide crystals, grown in-house UV wavelength products based on fused silica and crystal quartz Broad bandwidth products based on a longitudinal mode approach using a phased array of piezoelectric elements High efficiency products based on slow shear deflection using parallel tangents off-axis interactions Selecting the right RF driver is important to achieve the desired scanning speed and accuracy. Deflectors used in scanning or writing applications require a variable frequency source which is both stable and highly linear. 2D UV beam scanning may be achieved by cascading two UV deflectors in series. Gooch & Housego’s flexible functionality AODF Dual Driver with phase synchronized outputs offers the optimum in RF driver control for 2D scanning.Applications: Digital Imaging; Heterodyne Interferometry; Laser Cooling; Laser Marking; Laser Tweezers; Material Processing; Micromachining; Microscopy; On-Line Process Control; Optical Inspection; Photolithography; Printing Series Wavelength Type Scan Angle Active Aperture Operating Frequency Optical Material Downloads AODF 4070 N/A Mid-IR 60 mrad 9 mm 9.4 µm Germanium Datasheet Driver Driver AODF 2690-UV 266 - 355 nm N/A up to 4.9 mrad up to 7 mm 100 - 432 MHz Sapphire Datasheet Driver Driver AODF 4200-UV 266 nm UV 5.5 mrad 1.0 x 60.0 mm 135 - 265 MHz Fused Silica Datasheet Driver Driver AODF 4170 355 nm UV 4.9 mrad 7 mm 130 - 210 MHz Crystalline Quartz Datasheet Driver Driver AODF 4100-UV 364 nm UV 29.5 mrad 4.0 x 14.0 mm 75 - 125 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4200-VI 405 - 488 nm Visible 58 mrad 4.8 mm 150 - 250 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4090-7 440 - 530 nm Visible 44 mrad 8.5 mm 60 - 115 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4100-VI 488 nm Visible 39.5 mrad 4.0 - 14 mm 75 - 125 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4055-4 780 - 980 nm IR 44.3 mrad 3.5 x 14 mm 35 - 70 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4210-IR 830 nm IR 27.6 mrad 2.0 - 6.0 mm 140 - 280 MHz Tellurium Dioxide Datasheet Driver Driver AODF 4090-6 1064 nm IR 56 mrad 2 mm 72.5 - 107.5 MHz Tellurium Dioxide Datasheet Driver   AODF 4075-IR 1065 - 1100 nm IR 8.1 mrad 2.5 mm 59 - 91 MHz Tellurium Dioxide Datasheet Driver Driver

Wavelength 415-1550 nm; Type Visible, IR; Operating Frequency 40-200 MHz; Active Aperture 1.5-6 mm; Optical Material Tellurium Dioxide Transmission through an acousto-optic (AO) device causes the input light to experience a frequency shift equal to the RF drive frequency. The acousto-optic frequency shifters (AOFS) from Gooch & Housego (G&H) are optimized for the needs of applications like interferometry, with the ability to achieve high extinction ratio between modes.The product line includes standard products with frequency shifts of over 300 MHz and integrated low-power AOFS modules in which the RF driver has been built into the housing. Frequency shifters for specific application, including frequency shifts up to 600 MHz, can be customized on request. The frequency shifters are manufactured using high quality tellurium dioxide (TeO2), grown and polished in-house, for lowest insertion loss and excellent power handling. Standard AOFS products are offered for wavelengths in the visible and NIR for use with fundamental and doubled Argon Ion, Nd:YAG, He:Ne, diode, dye, and Ti:Sapphire lasers. With standard frequency shifts of over 300 MHz and custom frequency shifts up to 600 MHz, as well as models for double-pass configurations, the frequency shifters match most research and industrial needs. Frequency shifters are highly efficient acousto-optic devices, requiring very low drive power to achieve the desired frequency shift. G&H’s AOFS designs typically use the slow shear mode, resulting in slow rise time, but requiring minimal power consumption (typically < 100 mW power draw). This allows to often package the driver with the AOFS for a compact and power-efficient solution. Applications: Interferometry; Laser Cooling; Laser Doppler Velocimetry; Laser Doppler Vibrometry (LDV); Optical Heterodyne Detection Series Wavelength Type Operating Frequency Active Aperture Optical Material Downloads AOMO 3080-125 415 - 900 nm Visible 80 MHz 2 mm Tellurium Dioxide Datasheet Driver Driver AOMO 3100-125 440 - 850 nm Visible 100 MHz 1.5 mm Tellurium Dioxide Datasheet Driver Driver AOMO 3200-125 470 - 690 nm Visible 200 MHz 1.5 mm Tellurium Dioxide Datasheet Driver Driver I-FS040-1.5S2C-3-GH83 532 nm Visible 40 MHz 1.5 mm Tellurium Dioxide Datasheet Driver   I-FS040-1.5S2C-1-GH66 532 nm Visible 40 MHz 1.5 mm Tellurium Dioxide Datasheet     I-FS040-2S2E-1-GH66 630 - 690 nm Visible 40 MHz 2 mm Tellurium Dioxide Datasheet     AOFS I-FS040-2S2E-3-OL3 630 - 690 nm Visible 40 MHz 2 mm Tellurium Dioxide Datasheet Driver   I-FS080-3S2E-3-LG5 632.8 nm Visible 80 MHz 3 mm Tellurium Dioxide Datasheet Driver   AOFS 4040-191 633 - 1064 nm IR 40 MHz 2 x 6 mm Tellurium Dioxide Datasheet Driver   I-FS040-2S2J-3-GH53 1550 nm IR 40 MHz 2 x 4 mm Tellurium Dioxide Datasheet Driver

Type IR; Wavelength 700-1100 nm; Operating Frequency 38-80 MHz; Active Aperture 2-3 mm; Window Type Brewster, AR coated; Optical Material Fused Silica; Acousto-optic mode lockers (AOML) modulate the loss within a laser cavity at its resonant frequency, effectively “locking” the phase of the longitudinal modes to generate very narrow laser pulses of high intensity. Gooch & Housego’s mode lockers for Nd:YAG, Nd:YLF, Ti:Sapphire and Argon Ion lasers can modulate at up to 200 MHz, yielding near-theoretical mode locked laser pulse widths. Antireflection (AR) coated and Brewster angle options are available. Customized one-off mode lockers can be designed for demanding scientific and OEM applications.The acousto-optic mode lockers from Gooch & Housego are manufactured using high quality fused silica, polished and fabricated in-house to ensure high quality and reliability. >99% transmission at 1064 nm is achieved by using a durable in-house antireflection V-coat. Low scatter and tight quality controls ensure that every mode locker is capable of handling high peak laser power over the long term without damage. The standard mode lockers include operating frequencies from 38 MHz to 80 MHz. The more modes are locked together in phase, the shorter the pulse. G&H’s standing wave mode lockers can obtain near theoretical mode locked laser pulse widths, with industry-leading transmission performance. The high-Q mode lockers can be used for Nd:YAG, Nd:YLF, Ti:Sapphire and Argon ion lasers at near infrared wavelengths to achieve picosecond and femtosecond length pulses at repetition rates of up to 200 MHz. The short pulses generated are often used in applications like nonlinear optics, optical data storage, femtosecond micromachining and multiphoton microscopy. High repetition rates are often desired for scientific applications, including those using optical heterodyne detection for spectroscopy, LIDAR or telecommunications. RF driver selection impacts mode locking system performance. Active temperature control of the acoustic resonator can assist in controlling resonant frequency such that resonance at the precise frequency of the driver's oscillator can be maintained. We can assist choosing the right driver for your application. Contact our sales team to identify the best RF driver for your specific application.Applications: Femtosecond Micromachining; fs/ps Lasers (Nd:YAG, Nd:YLF, Ti:Sapphire, Argon Ion); LIDAR; Multiphoton Microscopy; Nonlinear Optics; Optical Data Storage; Optical Heterodyne Detection For Spectroscopy; Telecommunications Series Type Wavelength Operating Frequency Active Aperture Window Type Optical Material Downloads 12041-3-BR-TE AOML IR 700 - 1100 nm 41 MHz 2 mm Brewster Fused Silica Datasheet 12080-3-TE AOML IR 1064 nm 80 MHz 3 mm AR coated Fused Silica Datasheet 12038-3-TE AOML IR 1064 nm 38 MHz 3 mm AR coated Fused Silica Datasheet 12041-3-TE AOML IR 1064 nm 41 MHz 3 mm AR coated Fused Silica Datasheet 12050-3-TE AOML IR 1064 nm 50 MHz 3 mm AR coated Fused Silica Datasheet 12038-3-BR-TE AOML IR 700 - 1100 nm 38 MHz 2 mm Brewster Fused Silica Datasheet 12050-3-BR-TE AOML IR 700 - 1100 nm 50 MHz 2 mm Brewster Fused Silica Datasheet 12080-3-BR-TE AOML IR 700 - 1100 nm 80 MHz 2 mm Brewster Fused Silica Datasheet

Wavelength 5.5 µm-1090 nm; Rise / Fall Time 10-160 ns/mm; Active Aperture 0.1-9.6 mm; Operating Frequency 40-200 MHz; Optical Material Crystalline Quartz, Germanium, Tellurium Dioxide; Type IR, Mid-IR, Visible, UVAcousto-optic modulators (AOM) allow the intensity of light to be controlled and modulated at rates that far exceed mechanical shutters, even up to 70 MHz. The AO modulators available from Gooch & Housego (G&H) are optimized for low scatter and high laser damage threshold. Rise time, modulation rate, beam diameter and power handling requirements of the application need to be understood in order to identify the best acousto-optic modulator and RF driver solution.An acousto-optic modulator (AOM) uses sound waves within a crystal to create a diffraction grating. As the power of the applied RF signal is varied, the amount of diffracted light varies proportionally. Modulators can be used like a shutter (cycling light on and off at a set frequency), or as a variable attenuator (controlling the intensity of transmitted light dynamically).Contact our sales team to identify the best RF driver for your specific applicationApplications: Heterodyne Interferometry; Intensity Levelling; Intensity Modulation; Laser Cooling; Laser Doppler Velocimetry; Laser Doppler Vibrometry (LDV); Laser Linewidth Measurements; LIDAR; Marking; Material Processing; Micromachining; Printing; Via Drilling Series Wavelength Rise / Fall Time Active Aperture Operating Frequency Optical Material Type Downloads I-M0XX-XC11B76-P5-GH105 5.5 µm 120 ns/mm up to 9.6 mm 40.68 - 60 MHz Germanium N/A Datasheet Driver   I-M050-10C11V41-P3-GH75 9.4 µm 120 ns/mm up to 9.6 mm 40/60 MHz Germanium Mid-IR Datasheet Driver   I-M041-XXC11XXX-P5-GH77 10.6 µm, 9.4 µm 120 ns/mm up to 9.6 mm 40.68 MHz Germanium Mid-IR Datasheet Driver   AOMO 3200-1220 257 nm 10 ns 0.25 mm 200 MHz Crystalline Quartz UV Datasheet Driver   I-M110-3C10BB-3-GH27 AOM 300 - 400 nm 113 ns/mm 3 mm 110 MHz Crystalline Quartz UV Datasheet Driver   I-M110-2C10B6-3-GH26 AOM 400 - 540 nm 113 ns/mm 2 mm 110 MHz Crystalline Quartz Visible Datasheet Driver   AOMO 3080-125 415 - 900 nm 25 ns 2 mm 80 MHz Tellurium Dioxide Visible Datasheet Driver Driver AOMO 3080-120 440 - 850 nm 34 ns 1 mm 80 MHz Tellurium Dioxide Visible Datasheet Driver   AOMO 3110-120 440 - 850 nm 18 ns 0.6 mm 110 MHz Tellurium Dioxide Visible Datasheet Driver   AOMO 3100-125 440 - 850 nm 160 ns 1.5 mm 100 MHz Tellurium Dioxide Visible Datasheet Driver Driver AOMO 3110-121 442 - 488 nm 18 ns 0.6 mm 110 MHz Tellurium Dioxide Visible Datasheet Driver   AOMO 3200-120 442 - 488 nm 13 ns 0.45 mm 200 MHz Tellurium Dioxide Visible Datasheet Driver   AOMO 3200-121 442 - 488 nm 18 ns 0.32 nm 200 MHz Tellurium Dioxide Visible Datasheet Driver   AOMO 3200-125 470 - 690 nm 160 ns 1.5 mm 200 MHz Tellurium Dioxide Visible Datasheet Driver Driver AOMO 3200-124 780 - 850 nm 10 ns 0.32 mm 200 MHz Tellurium Dioxide IR Datasheet Driver   AOMO 3080-122 780 - 850 nm 25 ns 1 mm 80 MHz Tellurium Dioxide IR Datasheet Driver   AOMO 3200-1113 870 - 1250 nm 10 ns 0.1 mm 200 MHz Tellurium Dioxide IR Datasheet Driver   I-M041-2.5C10G-4-GH50 AOM 1030 - 1064 nm 113 ns/mm 2.5 mm 40.68 MHz Crystalline Quartz IR Datasheet Driver   I-M080-2C10G-4-AM3 AOM 1030 - 1064 nm 113 ns/mm 2 mm 80 MHz Crystalline Quartz IR Datasheet Driver   AOMO 3110-197 1030 - 1090 nm 18 ns 1.25 mm 110 MHz Tellurium Dioxide IR Datasheet Driver

Type UV, Visible; Wavelength 350-850 nm; Number of Channels 4-24; Rise / Fall Time 7-23 ns; Active Aperture 0.18-0.5 mm; Operating Frequency 125-350 MHz; Acousto-optic multi-channel modulators (AOMC) allow multiple beams to be modulated or deflected independently by integrating an array of transducers with a single acousto-optic crystal. The AO multi-channel modulators manufactured by Gooch & Housego (G&H) feature reliable operation and high performance with minimized crosstalk thanks to proprietary optical and electrical designs to allow concurrent operation of up to 48 channels for modulation, and up to 8 channels for beam deflection. Multi-channel modulators are most often used for high speed applications like micromachining and direct-write lithography, as each beam can be modulated independently. They are also used to increase throughput when writing large media by writing multiple beams at the same time. A typical multi-channel modulator has parallel beams as input, each operated on by a different transducer to modulate its intensity. Available models have 2 to 48 channels for UV through NIR wavelengths, with rise times as short as 7 ns for apertures < 1 mm. Multi-channel RF drivers are available with analog or digital modulation.High laser damage threshold is achieved using low-scatter materials inspected to rigorous quality standards. We draw our own tellurium oxide (TeO2) and source high quality fused silica and crystalline quartz to ensure low insertion loss and excellent optical power handling.Applications: Marking; Material Processing; Micromachining; Printing Series Type Wavelength Number of Channels Rise / Fall Time Active Aperture Operating Frequency Optical Material Downloads AOMC 3160-8 UV 364 nm 8 21 ns 0.18 mm 160 MHz Fused Silica Datasheet AOMC 125-24 UV 350 - 365 nm 24 23 ns 0.5 mm 125 MHz Crystalline Quartz Datasheet AOMC 220-5 UV 413 nm 5 16 ns 0.24 mm 220 MHz Crystalline Quartz Datasheet AOMC 220-4 UV 350 - 365 nm 4 16 ns 0.24 mm 190 - 250 MHz Crystalline Quartz Datasheet AOMC 300-5 UV 413 nm 5 10 ns 0.2 mm 300 MHz Crystalline Quartz Datasheet AOMC 3350-6 Visible 350 - 850 nm 6 7 ns 0.33 mm 350 MHz Tellurium Dioxide Datasheet

Wavelength 1030-2100 nm; Active Aperture 1-8 mm; Operating Frequency 24-80 MHz; Optical Material Crystalline Quartz, Fused Silica; Type Water Cooled, Conduction CooledAn acousto-optic Q-switch (AOQS) works within a laser cavity to generate high intensity, pulsed light by actively controlling the Q-factor (loss) of the cavity. The acousto-optic Q-switches available from Gooch & Housego (G&H) are rugged, reliable and long-lasting. The product offering includes low insertion loss and highly efficient acousto-optic Q-switches capable of handling very high peak power. Particular attention is used to match the cavity length, repetition rate, wavelength, beam diameter, polarization state and output power of a laser to the best acousto-optic Q-switch solution.G&H offers off-the-shelf solutions for polarized or unpolarized lasers at near infrared wavelengths. G&H can accommodate large lamp pumped multimode laser beam diameters (up to 8 mm) as well as small compact diode pumped beam diameters (< 1 mm) with both water and conduction cooling. Specialized designs meet unique needs such as ultra-high single pass loss (up to 96%), high switching speeds and premium pulse-to-pulse stability.A full line of RF drivers designed specifically for Q-switching is available, with rapid fall times, tight synchronization, operation in either fixed or variable mode and advanced capabilities like first pulse suppression or multichannel operation to drive multiple Q-switches within the same cavity.Applications: Laser Marking; Lithography; Material Processing; Medical Surgery; Micromachining Series Wavelength Active Aperture Operating Frequency Optical Material Type Downloads I-QS080-1C10G-8-GH28 Q-Switch 1030 - 1064 nm 1 mm 80 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver Super Q-Switch 1064 nm 1.6, 2, 3, 4, 5, 6.5 mm 24, 27.12 MHz Crystalline Quartz Water Cooled Datasheet Driver Industry Standard AO Q-Switch 1064 nm 1.6, 2, 3, 4, 5, 6.5, 8 mm 24, 27.12, 40.68, 68 MHz Fused Silica Water Cooled Datasheet Driver Stallion Q-Switch 1064 nm 1.6, 2, 3, 4, 5, 6.5, 8 mm 24, 27.12, 40.68, 68 MHz Fused Silica Water Cooled Datasheet Driver VHE AO Q-Switch 1064 nm 1.6, 2.5, 2, 3, 4 mm 68 MHz Crystalline Quartz Water Cooled Datasheet   I-QS041-1.8C10G-4-GH21 AO Q-Switch 1064 nm 1.8 mm 40.68 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver I-QS080-1C10G-4-GH25 Q-Switch 1064 nm 1 mm 80 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver I-QS080-0.5C10G-8-GH48 Q-Switch 1064 nm 0.5 mm 80 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver I-QS080-1C10H-4-OS14 1319 - 1342 nm 1 mm 80 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver I-QS027-4S4V2-x5-ST1 Q-Switch 1550 nm 4 mm 27.12 MHz Fused Silica Water Cooled Datasheet   I-QS041-2C10V5-4-HC1 Q-Switch 1900 - 2100 nm 2 mm 40.68 MHz Crystalline Quartz Conduction-Cooled Datasheet Driver I-QS041-5C10V5-x5-ST3 Q-Switch 2100 nm 5 mm 40.68 MHz Crystalline Quartz Water Cooled Datasheet Driver

Wavelength 351-4500 nm; Active Aperture 2-12 mm; Bandwidth 0.3-12 nm; Acousto-optic tunable filters (AOTF) are used to rapidly and dynamically select a specific wavelength from a broadband or multi-line laser source. As the applied RF frequency is varied, the transmitted wavelength changes, “tuning” the wavelength of the beam or image in tens of microseconds or less. An extensive line of AO tunable filters is available for wavelength from the UV through mid-IR, with resolution bandwidths of less than 1nm, with options such as large-aperture imaging filtering and sideband suppression. Fiber-coupled acousto-optic tunable filters devices are available upon request.AOTFs with apertures less than 6 mm are typically used that have less than tens of nm of resolution bandwidth at NIR wavelengths and less than ten nm at visible wavelengths. A quasi-collinear AOTF can deliver < 1 nm resolution bandwidth if operated with highly collimated light. AOTFs with larger apertures (> 6 mm) are a powerful tool for spectral imaging, rapidly and efficiently scanning an entire image in wavelength. This is of use in high-speed applications like hyperspectral imaging, confocal microscopy and on-line process control. The cost of AOTFs increases significantly for very large apertures, but they deliver unmatched speed for time-sensitive multispectral measurements in industry and biotech, approaching real-time video rate spectral imaging.  Gooch & Housego’s acousto-optic tunable filters are manufactured using high quality TeO2 crystals grown in-house, polished and fabricated to rigorous standards, with wavelengths from 350 nm to 4.4 µm in a wide variety of apertures and resolution bandwidths. It is possible to filter images up to 25 mm across, meet exceptionally low driver power requirements or design an AOTF to select and transmit multiple discrete wavelengths.Acousto-optic tunable filters often exhibit light leakage outside the resolution bandwidth of interest, typically at 10-20 dB below peak power. This is due to the response function of the AOTF itself but can be minimized using G&H’s patented techniques. Sideband suppression is available in several models, reducing out of band side lobes by greater than 20 dB relative to the primary beam. The AOTF product family includes application-specific solutions for illumination or excitation wavelength selection, as well as multispectral or hyperspectral imaging. For best performance, we recommend a matched RF driver, including the latest digital frequency synthesizer (DFS) driver technology and random access wavelength control. Applications: Confocal Microscopy; Fluorescence Imaging; Hyperspectral Imaging; Imaging Spectroscopy; Laser Wavelength Tuning; On-Line Process Control; Spectroscopy; Wavelength Selection Series Wavelength Active Aperture Bandwidth Downloads AOTF 2837-31 351 - 430 nm 2.5 mm 1.0 nm Datasheet      TF525-250-6-3-GH19A 400 - 650 nm 3 mm 3 nm Datasheet      AOTF 3151-01 400 - 650 nm 2.5 mm 2.5 nm Datasheet      TF550-300-4-6-GH57A AOTF 400 - 700 nm 6 mm 4 nm Datasheet      TF560-280-1-5-NT2 AOTF 420 - 700 nm 5 mm 0.3 nm Datasheet      AOTF 2838-01 450 - 670 nm 2.5 mm 1.3 nm Datasheet      AOTF 2885-02 450 - 670 nm 2.5 mm 2 nm Datasheet      AOTF 2885-04 450 - 670 nm 2.5 mm 4 nm Datasheet      TF625-350-2-11-BR1A AOTF 450 - 800 nm 11 x 12 mm 1.5 nm Datasheet      TF850-500-10-6-GH58A AOTF 600 - 1100 nm 6 mm 10 nm Datasheet      AOTF 2986-01 640 - 1100 nm 2.5 mm 5 nm Datasheet      TF950-500-1-2-GH96 700 - 1200 nm 2 mm 0.6 nm       AOTF 2996-01 1100 - 2000 nm 2.5 mm 12 nm Datasheet  Driver Driver I-TF1650-1100-1-3-GH107 1100 - 2200 nm 3 mm 1.0 nm       TF1875-1250-10-6-GH59A 1250 - 2500 nm 6 mm 10 nm Datasheet      I-TF2250-1500-2-3-GH107 1500 - 3000 nm 3 mm 2 nm       I-TF3250-2500-3-3-GH107 2000 - 4500 nm 3 mm 3 nm

Optical Deflection ±0.325 rad; Processing Speed 30 rad/s; Positioning Speed 30 rad/s; Digital Control via RL3-100 Protocol; Resolution 0.76 µrad Raylase’s AM-MODULE NEXT GEN prefocusing deflection units for fiber-coupled lasers feature homogeneous power density and exceptionally low drift values. They enable ultra-dynamic, rapid processing with flexible spot diameters. Full digital, model-based control is ensured with absolute precision. Up to 4 modules can be operated simultaneously over one construction field. Direct connection of a photodiode or pyrometer for process control is also possible. For more effective process monitoring, the BASE-Module can be expanded with the SENSOR-Module. The two integrated sensors not only ensure customized quality control, they also enable archiving and process control. Focus tracking is built-in for one of the sensors. Data can be preprocessed either directly in the expanded camera electronics or on a powerful frame grabber. The AM-MODULE NEXT GEN prefocusing deflection units are available in two variants: As a standard module or a high-performance module with fully digitally galvo-scanner. The high-performance module is designed for use in the manufacture of ultra-high precision components which must satisfy particularly high safety specifications. This application is of particular interest for users in the aerospace industry, automotive manufacturing and medical engineering. Key Features: Fast Beam Deflection With Uniform Power Distribution Over the Entire Field High Dynamic for 3D-Production of Metal Parts for Working Fields From up to 600 mm x 600 mm Innovative Design for Effective Full Parallelization Over the Working Field Direct Fiber Connection and Zoom Axis for Highly Dynamic Change of Spot Size On-Axis Process Monitoring and Control Using Various Sensors With Focus Tracking Control: Via RL3-100 Protocol 20 Bit Optical Deflection (typ.): ±0.325 rad Resolution RL3-100, 20 Bit: 0.76 µrad Repeatability (RMS): <0.4, <2.0 µrad Position Noise (RMS): <2.0, <3.2 µrad Max. Temperature Drift: 8, 15 ppm/K Gain, 10, 15 µrad/K Offset Long-term Drift (8 h): <50, <60 µrad, <30, <40 µrad (Water Temperature Control) Beam Divergence: 80 to 140 mrad (Typ.), 90 to 150 mrad (Max.) Tuning: Hatching (H) Processing Speed: 30 rad/s Positioning Speed: 30 rad/s Tracking Error: 0.23, 0.25 ms Step Response Time (@1% of Full Scale): 0.66, 0.70 ms Tracking Error Focusing Unit: 1.5 ms Speed of Moving Lens: 880 mm/s Power Supply: +48 VDC, 6 A RMS, max. 10 A Temperature Range: +15°C to +40°C Protection: IP64 Dimensions: 284 x 150 x 393 mm (BASE Module), 315 x 150 x 393 mm (SENSOR Module), 589 x 150 x 393 mm (Total) Weight: Approx. 15 kg (BASE Module), 14 kg (SENSOR Module) Applications: Manufacturing of Ultra-high Precision Components With Particularly High Safety Specifications; Aerospace Industry; Automotive Manufacturing; Medical Engineering

Together with our supplier Vortex we provide broadband and V-style anti-reflection (AR) coating from 300 nm to 6000 nm. We offer AR coatings service on your optics with an unrivalled rapid turnaround or can also supply “make complete” AR-coated optics with substrates sourced through one of our trusted suppliers. Our AR coatings can be customized to your application’s requirements – contact the AMS Technologies experts today to discuss your customized anti-reflection coating solution! Broadband AR CoatingA number of standard broadband processes covering many spectral regions is available that can also be adjusted for your specific requirements, e.g. the coating’s properties can be moved to a number of different bands if required. Some examples of broadband AR coatings: Broadband AR Coatings    Optimized Wavelength Substrate Average Reflection Within Wavelength Band AR 400-700 nm Glass <0.5% AR 400-900 nm Glass <1.0% AR 400-1100 nm Fused Silica <1.0% AR 400-1700 nm Sapphire <3.5% AR 400-2500 nm Sapphire <8.0%   V-CoatingAs a special type of anti-reflective coating, V-coatings improve transmission in a very narrow wavelength range around the design wavelength. This type of coating is called a "V-coating" because the curve of the reflection over the wavelength resembles the letter "V", with a minimum at the design wavelength. Both single- and multiple-wavelength V-coat processes are available for laser and LED applications covering a range from 300 nm to 6000 nm, with maximum reflection of <0.25% per surface at the designated wavelength. Some examples of V-coatings: V-Coatings     Optimized Wavelength Substrate Reflection V-Coat 633 nm BK7 <0.25% V-Coat 1064 nm BK7 <0.25% V-Coat 1550 nm Sapphire <0.25% V-Coat 3300 nm CaF2 <0.25% V-Coat 532_1064 nm BK7 <0.25% V-Coat 532_1064_1550 nm BK7 <0.25% V-Coat 532_633_780_1064_1550 nm BK7 <0.25%   Infrared AR CoatingInfrared anti-reflection coating can be provided anywhere between 0.7 µm and 6 µm on Glass, Silicon, Germanium, Sapphire, Barium Fluoride, Calcium Fluoride, Gallium Arsenide etc. to suit your specification. Some examples of infrared AR coatings: Infrared AR Coatings     Optimized Wavelength Substrate Average Reflection Within Wavelength Band AR 400-1700 nm Sapphire <2% AR 400-2500 nm Sapphire <3% AR 1200-2500 nm Silicon <3% AR 1500-5000 nm Silicon <3% V-Coat 1550 nm Sapphire <0.25% @1550 nm per Surface AR 2000-5000 nm Germanium <3% AR 3000-5000 nm Silicon <3% AR 3000-5000 nm Germanium <3% V-Coat 3300 nm Silicon <0.25% @3300 nm per Surface

1030 to 1064 nm; Bandwidth ±10 dB; Pigtail Style; Fiber Type SM, PM; Supersonic Wave Frequency 80, 100 MHz LightComm Technology’s AOM series of fiber coupled acousto-optic modulators is designed for pulsed fiber laser/amplifier system applications. The AOM is installed in the fiber laser cavity, laser pulses can be obtained by modulating the AOM with a TTL signal. The AOM series is available with single mode (SM) and polarization maintaining fibers. Customized solutions are available on request to meet the specific demands of your modulator solution – get in touch with AMS Technologies to discuss your requirements. Key Features: Low Insertion Loss Compact Package Stable and Reliable Performance Customized Configurations Available Operating Wavelength: 1030 to 1064 nm Bandwidth: ±10 dB Supersonic Wave Frequency: 80, 100 MHz Fiber Type: Single Mode (SM), Polarization Maintaining (PM) Applications: Fiber Amplifiers; Fiber Lasers

Optical Deflection ±0.393 rad; Processing Speed 10-65 rad/s; Positioning Speed 10-65 rad/s; Max. Input Aperture 15, 20 mm; Digital Control via SL2-100, RL3-100, or XY2-100 Protocol Raylase’s AXIALSCAN series of prefocusing deflection units offer very small spot diameters at large field sizes or processing areas, flexibility, high deflection speed, long-term stability and low drift values. AXIALSCAN-20/-30 deflection units feature high power density in the spot, enabling new application and reduced system costs. Deflection units are designed for field sizes from 100 mm x 100 mm up to 1,800 mm x 1,800 mm. These units are available with options like motorized adjustment of the operating field steered by the stepper motor interface, high-power version with optimized Nd: YAG and CO₂ optics for up to 4 kW, as well as a high-speed version with double motor-driven Z-axis and extremely light and stiff high-performance mirrors. The AXIALSCAN-30 DIGITAL II deflection units with the LT-II-15 digital linear translator module ensure exceptionally low drift values at 20 Bit position resolution. Heat development is greatly reduced thanks to the PWM output stages used. Thanks to optimized lenses for CO₂ wavelength and 1060 to 1070 nm, the AXIALSCAN-30 DIGITAL II HP deflection units can handle laser power up to 4 kW. The pre-focusing deflection units of the AXIALSCAN-50 DIGITAL II series feature cutting-edge digital control electronics. Various tuning options are available, enabling application-specific adjustment of control parameters and, in combination with the SC mirrors, produce exceptional deflection speeds and dynamic values. The AXIALSCAN-50 DIGITAL II can be equipped with a range of tuning options (VC, LS and M). Default tunings are configurable. The AXIALSCAN-FIBER 20/30 deflection systems can be easily integrated into any laser system by means of various mechanical interfaces below, to the side (robot flange is possible) and from above. The integrated fiber collimator enables connection of the laser fiber without beam path alignment. A second external protective window can be quickly and easily replaced, with optional monitoring available. Camera and welding monitoring systems can be adapted to the process light output without aberrations. The AXIALSCAN FIBER-30 is completely dust-proof and therefore ideal for use in a harsh industrial environment. Suitable mirrors are available both for high-performance welding applications with laser power in the multi-kilowatt range and for highly dynamic applications. Optical configurations are available for all standard beam parameters of lasers and their fibers. The AXIALSCAN FIBER-50 deflection systems ensure that the laser process is highly dynamic and precise, even when the workpiece is passing under the deflection unit at varying speed. The pre-focussing deflection unit can, among other things, separate the contours of electrical connection surfaces (tabs) on batteries with precision during the foil winding process. This benefit is possible thanks to the pulsed laser beam – highly dynamic with position accuracy – that is directed from the AXIALSCAN FIBER-50 deflection unit onto the workpiece. It works with the smallest spot size on processing field sizes of between 300 x 300 mm and 850 x 850 mm. Depending on the model, the AXIALSCAN deflection units are compatible to the XY2-100 (16 Bit) protocol, the SL2-100 (20 Bit) protocol, or the RL3-100 (20 Bit) standards. They can be digitally controlled by a control card, such as the SP-ICE-1 PCIe PRO or SP-ICE-3. Lenses, protective glass, scan mirrors, deflection mirrors and objectives with optimized mounts are available for all typical laser beam source types. We are happy to help you put together the perfect configuration for your application – get in touch with AMS Technologies to discuss your project’s requirements. Key Features: For Large Areas With Small Spot Size and 3D-Applications For Applications at up to 5 kW Laser Power High-speed Z-Axis With Double Motor Option (AXIALSCAN-20/-30) and Digitally Controlled (AXIALSCAN-30/50 DIGITAL II) Control: Via SL2-100 Protocol 20 Bit, RL3-100 Protocol 20 Bit, or XY2-100 Protocol 16 Bit Variable Processing Field Sizes: 100 x 100 up to 1,800 x 1,800 mm Reduced Power Loss and Heat Development Due to Digital PWM Output Stages (AXIALSCAN-30 DIGITAL II) Optimized long-term drift for highly challenging process quality (AXIALSCAN-30/50 DIGITAL II/HP) Optional: Pilot laser function (AXIALSCAN-50 DIGITAL II) Max. Input Apertures: 15, 20 mm Optical Deflection (typ.): ±0.393 rad Resolution XY2-100, 16 Bit: 12 µrad Resolution SL2/RL3-100, 20 Bit: 0.76 µrad Repeatability (RMS): <0.4, <2.0 µrad Position Noise (RMS): <2.0, <3.2 µrad Max. Temperature Drift: 8, 15 ppm/K Gain, 10, 15 µrad/K Offset Long-term Drift (8 h): <50 to <100 µrad, <30, <40 µrad (Water Temperature Control) Beam Displacement: 25.63 to 60 mm Tuning: VC, H, M, FV, LS Processing Speed: 10 to 65 rad/s Positioning Speed: 10 to 65 rad/s Tracking Error: 0.155 to 1.5 ms Step Response Time (@1% of Full Scale): 0.54 to 1.9 ms Power Supply: ±15 to ±18 VDC, 7.5 A RMS, max. 10 A, +30/+48 VDC, 4, 6 A RMS, max. 8, 10 A Temperature Range: +15°C to +35°C Protection: IP 54, IP64 Dimensions: 270 x 140 x 320 mm, 380 x 200 x 494 mm, 550 x 280 x 230 mm Weight: Approx. 5.5 to 28 kg Key Features AXIALSCAN-FIBER 20/30/50: “High Power” Version for Welding in the E-mobility Market or “High Dynamic” Version for the Powder-bed Process (SLM) in Additive Manufacturing 4-times Productivity by Quadruple Design With 100 % Overlapping Above the Production Panel Dust-proof and Tailored to the Requirements of Industrial Powder Bed Machines Easy System Integration With Direct Laser-fiber Connection and Multiple Mounting Possibilities “On-Axis” Quality Control by Integrated Process-monitoring Interface (AXIALSCAN-FIBER 50) Wide Range of Options for Coaxial Inline Process Control (AXIALSCAN-FIBER 50) Sharp and Precise Cutting of Battery Foils (AXIALSCAN-FIBER 50) Applications: Scribing; Cutting; Perforating; Welding; Drilling; Marking-and-processing-On-The-Fly (MOTF) Applications; Bleaching; 3D Applications; Additive Manufacturing (SLM); Packaging Industry; Micro-material Processing; Processing of Moving Parts; E-Mobility; Welding of Bipolar Plates for Fuel Cells

Together with our supplier Vortex, we are able to provide optical beamsplitters and dichroic filters that are placed in optical systems usually at 45° to separate (or combine) different wavebands or wavelengths. One band is reflected from the front surface, while the 2nd band is transmitted through. Vortex’s beamsplitters and dichroic filters can be used to separate different planes of polarization. Some examples of Vortex’s previous work: Beamsplitter for Visible Region to Split/Combine Two Wavelength Bands, 45° Beamsplitter to Separate Two Wavelength Bands in the Mid IR Region at 45° Mid IR Filter Used for Separating S and P Polarization Bands at 45° Polarizing Beam-Splitter for S and P Polarization for 1550 nm Laser at 45° Filter for Separation of Visible and Far Infrared at 45° We are happy to provide a unique beamsplitter or dichroic filter – designed, specified and manufactured to your application’s requirements. Contact the AMS Technologies experts today to discuss your customized beamsplitter or dichroic filter solution!

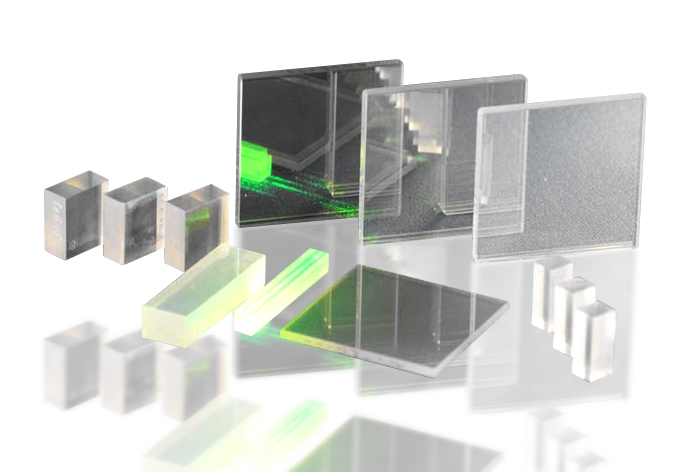

Wavelength 600-2500 nm; Bandwidth 0.2-100 nm; Diffraction Efficiency 5-99%; Thickness Up to 50 mm; Aperture Up to 20x20 mm OptiGrate’s chirped volume Bragg gratings (CBGs) are diffractive optical elements operating as reflecting Bragg gratings with a period gradually varying along direction of beam propagation. This feature results in reflection of different wavelengths from different holographically recorded planes inside the grating. OptiGrate’s BragGrate™ Pulse is the first commercially available Chirped Bragg Grating (CBG) based product designed for the stretching and compression of ultra-short (femtosecond and picosecond) laser pulses in Chirped Pulse Amplification (CPA) and other Ultra-Short Pulse Laser (USPL) systems. It is the most compact and robust stretcher/compressor solution for high-energy and high-average-power ultra-short pulsed laser systems. The BragGrate™ Tuner is a reflecting volume Bragg grating with chirped period in one direction across its aperture, recorded in a bulk of photosensitive silicate glass. BragGrate™ Tuners can be used as an output coupler or HR mirror in a laser resonator. It enables both spectral stabilization and tuning of the laser radiation. High laser damage threshold makes these gratings suitable for usage in high-power and high-energy pulsed lasers. Tunable lasers based on these components are simple, compact, and robust. Simple linear translation of grating without angular adjustment is needed for wavelength tuning. Lasers with BragGrate™ Tuners can operate in selective laser melting (SLM) regime. Key Features: Compact Geometry and Easy-to-align Ideal for Industrial and Scientific Applications High-power Operation: Up to 1 kW Average Power High-energy Operation: Up to 2 mJ Pulse Energy Environmentally Stable Robust, Easy to Handle and Clean Multiplexed Gratings for Idle/Signal Control (BragGrate™ Tuner) Stretcher and Compressor in One Element Operating Range: 600 nm to 2500 nm Typical Center Wavelength: 1030 nm Spectral Bandwidth: 0.2 nm to 100 nm; 50 GHz to 500 GHz Typical Spectral Bandwidth for 1030 nm Spectral Range: 5 nm to 25 nm Tuning Range: >20 nm; 1 nm to 30 nm Chirp: Linear Across Full Aperture High Operation Temperatures Continuous Tuning, No Mode-hops Wide-range SF Tuning Compact/Simple Cavity Design Thickness: Up to 50 mm Typical Thickness for 1030 nm Spectral Range: 20 mm to 45 mm Stretching Time (FWHM): Up to 0.5 ns Efficiency: 5% to 99% Typical Diffraction Efficiency for 1030 nm Spectral Range: >85% Apertures: Up to 20 x 20 mm² M2: <1.3 Typical Stretching Time (FWHM) for 1030 nm Spectral Range: ~ 300 ps Typical Dispersion Rate for 1030 nm Spectral Range: ~ 6, 12, 25, 60 ps/nm (Linear) Typical Compressed Pulse Duration for 1030 nm Spectral Range: <200 fs Applications: Stretcher and Compressor for Ultra-short Pulse and Chirped-pulse Amplification (CPA) Laser Systems; Industrial; Scientific; Tunable Output Coupler; Tunable Total Mirror; Tunable Filter; Spectral Beam Combination

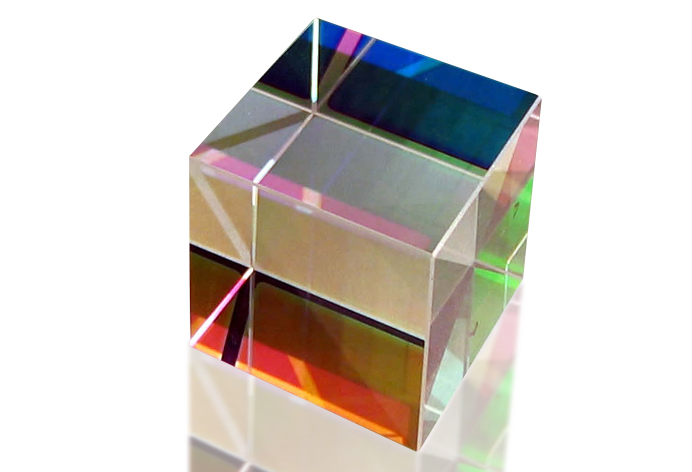

Beamsplitters are optical components splitting an incident light beam into two parts. Beam splitters take on many forms: cubes, plates, hexagons, pentagons, polarizing, non-polarizing (usually somewhere in between), narrowband, broadband, dielectric, air-spaced, metal, cemented, optically contacted (epoxy-free bonding), a.s.o. If you are looking for a customized beamsplitter that exactly meets your specific performance and cost requirements, please get in touch with the AMS Technologies beamsplitter experts. Our supplier LightMachinery is extremely experienced with specifying, designing and manufacturing custom beamsplitters using the company’s patented fluid jet polishing (FJP) technology that allows the adjustment of the beamsplitter’s shape and flatness to within a few nanometers. We are looking forward to discussing your customized beamsplitter solution! Together with our supplier LightMachinery, it is our job at AMS Technologies to help you sort out the specifications of your customized beamsplitter. Some of the key parameters to think about are wavelength range, polarization and physical size requirements. For instance, P polarization is much more inclined to transmit at large angles (in the 45° range). The challenge for coating designers is to adjust the transmission of the two polarizations to meet the specific requirements of your custom beamsplitter. Also, if the beamsplitter will be used inside an interferometer, you may need to consider path length and phase matching requirements. It is always good if you can explain how you will be using your beamsplitter, it can really help us to define out your requirements. Due to multiple requests for a very accurate beamsplitter, AMS Technologies is offering two standard LightMachinery precision cube beam splitters with angles good down to 1 arcmin and surfaces flat to λ/10. While the OP-5119 beamsplitter is suitable for the 400 to 900 nm wavelength range in the visible (VIS) spectrum, the OP-5120 beamsplitter is optimized for infrared (IR) wavelengths from 800 to 1750 nm. However, do not hesitate to contact AMS Technologies to discuss and specify your custom beamsplitter in detail!

OPTAplus designs and manufactures custom cylindrical lenses. Cylindrical lenses refract light in only one dimension – so a converging lens focuses the light on a straight focal line instead of on a focal point as in a spherical lens. OPTAplus’ cylindrical lenses are available as plano-concave or plano-convex types, either spreading or focusing the beam of light. Further versions available are rod lenses or doublets/triplets for applications like focusing polychromatic light in a single direction with minimum chromatic aberration. The cylindrical lenses can be manufactured in dimensions ranging from 2.0 up to 250.0 mm. Bigger models can be realized on customer request. The lenses can be manufactured in a variety of materials: optical glass, quartz glass, Borosilicate glass and colour-filter glass, as well as crystals like Si, Ge, MgF2, CaF2, Sapphire and others. OPTAplus provides a wide variety of coatings for the NIR, VIS and UV for single wavelength or spectral area on customer’s request: Anti-reflection (AR) Coatings: Single-layer AR Coating, V-coating and Multi-layer Coating Reflective Coatings: Metallic and Dielectric Coating Polarizing Coating   Please contact the AMS Technologies optical lens experts to discuss your customized spherical lens solution that exactly matches your application’s requirements. Applications: Measurement & Control; Medical; Laser; Engineering; Sensors; Machine Vision; Image Processing; Aerospace & Defense; Other

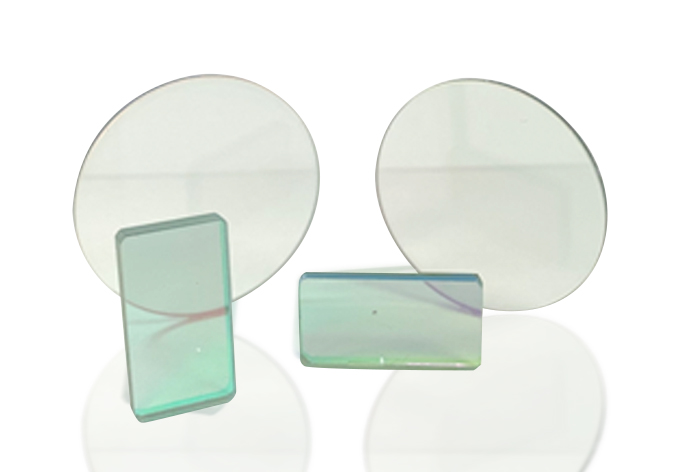

OPTAplus designs and manufactures custom optical filters exactly tailored to the customer’s requirements. Custom optical filters are available with dimensions ranging from 3.0 mm to 200.0 mm. OPTAplus’ portfolio comprises custom optical filters made from a broad range of materials like various optical glasses, quartz glass, Borosilicate glass, color-filter glass as well as crystal materials like Si, Ge, MgF2, CaF2, Sapphire, etc. Polishing is available either one-side or double-side. On request, OPTAplus’ custom optical filters can be coated with a variety of coatings for the NIR, VIS and UV range for single wavelength or a spectral area, from single-layer or multi-layer anti-reflection (AR) coatings to metallic or dielectric reflective coatings to polarizing coatings. Please contact the AMS Technologies optical filter experts to discuss your customized optical filter solution that exactly matches your application’s requirements.

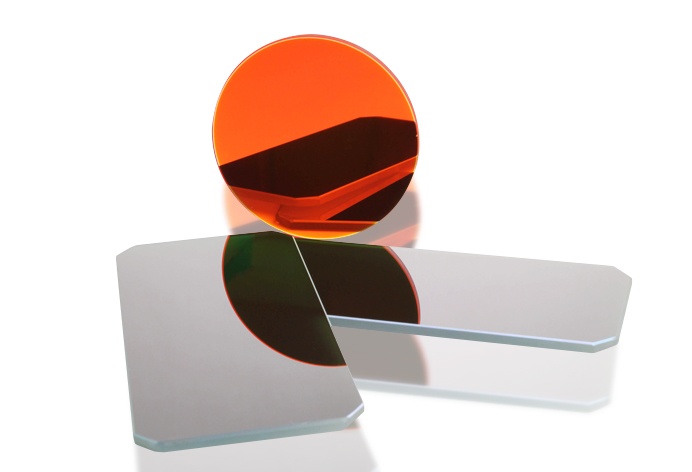

A broad range of custom optical mirrors is available from OPTAplus, with design and production exactly tailored to the customer’s requirements. Custom optical mirrors are available with dimensions ranging from 3.0 mm to 200.0 mm. OPTAplus’ portfolio comprises custom optical mirrors made from a broad range of materials like various optical glasses as well as crystal materials, coated with metallic or dielectric reflective coatings or polarizing coatings. Please contact the AMS Technologies optical mirror experts to discuss your customized optical mirror solution that exactly matches your application’s requirements.

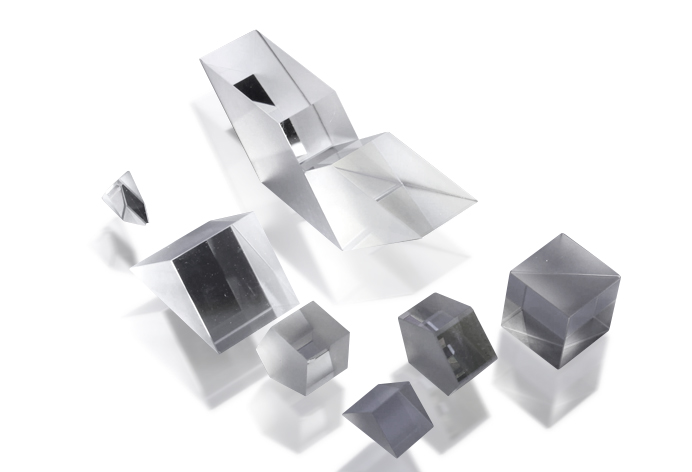

A broad range of custom optical prisms is available from OPTAplus. Within the OPTAplus product range, you can choose between various prism types like right-angle prisms, 30°-60° prisms, corner cubes, roof prisms, Dove prisms, penta prisms, dispersion prisms or wedges – with dimensions ranging from 2.00 mm to 100.00 mm. Optical prisms are made of material that is optically transparent to light of the relevant wavelength. This material is shaped into a prismatic form in which the end faces are not parallel to each other, resulting in optical refraction when a light beam is sent through the optical prism. Typical applications for optical prisms are dispersion, reflection, deflection, rotation and axis offset of a light beam. Does your application require customized optical prisms? Get in touch with the AMS Technologies optical prism experts to discuss your specific requirements.

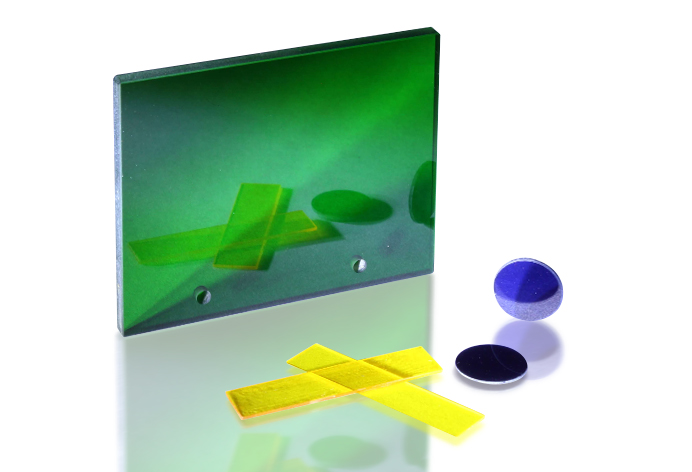

OPTAplus designs and manufactures custom optical windows exactly tailored to the customer’s requirements. Custom optical windows are available in round, rectangular or elliptical shape, with dimensions ranging from 3.0 mm to 200.0 mm.  OPTAplus’ portfolio comprises protective windows as well as high-precision windows for laser applications made from a broad range of materials like various optical glasses, quartz glass, Borosilicate glass, color-filter glass as well as crystal materials like Si, Ge, MgF2, CaF2, Sapphire, etc. Customers can choose one-side or double-side polishing. On request, these custom optical windows can be coated with a wide variety of coatings for the NIR, VIS and UV range for single wavelength or a spectral area, from single-layer or multi-layer anti-reflection (AR) coatings to metallic or dielectric reflective coatings to polarizing coatings. Please contact the AMS Technologies optical window experts to discuss your customized optical window solution tailored to your application’s requirements. Key Features: Dimensions: 3.0 mm to 200.0 mm Flatness: L/10 to L/20 Parallelism: <10 arcsec Surface Quality: 10-5 S/D per MIL-0-13830-A and 5/ 2 x 0.025 per DIN 3140 Applications: Laser; Measurement & Control; Medical; Engineering; Sensors; Machine Vision; Image Processing; Aerospace & Defense; Other

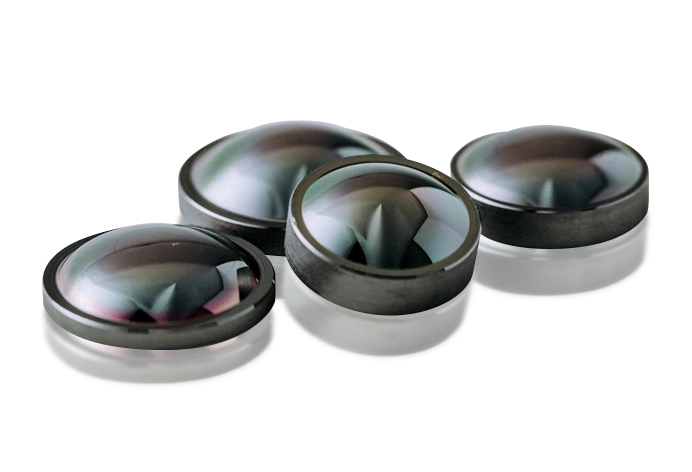

OPTAplus designs and manufactures custom spherical lenses. Both surfaces of spherical lenses feature a spherical shape, they are defined by sections of a geometrical sphere. OPTAplus’ custom spherical lenses are available as plano-concave or plano-convex types, either spreading or focusing the beam of light, but also in bi-convex or bi-concave shapes. Further versions available are doublets and triplets. OPTAplus is capable of manufacturing spherical lenses in dimensions ranging from 2.0 mm up to 250.0 mm or even bigger on customer request. Available materials are optical glass, quartz glass, Borosilicate glass and colour-filter glass, as well as crystals like Si, Ge, MgF2, CaF2, Sapphire and others. On customer request, OPTAplus’ custom spherical lenses can be coated with a broad selection of coating materials for the NIR, VIS and UV range for single wavelength or spectral area: Anti-reflection (AR) Coatings: Single-layer AR Coating, V-coating and Multi-layer Coating Reflective Coatings: Metallic and Dielectric Coating Polarizing Coating   Please contact the AMS Technologies optical lens experts to discuss your customized spherical lens solution that exactly matches your application’s requirements. Applications: Measurement & Control; Medical; Laser; Engineering; Sensors; Machine Vision; Image Processing; Aerospace & Defense; Other

Definition of Laser Process Parameters; Creating Drill Patterns, Text Objects and Filling Structures; Bitmap Marking; Multiplying Container; Comprehensive Vector Editing; Pen Management/Assignment; Job Analytics; Integration of SP-ICE-3 Control Card Raylase sees itself as a full-range supplier, offering a complete portfolio – from deflection units to control electronics and the corresponding laser processing software. Raylase’s deflection unit software makes tailor-made solutions possible and guarantees that machine manufacturers can drive their product development forward and venture into the high-performance arena. The resulting combination of lasers, laser deflection units and the corresponding software improves performance and reduces costs. The RAYGUIDE software architecture is designed to respond quickly and flexibly to ever-changing and increasingly complex applications, while simultaneously guaranteeing a high degree of product stability. RAYGUIDE offers a wide range of features, and its functional scope will be enhanced on an ongoing basis to meet your growing requirements. For customers that want to access RAYGUIDE functions from their own user interfaces, Raylase offers a software development kit (SDK). This is a program library that also incorporates all the application benefits of RAYGUIDE. The interface is programmed in the Dot.Net environment. The Multi-Point Editor is a software application for creating and editing RAYLASE correction files to adapt them to the individual opto-mechanical situation of each laser system. The correction files provided for your deflection unit by the manufacturer already take into account the respective wavelength, the aperture of the deflection unit, the working distance and much more. In this way, sufficient accuracies can be ensured for many applications. Nevertheless, each system has individual tolerances. In addition, alignment errors occur during the setup of your system, which must be compensated for in order to achieve even higher accuracies in scan field calibration. Raylase provides you with the Multi-Point Editor software free of charge. You do not need a license to use it. NOTE: When using the RAYGUIDE laser process software, the Multi-Point Editor application is already included as an integral part. Key Features RAYGUIDE: Optically Innovative User Interface With User-defined Configuration of the Required Panels Full Integration of the Raylase SP-ICE-3 Control Card Equipped With Functions to Support all Existing and New Raylase Deflection Units Definition of Laser Process Parameters Creating Drill Patterns, Text Objects and Filling Structures Bitmap Marking, Multiplying Container, Pen Management/Assignment, Job Analytics Agile Architecture for Responding Quickly to New Requirements Easy Integration into Automated Production Environments Comprehensive Vector Editing: Powerful Toolbox to Optimize Vector Graphics Integrate Part or the Complete GUI into Your Machine’s HMI Use Plugins to Integrate Individual Functions into RAYGUIDE Powerful Multi-point Editor Tool is Integral Component of RAYGUIDE User Interface Manage Multiple Control Cards and Associated Deflection Units Emulated Control Card Allows to Perform Many tasks Without Connecting a Control Card Key Features MULTI-POINT-EDITOR: Calibration of the XY Correction Values Calibration of the Z Correction Values for the Third Optical Axis (if Available) Creation of a Correction Table for the Local Adjustment of Laser Power Creation of a Specially Defined Correction File by Entering Optical Parameters Direct Marking of the Calibration Pattern (in Connection With the Use of a SP-ICE-3 Control Card) Definition of a Sub-field (if Not the Whole Scan Field is Used) Selection From Various Calibration Patterns Direct Input of Scaling, Rotation, Offset and Trapezoidal Deviations Import Function of Measured Values Various Visualization Options of the Calibration Data for Validation of the Measured Values and Statistical Evaluation Applications: Marking (Bitmaps, Text, Codes, Graphics); Welding; Cutting; Perforating; Surface Processing; MOTF Processing; Preparation for Stand-alone Operation With the SP-ICE-3 control card

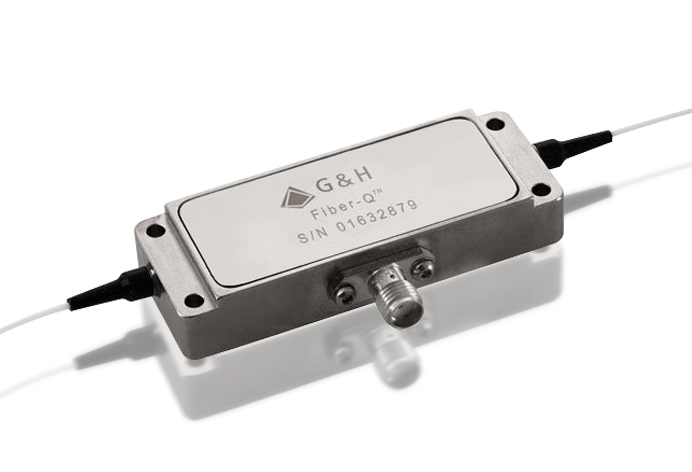

Wavelength 450-200 nm; Pigtail Type SM, PM; Rise / Fall Time 6-100 ns; Operating Frequency 40-300 MHz; Fiber-coupled acousto-optic modulators (FCAOM) offer a robust solution for amplitude modulation of fiber lasers, allowing direct control of the timing, intensity, and temporal shape of the laser output. Gooch & Housego’s (G&H) Fiber-Q® modulators offer high extinction ratio, low insertion loss and excellent stability in both polarization maintaining (PM) and non-PM formats at modulation frequencies up to 80 MHz for visible and infrared wavelengths. Built for reliability, the Fiber-Q® series of products features a rugged hermetic design in a compact, low-profile package, ideal for ease of integration into all-fiber and OEM systems, including medical laser systems.Each Fiber-Q® acousto-optic modulator requires an RF driver to generate the RF signal creating the acoustic wave within the embedded AO crystal. Modulation of the beam through the Fiber-Q will depend upon the frequency and intensity of the applied RF signal. Contact our sales team to identify the best RF driver for your specific application, taking into consideration the type of modulation required (digital or analog) as well as any specific pulse shaping needs.A fiber-coupled acousto-optic modulator (FCAOM) can directly control the temporal characteristics of the active output from a fiber laser, offering a wider variety of pulse shapes. As a byproduct of the acousto-optic effect, light passing through the first order diffraction mode of a fiber-coupled modulator also experiences a frequency shift and beam deflection. This allows the Fiber-Q® products to be used for more than just modulation, resulting in applications outside the laser such as optical heterodyne interferometry. G&H’s fiber optic acousto-optic modulators are designed for low insertion loss, high extinction ratio and excellent return loss. Typical optical performance for the Fiber-Q® series includes: Insertion loss: as low as 2 dB, depending on model Extinction ratio: 50 dB Return loss: 40 dB Polarization extinction ratio: 20 dB (for polarization-maintaining models) G&H has developed the first devices for visible wavelengths from 397 nm to 780 nm to meet the needs of sensing and quantum technology applications. The fast switch rate Fiber-Q® devices enable efficient, high speed optical pulse picking at infrared wavelengths for all-fiber laser systems. Most devices are also offered in 3-port configurations.Applications: Industrial Lasers; Sensing; Scientific Research; Telecommunication; Quantum Technology; Optical Heterodyne Interferometry; Microscopy; Flow Cytometry Series Product Code Wavelength Pigtail Type Rise / Fall Time Operating Frequency Downloads Fiber-Q 1060 nm 150 MHz Non-Hermetic Fiber-Coupled AOM S-M150-0.4C2G-3-F2S 1060 nm SM 30 ns 150 MHz Datasheet Datasheet Datasheet Driver Fiber-Q 1060 nm 200 MHz Non-Hermetic Fiber-Coupled AOM S-M200-0.1C2G-3-F2P 1060 nm SM 10 ns 200 MHz Datasheet  Driver   Driver  Driver Fiber-Q 450 nm 200 MHz S-M200-0.4C2A-3-F2P, S-M200-0.4C2A-3-F2S 450 nm PM, SM 25 ns 200 MHz Datasheet  Driver   Driver  Driver  Fiber-Q 532 nm 200 MHz S-M200-0.4C2C-3-F2P, S-M200-0.4C2C-3-F2S 532 nm PM, SM 25 ns 200 MHz Datasheet  Driver  Driver     Fiber-Q 633 nm 200 MHz Fiber Coupled AOM S-M200-0.4C2E-3-F2P, S-M200-0.4C2E-3-F2S 633 nm PM, SM 25 ns 200 MHz Datasheet  Driver   Driver    Fiber-Q PM 1550 nm, 40 MHz (AMTIR) T-M040-0.5C8J-3-F2P 1550 nm PM 100 ns 40 MHz Datasheet  Driver  Driver  Driver  Fiber-Q 1550 nm 40 MHz (AMTIR) T-M040-0.5C8J-3-F2S 1550 nm SM 100 ns 40 MHz Datasheet Datasheet Datasheet Driver  Fiber-Q PM 2000 nm 80 MHz Hermetic Fiber Coupled AOM T-M080-0.3C2Z-3-F2P 2000 nm PM 100 ns 80 MHz Datasheet  Driver      Fiber-Q 2000 nm 80 MHz Hermetic Fiber Coupled AOM T-M080-0.3C2Z-3-F2S 2000 nm SM 100 ns 80 MHz Datasheet  Driver     Fiber-Q PM 1550nm 80MHz Hermetic Fiber-Coupled AOM T-M080-0.4C2J-3-F2P 1550 nm PM 35 ns 80 MHz Datasheet  Driver     Fiber-Q 1550 nm 80 MHz Hermetic Fiber Coupled AOM T-M080-0.4C2J-3-F2S 1550 nm SM 35 ns 80 MHz Datasheet  Driver     PM Fiber-Q Polarization Maintaining 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) T-M080-0.5C8J-3-F2P 1550 nm PM 100 ns 80 MHz Datasheet  Driver      Fiber-Q 1550 nm Hermetic Fiber Coupled Acousto-Optic Modulator, 80 MHz (Low Power Consumption) T-M080-0.5C8J-3-F2S 1550 nm PM 100 ns 80 MHz Datasheet  Driver      Fiber-Q PM 1550 nm 110 MHz Hermetic Fiber Coupled AOM T-M110-0.2C2J-3-F2P 1550 nm PM 25 ns 110 MHz Datasheet Driver       Fiber-Q 1550 nm 110 MHz Hermetic Fiber Coupled AOM T-M110-0.2C2J-3-F2S 1550 nm SM 25 ns 110 MHz Datasheet  Driver      Fiber-Q PM 1060 nm 150 MHz Hermetic Fiber Coupled AOM T-M150-0.4C2G-3-F2P 1060 nm PM 30 ns 150 MHz Datasheet  Driver     Fiber-Q 1060 nm 150 MHz Hermetic Fiber-Coupled AOM T-M150-0.4C2G-3-F2S 1060 nm SM 30 ns 150 MHz Datasheet  Driver     Fiber-Q, 780 nm, 150 MHz Fiber Coupled AOM T-M150-0.5C2W-3-F2P, T-M150-0.5C2W-3-F2S 780 nm PM, SM 50 ns 150 MHz Datasheet  Driver     Fiber-Q PM 1060 nm 200 MHz Hermetic Fiber Coupled AOM T-M200-0.1C2G-3-F2P 1030 - 1090 nm PM 10 ns 200 MHz Datasheet  Driver Driver     Fiber-Q 1060 nm 200 MHz Fiber Coupled AOM T-M200-0.1C2G-3-F2S 1060 nm SM 10 ns 200 MHz Datasheet  Driver  Driver  Driver  Fiber-Q PM 1550 nm 200 MHz Hermetic Fiber-Coupled AOM T-M200-0.1C2J-3-F2P 1550 nm PM 10 ns 200 MHz Datasheet  Driver Driver     Fiber-Q 1550 nm 200 MHz Hermetic Fiber-Coupled AOM T-M200-0.1C2J-3-F2S 1550 nm SM 10 ns 200 MHz Datasheet  Driver Driver     Fiber-Q 2000 nm (2µm) 250 MHz Fiber Coupled AOM T-M250-0.3C16Z-3-F2P 2000 nm PM 20 ns 250 MHz Datasheet  Driver      Fiber-Q 1060 nm 300 MHz Hermetic Fiber Coupled AOM T-M300-0.1C2G-3-F2P, T-M300-0.1C2G-3-F2S 1060 nm PM, SM 6 ns 300 MHz Datasheet  Driver      Fiber-Q 1550 nm Fiber Coupled Acousto-Optic Modulator T-M300-0.1C16J-3-F2P 1550 nm PM 6 ns 300 MHz Datasheet Driver

The use of lasers as the illumination source for fluorescence applications requires special consideration for the optical path. This special attention centers on the coherent nature of the light, the small beam diameter, the polarization, and the power. There are also circumstances where cone angle and scatter within the system play significantly into the design of the optics. Chroma Technology specializes in the design and manufacture of optical filters and coatings for applications that require extreme precision in color separation, optical quality, and signal purity. Chroma Technology’s portfolio comprises single bandpass and single edge filters, multi bandpass and multi band dichroic beamsplitters, complete filter sets for single band, longpass, shortpass and multi band as well as filter accessories. Laser optics must be designed and made differently from standard widefield filters and mirrors. While it is true that most laser optics will work fine in widefield applications, the inverse is clearly not true, as shown by the different specifications in each case. The differences in design and construction may not be apparent to the end-user in every laser application. However, these differences will be painfully obvious in most experiments if these specifications are not met, especially with more demanding applications such as TIRF, Raman, and multi-photon microscopy. While the entire beam path should be considered carefully, the downloadable “application note filters and mirrors for laser applications” emphasizes the filters and dichroic mirrors used in the beam path. Get in touch with the AMS Technologies optical filter experts today to find out which Chroma Technology optical and mirrors for laser applications can meet the demands and challenges of your project. Key Features: Extremely Durable High-throughput Sputter-coated Filters Very Broad Range of Filters for the Multitude of Fluorochromes Used in Epi-fluorescence Microscopy Dichroic Beamsplitters With Various Spectral Profiles Available Customized Filter Sets Available on Request Transmission Level: up to 97% Applications: Fluorescence Applications; TIRF (Total Internal Reflection Fluorescence); Raman Spectroscopy; Multi-photon Microscopy

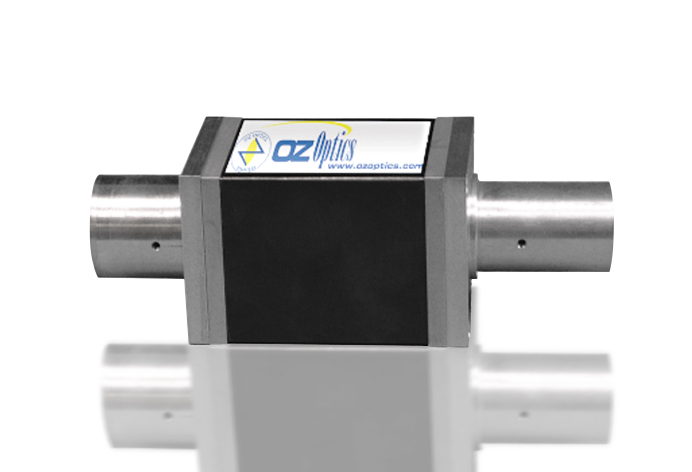

Polarization Sensitive & Insensitive Versions; 1040 nm to 1090 nm; Isolation ≥35 dB; Power Handling ≤80 W; 48 mm x 48 mm x 133 mm The FO(P)I-00 series of free space isolators are featuring options to allow the customer to mount their own fiber pigtailed collimator or beam expander. The OZ Optics tilt adjustment technique gives customers the ability to perform the optical alignment themselves.Isolators are optical devices that allow light to be transmitted in one direction only. They block the source from reflected light, thus preventing any feedback problems, such as frequency instability, relaxation oscillations, amplified stimulated emissions, or optical damage – very critical with the recent dramatic increase in laser output powers, especially in the 1030 to 1090nm wavelength range. To meet this demand OZ Optics has developed a line of high power handling isolators, capable of peak isolation levels of 30 dB to 50 dB for 1030 nm to 1090 nm, depending on the input beam size (with typical beam diameters of 0.4mm to 1.1mm). The isolators come with built-in windows to prevent dust contamination of internal isolator optics. These protection windows are easily removed and replaced by the user. Custom smaller packages can be made for OEM applications – contact us for more details. Key Features: Operating Wavelength Range: 60 nm Power Handling: Up to 80 W Isolation: Up to 50 dB Low Insertion & Polarization-dependent Losses Excellent Beam Quality Removable Protective Windows RoHS compliant Applications: Protection of high power lasers from reflections during a) laser marking and engraving; b) laser cutting and etching of metal surfaces with high reflectance such as Al, Cu, Au or Ag; c) micro machining and trimming
