Fin Heat Exchangers

Tube Material Stainless Steel; Fin Material Copper; 380-3,000 W; Liquid Pressure Drop 0.4-2.2 bar; Air Pressure Drop 29.89-54.80 Pa; Fan Plate Included The 4000 Series are Aavid-Boyd’s (formerly Lytron’s) highest performing stainless steel tube-fin heat exchangers, ideal for applications where deionized water or corrosive fluids are used and a high efficiency, compact unit is required. When high performance in a small envelope is required, the 4000 Series is the best option. Heavy-walled, seamless stainless steel tubes are expanded into copper fin with an extruded full collar. The copper fin and the excellent metal-to-metal contact between the tube and the fin collar ensure optimum thermal performance. All wetted surfaces are 316L stainless steel, making them ideal for high purity and/or corrosive coolants such as deionized water. The welded stainless steel frame and fan plate offer durability and strength. Aavid-Boyd’s 4000 Series heat exchangers with 0.7 mm tube wall thickness are 100% leak tested to 10.3 bar. The integrated fan plate acts as a plenum to ensure uniform air-flow distribution through the core, thus maximizing performance. It also enables easy fan installation. 4000 Series style heat exchangers can be manufactured in custom sizes and tube configurations to meet your thermal and mechanical specifications. Inlet/outlet positions, fittings, paints and other coatings are available. Assemblies including fans and other components can also be supplied. Please get in touch with the AMS Technologies thermal technology experts to discuss your customized heat exchanger solution! Key Features: Engineered for Performance Compatible With Deionized Water and Corrosive Liquids Rugged and Reliable Tube Material (Fluid Path): Stainless Steel Fin Material: Copper Integrated Fan Plate for Improved Performance and Convenience Fitting: SB Straight Fitting Cooling Capacity: 380 to 3,000 W Maximum Pressure: 10.3 bar Liquid Pressure Drop: 0.4 to 2.2 bar Air Pressure Drop: 29.89 to 54.80 Pa; Optional Fan Kit With 1 or 2 Fans Fluid Volume: 50 to 844 ml Dimensions 194 x 33 x 168 to 483 x 64 x 229 mm Applications: Military & Aerospace; Medical; Industrial; Lasers; Medical Imaging; Analytical Instrumentation; Power Electronics; Semiconductor Equipment; Machine Tools; Telecommunications

Copper fin, stub-end, 380 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

Heat Exchanger - 4000 Series - Stainless Steel Tubes, Copper Fin, Stub End, with fan plate for 1 fan

Copper fin, stub-end, 680 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

Copper fin, stub-end, 1280 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

Copper fin, stub-end, 2100 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

Copper fin, stub-end, 2100 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

Copper Fin, stub end, 3000 W, maximum pressure 150 psi.  Aavid-Boyd's (formerly Lytron's) 4000 Series™ heat exchanger is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.

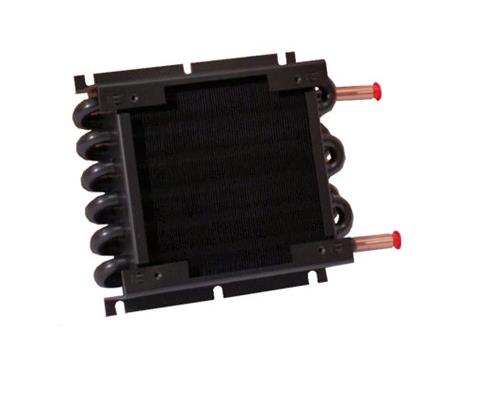

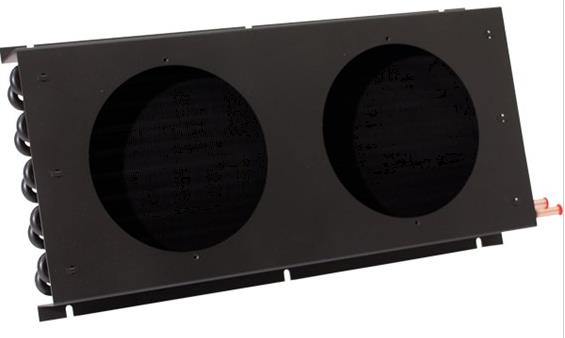

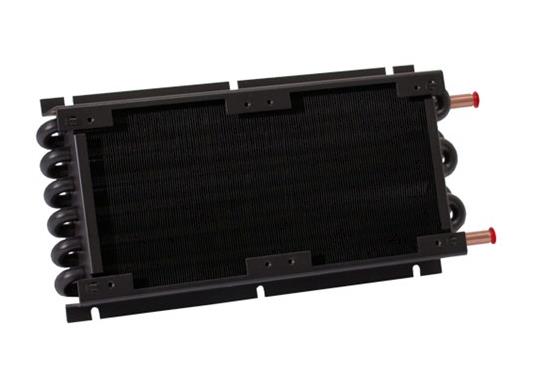

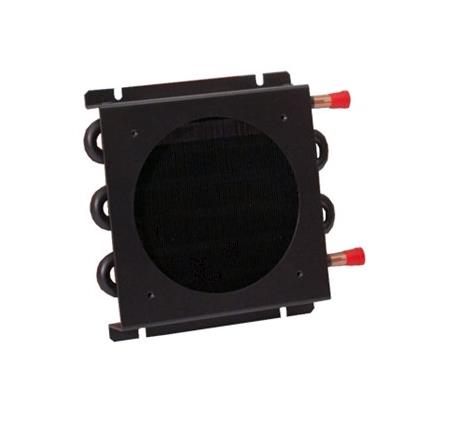

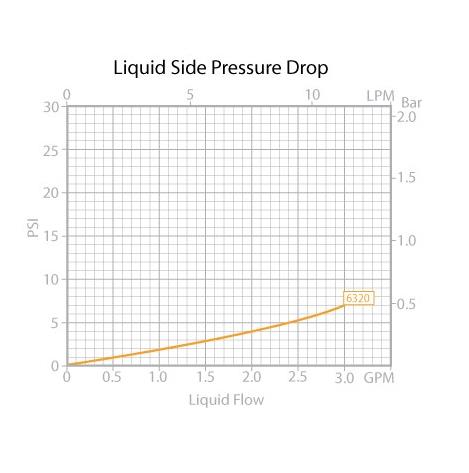

Tube Material Copper; Fin Material Copper, Aluminium; 360-7,600 W; Liquid Pressure Drop 0.1-0.2 bar; Air Pressure Drop 27.40-49.82 Pa; Supplied with Built-in, Fan-ready Mounting Hardware Aavid-Boyd’s (formerly Lytron’s) 6000 Series of copper tube-fin heat exchangers offers high performance and reliability. It uses copper fins, is painted black for corrosion resistance, and includes a fan plate. The 6000 Series are attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. The seamless copper tubes are expanded into the fin with an extruded full collar that ensures excellent metal-to-metal contact to optimize thermal performance. With the 6000 Series, the high tube density results in maximum heat transfer. Compatible with water, ethylene glycol/water (EGW) solutions and other common coolants, Aavid-Boyd's thick-walled (0.7 mm) seamless copper tubing and fluxless silver-brazed joints ensure the integrity of the fluid path. Heat exchangers are pressure tested to 10.3 bar to guarantee reliability. The 6000 Series units are electro-static dip painted for long life even in corrosive or harsh environments. Key Features: Type: Tube-fin Heat Exchanger Liquid-to-air Tube Material (Fluid Path): Copper Fluid Compatibility: Water, EGW Solution, Common Coolants Fin Material: Copper, Aluminium (6340 Model) Fan Plate Included for Improved Performance and Convenience Fitting: SB Straight Fitting, 22.2 mm O.D. Union Fitting (6340 Model) Cooling Capacity: 360 to 7,600 W (20 °C Initial Temperature Difference Between Inlet Fluid and Inlet Air Using Standard Fan Operating on 60 Hz Power and Maximum Coolant Flow Rate) Maximum Operating Temperature: +200 °C Maximum Pressure: 10.3 bar Maximum Flow Rate: 7.6 to 37.8 l/min Liquid Pressure Drop: 0.1 to 0.2 bar Air Pressure Drop: 27.40 to 49.82 Pa Optional Fan Kit With 1, 2 or 4 Fans Fluid Volume: 50 to 1737 ml Dimensions: 188 x 33 x 168 to 699 x 89 x 564 mm Dry Weight: 0.7 to 13.6 kg Applications: High-performance Cooling With Water, Ethylene Glycol/Water Mixture (EGW) and Common Coolants

Copper fin, stub-end, 360 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

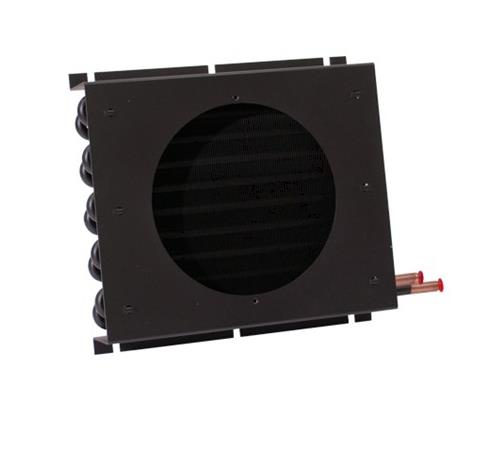

Heat Exchanger - 6000 Series - Copper Tubes, Copper Fin, Beaded Tube, with fan plate for 1 fan

Copper fin, stub-end, 430 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Copper fin, stub-end, 700 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Copper fin, stub-end, 1240 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Copper fin, stub-end, 2000 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Copper fin, stub-end, 2110 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Copper fin, stub-end, 3000 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

Aluminum fin, stub-end, 7600 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

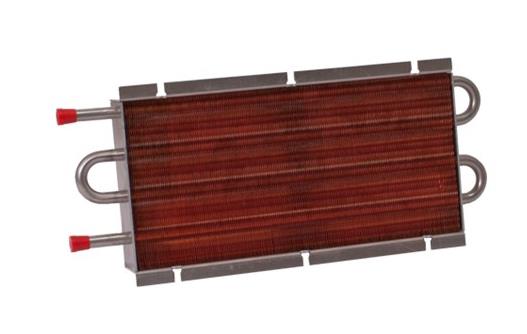

Aluminum fin, stub-end, 400 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used. When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.

Copper fin, stub-end, 840 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used.  When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.

Aluminum fin, stub-end, 1000 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used. When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.

Aluminum fin, stub-end, 370 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used. When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.

Aluminum fin, stub-end, 1580 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used. When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.

Aluminum fin, stub-end, 2700 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) stainless steel Aspen® heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. These heat exchangers are ideal for applications where deionized water or corrosive fluids are used. When a slightly lower performance/size ratio is acceptable, the Aspen offers better value.
