6120G1SB - 6000 Series - copper tube-fin, heat exchanger

Copper fin, stub-end, 430 W, maximum pressure 150 psi. Aavid-Boyd's (formerly Lytron's) 6000 Series™ is an attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. These heat exchangers have copper tubing expanded into copper cooling fins. They are electro-static dip painted for hostile environments and all units are supplied with built-in, fan-ready mounting hardware.

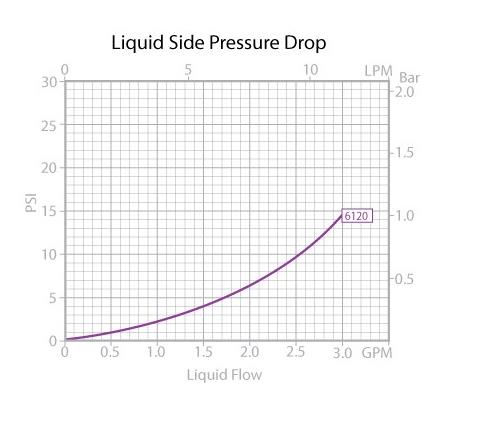

Tube Material Copper; Fin Material Copper, Aluminium; 360-7,600 W; Liquid Pressure Drop 0.1-0.2 bar; Air Pressure Drop 27.40-49.82 Pa; Supplied with Built-in, Fan-ready Mounting Hardware Aavid-Boyd’s (formerly Lytron’s) 6000 Series of copper tube-fin heat exchangers offers high performance and reliability. It uses copper fins, is painted black for corrosion resistance, and includes a fan plate. The 6000 Series are attractive, high performance heat exchanger that delivers efficient heat transfer and maximum reliability in a compact package. The seamless copper tubes are expanded into the fin with an extruded full collar that ensures excellent metal-to-metal contact to optimize thermal performance. With the 6000 Series, the high tube density results in maximum heat transfer. Compatible with water, ethylene glycol/water (EGW) solutions and other common coolants, Aavid-Boyd's thick-walled (0.7 mm) seamless copper tubing and fluxless silver-brazed joints ensure the integrity of the fluid path. Heat exchangers are pressure tested to 10.3 bar to guarantee reliability. The 6000 Series units are electro-static dip painted for long life even in corrosive or harsh environments. Key Features: Type: Tube-fin Heat Exchanger Liquid-to-air Tube Material (Fluid Path): Copper Fluid Compatibility: Water, EGW Solution, Common Coolants Fin Material: Copper, Aluminium (6340 Model) Fan Plate Included for Improved Performance and Convenience Fitting: SB Straight Fitting, 22.2 mm O.D. Union Fitting (6340 Model) Cooling Capacity: 360 to 7,600 W (20 °C Initial Temperature Difference Between Inlet Fluid and Inlet Air Using Standard Fan Operating on 60 Hz Power and Maximum Coolant Flow Rate) Maximum Operating Temperature: +200 °C Maximum Pressure: 10.3 bar Maximum Flow Rate: 7.6 to 37.8 l/min Liquid Pressure Drop: 0.1 to 0.2 bar Air Pressure Drop: 27.40 to 49.82 Pa Optional Fan Kit With 1, 2 or 4 Fans Fluid Volume: 50 to 1737 ml Dimensions: 188 x 33 x 168 to 699 x 89 x 564 mm Dry Weight: 0.7 to 13.6 kg Applications: High-performance Cooling With Water, Ethylene Glycol/Water Mixture (EGW) and Common Coolants
