Cameras

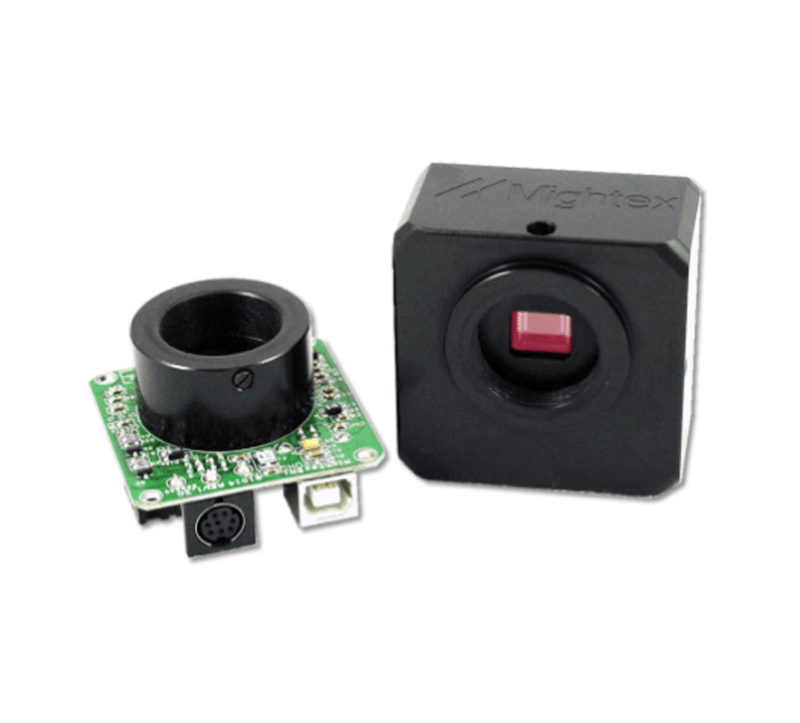

0.36-5 MP; Pixel Size 2.2x2.2-6.0x6.0 µm; Sensor Size 1/3”-1/2” Diagonal; Colour or B/W; 3-310 fps; Resolution 8-12 bit; USB 2.0; Buffered; Progressive Scan; Dynamic Range >55-70 dB; Board-level or Enclosed Mightex’s B-Series USB 2.0 CMOS cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. B-Series cameras are available as colour or B/W versions, with resolutions from Wide VGA (WVGA, 752x480) up to 5 MP (2592x1944) and 8, 10 or 12 bit, and they can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in near IR and UV regions. Mightex’s B-Series cameras feature built-in frame buffers, global shutter (Wide VGA versions), external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 60 fps in full resolution and up to 600 fps using ROI mode (depending on colour or B/W and sensor resolution). In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A DirectShow driver and a TWAIN driver are included (except for 5 MP B/W versions), and a USB command set protocol is provided for non-Windows based applications. A Linux driver is also either included (5 MP and Wide VGA B/W versions) or available upon request. Available models are: BCN-C050-U/BCN-C050-US: 5 MP, colour, lens mount C/CS, board-level BCE-C050-U/BCE-C050-US: 5 MP, colour, lens mount C/CS, enclosed BCN-B050-U/BTN-B050-U: 5 MP, B/W, 8/12 bit, lens mount C or CS, board-level BCE-B050-U/BTE-B050-U: 5 MP, B/W, 8/12 bit, lens mount C or CS, enclosed BCN-C030-U/BCN-C030-US: 3 MP, colour, lens mount C/CS, board-level BCE-C030-U/BCE-C030-US: 3 MP, colour, lens mount C/CS, enclosed BCN-B013-U/BCN-B013-US: 1.3 MP, B/W, 8 bit, lens mount C/CS, board-level BCE-B013-U/BCE-B013-US: 1.3 MP, B/W, 8 bit, lens mount C/CS, enclosed BTN-B013-U/BTN-B013-US: 1.3 MP, B/W, 10 bit, lens mount C/CS, board-level BTE-B013-U/BTE-B013-US: 1.3 MP, B/W, 10 bit, lens mount C/CS, enclosed BCN-CG04-U/BCN-CG04-US: WVGA, colour, lens mount C/CS, board-level BCE-CG04-U/BCE-CG04-US: WVGA, colour, lens mount C/CS, enclosed BCN-BG04-U/BCN-BG04-US: WVGA, B/W, 8 bit, lens mount C/CS, board-level BCE-BG04-U/BCE-BG04-US: WVGA, B/W, 8 bit, lens mount C/CS, enclosed BTN-BG04-U/BTN-BG04-US: WVGA, B/W, 10 bit, lens mount C/CS, board-level BTE-BG04-U/BTE-BG04-US: WVGA, B/W, 10 bit, lens mount C/CS, enclosed Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) Board-level or Enclosed Versions Available Ultra-compact Active Imaging Pixels: 0.36 to 5 MP, 752x480 to 2592x1944 Pixel Size: 2.2 x 2.2 to 6.0 x 6.0 µm Sensor Size (Diagonal): 1/3” to 1/2” Dynamic Range: >55 to 70 dB Buffered, 32 MByte On-board Memory (3 to 23 Frames at Full Resolution, Depending on Sensor) 8, 10 or 12 bit Gray Level Progressive Scanning System Frame Rate: 3 to 310 fps True Global Shutter (Wide VGA Versions) Supports Simultaneous Image Capturing From Multiple Cameras 4-pin GPIOs Arbitrary ROI Supported (Wide VGA Versions) Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Custom Programmable With SDK Provided DirectShow & TWAIN Drivers Linux Driver (5 MP and Wide VGA B/W Versions) USB Command Set Protocol for Non-Windows-based Applications External and Software Trigger Strobe Output for External Flash Precise Frame Rate Setting (Wide VGA Versions) ROI (Not Wide VGA Versions) and Pixel Skipping/Binning OEM Versions Available Applications: Machine Vision and Stereo Vision; Medical Imaging; Semiconductor Equipment; Test Instruments; High-quality ID Photo Capture; Document Scanners; Digital Microscopy; Web Camera and Security Video

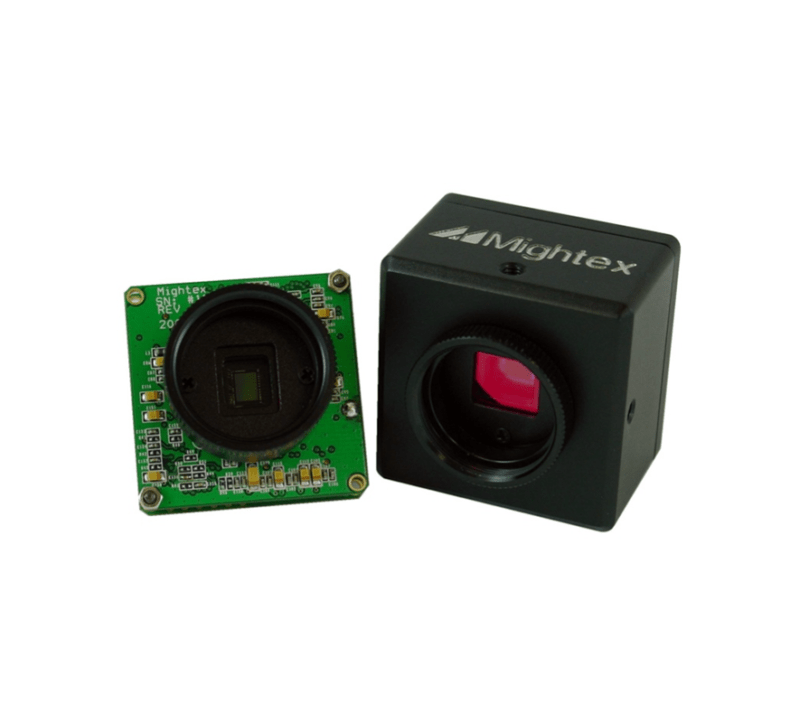

1.3 MP; Pixel Size 3.75x3.75 µm; Sensor Size 6.26x5.01 mm; Colour or B/W; 20-66 fps; Resolution 8, 12 bit; USB 2.0; Buffered; Progressive Scan; Board-level or Enclosed; Global Shutter Mightex’s C-Series compact USB 2.0 1.3 MP 1/3” CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital microscopy and medical imaging) which require good quality cameras that are easy to use and cost-effective. C-Series compact 1/3” CCD cameras are available as colour or B/W versions, with 1.3 MP (1280x960) resolution and 8 or 12 bit, and can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in near IR and UV regions. C-Series 1/3” CCD cameras have built-in frame buffers, global shutter, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 20 fps in full resolution and up to 84 fps using ROI mode. A user-friendly GUI based application software and an SDK are provided for custom software development. In addition, a DirectShow driver and a TWAIN driver are available to easily link the cameras with users’ applications. A USB command set protocol and a Linux driver are also provided for non-Windows based applications. Available models are: CGN-C013-U: colour, board-level CGE-C013-U: colour, enclosed CGN-B013-U: B/W, board-level CGE-B013-U: B/W, enclosed Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) Built-in Frame Buffer 32 MByte (24 Frames at Full Resolution) Support Simultaneous Image Capturing From Multiple Cameras Higher Sensitivity Than CMOS Cameras B/W Cameras Feature Higher Sensitivity (Especially in Near IR and UV) Board-level or Enclosed Versions Available Ultra-compact Active Imaging Pixels: 1.3 MP, 1280x960 Pixel Size: 3.75 x 3.75 µm Sensor Size: 6.26 x 5.01 mm (1/3” Diagonal) 8 or 12 bit Progressive Scanning System Frame Rate: 20 to 66 fps Global Shutter 4-pin GPIOs Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Full-featured SDK DirectShow & TWAIN Drivers Linux Driver Available USB Command Set for Non-Windows-based Applications External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping OEM Versions Available Applications: Digital Microscopy; Machine Vision; Medical Imaging; Semiconductor Equipment; Test Instruments; Document Scanners; 2D Barcode Readers; Web Camera and Security Video; High-quality ID Photos

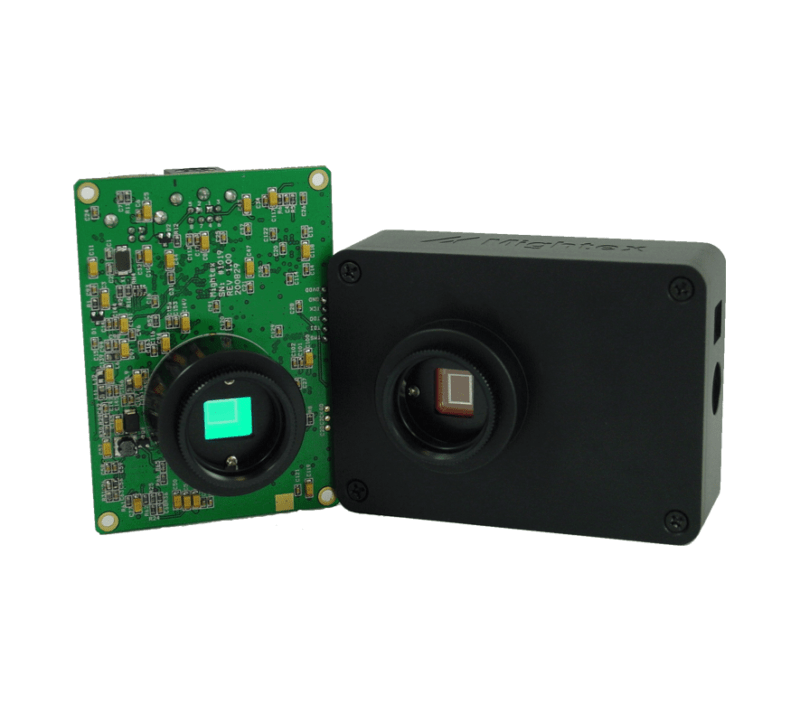

1.4 MP; Pixel Size 4.65x4.65 µm; Sensor Size 7.60x6.20 mm; Colour or B/W; 15-49 fps; Resolution 8, 12 bit; USB 2.0; Buffered; Progressive Scan; Board-level or Enclosed; Global Shutter Mightex C-Series USB 2.0 1.4 MP 1/2” CCD cameras with frame buffers have high sensitivity and low noise, and they are optimized for a wide variety of applications, including machine-vision applications, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. C-Series high-sensitivity 1/2” CCD cameras are available as colour or B/W versions, with 1.4 MP (1392x1040) resolution and 8 or 12 bit, and can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Since there is no Bayer colour filter on the sensor, monochrome cameras are more sensitive than colour sensors, especially in near IR and UV regions. C-Series 1/2” CCD cameras have built-in frame buffers, global shutter, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 15 fps in full resolution and up to 80 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications. Available models are: CCN-C013-U: colour, board-level CCE-C013-U: colour, enclosed CCN-B013-U: B/W, board-level CCE-B013-U: B/W, enclosed Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) Built-in Frame Buffer 32 MByte (24 Frames (Colour), 8 Frames (B/W) at Full Resolution) Support Simultaneous Image Capturing From Multiple Cameras Higher Sensitivity Than CMOS Cameras B/W Cameras Feature Higher Sensitivity (Especially in Near IR and UV) Board-level or Enclosed Versions Available Ultra-compact Active Imaging Pixels: 1.4 MP, 1392x1040 Pixel Size: 4.65 x 4.65 µm Sensor Size: 7.60 x 6.20 mm (1/2” Diagonal) 8 or 12 bit Progressive Scanning System Frame Rate: 15 to 49 fps Global Shutter 4-pin GPIOs Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Full-featured SDK DirectShow & TWAIN Drivers Linux Driver Available USB Command Set for Non-Windows-based Applications External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping OEM Versions Available Applications: Digital Microscopy; Machine Vision; Medical Imaging; Semiconductor Equipment; Test Instruments; Document Scanners; 2D Barcode Readers; Web Camera and Security Video; High-quality ID Photos

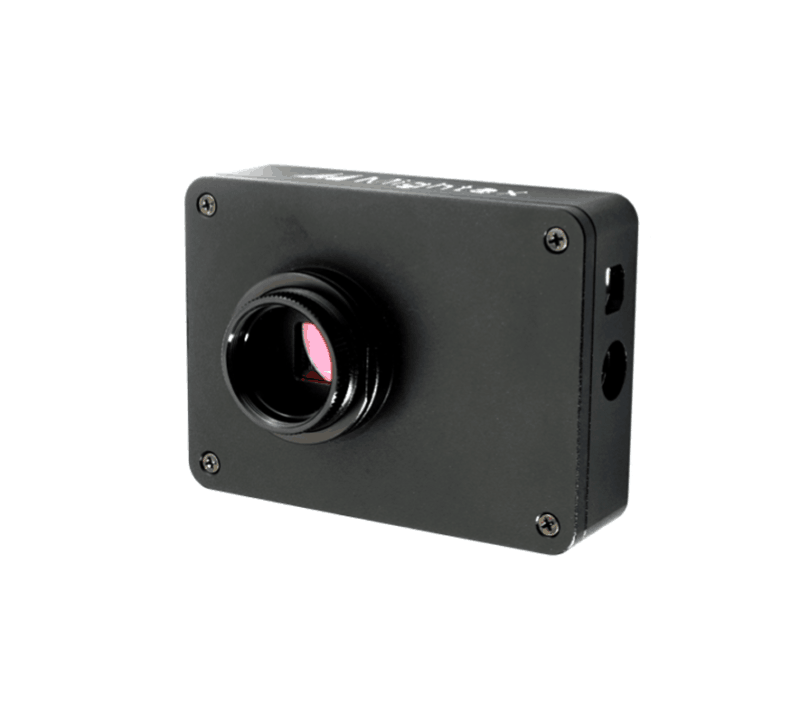

1.4 MP; Pixel Size 6.45x6.45 µm; Sensor Size 2/3” Diagonal; Colour or B/W; 15-49 fps; Resolution 8, 12 bit; USB 2.0; Buffered; Progressive Scan; Board-level or Enclosed; Global Shutter Mightex’s C-Series USB 2.0 1.4 MP 2/3” CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. C-Series high-sensitivity 2/3” CCD cameras are available as colour or B/W versions, with 1.4 MP (1392x1040) resolution and 8 or 12 bit, and can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in near IR and UV regions. C-Series 2/3” CCD cameras have built-in frame buffers, global shutter, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 15 fps in full resolution and up to 80 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications. Available models are: CXN-C013-U: colour, board-level CXE-C013-U: colour, enclosed CXN-B013-U: B/W, board-level CXE-B013-U: B/W, enclosed Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) Built-in Frame Buffer (8 Frames at Full Resolution) Support Multi-Camera Applications B/W Cameras Feature Higher Sensitivity (Especially in Near IR and UV) Board-level or Enclosed Versions Available Ultra-compact Active Imaging Pixels: 1.4 MP, 1392x1040 Pixel Size: 6.45 x 6.45 µm Sensor Size: 11.0 mm Diagonal (2/3”) 8 or 12 bit Progressive Scanning System Frame Rate: 15 to 49 fps Global Shutter 4-pin GPIOs Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Full-featured SDK Compatible With Windows 2000, XP, Vista, Windows 7 and 8 TWAIN Driver USB Protocol for Non-Windows-based Applications External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping/Binning OEM Versions Available Applications: Digital Microscopy; Machine Vision; Fluorescence Imaging; Medical Imaging; Semiconductor Equipment; Test Instruments; Document Scanners; 2D Barcode Readers; High-quality ID Photos; Security Camera; Astrophotography

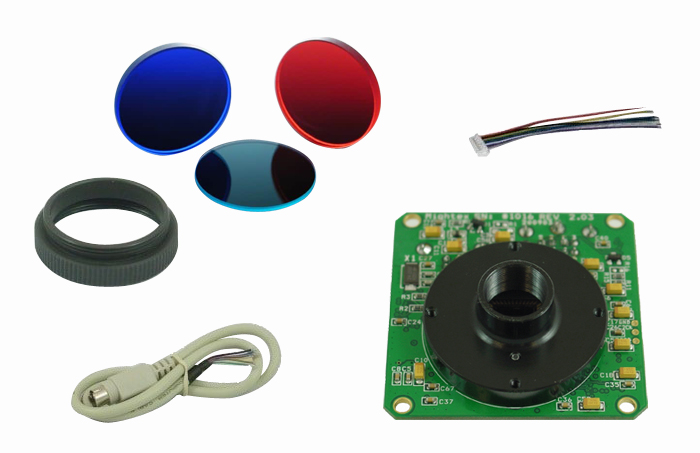

Accessories for Mightex CMOS and CCD cameras include: M12 Lens Mounts: Stand-alone M12 lens mount for MCN- and BCN-Series cameras, IR-Cut filter not included. Part Number: ACC-CAM-M12 Stand-alone M12 lens mount for S-Series cameras, IR-Cut filter not included. Part Number: ACC-CAM-S-M12 Cables & Brackets: 183 cm long USB A-B cable. Part Number: ACC-USB-2M Extra-length (457 cm long) USB A-B cable; Part Number: ACC-USB-5M 183 cm long USB A-miniB cable; Part Number: ACC-USB-M2M 183 cm long USB A-miniB cable with locking screws, for S-Series enclosed cameras only. Part Number: ACC-USB-M2M-S Extra-length (457 cm long) USB A-miniB cable; Part Number: ACC-USB-M5M Mightex’s M-Series, B-Series, CCD (except CGx-Series) and USB3.0 camera trigger cable with an 8-pin DIN connector. For GPIOs and external triggers etc. 50 cm length. Part Number: ACC-CAM-DIN8 Mightex’s Con8 cable for S-Series and CGx-Series CCD cameras. For GPIOs and external triggers etc. 1 m length. Part Number: ACC-CAM-CON8 USB connector holding bracket for Mightex’s MCE-, BCE-, and SME-Series CMOS cameras. Part Number: ACC-CAM-BRKT Optical Filters: IR-cut filter. Dimensions: 18 mm in diameter, and 1 mm in thickness. Part Number: ACC-CAM-IRC Various IR-pass filters. Dimensions: 15(L) x 13(W) x 2(T) mm. Part Number ACC-CAM-IRPxxx Plain glass plates for Mightex’s cameras. Dimensions: 18 mm in diameter, and 1 mm in thickness. Part Number: ACC-CAM-PGP Please note that, while ACC-CAM-IRC and ACC-CAM-PGP can be drop-in replacement, ACC-CAM-IRPxxx will have to be glued to the camera using epoxy due to its 2 mm thickness. Camera Lens Mount Adapters: CS-mount to C-mount lens adapter. Part Number: ACC-CAM-CSC C-mount to M12x.5 adapter. Part Number: ACC-CAM-CM12 C-mount to 23 mm adapter (for microscope eyepiece tube). Part Number: ACC-CAM-C23 C-mount to 1.25″ adapter for cameras (for telescope 1.25″ eyepiece tube). Part Number: ACC-CAM-C1Q Stand-alone M12 lens mount for MCN- and BCN-Series cameras, IR-Cut filter not included. Part Number: ACC-CAM-M12 Stand-alone CS lens mount for MCN- and BCN-Series cameras, IR-Cut filter not included. Part Number: ACC-CAM-CS

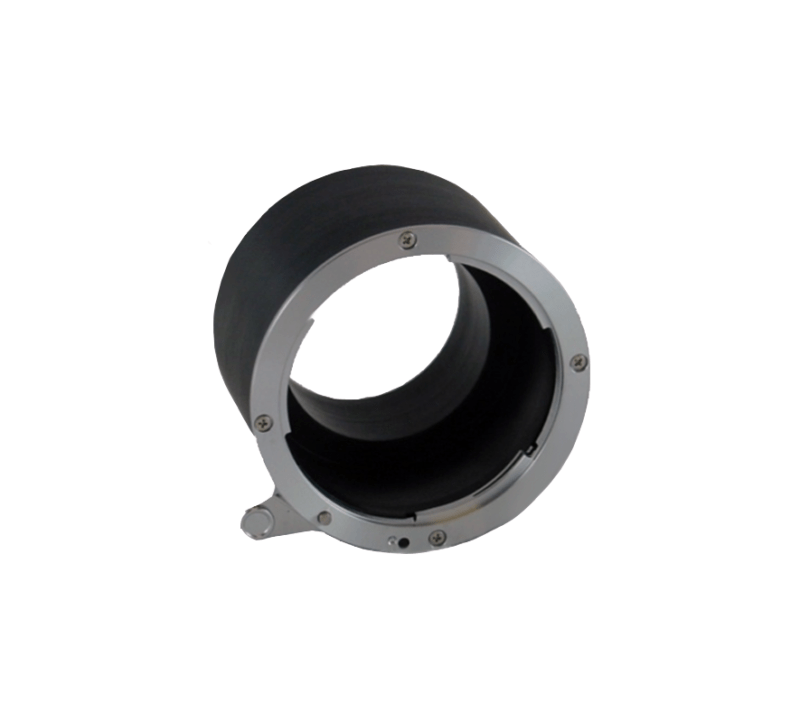

Accessories for Mightex CCD line cameras include: F-mount lens adapter for TCN-1304-U line camera. Part Number: AC-LCM-F F-mount lens adapter for TCE-1024-U(F), TCE-1304-U, TCN-1209-U and TCE-1209-U line camera. Part Number: ACC-LCE-F Daughter-board/motherboard connection cable for TCN-1304-U line camera , 120mm long. Part Number: ACC-1304-120 Daughter-board/motherboard connection cable for TCN-1304-U line camera, 200mm long. Part Number: ACC-1304-200 Mechanical adapter for CCD Line Camera TCE-1024-U(F), TCE-1304-U, TCN-1209-U and TCE-1209-U, with C-type lens mount. Part Number: ACC-LCE-C Mechanical adapter for CCD Line Camera TCN-1304-U, with C-type lens mount. Part Number: ACC-LCM-C

400-1100 nm; 140 Spectral Bands; Snapshot Operation Mode; Spectral Resolution 8-60 nm FWHM; Frame Rate 1 fps; Standard Lens 50 mm (40° FOV) BaySpec’s GoldenEye™ is the ultimate snapshot hyperspectral imager, capturing all in one shot for wavelengths from visible to near infrared (NIR) – from 400 nm to 1100 nm. Using BaySpec’s FT-PI proprietary technology, this novel imager features high sensitivity and is most suitable for low light level applications, such as fluorescence imaging.  Key Features: Extremely Compact and Lightweight Operation Mode: Snapshot Snapshot Imager With One-shot Operation Extended Wavelength Range: 400 nm to 1100 nm Number of Spectral bands: Approx. 140 Spectral Resolution: 8 nm to 60 nm FWHM Spatial Pixels: Approx. 648 x 488 Standard Lens: 50 mm (40° FOV) Objective Lens Interface: C-Mount Frame Rate: 1 fps Wavelength Calibration: Factory Calibrated High Sensitivity for Low-light Applications Effortless System Integration   Applications: Machine Vision; Fluorescence Imaging; Medical Diagnosis; Biomedical

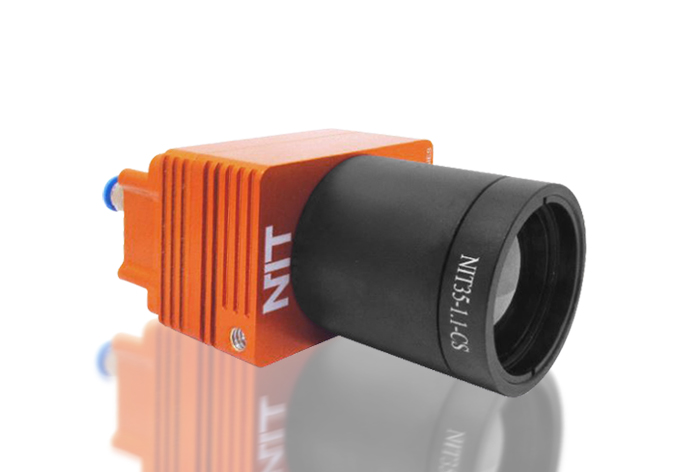

Detector Type Linear Array PbSe FPA; Spectral Range 1.0-5.0 µm; Pixel Size 600x60 µm; 256 Pixels; Resolution 1x256; Max. Line Rate 500 lps; Interface USB 2.0 New Infrared Technologies’ (NIT) LUXELL Series of line array MWIR (midwave infrared) cameras provide line rates of up to 300 lps (lines per second) at 1×256 pixels resolution – in uncooled operation. The LUXELL CAMERA-S with IP67-rated housing is the plug-and-play industrial version featuring a USB 2.0 interface and industrial connector. The lens, with f/35 mm and CS-mount optical interface, is IP67-rated as well. The camera includes the LUXELL software suite and a development kit for LabVIEW. This ready-to-use system is well suited for the development of affordable solutions and integration in the customer’s production line. The LUXELL CAMERA-S is based on the linear scanning array LUXELL CORE-S, an electronic module based on a microcontroller architecture, which includes the linear, 1x256 pixels LUXELL FPA (Focal Plane Array), 2-channel readout electronics (300 lines per second max), USB 2.0 output, and a powerful software suite and SDK for LabVIEW. Though not housed in an industrial case, the LUXELL CORE-S module also is functionally plug and play, ready to read the FPA signal and ideal for the development of very cost-effective solutions based on the LUXELL FPA. With dimensions of 56 mm x 40 mm x 29.5 mm (without connector), the compact-size LUXELL CORE-S module enables full integration in Industry 4.0 applications and factories of future production lines. For larger and two-dimensional array cameras from New Infrared Technologies, please refer to the TACHYON series of high-speed imaging MWIR cameras. And for applications requiring single-pixel MWIR detection, have a look at NIT’s LEPTON series of single-pixel VPD PbS MWIR detectors. Key Features: Detector Type: Linear Array PbSe FPA Uncooled Operation Array Format: 1x256 (256 Pixels) Aspect Ratio: 1:10 Pixel Size: 600 µm x 60 µm Readout Method: x-y Addressed (Rolling Shutter) Number of ADC Readout Channels: 2 Maximum Line Rate: 500 lps (Lines per Second) Spectral Range: MWIR, 1.0 µm to 5.0 µm Peak Wavelength of Detection: 3.7 µm Integration Time: >4.10 µs to 20 µs, Selectable Data Format: Raw Data 14 Bit Optimum Temperature Detection Range: >+100 °C Interface: USB 2.0 High-speed ((480 Mbps )With Industrial Connector (LUXELL CAMERA S) Includes Shutter for 1-pt Offset Correction Software Included: NIT Software Suite (Acquisition & Visualization), LabVIEW SDK Start-up Time: <10 s (LUXELL CAMERA S) Power Supply: 5 VDC, 0.2 A Through USB Connection IP67-rated Metal Housing With CS-mount Optics Interface, M12x1 Industrial USB Connector, Tripod Screw Holes and Water Block for Thermal Stabilization of FPA With Water or Air (LUXELL CAMERA S) Dimensions LUXELL CAMERA S: 70 x 131.5 x 17 mm (With Housing, Water Block and Lens) Weight LUXELL CAMERA S: 400 g Optics LUXELL CAMERA S: Silicon Lens f = 35 mm, F# 1.1, FoV 25° x 1°, AR Coating, Manual Focus, CS-mount, IP67 Dimensions LUXELL CORE-S Module: 56 x 44.5 x 41.5 mm Weight LUXELL CORE-S Module: 60 g Dimensions 1x257 Pixels LUXELL FPA; 24 x 24 x 2.2 mm Applications: Industrial Process Control (Scanning); Glass Manufacturing Industry; Gas and Flame Detection; Industrial Welding Process Monitoring; Laser Manufacturing Process Monitoring; Machine Vision, Spectroscopy; OEM Integration

1.3, 3 MP; Pixel Size 3.2x3.2, 5.2x5.2 µm; Sensor Size 6.66x5.32 mm; Colour or B/W; 8-600 fps; Resolution 8 bit; USB 2.0; Unbuffered; Progressive Scan; Dynamic Range 61, 68 dB; Board-level or Enclosed Mightex’s M-Series USB 2.0 CMOS cameras are designed for a wide variety of applications such as machine vision, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. With a USB2.0 interface and powerful PC software, the unbuffered M-Series cameras deliver excellent quality images, and the frame rate can be as high as 24 fps (8 fps for colour cameras) in full resolution and up to 600 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. The cameras have 4-pin GPIOs and optional built-in LED drivers. A DirectShow driver and a TWAIN driver are also provided in order to easily link the cameras with users’ applications. M-Series cameras are available as 3 MP (2048x1536) colour or 1.3 MP (1280x1024) B/W versions and can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in infrared (IR). Available models are: MCN-B013-U/MCN-B013-US: B/W, lens mount C/CS, board-level, no built-in LED drivers GLN-B013-U/GLN-B013-US: B/W, lens mount C/CS, board-level, built-in LED drivers MCE-B013-U/MCE-B013-US: B/W, lens mount C/CS, enclosed, no built-in LED drivers MLE-B013-U/MLE-B013-US: B/W, lens mount C/CS, board-level, built-in LED drivers MCN-C030-U: colour, lens mount C or CS, board-level, no built-in LED drivers GLN-C030-U: colour, lens mount C or CS, board-level, built-in LED drivers MCE-C030-U: colour, lens mount C or CS, enclosed, no built-in LED drivers MLE-C030-U: colour, lens mount C or CS, enclosed, built-in LED drivers Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) B/W Cameras Feature Higher Resolution & Sensitivity (Especially in IR) and Low Noise Board-level or Enclosed Versions Available Unbuffered Built-in LED Drivers Active Imaging Pixels: 1.3 MP (B/W, 1280x1024), 3 MP (Colour, 2048x1536) Pixel Size: 3.2 x 3.2 µm (Colour), 5.2 x 5.2 µm (B/W) Sensor Size: 6.66 x 5.32 mm Dynamic Range: 61 dB (Colour), 68 dB (B/W) 8 bit Gray Level Progressive Scanning System Frame Rate: 8 to 600 fps 4-pin GPIOs Simpler Data Processing Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Custom Programmable With SDK Provided DirectShow & TWAIN Drivers External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping/Binning OEM Versions Available Applications: Digital Microscopy; Machine Vision; Medical Imaging; Semiconductor Equipment; Test Instruments; Document Scanners; 2D Barcode Readers; Web Camera and Security Video

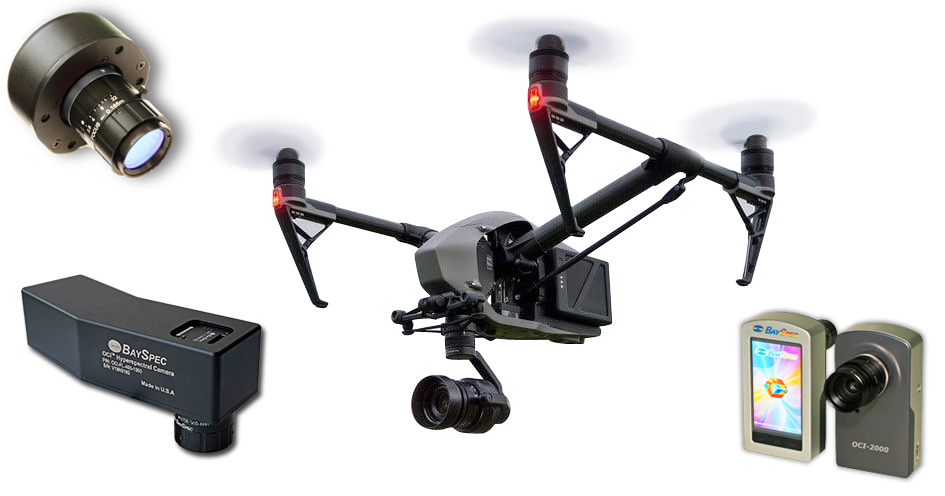

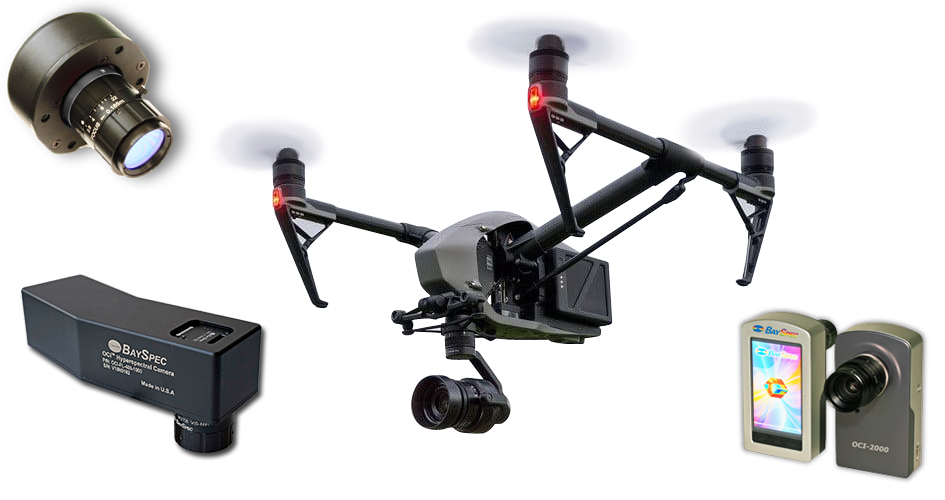

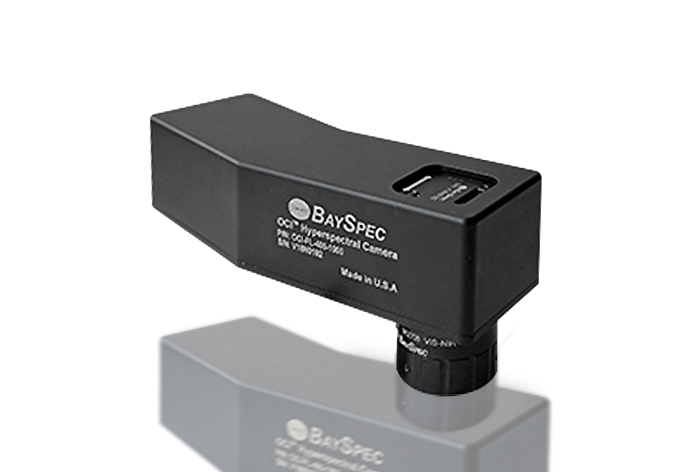

400-1700 nm; 12-240 Spectral Bands; Push-broom, Snapshot Operation Mode; Spectral Resolution 3-15 nm FWHM; Max. Frame Rate 8-120 fps; Standard Lens 16, 35, 45 mm (21°, 18°, 17° FOV) Within its OCI™ Series of hyperspectral imagers (OCI is a phonetic spelling of "all seeing eye"), BaySpec offers systems ranging from miniaturized push-broom cameras for visible to near-infrared (NIR) to handheld snapshot hyperspectral imagers, hyperspectral cameras designed specifically for use on unmanned aerial vehicles/systems (UAV/UAS), all the way to ready-to-fly UAV systems for aerial hyperspectral imaging. OCI™­ F Series cameras are miniaturized (14 x 7 x 7 cm) and lightweight (~570 g) push-broom hyperspectral cameras covering the full visible (VIS) to near-infrared (NIR) wavelength range from 400 to 1000 nm, or short-wave infrared (SWIR) wavelength range from 900 to 1700 nm. The cameras feature a super-speed USB 3.0 interface for fast data transfer rates up to 60 fps. Not dependent on a constant scanning speed, the OCI ­F Series offers versatility on various platforms such as UAVs with perfect hyperspectral image stitching. Three models with 60, 120 or 240 spectral bands are available. The OCI™-2000 snapshot handheld hyperspectral imager brings high-performance hyperspectral imaging in a handheld form factor weighing only approximately 450 g. The OCI™-2000 imager acquires full, continuous VIS to NIR hyperspectral/multispectral data with simple point-and-shoot operation. Compact OCI™-OEM hyperspectral cameras are the optical engines of the handheld OCI-1000™ (push-broom) and OCI-2000™ (snapshot) hyperspectral imager, featuring extreme compactness and fast data transfer rate. The high-performance hyperspectral/multispectral cameras work in push-broom mode (OCI™-U-1000) or snapshot mode (OCI™-U-2000) with high spectral resolution and fast speed in a compact form factor weighing less than 180 g. Continuous hyperspectral data capturing can happen at video rates. Compactness, simple operation and optional SDK makes the OCI™-OEM integration an effortless task. OCI™-UAV airborne hyperspectral cameras are push-broom (OCI™-UAV-1000) or snapshot (OCI™-UAV-2000) cameras designed specifically for use on unmanned aerial vehicles/systems (UAV/UAS), or remotely operated vehicles (ROV). Packed with a high-performance, miniature single-board-computer, they acquire VIS to NIR hyperspectral data with continuous spectral and spatial coverage. Ready-to-fly hyperspectral total solutions are also available. Operating of the OCI-UAV cameras is automatic and requires minimal human intervention. The OCI™-M+, a push-broom multispectral imager is specifically designed for aerial imaging, featuring a lightweight camera with compact size. It comes with 12 selective bands including three RGB bands, and nine spectral bands from red edge to NIR – most commonly used for precision agriculture. This imager is fully integrated with DJI Inspire 2 UAV allowing the maximum field coverage with high spatial resolution (4000 spatial pixels). Fully integrated and easy to operate, the OCI-M+ UAV ready-to-fly package has made aerial imaging process very straightforward, and is ideal for applications such as precision agriculture, remote sensing, and geological survey. BaySpec’s OCI™-D airborne VIS-NIR hyperspectral imager with extended wavelength range covers full VIS-NIR wavelength range from 475 to 975 nm. Being a snapshot hyperspectral imager, OCI-D2000 fundamentally eliminates artifacts caused by motions during flight. These innovations significantly reduce the requirements on UAV system, so that integration is almost effortless for many UAV/ROVs. Included with BaySpec’s SpecGrabber™ for camera control and data acquisition, and CubeCreator™ for hyperspectral data processing, the OCI™-D imager offes up to 40 spectral bands with 500x250 pixels and 12 to 15 nm resolution with video rate speed. Key Features: Full Visible (VIS) to Near-infrared (NIR) Coverage: 400 (450, 600) to 1000 nm Full Short-wave Infrared (SWIR) Coverage: 900 to 1700 nm (OCI™-F-SWIR Hyperspectral Camera) Operation Mode: Push-broom, Snapshot Number of Spectral Bands: 12 to 240 Spectral Resolution: 3 nm to 15 nm FWHM Spatial Pixels: 250 to 3956 Pixels x Scan Length (Push-broom Models), Up to 400 x 200 Pixels (Snapshot Models) Standard Lens: 16 mm (21° FOV, OCI™­ F Series), 35 mm (18° FOV, OCI™-UAV, OCI™-OEM Series), 45 mm (17° FOV, OCI™-M+) Objective Lens Interface: C-Mount Faster Scanning With Wide-angle Lens (OCI™-M+) Exposure Time: 20 µs to 1 s (OCI™­ F Series, OCI™-M+), 0(1) to 300 ms (OCI™-UAV, OCI™-OEM Series) Max. Frame Rate: 8 to 120 fps Camera Interface: USB 3.0, USB 2.0 Real‐time Sample Preview (OCI™­ F, OCI™-M+, OCI™-UAV, OCI™-OEM Series) Extremely Compact and Lightweight Imagers With No Moving Parts, High Reliability “True Push‐broom” Scanning With Random Speed (Push-broom Models Only) Innovative Non-slit Design Significantly Reduces System Complexity (OCI™-M+, OCI™-UAV, OCI™-OEM) Extremely Easy-to-use Point-and-shoot Hyperspectral Imager; Self-contained System With Touchscreen Computer Integrated in a Handheld Form; Choice of Lenses for Different FOV (OCI™-2000) Easy Integration in a Variety of Platforms (OCI™­ F, OCI™-UAV, OCI™-OEM, OCI™-D Series) Effortless System Integration (OCI™-M+, OCI™-OEM Series) Eliminate Costly GPS/INS Orthorectification Post Processing Yields Distortion-free Hyperspectral Band Images Ready-to-fly System (OCI™-M+, OCI™-UAV) UAV (OCI™-M+): DJI Inspire 2; 22 min Flying Time; Remote Controller, Battery, Charger, CineSSD & Station Included UAV (OCI™-UAV Series): 700 mm Multi-rotor, Shock-resistant Light Polymer Frame; Up to 20 min Flying Time; Automatic Flight Control Via Mission Planner; Autopilot, 2 x 4500 mAH LiPo Battery, Gimbal for Imager Included Applications: Precision Agriculture; Food Quality Sorting; Sorting; Airborne (Mini) UAV/ROV; Remote Sensing; Chemical Detection; Process Control; Counterfeit Detection & Anti‐Counterfeiting; (Bio)medical Diagnostics; Forensics; Pharmaceuticals; Security; Defense; Oceanography; Ocean Monitoring; Forestry; Estuary Monitoring; Bathymetry; Mineral Discovery; Mining; Oil & Gas Exploration; Geological Survey; Ground Survey; Environmental Studies; Law Enforcement; Handheld Spectroscopy; Tissue Diagnostics; OEM Systems

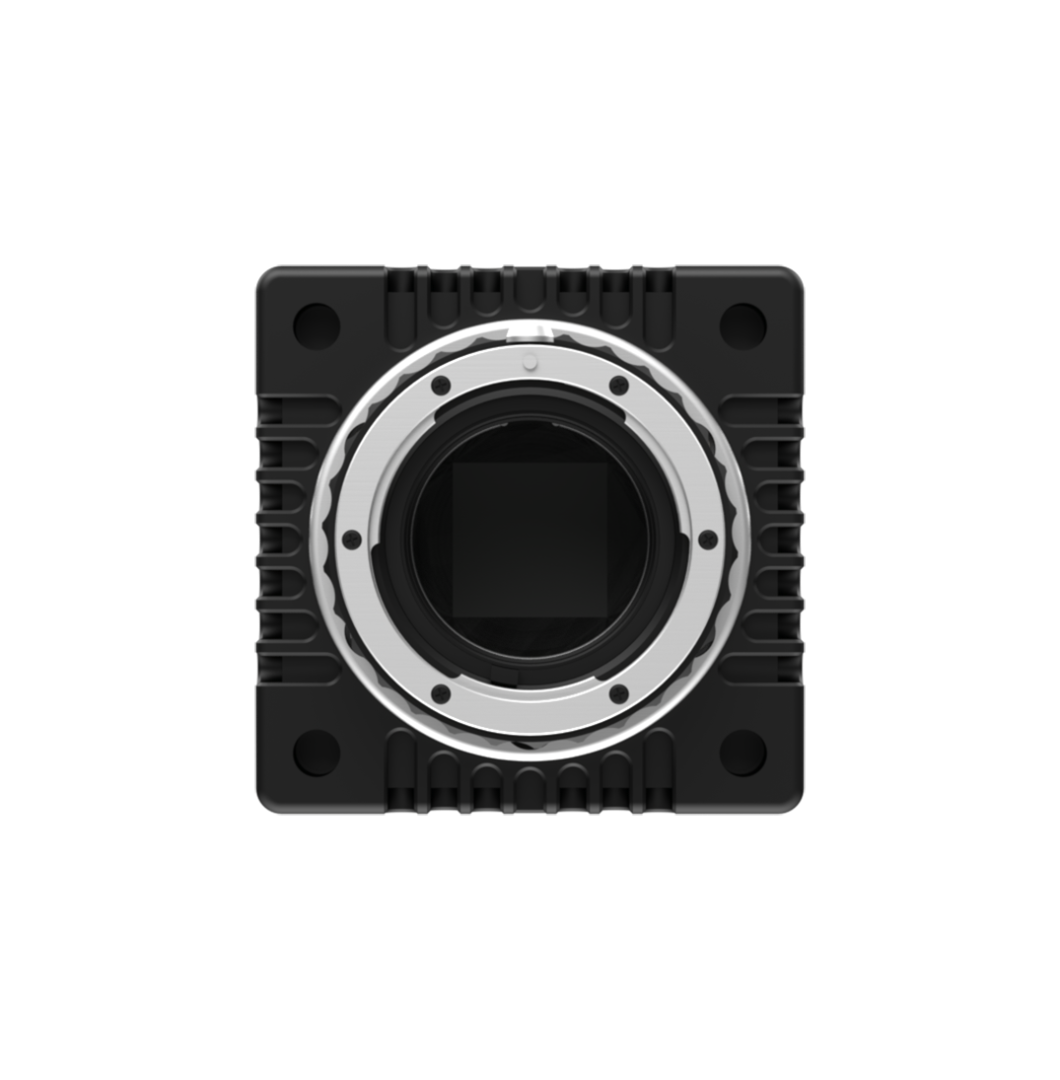

Resolution 1920x1440 pixels; Peak Quantum Efficiency 50; Dynamic Range A/D 12 bit; Frame Rate 1603 fps; Exposure Time Range 1.5 µs - 40 ms; Optical Input F- and C-Mount; Data Interface GigE The pco.dimax cs3 camera excels in delivering exceptional image quality, thanks to its remarkable light sensitivity, making it well-suited for precise analysis and measurements. With rapid frame rates of up to 1603 fps and a resolution of 1920 x 1440 pixels, this high-speed camera offers intuitive control software for effortless playback and export of recorded slow-motion video sequences. Its versatility is enhanced by multiple lens mounts, including electronic lens control, HD-SDI video output, and automatic image calibration, making it a powerful solution adaptable to various demanding car safety applications. Key features: Designed for harsh and demanding applications, e.g. vehicle crash tests or microscopy experimentsCompact, lightweight and rugged form factorFlexibility to mount in a multitude of positionsOn-board or off-board use Applications: Vehicle crash tests, microscopy experiments

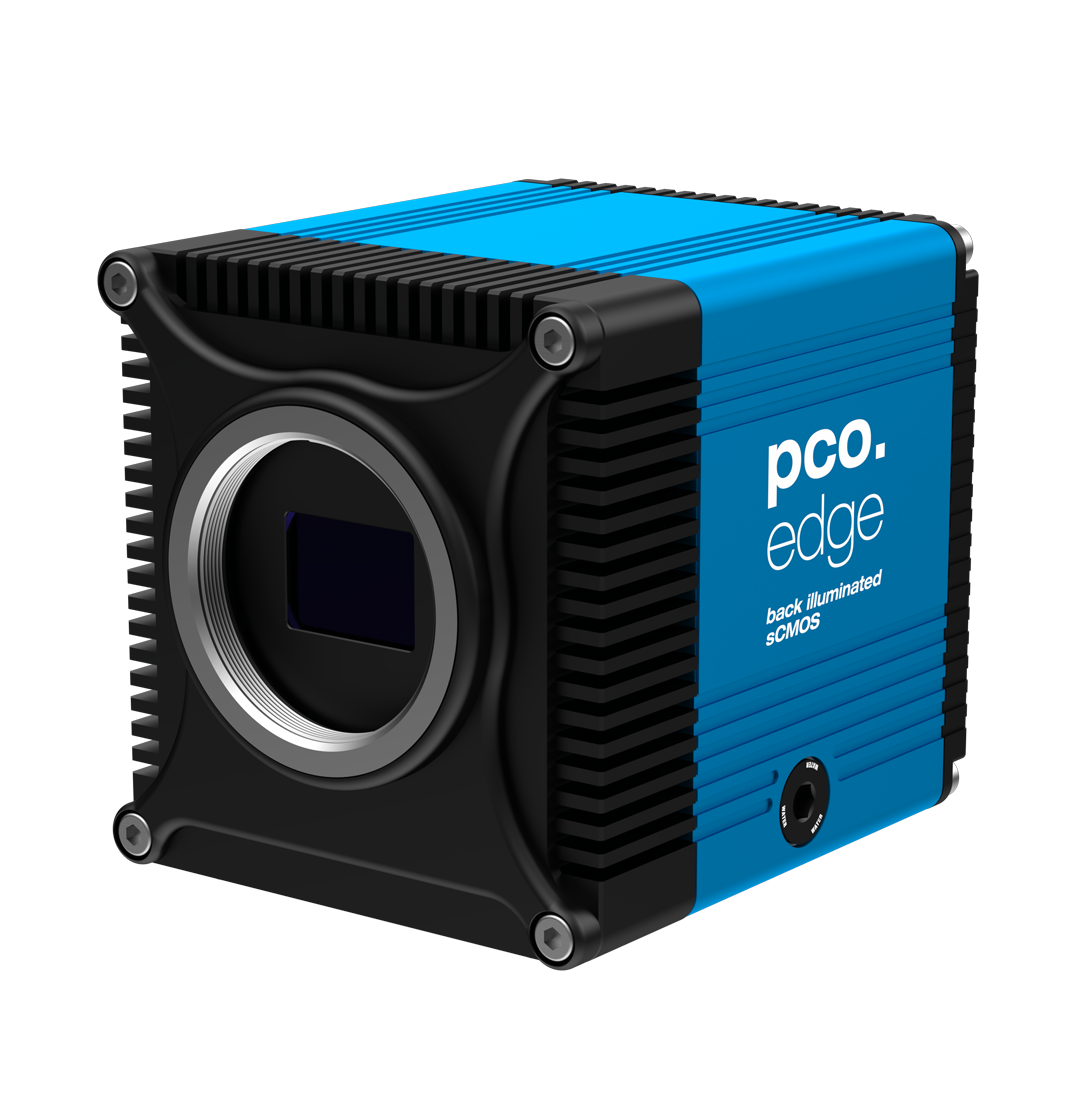

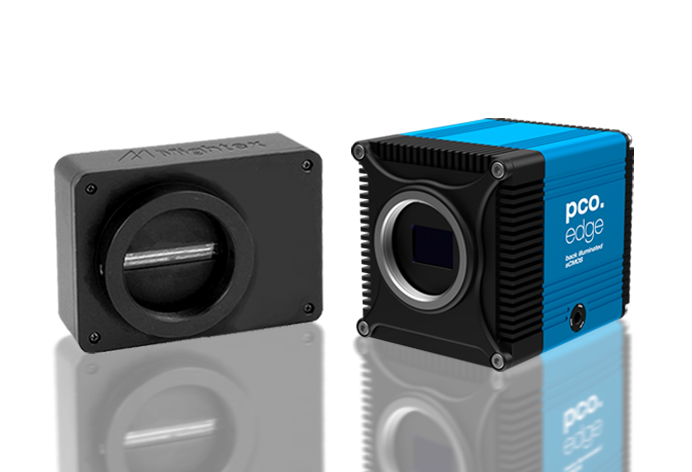

10.4 MP; 122 fps; Back-Illuminated sCMOS; 14,000:1 Dynamic Range; Low Readout Noise; CLHS Interface; Thermally Stabilized SensorHigh-Speed, High-Resolution Scientific ImagingThe pco.edge 10 bi CLHS is our advanced sCMOS camera engineered to deliver outstanding imaging performance, making it ideal for applications in microscopy, life sciences, and physical sciences. Featuring a back-illuminated image sensor, it offers quantum efficiency up to 85%, covering a broad spectral range including the near-infrared (NIR). The sensor is equipped with microlenses and full-pixel height deep trench isolation, effectively minimizing crosstalk and enhancing the modulation transfer function to ensure superior image quality.Key features:High-Performance Imaging for microscopy, life science, and physical science applications.Back-illuminated image sensor for enhanced sensitivity.Up to 85% quantum efficiency with broad spectral response extending into the near-infrared (NIR).Advanced Sensor Design, incorporating microlenses and full-pixel height deep trench isolation.Suppresses crosstalk and enhances modulation transfer function for superior image quality.High-Resolution Sensor: 10.5 MP with 4.6 µm square pixels.Low Noise Performance: Readout noise of 0.7 electrons, extremely low dark current, thermal stabilization and active cooling.CCD-like Noise Behavior.Applications: Microscopy, e.g., live-cell & fluorescence imaging; Machine Vision, e.g., high-speed inspection & defect detection; Aerospace & Defense, e.g. ballistics & dynamic testing; Astronomy, e.g., low-light, high-dynamic range imaging; Scientific Research, e.g., spectroscopy, particle tracking, and more

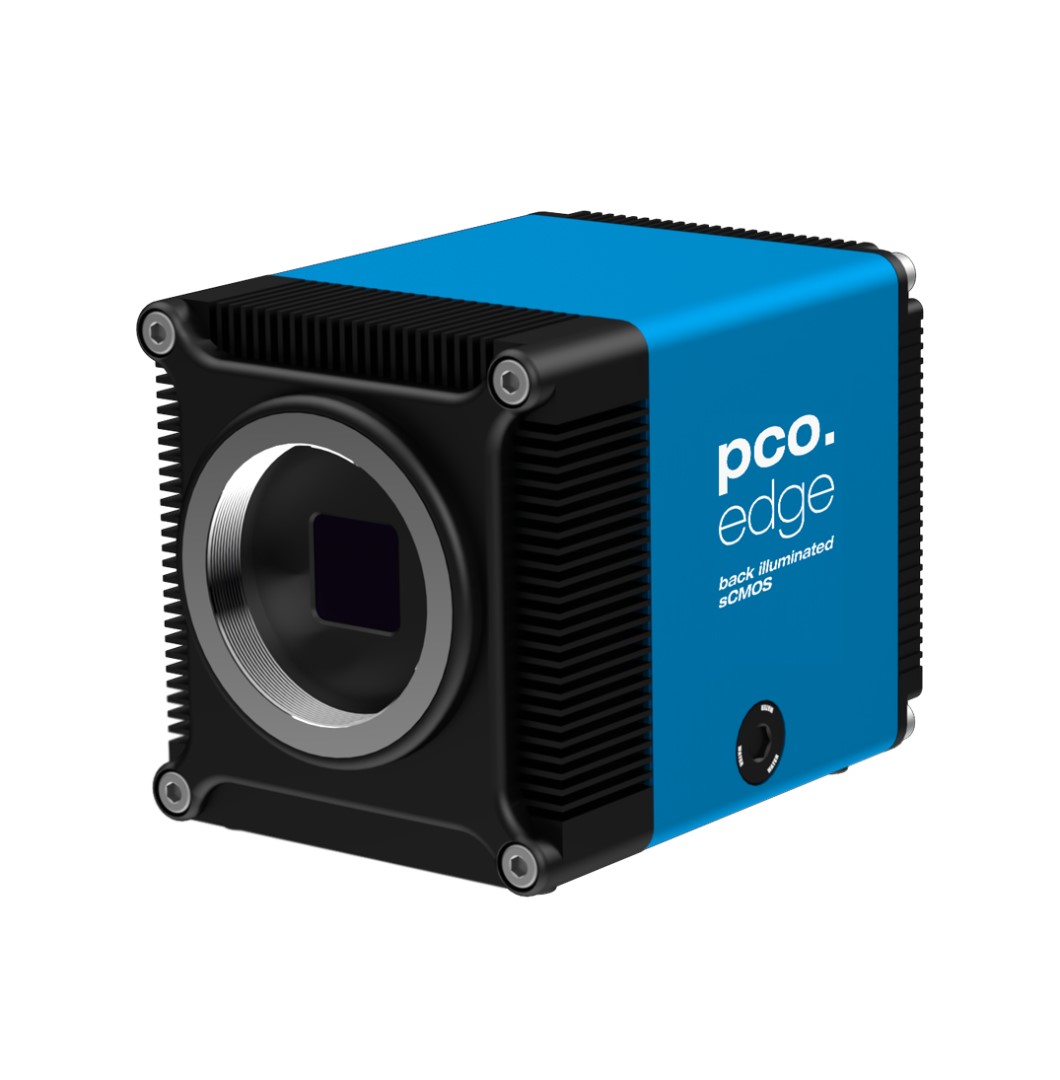

Back-illuminated sCMOS; Resolution 2048x2048 pixels; Maximum Frame Rate @ Full Resolution 40 fps; Maximum Pixel Rate 184 Mpixel/s; Maximum Dynamic Range 26,667:1, Shutter Type: Rolling Shutter, Global Reset; Sensor Cooling Air & Water The pco.edge 4.2 bi UV expands upon the established pco.edge series of scientific CMOS cameras by incorporating modern back-illuminated sensor technology. Offering a resolution of 2048 x 2048 pixels and a pixel size of 6.5 x 6.5 μm², it delivers high-quality imaging capabilities. Its customized input window enables effective utilization in ultraviolet imaging applications, ensuring notable quantum efficiency within the UV wavelength range. Key features: Adjustable cooling system, ready for air or water Sensor can be cooled down to -25°C, reducing dark current to 0.2 e-/pixel/s USB3.1 interface Applications: Brightfield and fluorescence microscopy, digital pathology, calcium imaging, FRET, FRAP, SIM, LSFM, ophthalmology, biochip reading, bio and chemo luminescence

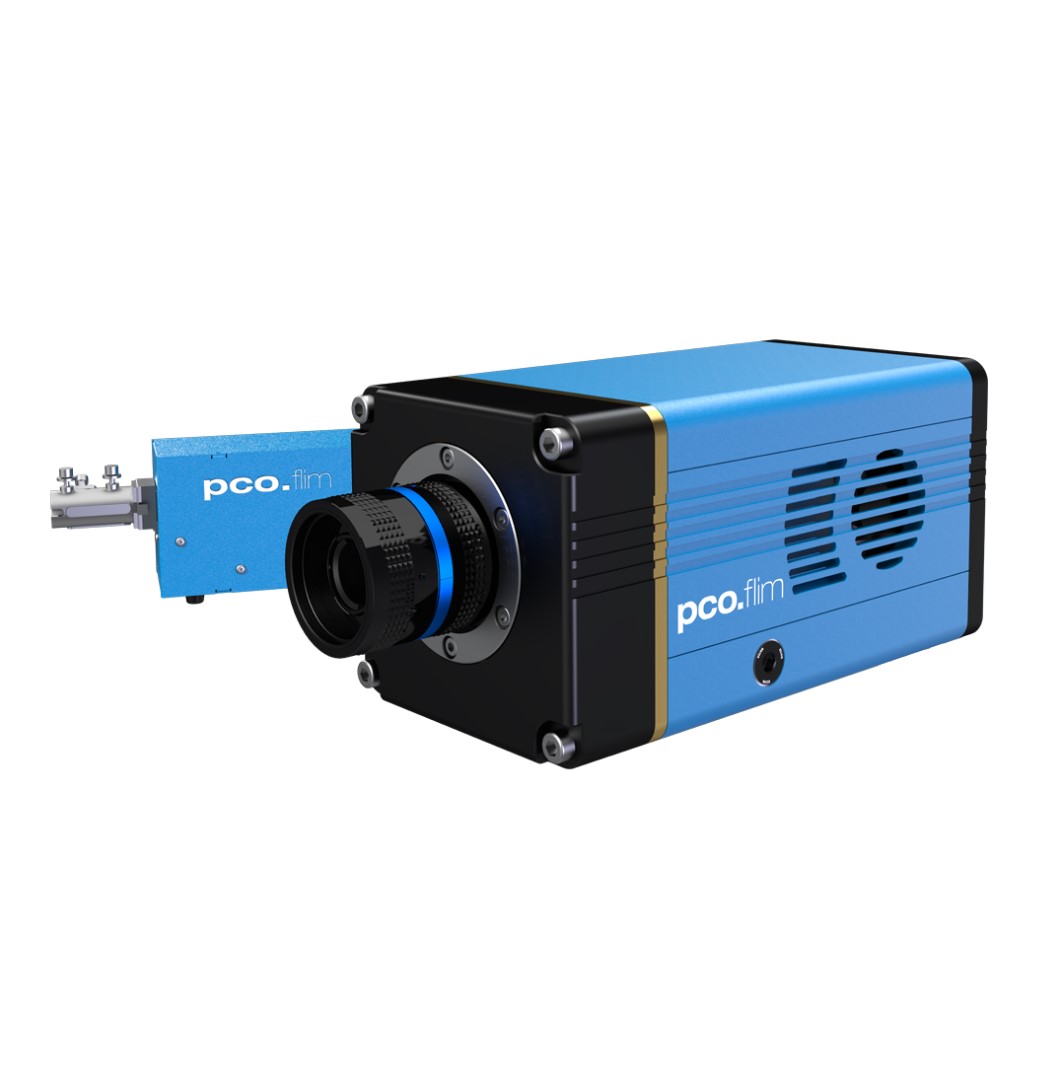

Resolution 1008x1008 pixels; Modulation Frequency 5 kHz - 40 MHz (out), 500 kHz - 40 MHz (in); Peak Quantum Efficiency 39%; Dynamic Range A/D 14 bit pco.flim is the first frequency domain (FD) FLIM camera employing a two-readout-tap per pixel CMOS sensor. This innovation allows for synchronized modulation of pixels and stimulated light, facilitating the analysis of luminescence decay times ranging from sub-nanoseconds to microseconds. Boasting a resolution of 1008 x 1008 pixels, the pco.flim achieves a maximum readout speed of 45 double frames per second and supports a modulation frequency range of 5 kHz to 40 MHz. Its adaptable coupling and straightforward setup make it the ideal choice for widefield FD-FLIM instruments. Key features: Flexible coupling to any microscope or lens via C-Mount USB 3.0 interface for easy computer connection pco.flim laser available Applications: Together with pco.flim laser suitable for wide-field epifluorescence microscope illumination, Total-Internal-Reflection-Fluorescence (TIRF) microscopy, light sheet fluorescence microscopy (LSFM) and confocal spinning disk microscopy

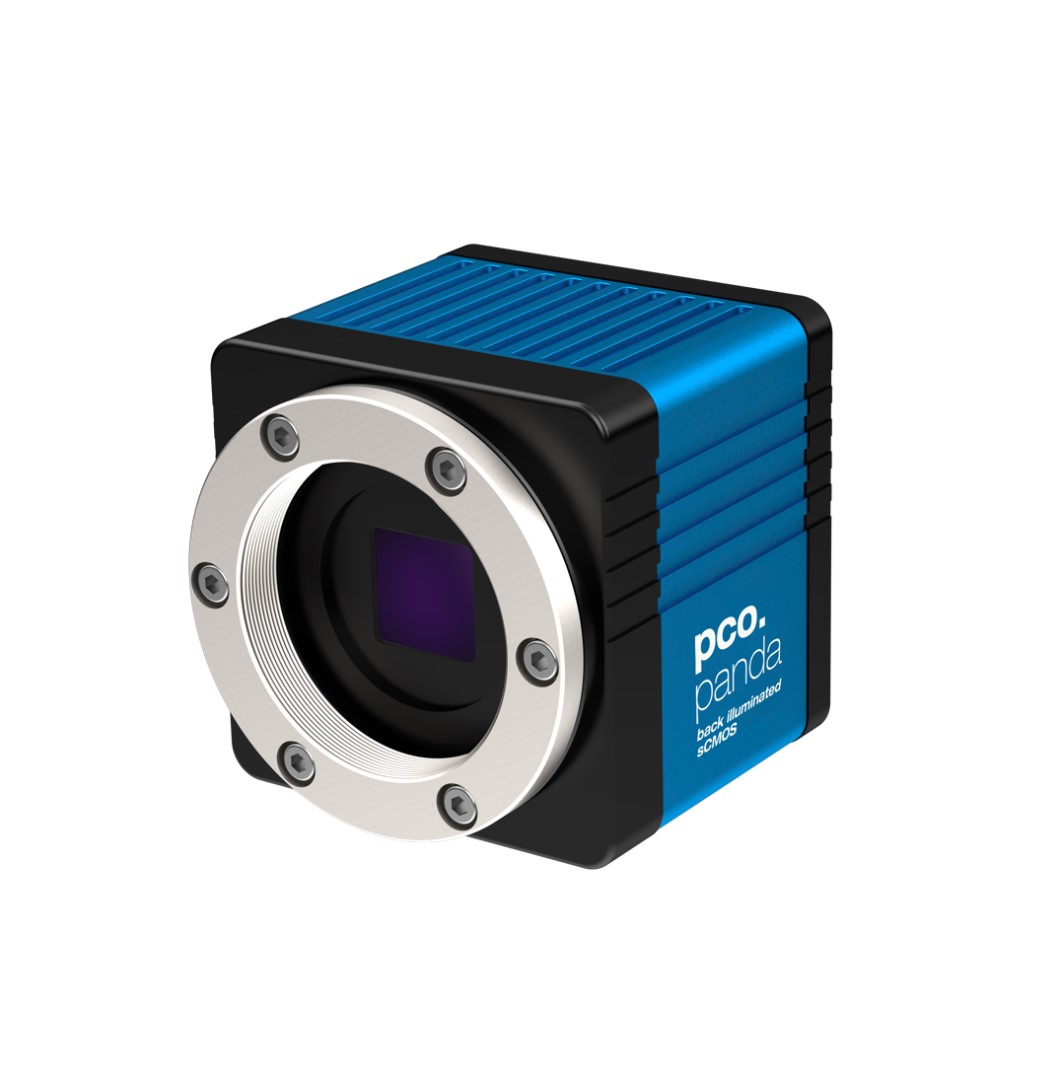

Back-illuminated sCMOS; Resolution 2048x2048 pixels; Maximum Frame Rate @ Full Resolution 40 fps; Maximum Pixel Rate 184 Mpixel/s; Maximum Dynamic Range 26,667:1, Shutter Type: Rolling Shutter; Sensor Cooling passive Utilizing sCMOS technology, the pco.panda 4.2 bi is a back-illuminated camera boasting a remarkable quantum efficiency of up to 95%. This feature renders the camera exceptionally suitable for demanding low-light imaging applications, eliminating the necessity for active cooling. Equipped with a 2048 x 2048 pixel sCMOS sensor and a 6.5 x 6.5 μm pixel size, our ultra-compact pco.panda 4.2 bi ensures enhanced detail, resulting in high-quality images. Key features: USB 3.1 interface for faster data transfer and operation without external PSU Ideal for low-light applications Ultra-compact packaging for a variety of applications Applications: Various microscopy and life science applications

Spectral Range 350-1700nm; Resolution 1280x1024 pixels; Maximum Pixel Rate 93 Mpixel/s, Maximum Dynamic Range 680:1; Global Shutter, Peltier Cooling with Forced Air The Excelitas pco.pixelfly™ 1.3 SWIR is recognized for its high-performance capabilities in machine vision, attributed to its specialized InGaAs image sensor designed to capture images across the shortwave infrared (SWIR), near infrared, and visible spectrum. It demonstrates notable sensitivity across the entire spectral range, reaching up to 90% sensitivity in the shortwave infrared band. Its small pixel size enables the utilization of compact magnification optics for microscopy, while also maintaining low dark current levels for prolonged exposure times. Key features: High sensitivity Wide spectral range Robust Design High Resolution Versatile Applications: Low-light imaging, industrial inspection, material analysis, and scientific research

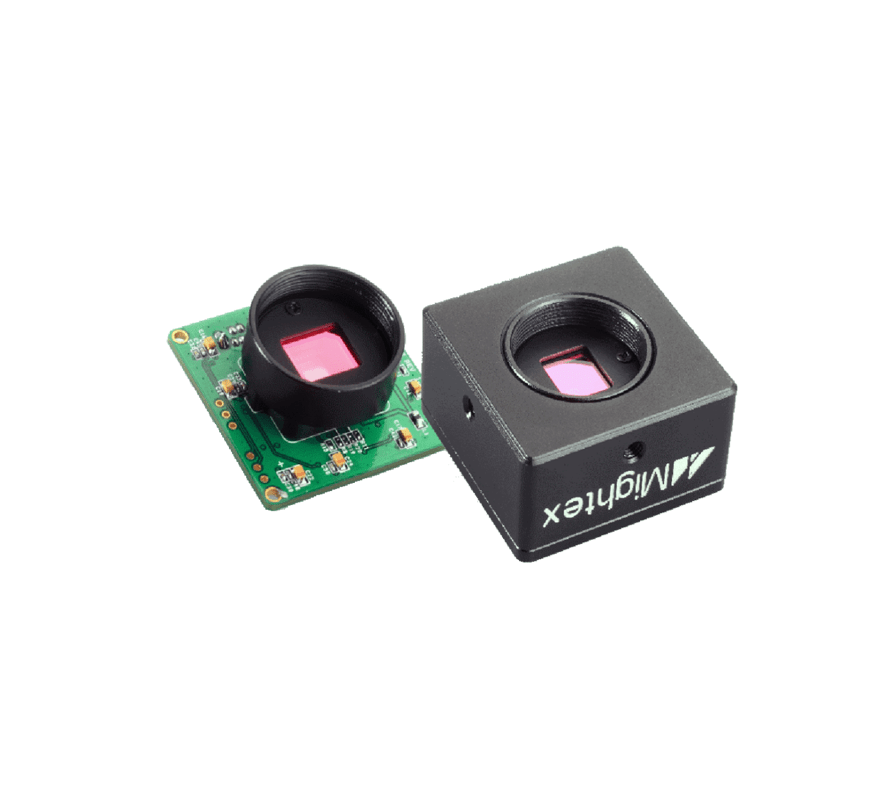

0.36-3 MP; Pixel Size 3.2x3.2-6.0x6.0 µm; Sensor Size 4.51x2.88, 6.66x5.32 mm; Colour or B/W; 6-380 fps; Resolution 8 bit; USB 2.0; Progressive Scan; Dynamic Range >55, 68 dB; Board-level or Enclosed; Rolling or Global Shutter Mightex’s S-series compact USB 2.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. S-Series cameras are available as colour or B/W versions, with resolutions from Wide VGA (WVGA, 752x480) up to 3 MP (2048x1536) and 8 bit grey level, and can be ordered as “naked” board-level device or pre-mounted in an enclosure. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in near IR and UV regions. Mightex’s S-Series compact USB 2.0 CMOS cameras have external trigger-in, strobe-out, and GPIOs. WVGA versions also feature a global shutter. The frame rate can be as high as 6 to 38 fps in full resolution and 98 to 210 fps using ROI mode (depending on colour or B/W and sensor resolution). In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications. Available models are: SCN-C030-U: 3 MP, colour, board-level SCE-C030-U: 3 MP, colour, enclosed SCN-B013-U: 1.3 MP, B/W, board-level SCE-B013-U: 1.3 MP, B/W, enclosed SCN-CG04-U: WVGA, colour, board-level SCE-CG04-U: WVGA, colour, enclosed SCN-BG04-U: WVGA, B/W, board-level SCE-BG04-U: WVGA, B/W, enclosed Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) B/W Cameras Feature Higher Sensitivity (Especially in Near IR and UV) Board-level or Enclosed Versions Available Ultra-compact Active Imaging Pixels: 0.36 to 3 MP, 752x480 to 2048x1536 Pixel Size: 3.2 x 3.2 to 6.0 x 6.0 µm Sensor Size: 4.51 x 2.88 to 6.66 x 5.32 mm Dynamic Range: >55, 68 dB 8 bit Gray Level Progressive Scanning System Frame Rate: 6 to 380 fps Global Shutter (Wide VGA Versions) 4-pin GPIOs Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Custom Programmable With SDK Provided DirectShow & TWAIN Drivers Linux Driver USB Command Set for Non-Windows-based Applications External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping OEM Versions Available Applications: Digital Microscopy; Machine Vision; Medical Imaging; Semiconductor Equipment; Test Instruments; Document Scanners; 2D Barcode Readers

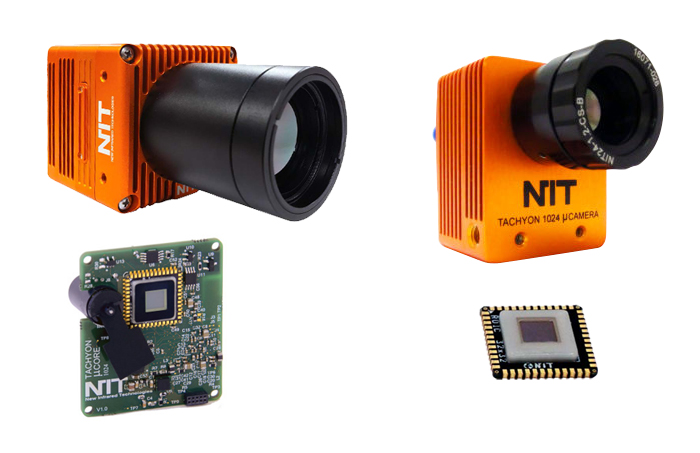

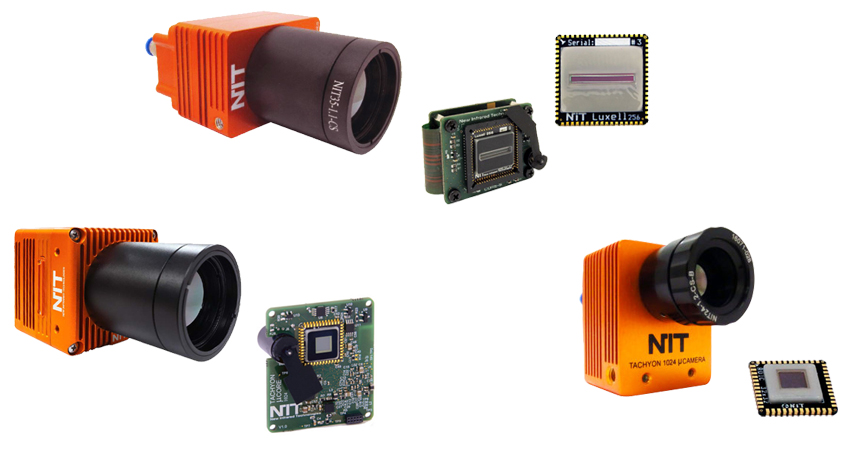

Detector Type VPD PbSe FPA; Spectral Range 1.0-5.0 µm; Pixel Size 50x50, 130x130 µm; 1,024, 16,384 Pixels; Resolution 32x32, 128x128; Max. Frame Rate 1,00-10,000 fps; Interface USB 2.0, GigE VISION 2.0 New Infrared Technologies’ (NIT) TACHYON Series of high-speed imaging MWIR (midwave infrared) cameras provide frame rates of up to 10,000 fps (frames per second) at the full resolution of up to 128×128 pixels – in uncooled operation. While the TACHYON 16k CAMERA features 2,000 fps at full resolution, the TACHYON 16K CAMERA PLUS model allows up to 4,000 fps at full resolution as well as software-configurable ROI windowing modes, hardware NUC correction and selectable data transmission modes. Uncooled and affordable, fast and robust, the compact size TACHYON 16K CAMERA models are optimal for volume requirements and targeted for full integration in Industry 4.0 applications. Both TACHYON 16K CAMERA and CAMERA PLUS models are based on NIT’s TACHYON 16K FPA (Focal Plane Array), sensitive in the 1 µm to 5 µm spectral range. This FPA utilizes VPD PbSe, entirely developed and manufactured by NIT, providing the first quantum infrared technology monolithically compatible with Si-CMOS circuitry. With on-chip A/D readout electronics as well as on-chip dark current cancellation circuit and a digital interface for control and data, the TACHYON 16K FPA features global shutter snapshot readout of 14 Bit raw data and a programmable integration time between 20 µs and 1,000 µs. NIT’s TACHYON 1024 microCAMERA  is an uncooled MWIR camera with an IP67-rated enclosure for industrial environments. The camera is powered through a USB 2.0 (high speed) interface with industrial M12 USB connector and capable to reach a frame rate of 1,000 fps. Its miniaturized size, based in a SWaP-C concept, ensures perfect integration into the production process. The TACHYON 1024 microCAMERA is based on NIT’s TACHYON 1024 FPA, an uncooled 32x32 VPD PbSe focal plane array with digital interface and high-speed capabilities up to 10,000 images per second, sensitive in the 1 µm to 5 µm spectral range. With on-chip A/D readout electronics as well as on-chip dark current cancellation circuit and a digital interface for control and data, the TACHYON 1024 FPA features snapshot readout of 10 Bit raw data and a programmable integration time between 100 µs and 1,000 µs. Based on the TYCHYON 1024 FPA, NIT also provides the TACHYON 1024 microCORE  uncooled MWIR module with USB connection. The module is USB-powered and capable to reach an acquisition frame rate of 1,000 fps. Optimized size and affordable cost ensure perfect integration in the production process, also in cost-sensitive machine vision applications. For linear array cameras from New Infrared Technologies, please refer to the LUXELL series of linear array MWIR cameras. And for applications requiring single-pixel MWIR detection, have a look at NIT’s LEPTON series of single-pixel VPD PbS MWIR detectors. Key Features: Detector Type: VPD PbSe FPA With Digital Interface Uncooled Operation Array Format: 128x128 (16,384 Pixels), 32x32 (1,024 Pixels) Pixel Size: 50 µm x 50 µm, 130 µm x 130 µm ROI Windowing Function (64x64, 32x32, 1x128) for TACHYON 16K CAMERA Models; Window Position & Dimensions SW-configurable (PLUS Model) Maximum Frame Rate: 1,000 fps to 10,000 fps Spectral Range: MWIR, 1.0 µm to 5.0 µm Peak Wavelength of Detection: 3.7 µm Integration Time: 10 µs to 1,000 µs, Selectable Data Transmission Modes: Raw Data 10 Bit, 14 Bit; NUC Corrected 16 Bit and High-speed RAW/NUC 12 Bit (TACHYON 16K CAMERA PLUS) Minimum Temperature of Detection: +100 °C Interfaces: USB 2.0 High-speed (480 Mbps); GigE VISION 2.0 With PoE, Multi-purpose DI/DO Connector (Trigger In/out) for TACHYON 16K CAMERA PLUS Mechanical Shutter for 1-pt Offset Correction Start-up Time: <10 s (TACHYON 16K CAMERA Models) Power Supply: PoE, 8 W (TACHYON 16K CAMERA Models), 5 VDC Through USB Connection Metal Housing With Rear Connectors and M3 & M4 Tripod Screw Holes (TACHYON 16K CAMERA Models) Dimensions TACHYON 16K CAMERA Models: 66 x 62 x 62 mm Weight TACHYON 16K CAMERA Models: 400 g Optics TACHYON 16K CAMERA Models (Standard Option): f = 35 mm, F# 1.1, FoV 10.5° x 10.5 °, AR Coating, Manual Focus, CS-Mount Dimensions TACHYON 1024 microCAMERA: 98.0 x 49.5 x 61.0 mm Weight TACHYON 1024 microCAMERA: 250 g Optics TACHYON 1024 microCAMERA: f = 24 mm, F#1.2, FoV 10.25° x 10.25° (Standard), f = 48 mm, F#1.6, FoV 5.1° x 5.1° (Additional Lens Option) Software Included: NIT Software Suite, SDK Available for Custom Software Programming Dimensions TACHYON 1024 microCORE Module: 43 x 36 x 17 mm Biasing Voltage TACHYON 1024 microCORE Module: 1.00 V to 2.00 V, Selectable Metal Housing (46.5 x 39.5 x 29.5 mm) With CS-mount Optics Interface Available for TACHYON 1024 microCORE Module Applications: Machine Vision; Additive Manufacturing Monitoring; Industrial Automation; Laser Process Monitoring; Industrial Process Monitoring & Control (welding, Cutting, etc.); Gas Detection; Spectroscopy; Fire Detection; Glass Manufacturing Quality Assurance; Research & Development; OEM Integration

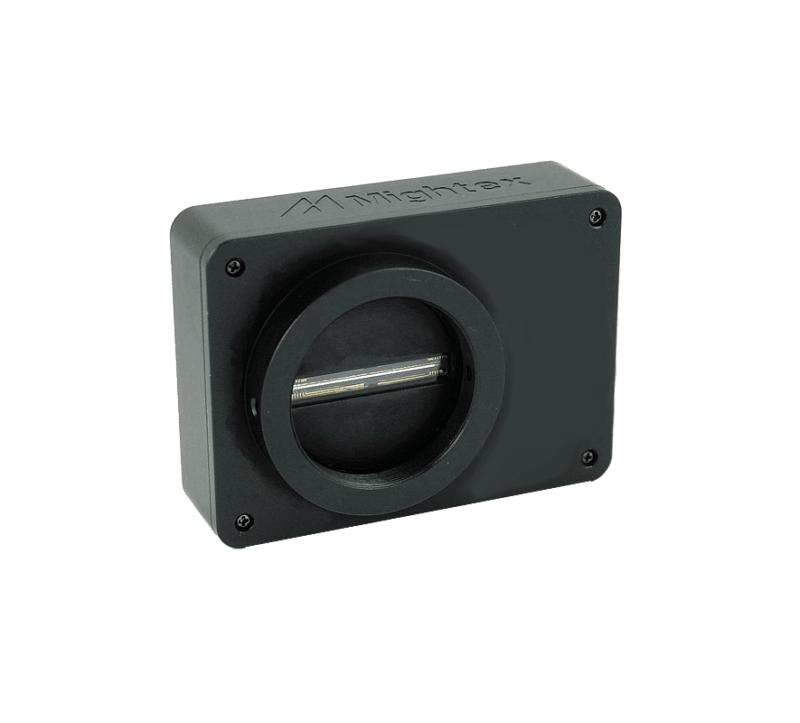

2 MP; Pixel Size 14x14 µm; B/W; 3300 fps; Resolution 12 bit; USB 2.0; Buffered; External Trigger; 300-1050 nm; Board-level or Enclosed; Windowless Version Available Mightex’s TCN/TCE-1209-U series are cost-effective, high-performance, monochrome line CCD cameras with external trigger, based on a single-line, 2048-pixel, 12 bit CCD chip with USB2.0 (480 Mbit/s) interface. These compact linear cameras are ideal for a variety of OEM applications in industry process control, optics, biology, spectroscopy and reflection imaging – available as “naked” board-level device (TCN-1209-U) or pre-mounted in an enclosure (TCE-1209-U), also in a windowless version (TCE-1209-UW) with the glass window removed from the image sensor. CCD line cameras have several advantages over their area-array counterparts, including the high optical linear resolution that allows systems developers to use the cameras to capture two-dimensional (2-D) images by moving the object or the CCD perpendicularly to the scan line. Setting up the TCN/TCE-1209-U line cameras is very easy: the user simply installs the application software (included in the shipping package) and then connects the line camera to the PC using a USB cable. There is no need to install a DAC card, and no external power supply is required. A full-featured SDK and a Linux driver are also available. Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Black&White (B/W, Monochrome) Built-in Frame Buffer (64 Frames) Board-level or Enclosed Versions Available Optional F-mount Lens Adapter 2048 Square Pixel Silicon Linear CCD Array Pixel Size: 14 x 14 μm 12-bit A/D-Converter for High-intensity Resolution High Scan Rate (up to 3,300 Scans/s) Spectral Range: 200 to 1000 nm 4 GPIO Pins USB 2.0 (480 Mbit/s) Compatible, No Need for External Power Supply Optical Integration Time Adjustable from 300 µs to 3.3 s External Trigger Capability SDK for User Applications USB Command Set Protocol for Non-Windows-based Applications Linux Driver Demo Graphical User Interface Compatible to Windows 2000, XP, Vista, 7/8/10 Applications: Industrial Process Control; Machine Vision

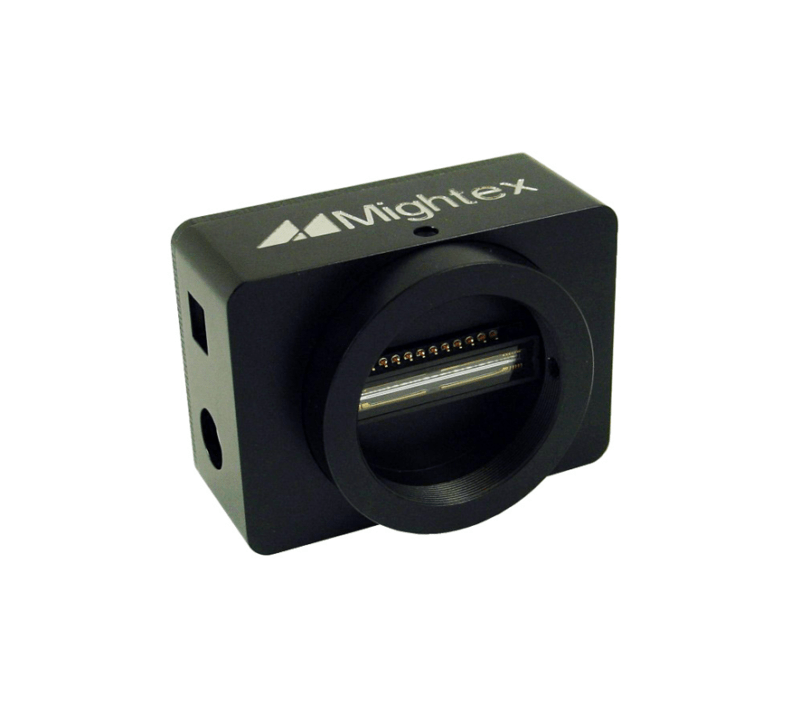

3.56 MP; Pixel Size x200 µm; B/W; 138 fps; Resolution 16 bit; USB 2.0; Buffered; External Trigger; Board-level or Enclosed; Windowless Version Available Mightex’s TCN/TCE-1304-U series are cost-effective, high-performance, B/W line CCD cameras with external trigger, based on a single-line, 3648-pixel CCD chip with USB2.0 (480 Mbit/s) interface. These compact line-scan cameras are ideal for a variety of OEM applications such as industry process control, optical spectroscopy and bio-medical imaging etc. – available as “naked” board-level device (TCN-1304-U) or pre-mounted in an enclosure (TCE-1304-U). TCN/TCE-1304-UW are the windowless versions of TCN/TCE-1304-U, with the glass window removed from the image sensor. Therefore, these versions are more sensitive to UV and more suitable for applications that involve coherent light sources. CCD line cameras have several advantages over their area-array counterparts, including high optical linear resolution that allows systems developers to use the cameras to capture two-dimensional (2-D) images by moving the object or the CCD perpendicularly to the scan line. Setting up the TCN/TCE-1304-U line cameras is very easy: the user simply installs the camera’s application software into any PC, and then connects the line camera to the PC using a USB cable. There is no need to install a DAC card or to use an external power supply. A user-friendly GUI based application software, LabVIEW support and an SDK are provided. In addition, a USB command set protocol and a Linux driver are available for non-Windows based applications Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Black&White (B/W, Monochrome) Board-level or Enclosed Versions Available Optional F-mount Lens Adapter 3648 Pixel Silicon Linear CCD Array Pixel Size: 8 x 200 μm 16-bit A/D-Converter for High-intensity Resolution Scan Rate up to 138 Scans/s Built-in Frame Buffer (4 Frames) External Trigger Capability 4 GPIO Pins Interface: USB 2.0 (480 Mbit/s), No Need for External Power Supply Optical Integration Time Adjustable from 0.1 ms to 6.5 s SDK for User Applications Demo Software with GUI Compatible to Windows 2000, XP, Vista, 7/8/10 Applications: Industrial Process Control; Optical Spectroscopy

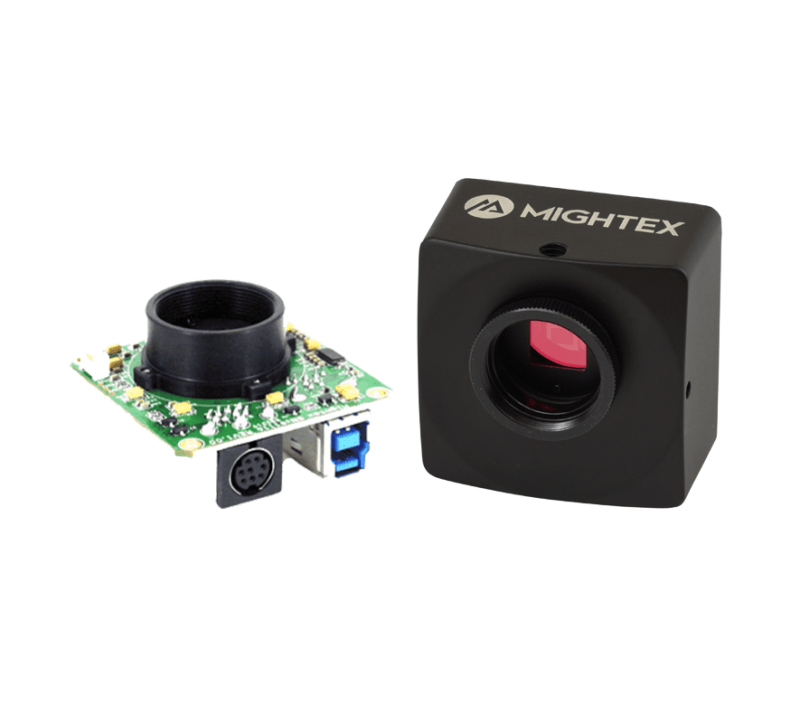

1.2 MP; Pixel Size 3.75x3.75 µm; Sensor Size 1/3” Diagonal; Colour or B/W; 60-380 fps; Resolution 8, 12 bit; USB 3.0; Global Shutter; Progressive Scan; Dynamic Range 64 dB; Board-level or Enclosed Mightex’s ultrafast USB 3.0, 1.2 MP, CMOS cameras are designed for applications that require high-speed and/or multiple cameras. These cameras are equipped with a super-speed USB3.0 interface that can deliver a transfer rate of up to 400 Mbytes per second, which is 10 times the USB2.0 speed, 3.5 times GigE speed and 6 times Firewire-800 speed. With this series’ 1.2 Megapixel global shutter CMOS sensor, the frame rate can be as high as 44 fps in full resolution and up to 300 fps using ROI mode. Mightex USB 3.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. USB3.0 1.2 MP CMOS cameras are available as colour (SMN-C012-U/SME-C012-U) or B/W (SMN-B012-U/SME-B012-U) versions and can be ordered as “naked” board-level device (SMN) or pre-mounted in an enclosure (SME). Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one. Key Features: Colour or Black&White (B/W, Monochrome) Board-level or Enclosed Versions Available Ultra-compact Interface: Super-speed USB 3.0 (5 Gbit/s), No Need for External Power Supply Support Simultaneous Image Capturing From Multiple Cameras Active Imaging Pixels: 1.2 MP (1280x960) Pixel Size: 3.75 x 3.75 µm Sensor Size (Diagonal): 1/3” Global Shutter Dynamic Range: 64 dB Gray Level: 8, 12 bit Progressive Scanning System Frame Rate: 60 to 380 fps 4-pin GPIOs Simpler Data Processing Digital Output, No Need for Frame Grabber Custom Programmable With SDK Provided DirectShow & TWAIN Drivers External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping/Binning OEM Versions Available Applications: Machine Vision Systems; Medical Imaging and Engineering; Semiconductor Equipment; Document Scanners; Digital Microscopy; Web Camera and Security Video; Test Instruments; High-quality ID Photo Capture; 2D Barcode Readers

5 MP; Pixel Size 2.2x2.2 µm; Sensor Size 1/2.5” Diagonal; Colour or B/W; 14-350 fps; Resolution 8, 12, 24 bit; USB 3.0; Progressive Scan; Dynamic Range 70 dB; Board-level or EnclosedMightex’s ultrafast USB 3.0, 5 MP, CMOS cameras are designed for applications that require high-speed and/or multiple cameras. These cameras are equipped with a super-speed USB 3.0 interface that can deliver a transfer rate of up to 400 Mbytes per second, which is 10 times the USB 2.0 speed, 3.5 times GigE speed and 6 times Firewire-800 speed.With a fast and high-definition Aptina 5 Megapixel CMOS image sensor that can offer up to 14 fps in full resolution and up to 350 fps using ROI mode, Mightex USB 3.0 cameras are suited for industrial applications that require a great amount of data to be processed and transferred from the camera to the PC.These ultra-compact cameras have external trigger-in, strobe-out, and a powerful engine that supports multiple camera operations. In addition to all these outstanding features, a user-friendly GUI based application software and an SDK are provided for custom software development.USB3.0 5MP CMOS cameras are available as colour (SMN-C050-U/SME-C050-U) or B/W (SMN-B050-U/SME-B050-U) versions and can be ordered as “naked” board-level device (SMN) or pre-mounted in an enclosure (SME).Note: Board-level cameras are designed for OEM applications, when a system-level enclosure is usually provided. In order to avoid electro-static discharge (ESD) related damages, workforce handling a board-level camera should be properly grounded. ESD related damages are considered as mishandling and are not covered by product warranty. For lab use, it is strongly recommended to choose an enclosed camera instead of a board-level one.Key Features:Colour or Black&White (B/W, Monochrome)Board-level or Enclosed Versions AvailableUltra-compactInterface: Super-speed USB 3.0 (5 Gbit/s), No Need for External Power SupplySupport Simultaneous Image Capturing From Multiple CamerasActive Imaging Pixels: 5 MP (2560x1920)Pixel Size: 2.2 x 2.2 µmSensor Size (Diagonal): 1/2.5”Dynamic Range: 70 dBBit Depth: 8 or 12 bit Gray Level, 24 bit Colour (R/G/B)Progressive Scanning SystemFrame Rate: 14 to 350 fps4-pin GPIOsDigital Output, No Need for Frame GrabberCustom Programmable With SDK ProvidedDirectShow & TWAIN DriversExternal and Software TriggerStrobe Output for External FlashROI and Pixel Skipping/BinningOEM Versions AvailableApplications: Machine Vision Systems; Medical Imaging and Engineering; Semiconductor Equipment; 3D Imaging in Process Automation; Document Scanners; Digital Microscopy; Web Camera and Security Video; Robotics

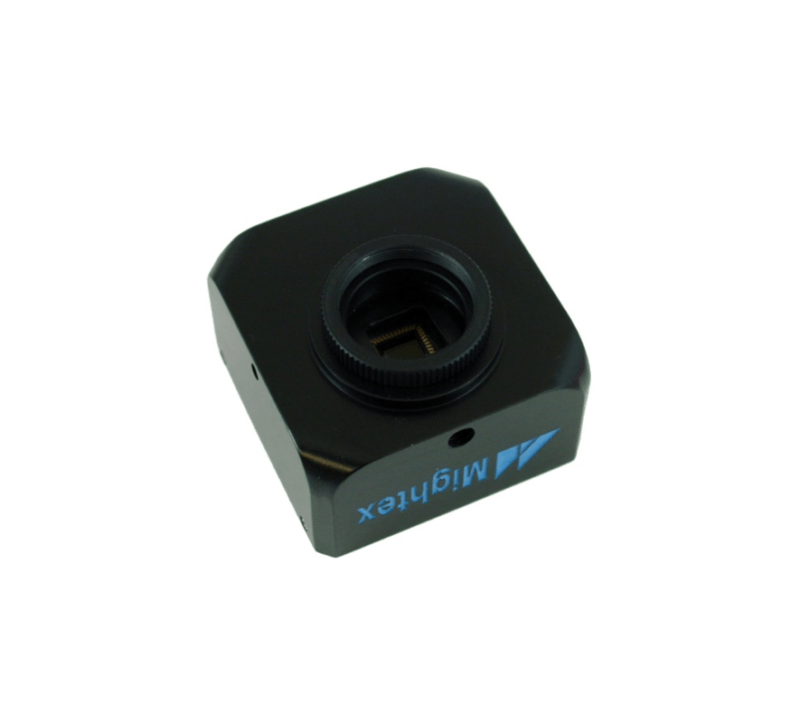

1.3 MP; Pixel Size 5.2x5.2 µm; Sensor Size 6.66x5.32 mm; B/W; 12-600 fps; Resolution 8, 10 bit; USB 2.0; No Glass Window; Unbuffered or Buffered; Progressive Scan; Dynamic Range 68 dB Windowless cameras are particularly useful for applications that are sensitive to multiple reflections due to the existence of the glass window in front of the CMOS sensor. One example of such an application is laser beam profiling. Mightex’s series of windowless monochrome (B/W) USB 2.0 CMOS cameras are designed for a wide variety of applications such as machine vision, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. With 1.3 MP, a high-speed USB2.0 interface and powerful PC software, these cameras deliver excellent quality images. Unbuffered 8 bit versions as well as buffered 10 bit versions are available. While unbuffered cameras (MCE-B013) feature frame rates up to 24 fps in full resolution (up to 600 fps using ROI mode) and optional built-in LED drivers, buffered cameras (BTE-B013) have built-in frame buffers, external trigger-in, strobe-out, a powerful camera engine that supports multiple cameras, and frame rates up to 12 fps in full resolution (up to 150 fps using ROI mode). A user-friendly GUI based application software and an SDK are provided for custom software development. DirectShow driver and a TWAIN driver are also provided in order to easily link the cameras with users’ applications, and for BTE-B013 buffered cameras a USB command set protocol is also provided for non-Windows based applications. Monochrome cameras often exhibit a 20% higher spatial resolution than their colour counterparts because no pixel interpolation is necessary. Without a Bayer colour filter on the sensor, monochrome cameras are also more sensitive than colour sensors, especially in near IR and UV regions. Key Features: No Glass Window in Front of the CMOS Sensor Ideal for Coherent Light Detection Black&White (B/W, Monochrome) Higher Resolution & Sensitivity (Especially in IR) Than Colour Sensors Unbuffered or Buffered with 32 MByte On-board Memory Built-in LED Drivers (MCE-B013 Unbuffered Cameras) Active Imaging Pixels: 1.3 MP (1280x1024) Pixel Size: 5.2 x 5.2 µm Sensor Size: 6.66 x 5.32 mm Dynamic Range: 68 dB Gray Level: 8 bit (MCE-B013 Unbuffered Cameras), 10 bit (BTE-B013 Buffered Cameras) Progressive Scanning System Frame Rate: 12 to 600 fps 4-pin GPIOs Simpler Data Processing Interface: High-speed USB 2.0 (480 Mbit/s), No Need for External Power Supply Digital Output, No Need for Frame Grabber Custom Programmable With SDK Provided DirectShow & TWAIN Drivers External and Software Trigger Strobe Output for External Flash ROI and Pixel Skipping/Binning OEM Versions Available (MCE-B013 Unbuffered Cameras) Applications: Laser Beam Profiling; Laser Interferometry; Digital Holography; Holographic Data Storage; Digital Microscopy; Machine Vision; Medical Imaging; Semiconductor Equipment; Test Instruments

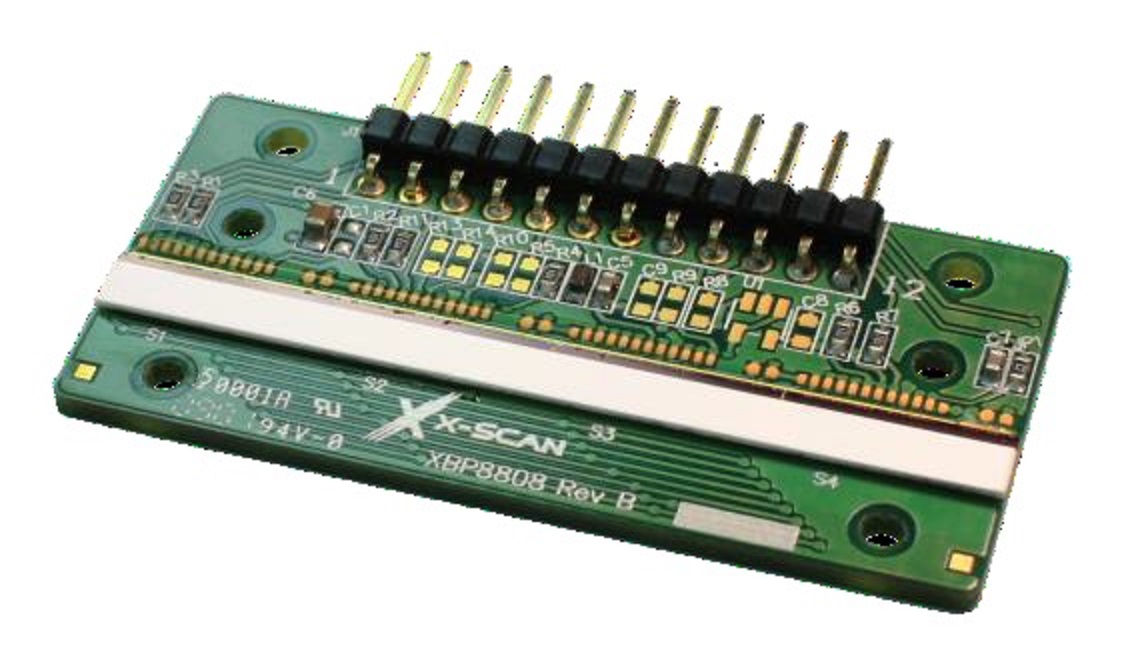

CMOS Photodiode Detector Array; Pixel Size 0.04x0.075 to 1.565x2.4 mm; Resolution 0.05-1.6 mm; 32-6,144 Pixels; Length 51.2-307.2 mm; Scintillator GOS:Tb, CsI:Tl, CdWO4, Other; Data Rate 1 MHz Max.; Dynamic Range >4000 X-Scan Imaging’s XB series are single-chip, buttable silicon CMOS line scan detector boards with on-chip, fully integrated signal processing circuits designed for visible wavelength and x-ray imaging applications. A scintillator layer is attached to the surface of the photodiode detector array, which converts X-ray photons into visible light. A variety of standard x-ray sensitive scintillator materials are available for applications in industrial inspection, airport security and cargo screening. Each XB series detector board is configured as a contiguous linear array of photodiodes including a timing generator, digital scanning shift register, an array of charge integrating amplifiers, sample-and-hold circuits and signal amplification chain. XB series detector boards are designed to permit end-to-end butting on a printed circuit board to form a single longer detector array for extended length scanning applications. Key Features: Element Pitch (Resolution) 0.05 to 1.6 mm Pixel Size: 40 x 75 µm to 1.565 x 2.4 mm Active Area Length: 51.2 to 307.2 mm Number of Elements: 32 to 6,144 5 V Power Supply Operation Simultaneous Integration by Using an Array of Charge Integrating Amplifiers Sequential Readout With a Digital Scanning Shift Register Maximum Data Rate: 1 MHz Integrated CDS Circuits Allow Low Noise and Wide Dynamic Range up to >4000 User-specified Scintillator Material: GOS:Tb, CsI:Tl, CdWO4, etc. Extended Radiation Hardness Lifetimes (88xxR Series) Applications: Linear X-Ray Imaging for Industrial and Food Inspection, Homeland Security, Contraband and Cargo Screening, Biological and Industrial CT
