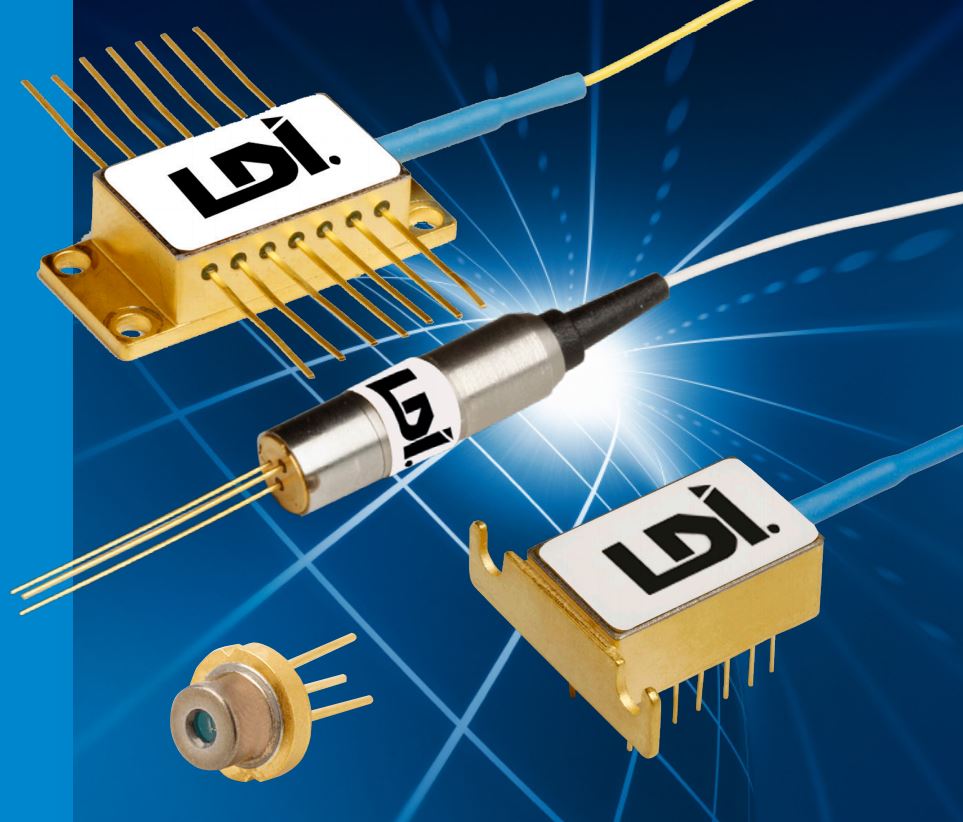

SCW/LCW Series Instrument Laser Modules

Product number: SW11584

Downloads

SCW_LCW Series Instrument Laser Modules OSI LaserDiode Datasheet

Product information "SCW/LCW Series Instrument Laser Modules"

1064-1650 nm; Spectral Width 0.5-12 nm; Min. Optical Power 0.5-400 mW; Forward Drive Current 12-2,500 mA; Forward Voltage 1.4-3 V; Package 4-pin DIP/Butterfly, 2-,3-pin Coaxial, 3-pin TO56

OSI Laser Diode’s SCW and LCW Series of high-power, single mode (SM, SCW Series) or multi mode (MM, LCW Series) laser modules are designed to meet the specific performance demands of the optical test equipment marketplace.

The high peak optical power LCW / SCW Series laser chips are based on a multiple quantum well structure fabricated by an MOCVD technology and processed into a ridge wave guide device structure. This series’ devices serve 1064 nm through 1650 nm wavelengths and are available in RoHS compliant, fully hermetic laser-welded 2 or 3 pin coaxial, 3 pin TO56 or 14 pin DIP/Butterfly packages.

These packaged lasers can include both TEC and temperature sensing thermistors as well as back facet monitors for superior wavelength stability over a wide temperature range. Standard fiber length for SMF- or MMF-coupled versions is 1 m. Custom packaging and E-O/Environmental screening to Military or Telecordia standards are available.

Excellent output power stability and constant wavelength are features that make OSI LaserDiode’s SCW/LCW Series 1310/1550 nm laser modules ideal for applications such as telecom/datacom and test instrumentation. This series’ devices comprise a Fabry-Perot (F/P) laser chip and a single mode optical fiber (SMF) that are aligned in LDI’s high stability, temperature controlled, low reflection, 14-pin dual-in-line module, with or without TEC and temperature sensing thermistor.

SCW Series 180 mW pulsed high-power, SMF-coupled laser modules are designed to meet the performance demands of the optical test equipment marketplace. These high peak optical power lasers serve 1310 nm through 1650 nm wavelengths and are available in fully hermetic laser welded packages. These packaged lasers can include a thermoelectric cooler (TEC), a temperature sensing thermistor or a back facet monitor for superior wavelength stability over a wide temperature range.

SCW 1006-010R is a 1064 nm CW Al RWG Fabry-Perot (F/P) laser diode module in a 3 pin coaxial package. The laser diode is optically coupled to an Hi-1060 fiber pigtail and includes a BFM. The SCW 1006-010R laser diode module is specifically designed for uncooled fiberoptic applications.

OSI LaserDiode’s SCW 1383R is a 1383 nm pulsed Al RWG distributed feedback (DFB) laser diode module in a 14 pin DIL package. The laser diode is optically coupled to an SMF 28 fiber pigtail and includes a thermoelectric cooler (TEC) and a temperature sensing thermistor. The SCW 1383R laser diode module is specifically designed for OSA/OTDR and other optical test equipment applications where high peak pulsed optical power is desired.

The SCW 1430 Series are 1490 nm high-power pulsed Al RWG Fabry-Perot (F/P) laser diode modules in 14 pin DIL, butterfly or 3 pin TO56 packages. These laser diode modules are specifically designed for OSA/OTDR and other optical test equipment applications where high peak pulsed optical power is desired.

SCW 15C2-100R is a 1550 nm high-power CW Al RWG Fabry-Perot (F/P) laser diode module in a 14 pin butterfly package. The laser diode is optically coupled to an SMF fiber pigtail and includes a thermoelectric cooler (TEC) and a temperature sensing thermistor. The SCW 15C2-100R laser diode module is specifically designed for applications where high levels of optical power are desired.

OSI LaserDiode’s SCW 1536-200R is a 1550 nm high-power pulsed Al RWG Fabry-Perot (F/P) laser diode module in a 2 pin coaxial package. The laser diode is optically coupled to an SMF28 Ultra fiber pigtail. The SCW 1536-200R laser diode module is specifically designed for uncooled OSA/OTDR and other optical test equipment applications where high pulsed optical power is desired.

SCW 1532-500R is a 1550 nm high-power pulsed Al RWG Fabry-Perot (F/P) laser diode module in a 14 pin butterfly package. The laser diode is optically coupled to an SMF fiber pigtail and includes a thermoelectric cooler (TEC) and a temperature sensing thermistor. The SCW 1532-500R laser diode modules are specifically designed for OSA/OTDR and other optical test equipment applications where high peak pulsed optical power is desired.

SCW 1632-350R & SCW 1631F-350R are 1625 nm high-power pulsed RWG Fabry-Perot (F/P) laser diode modules in 14 pin butterfly & DIL packages. The laser diodes are optically coupled to an SMF fiber pigtail and include a thermoelectric cooler (TEC) and a temperature sensing thermistor. These laser diode modules are specifically designed for OSA/OTDR and other optical test equipment applications where high peak pulsed optical power is desired.

OSI LaserDiode’s SCW 1731F-D40R is a 1650 nm pulsed Al RWG distributed feedback (DFB) laser diode module in a 14 pin DIL package. The laser diode is optically coupled to an SMF fiber pigtail and includes a thermoelectric cooler (TEC) and a temperature sensing thermistor. The SCW 1731F-D40R laser diode module is specifically designed for OSA/OTDR and other optical test equipment applications where high peak pulsed optical power is desired.

SCW 17B7-D50R is a 1650 nm pulsed DFB laser diode module packaged in a 3 pin TO56 package with a back-facet detector & window cap. This laser diode module is specifically designed for optical test equipment applications.

SCW 17B7-225R is a 1650 nm high-power pulsed Fabry-Perot (F/P) laser diode module in a 3 pin TO56 package with a back-facet detector & window cap. This laser diode module is specifically designed for OSA/OTDR and other optical test equipment applications.

Product Name	Product Type	Center Wavelength	Spectral Width	Minimum Optical Power	Forward Drive Current	Forward Voltage	Operating Temperature	Package	Applications
SCW 1006-010R	CW F/P, SMF-coupled	1064 nm	1 nm	10 mW	125 mA	2 V	-30-+70 °C	3 pin coaxial with BFM	uncooled fiberoptic applications
SCW Series 180 mW	Pulsed High-power, SMF-coupled	1310-1650 nm	8-12 nm	180 mW	1,000, 1,200 mA	2 V	-30-+70 °C	14 pin DIP or butterfly, optional TEC, thermistors & back facet monitors	OTDR, optical test equipment applications
SCW/LCW Series 1310/1550 nm Telecom/Datacom	Pulsed F/P SMF/MMF-coupled	1310, 1550 nm	1.3, 2 nm	0.5 - 2 mW	12, 15 mA	1.4, 2 V	-20-+70 °C	14 pin DIP	short, intermediate and long distance telecommunication systems such as SONET, SDH and Ethernet or Fiberchannel systems
SCW 1383R	Pulsed DFB, SMF-coupled	1383 nm	0.4 nm	40 mW	Threshold Current 40 mA	2 V	-30-+70 °C	14 pin DIL with TEC and thermistor	optical test equipment applications where high peak pulsed optical power is desired
SCW 1430 Series 1490 nm	Pulsed High-power F/P	1490 nm	10 nm Max.	100 mW (DIP), 300 mW (TO56)	500 mA	2 V	-30-+70 °C	14 pin DIL, butterfly or 3 pin TO56	optical test equipment applications where high peak pulsed optical power is desired
SCW 15C2-100R	CW High-power F/P, SMF-coupled	1550 nm	8 nm	100 mW	500 mA	2 V	-20-+65 °C	14 pin butterfly with TEC and thermistor	applications where high levels of optical power is desired
SCW 1536-200R	Pulsed High-power F/P, SMF-coupled	1550 nm	7 nm	200 mW	Threshold Current 45 mA	2 V	-30-+70 °C	2 pin coaxial	OSA/OTDR, uncooled optical test equipment applications where high pulsed optical power is desired
SCW 1532-500R	Pulsed High-power F/P, SMF-coupled	1550 nm	10 nm	400 mW	2,500 mA	3 V	0-+65 °C	14 pin butterfly with TEC and thermistor	OSA/OTDR, optical test equipment applications where high peak pulsed optical power is desired
SCW 1632-350R & SCW 1631F-350R	Pulsed High-power F/P, SMF-coupled	1625 nm	10 nm	275 mW	2,100 mA	3 V	0-+65 °C	14 pin butterfly & DIL with TEC and thermistor	optical test equipment applications where high peak pulsed optical power is desired
SCW 1731F-D40R	Pulsed DFB	1650 nm	0.5 nm	40 mW	Threshold Current 40 mA	2 V	-30-+70 °C	14 pin DIL with TEC and thermistor	OSA/OTDR, optical test equipment applications where high peak pulsed optical power is desired
SCW 17B7-D50R	Pulsed DFB	1650 nm	0.5 nm	50 mW	500 mA Max.	1.4 V	-40-+70 °C	3 pin TO56 with back-facet detector & window cap	optical test equipment applications
SCW 17B7-225R	Pulsed High-power F/P	1650 nm	12 nm Max.	225 mW	1,200 mA Max.	2.5 V	-40-+70 °C	3 pin TO56 with back-facet detector & window cap	optical test equipment applications

Blue Font = Preliminary Data

Applications: OSA/OTDR Instruments; Optical Test Equipment; Spectroscopy; Photon Counting; Optical and LOS Sensors; Talk Sets; Telecom Data Transmission; Laser-based Instruments; Light Sources; Metrology

Manufacturer "OSI LaserDiode"
