800, 905 nm; Active Area Diameter 230, 500 µm; Responsivity 50, 55 A/W Typ.; Capacitance 1-3 pF Typ.; Package TO-46 Metal Can, LCC3 SMD, LCC6 SMD EPIGAP Optronic’s EOAPD series of silicon avalanche photodiodes (APD) provide an internal gain mechanism, fast time response, low dark current and high sensitivity in the near infrared region. These APDs are recommended for applications that require high bandwidth, or where internal gain is needed to overcome high pre-amp noise. In addition, they provide higher sensitivity than standard photodiodes like EPIGAP Optronic’s EOPD series and are ideal for extreme low-level light detection and short pulse detection. Silicon avalanche photodiodes (Si APDs) are the preferred optical detectors for applications with wavelengths between 400 nm and 1100 nm. Standard versions are available in active area sizes with a diameter of 230 µm and 500 µm and are offered in hermetic TO cans and LCC packages. These detectors have become the semiconductor equivalent of photomultipliers in many applications including data communication, LIDAR, instrumentation and photon counting. Key Features: Product Peak Wavelength Active Area Package Downloads EOAPD-800-0-04 800 nm Ø 230 µm TO-46 Metal Can Datasheet EOAPD-800-0-08 800 nm Ø 500 µm TO-46 Metal Can Datasheet EOAPD-800-1-01 800 nm Ø 230 µm LCC3 SMD Datasheet EOAPD-800-1-05 800 nm Ø 500 µm LCC3 SMD Datasheet EOAPD-800-1-07 800 nm Ø 500 µm LCC6 SMD Datasheet EOAPD-905-0-12 905 nm Ø 230 µm TO-46 Metal Can Datasheet EOAPD-905-0-16 905 nm Ø 500 µm TO-46 Metal Can Datasheet EOAPD-905-1-09 905 nm Ø 230 µm LCC3 SMD Datasheet EOAPD-905-1-13 905 nm Ø 500 µm LCC3 SMD Datasheet EOAPD-905-1-15 905 nm Ø 500 µm LCC6 SMD Datasheet   Applications: Data Communication; LIDAR; Instrumentation; Photon Counting; Optical Range Finders; High-speed Optical Communications; Medical Equipment; Barcode Readers

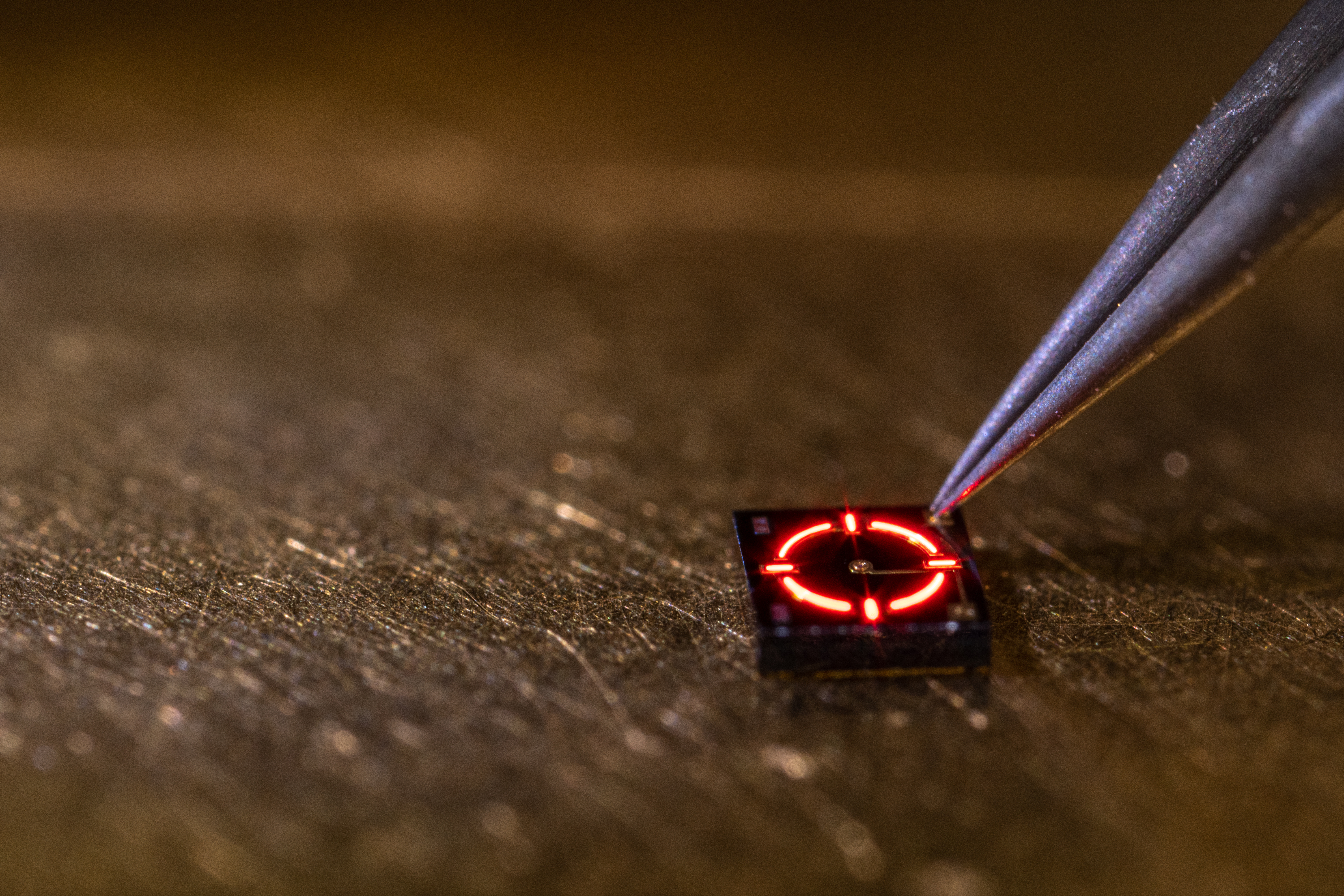

660 nm; Visible, Red; GaAsP/GaAs Diffusion Type; Luminous Intensity/Segment 80-400 µcd LED display chips enable to present numbers, letters and symbols. EPIGAP Optronic’s EODC-660-19-xx series of monolithic LED display chips provide various functionality and information in optical instruments. Each segment is separately addressable. The red colour (660 nm) of these GaAsP-based chips is visible at low currents, resulting in extended battery life in battery-powered, mobile, portable optical instruments. Various customized layouts like digits and symbols are available from development to serial product, with up to 30 segments per chip and multi-chip feasible. Please contact the AMS Technologies display LED chip experts to find the right solution that meets your design project’s requirements. We would like to support you and look forward to your inquiries! Further specialized LED chips provided by EPIGAP Optronic are EOLC-xxx-19-xx Point Source LED Chips. EPIGAP Optronic’s standard LED components are also available as standard bare LED chips (EOLC series) with high efficiency and very good degradation stability as well as standard components mounted in different packages. For further details, please refer to the series EOLD-xxxx-3xx/5xx Molded Plastic LEDs, EOLD-xxxx-0xx Hermetic TO LEDs and EOLS SMD LEDs. Key Features: Emission Colour: Red (660 nm) With High Brilliance and Contour Sharpness GaAsP/GaAs Diffusion Type Small Character Size: 7-segment Chip With Overall Height of 0.5 mm to 1.5 mm Line Width: Typically 25 µm Luminous Intensity per Segment: 80 µcd to 400 µcd Low Drive Current Supporting Battery-driven Portable Devices Customized Layouts Available From Development to Serial Product (up to 30 Segments per Chip, Multi-chip Feasible) Applications: Binoculars; Spotting Scopes; Microscopes

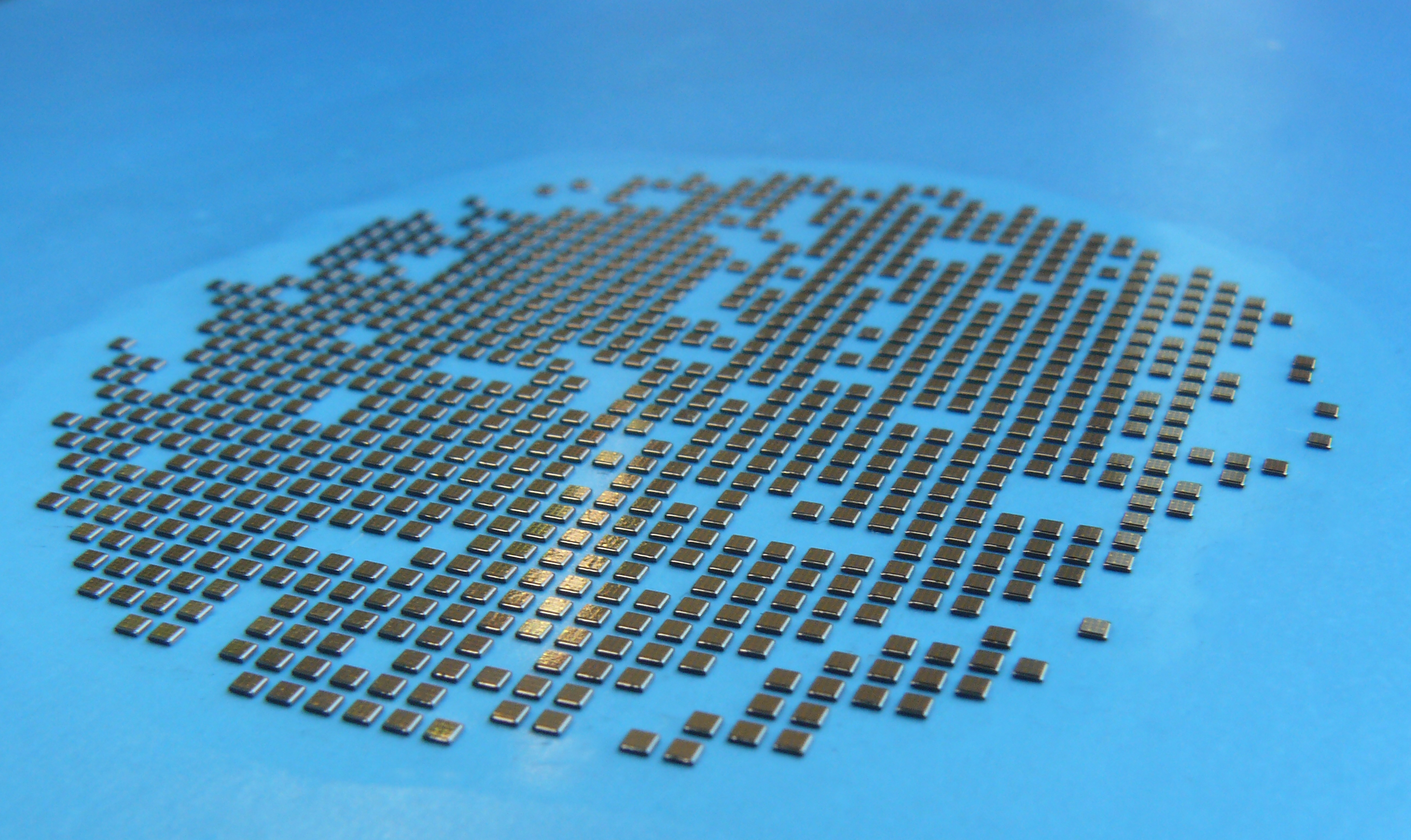

355-1720 nm; UV, Visible, IR; Radiant Power 1-90 mW; Luminous Intensity 140-11,000 mcd The starting point for any optoelectronic solution is the LED chip, which essentially determines the future product characteristics of the LEDs. EPIGAP Optronic provides the EOLC series of high-end LED chips from 355 nm in the UV range up to 1720 nm in the infrared range with high efficiency and very good degradation stability These LED chips with chip sizes from 265 x 265 μm to 365 x 365 μm feature a low variance of optical and electrical parameters. Excellent measuring technology supports production and ensures compliance with the quality requirements. This allows the chips to be selected according to optical and electrical parameters with an accuracy of up to ±3 nm. All LED chips undergo high-speed tests with 100 % analyzed spectrum as well as analysis for secondary and side peak, analysis for FWHM. Visual inspection for displays is provided as well as additional visual inspection for homogeneity of emitting intensity on request. Highly efficient power LED chips are available in the spectral range from 365 nm (UV) to 1050 nm (NIR) with high degradation stability and lifetime testing. Chip sizes of power LED chips range from 650 x 650 μm up to 1000 x 1000 μm or even more. The variety of chips in terms of wavelength, chip size and polarity is EPIGAP Optronic’s strength and allows for the selection and adaptation to the specifications of your application. Please contact the AMS Technologies LED experts to find the right standard or customized product that meets your design project’s requirements. We would like to support you and look forward to your inquiries! In addition to the EOLC series of standard LED chips, EPIGAP Optronic’s portfolio includes special chips like EOLC-xxx-19-xx point source LED chips or EODC-660-19-xx monolithic LED display chips for optical systems. EPIGAP Optronic’s LED chips are also available as standard components mounted in different packages. For further details, please refer to the series EOLD-xxxx-3xx/5xx Molded Plastic LEDs, EOLD-xxxx-0xx Hermetic TO LEDs and EOLS SMD LEDs. Applications: Industrial Sensors; Automation; Security and Safety Technology; Diagnostics; Biomedical Technology; Medical Imaging; Analytical Instruments; Scientific Analysis; Photo Catalyst; Medical Phototherapy; UV Curing; UV Sterilization

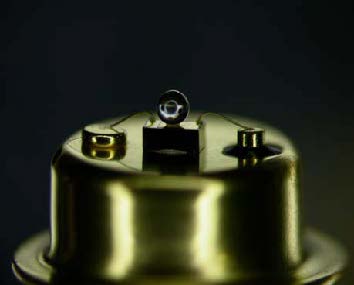

572-850 nm; Visible, IR; Radiant Power 0.005-1.8 mW; Luminous Intensity 0.09-40 mcd; Emission Area Diameter 10-100 µm EPIGAP Optronics’ EOLC-xxx-19-xx series of point source LED chips is designed to form a parallel light beam. The double wire bond construction on top eliminates any obstruction and dark spots. Available wavelengths are green (572 nm), red (625 nm and 650 nm) and infrared (850 nm) with apertures of emitting area Ø 10 µm, Ø 25 µm, Ø 50 µm and Ø 100 µm. EOLC-xxx-19-xx point source LED chips provide a very narrow, defined and precise beam and an optional ball lens. They offer effective suppression of undesirable side radiation along with simple collimation and feature high coupling efficiency to optical fibers Custom aperture sizes as well as different packages are available on request – please contact the AMS Technologies LED experts to find the right standard or customized point source LED product that meets your design project’s requirements. Further specialized LED chips provided by EPIGAP Optronic are EODC-660-19-xx monolithic LED display chips for optical systems. EPIGAP Optronic’s standard LED components are also available as standard bare LED chips (EOLC series) with high efficiency and very good degradation stability as well as standard components mounted in different packages. For further details, please refer to the series EOLD-xxxx-3xx/5xx Molded Plastic LEDs, EOLD-xxxx-0xx Hermetic TO LEDs and EOLS SMD LEDs. Key Features: Geometrically Well-defined Light Sources for High-accuracy Applications High Reliability Long Lifetime High Efficiency Improved Pulsing / Flashing Speeds Low Power Consumption Green, Red and Infrared Versions Available Wavelength Range: 572 nm to 850 nm Emission Area Diameter: 10 µm, 25 µm, 50 µm, 100 µm 625 nm Versions Also Available in SMD 4040 (EOLS-625-192-25/50) and Ceramic SMD 2520 Package (EOLS-625-199-50) Other Packages and Custom Aperture Sizes on Request Applications: Encoders; Positioning; Fiber Communication; Distance and Range Finding Indication; Fluorescence Analysis; Medical Instruments Such as Endoscopes; Optical Sights

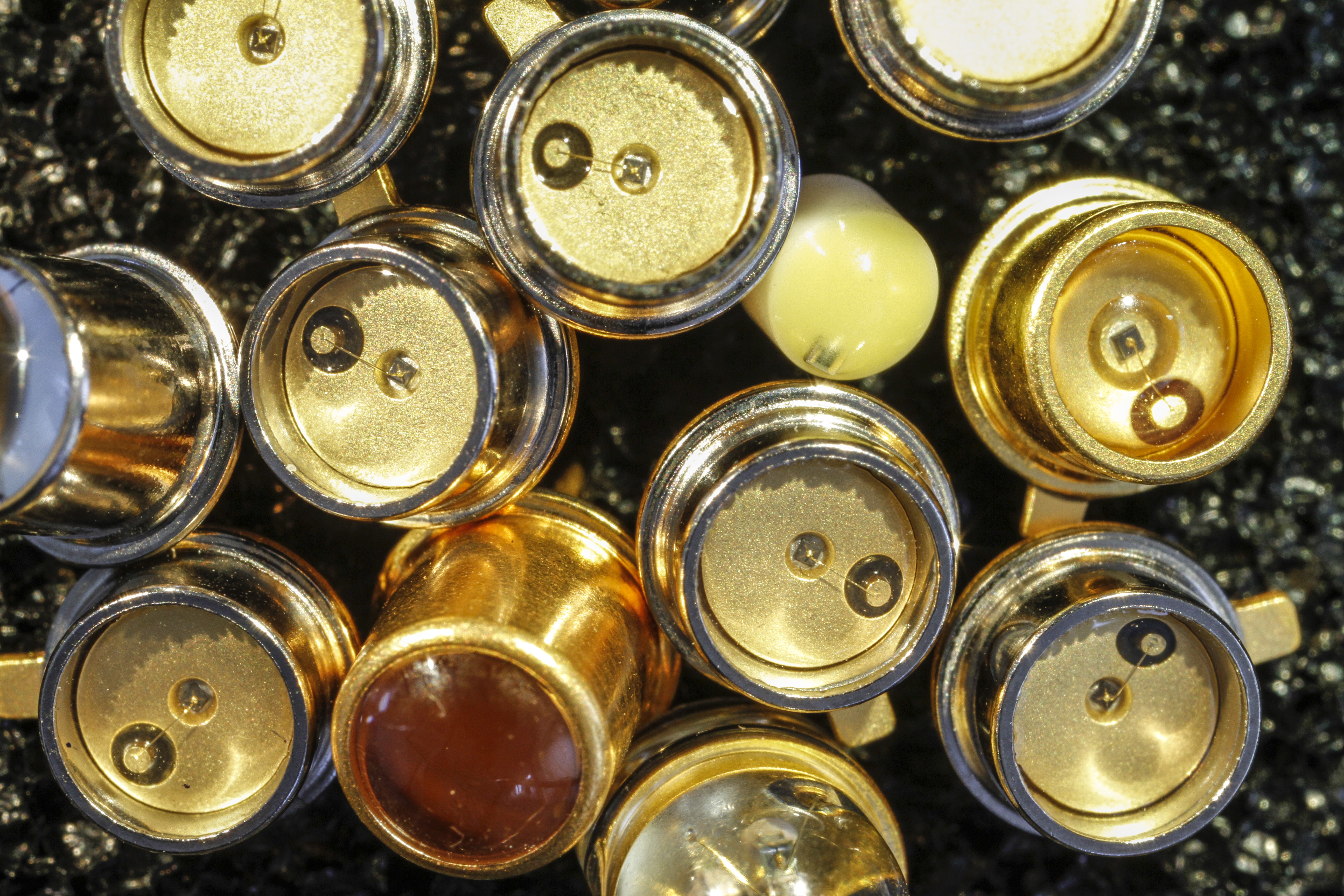

255-1720 nm; UV, Visible, IR; Radiant Power 0.8-8 mW; Viewing Angle 6°-114°; Package TO-05, TO-18, TO-39, TO-46 With the EOLD-xxxx-0xx series, EPIGAP Optronic provides a variety of different LEDs in hermetic TO cases as standard products, featuring high efficiency and degradation stability. TO metal case options with TO‐05, TO‐18, TO‐39 or TO‐46 package are available, equipped with flat window cap or lens cap. The package, lens shapes, viewing angle and wavelength in the range from 255 nm (UV) to 1750 nm (infrared) can be adapted to the application. EPIGAP Optronic manufactures samples and series for standard LEDs and customer-specific components according to your specifications. If you should not see the exact configuration that meets your design project’s requirements, please contact the AMS Technologies LED experts to find the right standard or customized product. EPIGAP Optronic’s LED components are also available in molded plastic cases (EOLD-xxxx-3xx/5xx series) and SMD packages (EOLS series) as well as bare LED chips (EOLC series) with high efficiency and very good degradation stability. The supplier’s variety of chips in terms of wavelength, chip size and polarity allow for the selection and adaptation to the requirements of your application. The portfolio includes special chips like EOLC-xxx-19-xx point source LED chips or EODC-660-19-xx monolithic LED display chips for optical systems. Key Features: Product Wavelength Package Luminous Intensity Radiant Power Viewing Angle Downloads EOLD-255-092 255 nm TO-46   1.25 mW 100° Datasheet EOLD-255-012 255 nm TO-46   1 mW 6° Datasheet EOLD-265-092 265 nm TO-46   1.35 mW 100° Datasheet EOLD-265-012 265 nm TO-46   1.1 mW 6° Datasheet EOLD-275-092 275 nm TO-46   2.2 mW 100° Datasheet EOLD-275-012 275 nm TO-46   1.6 mW 6° Datasheet EOLD-310-013 310 nm TO-46   0.9 mW 6° Datasheet EOLD-310-023 310 nm TO-18   1.2 mW 24° Datasheet EOLD-310-043 310 nm TO-18   1.2 mW 40° Datasheet EOLD-310-093 310 nm TO-18   1.2 mW 113° Datasheet EOLD-310-093-1 310 nm TO-5   1.5 mW 114° Datasheet EOLD-310-013-6 310 nm TO-5   0.8 mW 6° Datasheet EOLD-325-013 325 nm TO-46   1 mW 6° Datasheet EOLD-325-023 325 nm TO-18   1.5 mW 24° Datasheet EOLD-325-043 325 nm TO-18   1.4 mW 40° Datasheet EOLD-325-093 325 nm TO-18   1.2 mW 113° Datasheet EOLD-325-093-1 325 nm TO-39   1.7 mW 114° Datasheet EOLD-325-013-6 325 nm TO-5   1 mW 6° Datasheet EOLD-340-013 340 nm TO-46   0.9 mW 6° Datasheet EOLD-340-023 340 nm TO-18   1.3 mW 24° Datasheet EOLD-340-043 340 nm TO-18   1.3 mW 40° Datasheet EOLD-340-093 340 nm TO-18   1.3 mW 113° Datasheet EOLD-340-093-1 340 nm TO-5   1.7 mW 114° Datasheet EOLD-340-013-6 340 nm TO-5   1 mW 6° Datasheet EOLD-365-012 365 nm TO-18   1.5 mW 10° Datasheet EOLD-365-092 365 nm TO-18   1.5 mW 90° Datasheet EOLD-370-012 370 nm TO-46   1.5 mW 10° Datasheet EOLD-460-013 460 nm TO-46 16000 mcd 8 mW 10° Datasheet EOLD-470-013-2 470 nm TO-46   4 mW 12° Datasheet EOLD-810-095-4 810 nm TO-46   2.2 mW 90° Datasheet EOLD-880-015-1 880 nm TO-46   1.8 mW 6° Datasheet EOLD-940-015 940 nm TO-46   5 mW 6° Datasheet EOLD-1050-015 1050 nm TO-46   1.6 mW 6° Datasheet EOLD-1050-095 1050 nm TO-46   5 mW 40° Datasheet EOLD-1060-015 1060 nm TO-46   1.6 mW 6° Datasheet EOLD-1200-015 1200 nm TO-46   1.5 mW 6° Datasheet EOLD-1200-095 1200 nm TO-46   1.5 mW 50° Datasheet EOLD-1300-015 1300 nm TO-46   1.6 mW 6° Datasheet EOLD-1300-095 1300 nm TO-46   1.6 mW 50° Datasheet EOLD-1450-015 1450 nm TO-46   1.5 mW 6° Datasheet EOLD-1650-015 1650 nm TO-46   1 mW 6° Datasheet EOLD-1720-015 1720 nm TO-46   1 mW 6° Datasheet EOLD-1720-095 1720 nm TO-46   1 mW 50° Datasheet   Applications: Industrial Sensors; Automation; Security and Safety Technology; Diagnostics; Biomedical Technology; Medical Imaging; Analytical Instruments; Scientific Analysis; Photo Catalyst; Medical Phototherapy; UV Curing; UV Sterilization

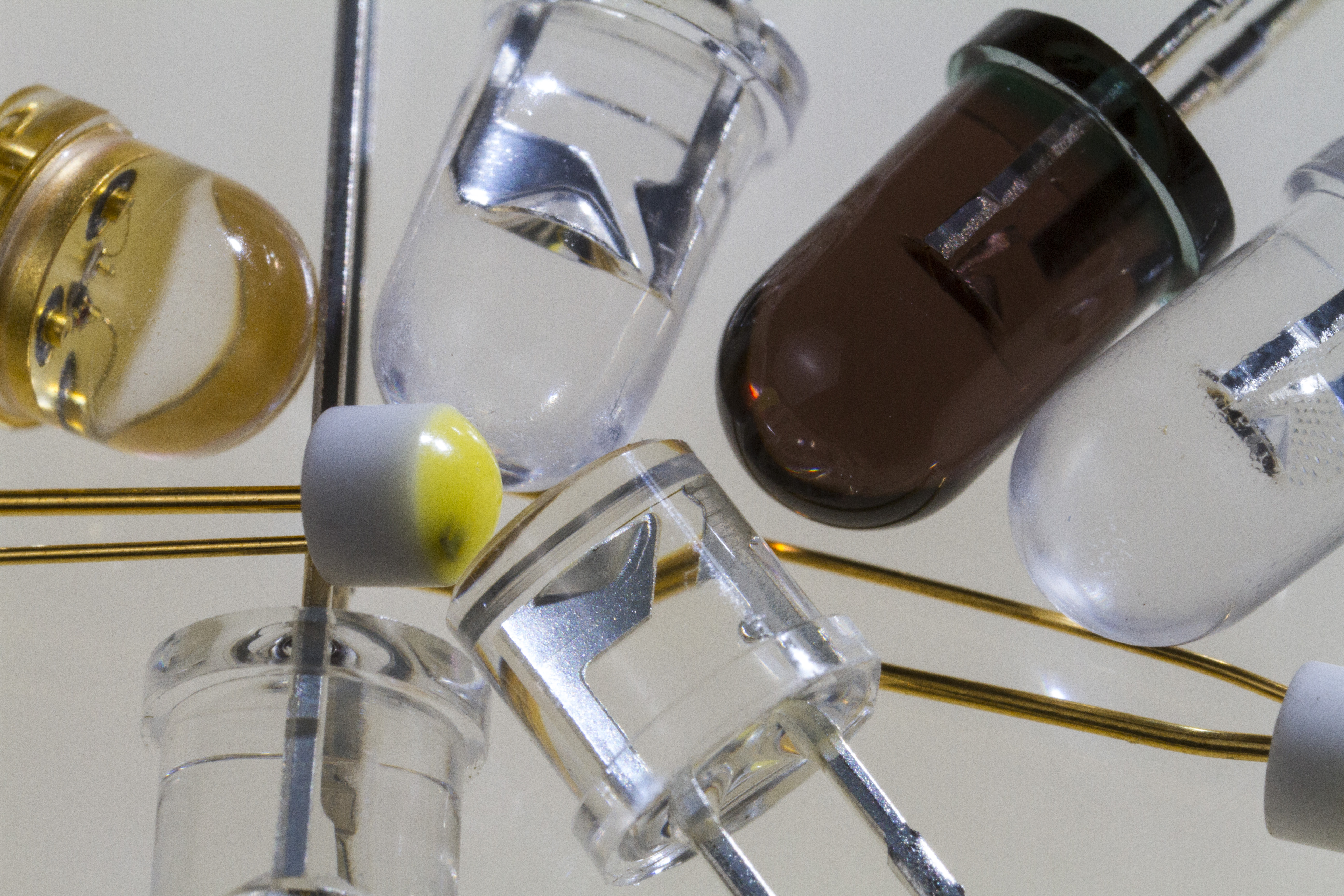

355-1650 nm; UV, Visible, IR; Radiant Power 0.9-25 mW; Luminous Intensity 30-14,000 mcd; Viewing Angle 8°-110°; Package 3, 5 mm With the EOLD-xxxx-3xx/5xx series, EPIGAP Optronic provides a variety of different LEDs in 3 mm or 5 mm molded plastic package as standard products, featuring a low variance of optical and electrical parameters. The package, lens shapes, viewing angle and wavelength in the range from 355 nm (UV) to 1750 nm (infrared) can be adapted to the application. EPIGAP Optronic manufactures samples and series for standard LEDs and customer-specific components according to your specifications. If you should not see the exact configuration that meets your design project’s requirements, please contact the AMS Technologies LED experts to find the right standard or customized product. EPIGAP Optronic’s LED components are also available in hermetic TO cases (EOLD-xxxx-0xx series) and SMD packages (EOLS series) as well as bare LED chips (EOLC series) with high efficiency and very good degradation stability. The supplier’s variety of chips in terms of wavelength, chip size and polarity allow for the selection and adaptation to the requirements of your application. The portfolio includes special chips like EOLC-xxx-19-xx point source LED chips or EODC-660-19-xx monolithic LED display chips for optical systems. Key Features: Product Wavelength Package Luminous Intensity Radiant Power Viewing Angle Downloads EOLD-355-525 355 nm 5 mm   1 mW 15° Datasheet EOLD-365-525 365 nm 5 mm   4 mW 15° Datasheet EOLD-375-525 375 nm 5 mm   11 mW 15° Datasheet EOLD-375-545 HP 375 nm 5 mm   19 mW 40° Datasheet EOLD-385-535 385 nm 5 mm   1.8 mW 30° Datasheet EOLD-395-525-1 395 nm 5 mm   20 mW 25° Datasheet EOLD-400-334 400 nm 3 mm   25 mW 30° Datasheet EOLD-400-545 HP 405 nm 5 mm   25 mW 40° Datasheet EOLD-400-535 410 nm 5 mm 30 mcd   30° Datasheet EOLD-430-533 430 nm 5 mm 450 mcd   30° Datasheet EOLD-470-523 470 nm 5 mm 9000 mcd 15 mW 15° Datasheet EOLD-470-324 470 nm 3 mm 5000 mcd   10° Datasheet EOLD-505-534 505 nm 5 mm 8500 mcd   30° Datasheet EOLD-525-333 525 nm 3 mm 14000 mcd   30° Datasheet EOLD-525-524-1 525 nm 5 mm 18000 mcd   15° Datasheet EOLD-560-513 560 nm 5 mm 85 mcd   8° Datasheet EOLD-588-333 590 nm 3 mm 5000 mcd   30° Datasheet EOLD-625-333 625 nm 3 mm 5000 mcd   30° Datasheet EOLD-630-323 630 nm 3 mm 3500 mcd   20° Datasheet EOLD-660-343 660 nm 3 mm 1300 mcd   20° Datasheet EOLD-660-523 660 nm 5 mm 1100 mcd   15° Datasheet EOLD-660-592 660 nm 5 mm 130 mcd 5 mW 110° Datasheet EOLD-670-344 670 nm 3 mm 200 mcd   35° Datasheet EOLD-670-524 670 nm 5 mm   6 mW 20° Datasheet EOLD-700-524 700 nm 5 mm   10 mW 20° Datasheet EOLD-720-524 720 nm 5 mm   10 mW 20° Datasheet EOLD-740-524 740 nm 5 mm   6 mW 20° Datasheet EOLD-760-324 760 nm 3 mm   6 mW 20° Datasheet EOLD-760-524 760 nm 5 mm   6 mW 20° Datasheet EOLD-765-524 765 nm 5 mm   6 mW 20° Datasheet EOLD-770-524 770 nm 5 mm   6 mW 20° Datasheet EOLD-780-525 780 nm 5 mm   11 mW 20° Datasheet EOLD-810-525 810 nm 5 mm   9 mW 20° Datasheet EOLD-840-325 840 nm 3 mm   6.5 mW 20° Datasheet EOLD-850-515 850 nm 5 mm   25 mW 16° Datasheet EOLD-850-525 850 nm 5 mm   11 mW 20° Datasheet EOLD-870-355 870 nm 3 mm   22 mW 50° Datasheet EOLD-880-525 880 nm 5 mm   11 mW 20° Datasheet EOLD-900-525 900 nm 5 mm   10 mW 20° Datasheet EOLD-935-525 935 nm 5 mm   6.5 mW 20° Datasheet EOLD-940-525 940 nm 5 mm   6.5 mW 20° Datasheet EOLD-965-525 965 nm 5 mm   8.5 mW 20° Datasheet EOLD-1020-525 1020 nm 5 mm   4 mW 20° Datasheet EOLD-1050-525 1050 nm 5 mm   7 mW 20° Datasheet EOLD-1060-525 1060 nm 5 mm   1.6 mW 20° Datasheet EOLD-1070-535 1070 nm 5 mm   10 mW 35° Datasheet EOLD-1200-525 1200 nm 5 mm   1.5 mW 20° Datasheet EOLD-1300-525 1300 nm 5 mm   2.2 mW 25° Datasheet EOLD-1550-525 1550 nm 5 mm   0.9 mW 20° Datasheet EOLD-1650-525 1650 nm 5 mm   1.5 mW 20° Datasheet   Applications: Industrial Sensors; Automation; Security and Safety Technology; Diagnostics; Biomedical Technology; Medical Imaging; Analytical Instruments; Scientific Analysis; Photo Catalyst; Medical Phototherapy; UV Curing; UV Sterilization

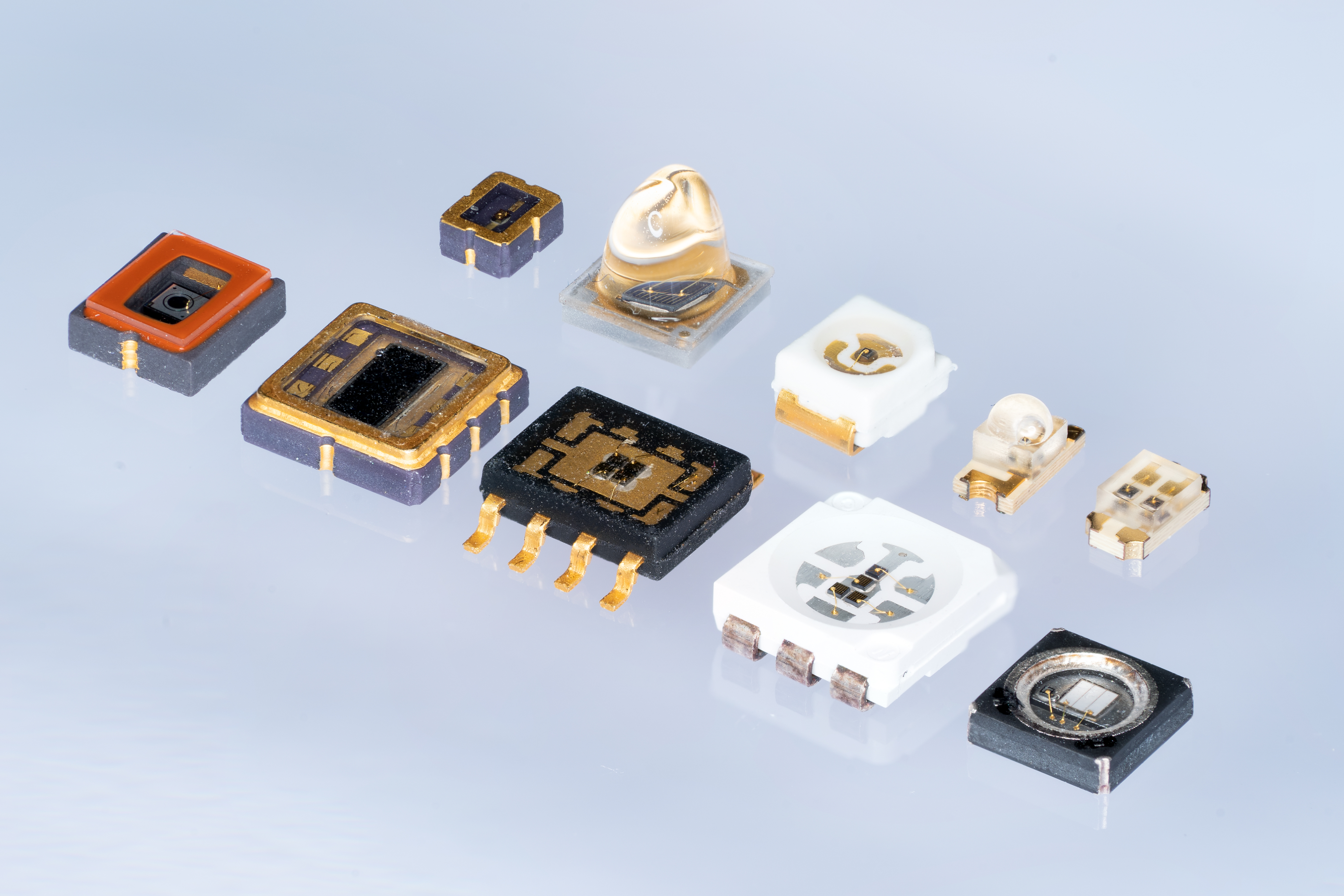

310-1650 nm; UV, Visible, IR; Radiant Power 0.8-150 mW; Luminous Intensity 180-15,000 mcd; Viewing Angle 20°-140°; Package SMD, Ceramic SMD, SMD Sideview, PLCC4 With the EOLS series, EPIGAP Optronic provides a variety of different LEDs in SMD cases as standard products, featuring viewing angles from 40° to 180°, with normal and special squint lens types. Standard SMD packages include 1206, 0805, PLCC4, Sidelooker and Ceramic. Different layouts are available with 1 to 4 chips as well as with power chips. This series’ thermal resistivity of about 150 K/W allows a power dissipation of <100 mW. The package, lens shapes, viewing angle and wavelength in the range from 255 nm (UV) to 1750 nm (infrared) can be adapted to the application. EPIGAP Optronic manufactures samples and series for standard LEDs and customer-specific components according to your specifications. If you should not see the exact configuration that meets your design project’s requirements, please contact the AMS Technologies LED experts to find the right standard or customized product. EPIGAP Optronic’s LED components are also available in molded plastic cases (EOLD-xxxx-3xx/5xx series) and hermetic TO cases (EOLD-xxxx-0xx series) as well as bare LED chips (EOLC series) with high efficiency and very good degradation stability. The supplier’s variety of chips in terms of wavelength, chip size and polarity allow for the selection and adaptation to the requirements of your application. The portfolio includes special chips like EOLC-xxx-19-xx point source LED chips or EODC-660-19-xx monolithic LED display chips for optical systems. Key Features: Product Wavelength Package Luminous Intensity Radiant Power Viewing Angle Downloads EOLS-310-695 310 nm Ceramic SMD 3535   12 mW 120° Datasheet EOLS-310-697 310 nm Ceramic SMD 3535   50 mW 120° Datasheet EOLS-310-637 310 nm Ceramic SMD 3535   43 mW 35° Datasheet EOLS-310-667 310 nm Ceramic SMD 3535   47 mW 65° Datasheet EOLS-325-695 325 nm Ceramic SMD 3535   10 mW 120° Datasheet EOLS-325-697 325 nm Ceramic SMD 3535   47 mW 120° Datasheet EOLS-325-637 325 nm Ceramic SMD 3535   41 mW 35° Datasheet EOLS-325-667 325 nm Ceramic SMD 3535   45 mW 65° Datasheet EOLS-340-695 340 nm Ceramic SMD 3535   12 mW 120° Datasheet EOLS-340-697 340 nm Ceramic SMD 3535   44 mW 120° Datasheet EOLS-340-637 340 nm Ceramic SMD 3535   41 mW 35° Datasheet EOLS-340-667 340 nm Ceramic SMD 3535   44 mW 65° Datasheet EOLS-360-393 360 nm Ceramic SMD 3020   1.1 mW 115° Datasheet EOLS-400-393 400 nm Ceramic SMD 3020   16 mW 115° Datasheet EOLS-405-496 405 nm Ceramic SMD 3838   1150 mW 120° Datasheet EOLS-420-227 420 nm Ceramic SMD 6046   265 mW 20° Datasheet EOLS-430-392 430 nm Ceramic SMD 3020   16 mW 115° Datasheet EOLS-440-227 440 nm Ceramic SMD 6046   445 mW 20° Datasheet EOLS-460-590 460 nm SMD 3018 sideview 180 mcd   120° Datasheet EOLS-460-227 460 nm Ceramic SMD 6046   305 mW 20° Datasheet EOLS-470-496 470 nm Ceramic SMD 3838   600 mW 120° Datasheet EOLS-470-590 470 nm SMD 3018 sideview 240 mcd   120° Datasheet EOLS-480-227 480 nm Ceramic SMD 6046   190 mW 20° Datasheet EOLS-490-227 490 nm Ceramic SMD 6046   190 mW 20° Datasheet EOLS-505-227 505 nm Ceramic SMD 6046   200 mW 20° Datasheet EOLS-525-843 525 nm SMD 1206 3550 mcd   40° Datasheet EOLS-528-227 528 nm Ceramic SMD 6046   110 mW 20° Datasheet EOLS-533-496 533 nm Ceramic SMD 3838   280 mW 120° Datasheet EOLS-545-496 545 nm Ceramic SMD 3838 15000 mcd 110 mW 120° Datasheet EOLS-545-227 545 nm Ceramic SMD 6046   105 mW 20° Datasheet EOLS-565-496 565 nm Ceramic SMD 3838   110 mW 120° Datasheet EOLS-570-227 570 nm Ceramic SMD 6046   4 mW 20° Datasheet EOLS-590-843 590 nm SMD 1206 1400 mcd   40° Datasheet EOLS-590-227 590 nm Ceramic SMD 6046   57 mW 20° Datasheet EOLS-600-496 600 nm Ceramic SMD 3838 10000 mcd   120° Datasheet EOLS-610-227 610 nm Ceramic SMD 6046   30 mW 20° Datasheet EOLS-630-227 630 nm Ceramic SMD 6046   150 mW 20° Datasheet EOLS-635-496-1 635 nm Ceramic SMD 3838   350 mW 120° Datasheet EOLS-645-227 645 nm Ceramic SMD 6046   190 mW 20° Datasheet EOLS-660-496 660 nm Ceramic SMD 3838   165 mW 120° Datasheet EOLS-660-227 660 nm Ceramic SMD 6046   215 mW 20° Datasheet EOLS-670-199 670 nm SMD 1206   1.5 mW 140° Datasheet EOLS-680-227 680 nm Ceramic SMD 6046   250 mW 20° Datasheet EOLS-690-496 690 nm Ceramic SMD 3838   45 mW 120° Datasheet EOLS-700-227 700 nm Ceramic SMD 6046   36 mW 20° Datasheet EOLS-700-496 700 nm Ceramic SMD 3838   36 mW 120° Datasheet EOLS-720-227 720 nm Ceramic SMD 6046   42 mW 20° Datasheet EOLS-740-843 740 nm SMD 1206   10 mW 40° Datasheet EOLS-740-496 740 nm Ceramic SMD 3838   42 mW 120° Datasheet EOLS-760-227 760 nm Ceramic SMD 6046   44 mW 20° Datasheet EOLS-765-496 765 nm Ceramic SMD 3838   44 mW 120° Datasheet EOLS-770-496 770 nm Ceramic SMD 3838   44 mW 120° Datasheet EOLS-780-227 780 nm Ceramic SMD 6046   52 mW 20° Datasheet EOLS-800-227 800 nm Ceramic SMD 6046   38 mW 20° Datasheet EOLS-800-496 800 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-810-843 810 nm SMD 1206    mW 40° Datasheet EOLS-810-496 810 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-840-843 840 nm SMD 1206   13.5 mW 40° Datasheet EOLS-855-496 855 nm Ceramic SMD 3838   110 mW 120° Datasheet EOLS-855-227 855 nm Ceramic SMD 6046   910 mW/sr 20° Datasheet EOLS-870-496 870 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-880-195 880 nm SMD 1206   5 mW 140° Datasheet EOLS-880-590 880 nm SMD 3018 sideview   5 mW 120° Datasheet EOLS-880-496 880 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-915-995 915 nm PLCC4   4.5 mW 90° Datasheet EOLS-920-995 920 nm PLCC4   4.5 mW 90° Datasheet EOLS-940-590 940 nm SMD 3018 sideview   4.6 mW 120° Datasheet EOLS-940-843 940 nm SMD 1206   13.5 mW 40° Datasheet EOLS-950-843 950 nm SMD 1206   4.6 mW 40° Datasheet EOLS-970-195 970 nm SMD 1206   3 mW 140° Datasheet EOLS-1020-590 1020 nm SMD 3018 sideview   10 mW 120° Datasheet EOLS-1020-843 1020 nm SMD 1206   10 mW 40° Datasheet EOLS-1020-496 1020 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-1050-995 1050 nm PLCC4   7.5 mW 90° Datasheet EOLS-1050-199 1050 nm SMD 1206   3 mW 140° Datasheet EOLS-1050-496 1050 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-1070-496 1070 nm Ceramic SMD 3838   38 mW 120° Datasheet EOLS-1200-995 1200 nm PLCC4   1.8 mW 90° Datasheet EOLS-1200-199 1200 nm SMD 1206   5 mW 140° Datasheet EOLS-1200-843 1200 nm SMD 1206   5 mW 40° Datasheet EOLS-1300-995 1300 nm PLCC4   1.8 mW 90° Datasheet EOLS-1300-194 1300 nm SMD 1206   11 mW 40° Datasheet EOLS-1300-843 1300 nm SMD 1206   5 mW 40° Datasheet EOLS-1450-995 1450 nm PLCC4   1.8 mW 90° Datasheet EOLS-1450-199 1450 nm SMD 1206   2 mW 140° Datasheet EOLS-1450-843 1450 nm SMD 1206   2 mW 40° Datasheet EOLS-1550-995 1550 nm PLCC4   0.8 mW 90° Datasheet EOLS-1550-199 1550 nm SMD 1206   1.7 mW 140° Datasheet EOLS-1550-843 1550 nm SMD 1206   1.7 mW 40° Datasheet EOLS-1550-496 1550 nm Ceramic SMD 3838   54 mW 120° Datasheet EOLS-1650-995 1650 nm PLCC4   0.8 mW 90° Datasheet EOLS-1650-199 1650 nm SMD 1206   1.7 mW 140° Datasheet EOLS-1650-843 1650 nm SMD 1206   1.7 mW 40° Datasheet Applications: Industrial Sensors; Automation; Security and Safety Technology; Diagnostics; Biomedical Technology; Medical Imaging; Analytical Instruments; Scientific Analysis; Photo Catalyst; Medical Phototherapy; UV Curing; UV Sterilization

525-1300 nm; Visible, IR; Active Area 0.071-2.32 mm²; Responsivity 0.08-1 A/W; Dark Current 0.005-20 nA A selection of photodiode chips with sensitivities in the visible and infrared spectral range is available for customer-specific designs. Low dark current, reliability and high sensitivity are the advantages of these products. The EOPC series includes GaP, Si, InGaAs and AlGaAs photodiode chips. For more standard applications, EPIGAP Optronic’s photodiode components are also available housed in molded plastic, hermetic TO and SMD packages (EOPD series) with high degradation stability and good matching with LEDS. The supplier’s diversity of chips in terms of wavelength, chip size and polarity allows the selection and adaptation to the specificity of the application. Please contact the AMS Technologies photodiode experts to find the right solution that meets your design project’s requirements. We would like to support you and look forward to your inquiries! Key Features: Product Max. Sensitivity Package Active Area Responsivity Dark Current Downloads EOPC-525-0.86 525 nm   0.57 mm2 0.08 A/W 5 pA Datasheet EOPC-880-0.9-1 880 nm   0.72 mm2 0.25 A/W 1 nA Datasheet EOPC-940-1.5 940 nm   2.32 mm2 0.6 A/W 8 nA Datasheet EOPC-940-0.1 940 nm   0.1 mm2 0.6 A/W 0.05 nA Datasheet EOPC-1300-0.3 1300 nm   0.071 mm2 1 A/W 0.3 nA Datasheet EOPC-1300-1.0 1300 nm   0.785 mm2 0.95 A/W 20 nA Datasheet   Applications: Optical Communications; Safety Equipment; Light Barriers; Colorimeters; Currency Authentication; Spectroscopy Equipment; Fluorescence; Optical Power Monitor PD

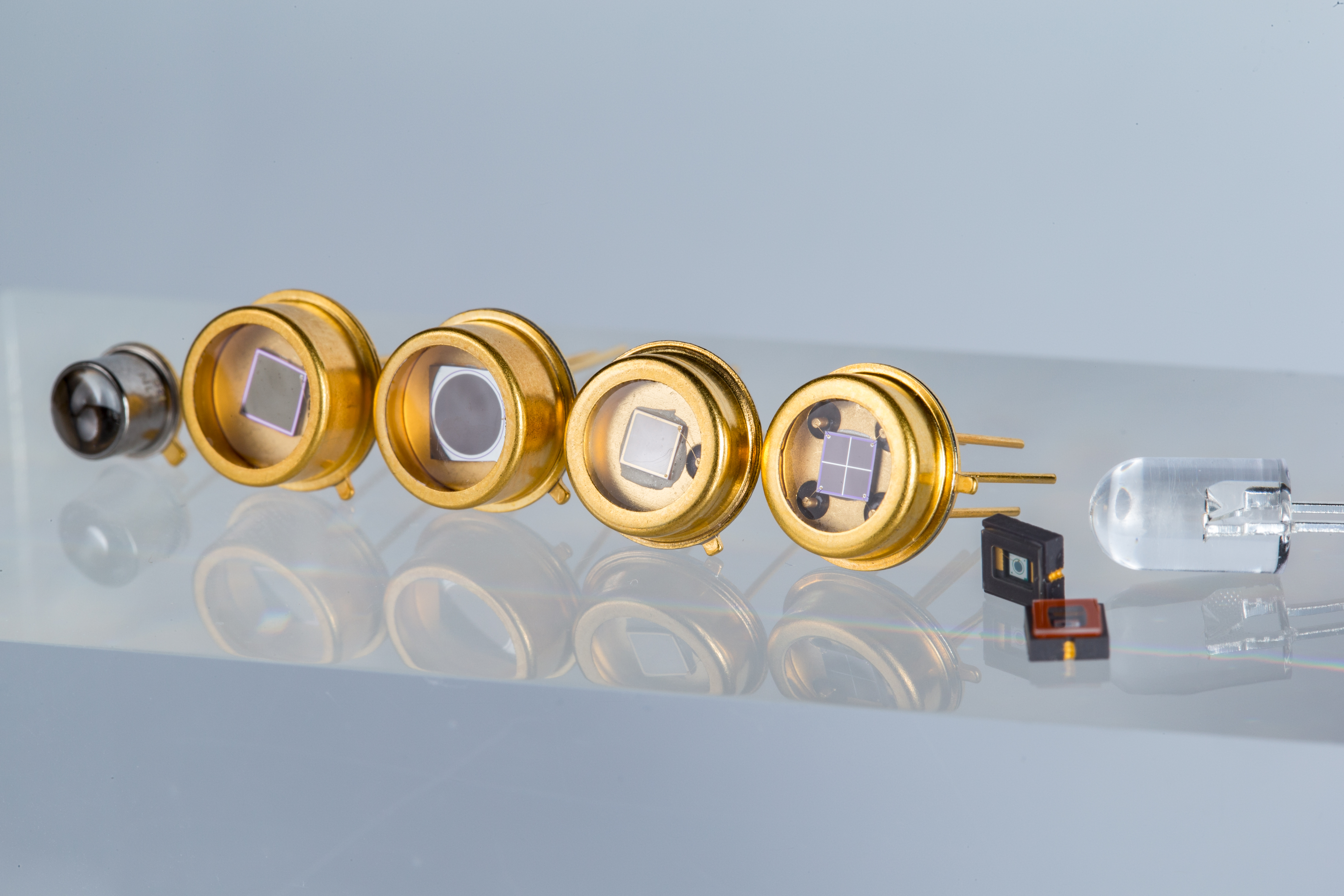

265-1300 nm; UV, Visible, IR; Active Area 0.1-15 mm²; Responsivity 0.18-0.9 A/W; Dark Current 0.00001-2,000 nA; Package 5 mm Molded Plastic, TO-5, TO-46, TO-52, SMD 1206 EPIGAP offers a wide range of photodiodes in the ultraviolet (UV), visible (VIS) and infrared (IR) spectral range. The EOPD series includes GaP photodiodes, Si and SiC photodiodes as well as InGaAs and AlGaAs photodiodes. Available in 5 mm molded plastic, SMD 1206 and hermetic TO packages (TO-5, TO-46 and TO-52), the EOPD series photodiodes are designed for applications requiring low dark current, high reliability and high sensitivity. Further advantages of the EOPD series photodiodes are degradation stability, good matching with LEDs, no stray light problems and optional miniaturization. The range of standard products is supplemented by specialties with larger active sensor surfaces or extended sensitivity from 150 nm (low UV) up to 2600 nm in the higher infrared range. For customer-specific designs, EPIGAP Optronic’s photodiode components are also available as bare photodiode chips (EOPC series) with high sensitivity and low dark current. Please contact the AMS Technologies photodiode experts to find the right solution that meets your design project’s requirements. We would like to support you and look forward to your inquiries! Key Features: Product Max. Sensitivity Package Active Area Responsivity Dark Current Downloads EOPD-280-0-0.3-1 265 nm TO-52 0.1 mm2 0.18 A/W 10 fA Datasheet EOPD-525-1-0.9-1 525 nm SMD 1206 0.73 mm2 0.3 A/W 5 pA Datasheet EOPD-525-1-0.9-2 525 nm SMD 1206 0.73 mm2 0.3 A/W 5 pA Datasheet EOPD-940-0-2.52 940 nm TO-5 5 mm2 0.6 A/W 1 nA Datasheet EOPD-940-0-3.57 940 nm TO-5 10 mm2 0.6 A/W 1 nA Datasheet EOPD-940-0-15 940 nm TO-5 15 mm2 0.6 A/W 1 nA Datasheet EOPD-940-0-5.8Q 940 nm TO-5 4 x 1.44 mm2 0.6 A/W 0.5 nA Datasheet EOPD-1300-0-0.1-1 1300 nm TO-46 0.1 mm2 0.8 A/W 1 µA Datasheet EOPD-1300-0-0.8-1 1300 nm TO-46 0.8 mm2 0.8 A/W 2 µA Datasheet EOPD-1300-0-1.0-1 1300 nm TO-46 1 mm2 0.8 A/W 2 µA Datasheet EOPD-1300-0-1.5-3 1300 nm TO-46 1.5 mm2 0.8 A/W 2 µA Datasheet EOPD-1300-1-0.3 1300 nm SMD 1206 0.3 mm2 0.8 A/W 0.3 nA Datasheet EOPD-1300-5-0.3 1300 nm 5 mm 0.3 mm2 0.9 A/W 15 pA Datasheet EOPD-1300-0-0.3-1 1300 nm TO-46 0.3 mm2 0.8 A/W 1 µA Datasheet   Applications: Universal measurements in the UV, VIS and IR Range; Sterilization Lamp Monitoring; Flame Monitoring; Alarm Systems; Light Barriers; Daylight Sensors; Nearly Vλ-matched Detectors; Colorimeters; Photometers; Spectroscopy Equipment; Fluorescence; Beam Centering; Optical Encoders; High-speed Optical Communications; Optical LAN; Optical Switches; Ethernet Fiber Channel; Safety Equipment; Light Barriers
