LaserCleave™-3500 Laser Cleaver

Product number: SW11366

Manufacturer: OpTek Systems

Downloads

LaserCleave™-3500 Laser Cleaver OpTek Systems Datasheet

Product information "LaserCleave™-3500 Laser Cleaver"

Power Supply 220 VAC, 20 A, Single Phase; Fully Integrated; Cassette Loading; Dimensions 1,400x800x1,200 mm; Weight 350 kg

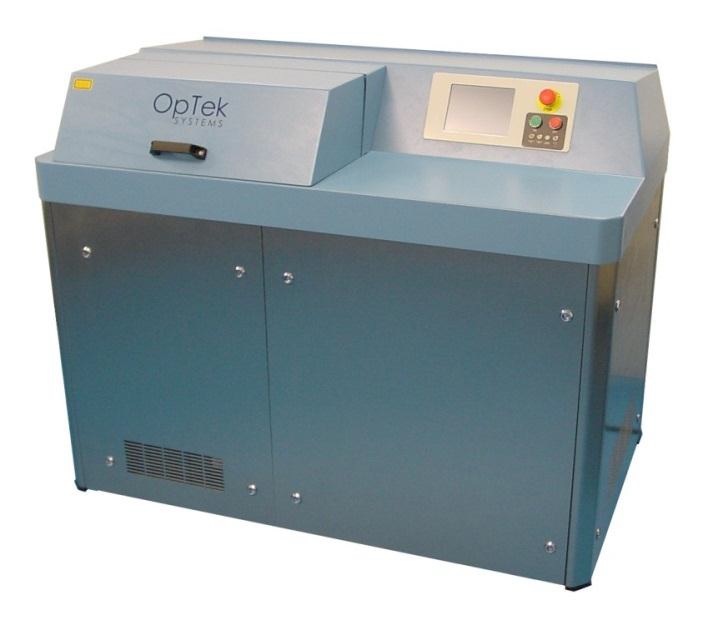

OpTek Systems’ LaserCleave™-3500 laser cleaver has been developed to address the challenges faced in the production of OE connectors, AOC’s (Active Optical Cables) and other connectors requiring optical grade cleaves.

LaserCleave™-3500 is a fully integrated, standalone tool for laser cleaving of optical interconnect assemblies. The tool is cassette loaded to provide automated processing of multiple assemblies, with interchangeable cassettes for processing of both connectorized and bare-fiber components.

LaserCleave™-3500 is designed to be operator independent and has all necessary ancillary services on-board, with the exception of the electrical supply.

OpTek’s unique machine tools are in service around the world producing laser-processed fiber ends of unmatched quality and reproducibility, with many millions of OpTek-processed ends in service in telecoms, datacoms, medical, aerospace and defence applications.

Key Features:

Accurate Cleaving of Protruding Fiber After Assembly in the Connector
LaserCleave™ Laser Cleaving for Exceptional Quality and Reproducibility
Cassette Loading for Multi Part Processing
Interchangeable Cassettes for Maximum Flexibility
Fully Integrated for Standalone “Turn-key” Operation
CE Marked and Certified
Electrical Supply: 220 VAC, 20 A, Single Phase
Shards: Integrated Collection of >1M Fiber Shards
Communications: PC Remote Control Via Internet
Dimensions: 1,400 x 800 x 1,200 mm
Weight: 350 kg

Applications: Laser Cleaving of Optical Interconnect Assemblies; Standalone “Turn-key” Operation; Maximise Productivity in Connector Manufacture; Production of Optical Fiber Components; Telecoms; Datacoms; Medical; Aerospace; Defence

Manufacturer "OpTek Systems"

OpTek Systems with facilities in Europe, Asia and the USA is a global supplier of production line equipment and sub-contract laser processing services for a wide range of precision laser micromachining applications. OpTek has experience in an extensive range of applications in electronics, telecommunications, semiconductor, pharmaceutical, automotive, aerospace, oil and gas, biomedical and consumer sectors. The company provides solutions for R&D and small scale production through to fully automated high volume production, specialising in the development of novel laser micromachining processes and the transitioning of these for highly productive routine manufacturing. Examples include OpTek’s patented fiber processing technology LaserCleave, providing stripping, lensing and cleaving of optical fiber and optical interconnects. This technology is widely adopted for applications in broadband telecommunications, datacom, sensing, medical and fiber laser production.

Customers also viewed

MOPA Pulsed Fiber Amplifiers

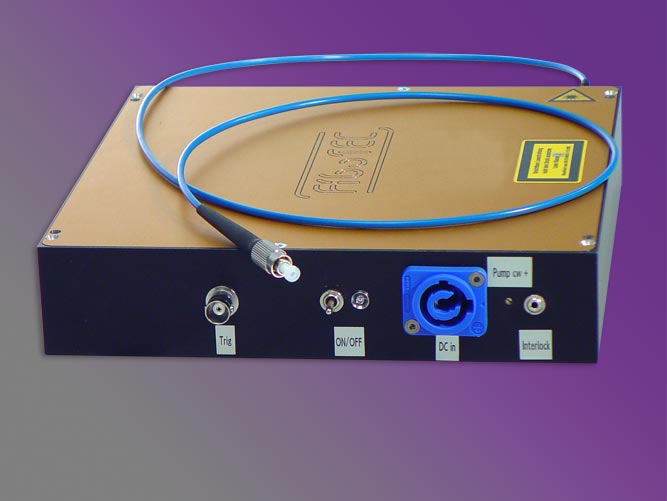

1530-1565 nm (1050-1090 nm on Request); Pulse Energy >10 µJ; Repetition Rate 6-20 kHz; Typ. Pulse Width 50 ns; Average Optical Power 23 dBm; Typ. Return Loss -50 dB Fiobtec Fiberoptics’ MOPA light sources are compact master oscillator - power amplifier (MOPA) setups that can be directly modulated within certain limits of repetition rate and pulse power. Standard products operate at around 1.5 µm wavelength at a repetition rate of > 6 kHz and a pulse power of 10 µJ/50 ns (200 W peak). Versions with 1050 nm to 1090 nm wavelength are available on request. Customer-specific products at both wavelength windows with an additional booster amplifier stage permit much higher repetition rates (above 50 kHz) or peak power (2 kW). The high power density and the excellent beam parameter product after decoupling into free space make these light sources a preferred choice for many test and measurement applications. Especially mobile range finders, scanners and LIDAR systems can benefit from the beam quality in connection with the low power consumption. Key Features: High Peak Power Excellent Beam Profile Over Lifetime Low Power Consumption Wavelength Range: 1530 nm to 1565 nm (1050 nm to 1090 nm on Request) Average Optical Power: 23 dBm Pulse Energy: >10 µJ Typ. Pulse Width (FWHM): 50 ns Repetition Rate: 6 kHz to 20 kHz Pulse Energy (@100 kHz): 2 µJ Typ. Return Loss: -50 dB Options: Booster Stages; Collimation Optics; Yb-doped Fiber (1060 nm Region); Customized Packages, Modules and Seed Sources Dimensions: 145 x 100 x 17 mm (Module), 210 x 290 x 95 mm (Instrument) Weight: <500 g (Module), <4 kg (Instrument) Operating Temperature: 0°C to +40°C (Non-condensing) Applications: Test and Measurement; Mobile Range Finders; Scanners; LIDAR Systems
