SLA-Series Manual & Analog-input LED Controllers

Product information "SLA-Series Manual & Analog-input LED Controllers"

2 Channels; 9-24 VDC; 100-1,200 mA Per Channel; Interface 0-5 V Analog; Max. Modulation Frequency 1, 50 kHz

Mightex’s SLA-Series of two-channel universal manual and analog-input LED controllers are designed to drive a broad range of LED light sources.

SLA-Series LED controllers have two control modes:

  • Manual Knob Control Mode: the current output of each channel can be adjusted manually
  • Analog Input Control Mode: the current output of each channel can be controlled via 0 to 5 V analog input

The control mode is set via a DIP switch, and the factory default setting is “Manual Knob Control Mode”. The controllers also have a DIP switch for maximum current setting, which allows user to set the maximum current to different levels, in order to prevent LED damage due to overdriving. The factory default setting is 30 mA for SLA-0100-2, and 350 mA for both SLA-1000-2 and SLA-1200-2. When the maximum current setting DIP switch is set at a smaller value (e.g. 350 mA), the LED controller has a finer resolution for the output current.

When the SLA-Series controller is set to “Analog Input Control Mode”, the output current is proportional to the voltage of the analog input signal. The operational mode and the current limit of each channel can be set independently from each other.

Mightex’s SLA-Series of universal manual and analog-input LED controllers currently include three models in total:


Max. Per Channel Ouptut Current Max. Modulation Frequencyl
SLA-0100-2 100 mA 50 kHz 50 kHz
SLA-1000-2 1,000 mA 1 kHz
SLA-1200-2 1,200 mA 1 kHz



Key Features:

  • Number of Channels: 2
  • Power Supply: 9 to 24 VDC
  • Per Channel Driving Current: 100 to 1,200 mA
  • Dual Control Modes: Manual or Analog-input
  • Interface: 0-5 V Analog
  • Max. Modulation Frequency: 1, 50 kHz
  • Universal – Suitable for Any LED
  • Tiered Maximum Output Current Settings to Prevent Overdrive
  • Capable of Driving Variable Loads

Applications: Microscopy; Lighting; Machine Vision; Displays; Semiconductor Equipment; Test Instruments; Medical Instruments

Manufacturer "Mightex"
Related links of the manufacturer

Similar products

BLS-IO04-US 4-channel Analog & Digital I/O Control Module
4 Channels; 12 VDC; Interfaces USB/RS232, 0-5 V Analog; 4 External Trigger Inputs; 4 Analog Voltage Mightex’s BLS-IO04-US analog and digital input/output control module is a system-level control solution to be used in conjunction with the BLS-Series manual and trigger mode analog controlled LED controllers. The BLS-IO04-US I/O control module features four independent channels. Each of the four channels has an external trigger input (TTL), an analog voltage output (0-5 V) and a digital output (Standard TTL). All input and output connectors are BNC-type to work seamlessly with laboratory equipment. Intensity waveform of up to four high-power LED light sources is controlled by BLS-IO04-US I/O control module, each can output light at a different wavelength (i.e. colour). Up to 32 different waveforms can be programmed onto the I/O control module via USB or RS232. Each waveform can be associated with any one of the four LEDs to form a catalog of up to 128 unique colour/waveform pairs. Key Features: Number of Independent Channels: 4 One External Input Trigger (TTL) Per Channel One Analog Voltage Output (0-5 V) Per Channel One Digital Output (LVTTL) Per Channel All I/Os Are BNC-connectorized Works with up to 4 Analog Controlled LED Controllers to Control 4 LEDs 32 Customizable Waveforms, Each Can Be Paired With Any of the 4 Channels Program up to 1024 Colour/Waveform Pairs in a Sequence Power Supply: 12 VDC Output Analog Voltage Resolution: 0.1% Output Analog Voltage Range: 0 to 5 V Output Analog Voltage Accuracy: ±0.5% (or ±3 mV) Time Resolution: 20 µs Max. Trigger Delay: 25 µs Host Interface: USB or RS232 Non-volatile Memory Dimensions: 135 x 140 x 105 mm Application: Module for Controlling up to Four LED Controllers with Analog Voltage Inputs
Product number: SW11224
Manufacturer:

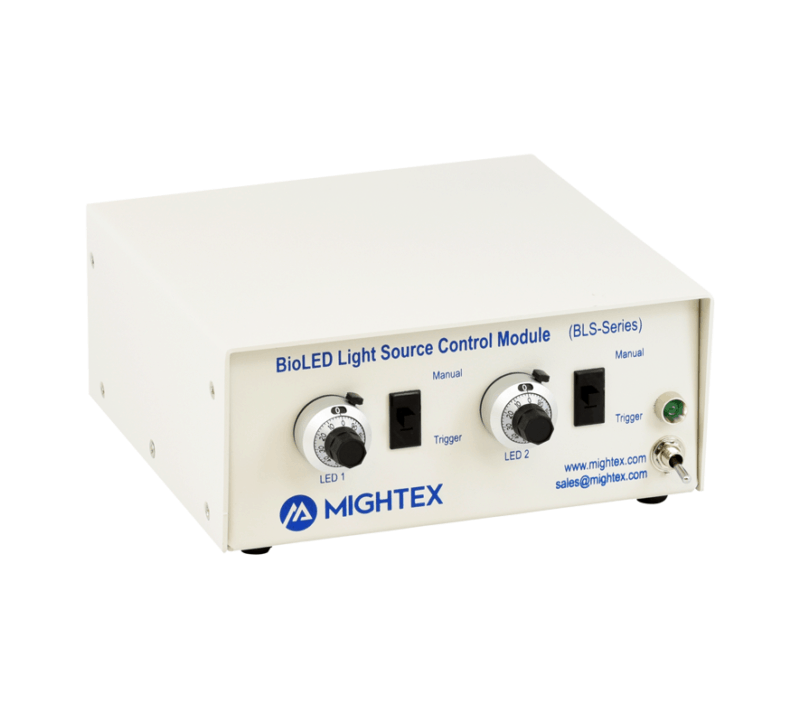

BLS-Series Manual & Trigger Mode LED Controllers
