S-Series Small TECs

Product number: SW10570

Manufacturer: SmarTThermoelectrics

Downloads

Small Thermoelectric Coolers AMS Technologies Brochure

Product information "S-Series Small TECs"

Small Peltier Module; 1.6 x 3.2 to 21 x 21 mm; Height 1.65 to 4.1 mm; Max. Cooling Capacity 0.27 to 11.5 W; Max. TEC Current 0.55 to 9.7 A

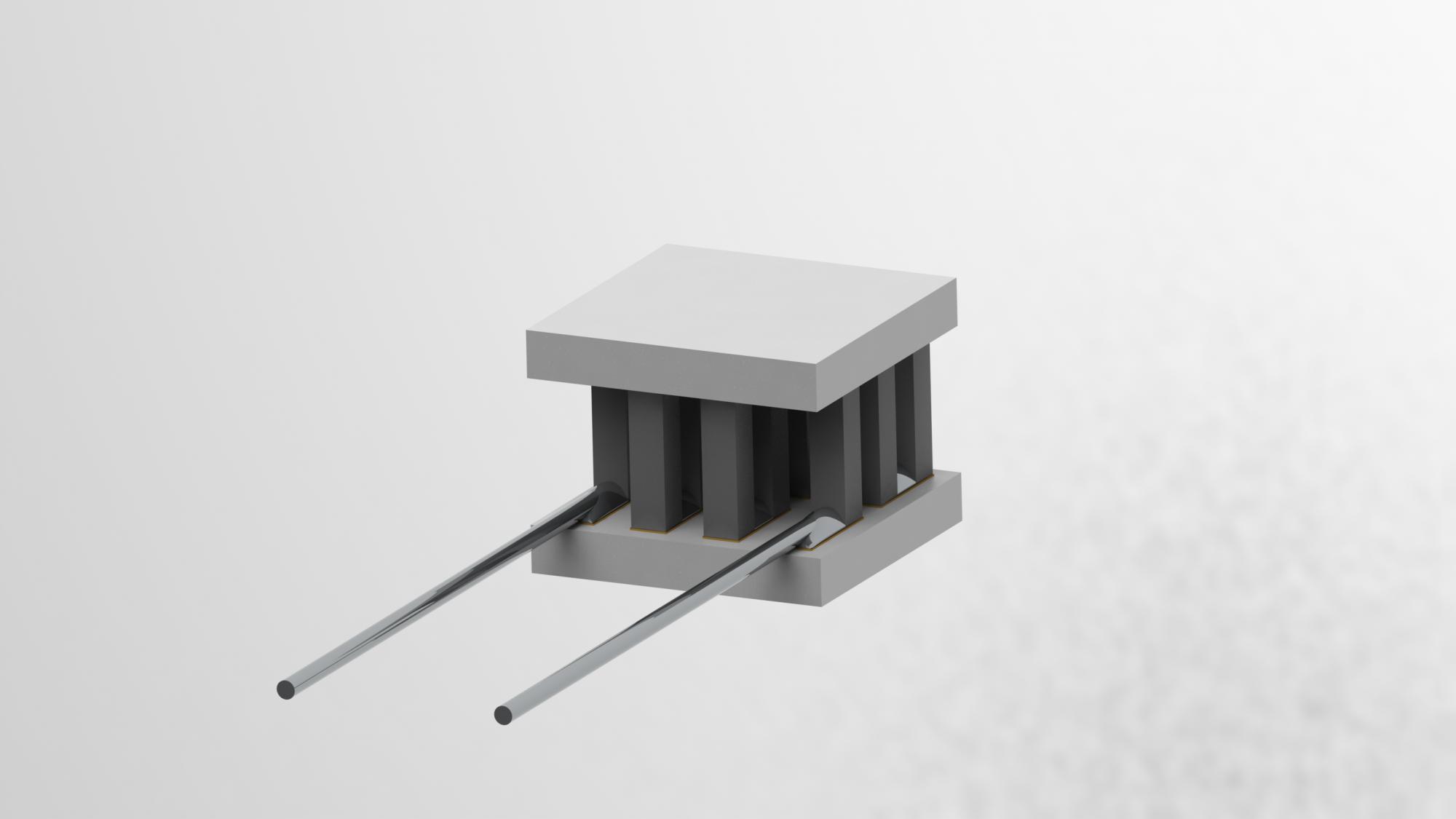

SmarTThermoelectrics’ S-Series is a line of standard rectangular single stage small thermoelectric coolers (Peltier modules) providing maximum temperature difference up to 76 K. This series includes models ranging from standard rectangular and linear TECs to special variants with increased cooling capacity.

Here you will find TECs with dimensions from really tiny 1.2 × 1.8 to somewhat larger 21 × 21 mm and heights from 1.1 to 4.1 mm. These TECs’ maximum cooling capacities range from 0.12 to 62 W.

Key Features:

Miniature Size
Rectangular or Linear Format
Single Stage
Ideal for Assembly into Various Sockets, Packages & Housings like TO-CANs, Butterfly, etc.
High Temperature Difference

Applications: Cooling and Temperature Control of Semiconductor Lasers, LEDs, X-ray and IR Detectors, CCDs, CPUs

Manufacturer "SmarTThermoelectrics"

SmarTThermoelectrics is a Russian manufacturer. Due to the political situation, we are no longer allowed to import their products. If you are interested in their products, please contact us, as we have connections with several manufacturers. SmarTThermoelectrics is specialized in the design, development and manufacturing of small sized thermoelectric coolers (TECs) and completed thermal management systems based on these TECs. The thermoelectric products are often integral part to the electronic and optoelectronic components, assemblies and systems in variety of industrial sectors: telecommunications, medical, aerospace, automotive, military, consumer electronics, science and education etc. The TECs are widely used for cooling and temperature control of semiconductor lasers, light emitting diodes (LEDs), X-Ray and IR detectors, Charged Coupled Devices (CCD), central processor units (CPUs) and many other objects where localized/spot heat rejection or heating is needed.
