Max. No. of Connectors 48; Connector Type ST, FC, SC, APC, MTP, SMA, E2000, Other; Radius of Curvature 7-30 mm; Apex Offset <50 µm; Undercut/Protrusion <50 nm; Back Reflection -35—65 dB; Automated Fiber Stub Removal Nanometer Technologies’ ACP-24 is an automated connector polisher with touchscreen technology for easy use and includes an ASR automated stub removal fiber optic polisher. The ACP-24 can polish many types of industry-standard, military and custom connectors. The system easily accommodates a full range of industry standard polishing styles to accommodate single mode polish specs like PC, UPC, APC, FLAT, and DOMED. With the ACP-24 you can automate fiber stub removal, polishing times, pressure and motor speeds for each step. Complete polishing procedures are stored inside of the ACP-24 to save time and ensure repeatability. Create, save, and recall custom polishing procedures for custom jobs. Polishing procedures can be saved to a computer for easy back-up or for transferring to another ACP-24. The ACP-24 utilizes Nanometer Technologies’ patented figure 8 polishing pattern that creates an angle of attack on the connector end face that changes 720°, 60 times a second, giving optimal control of the connector end face geometry. Use the ACP-24 to polish a wide variety of connectors including: ST, FC, SC, APC, MTP (up to 72 fibers), Mil 29504, Mil 38999, SMA, E2000, Radial Luxcis, T-Foca, bare fiber, bare plastic & many more. Polish a wide variety of ferrule material including all types of ceramic, glass, stainless steel, plastic, bare fiber, bare plastic, titanium & several others. The ACP-24 features a pneumatic pressure system, which allows for flexibility that is required to attain consistent accurate results The system is compatible with all MCP-24 polishing fixtures, supporting up to 48 connectors at a time. It includes the ASR System for automated stub removal – no more removing fiber stubs by hand. ASR works with Nanometer Technologies' polishing fixtures reducing the need to purchase special fixture plates and includes built-in pre-programmed processes. Key Features: Change Polishing Times, Pressure and Motor Speed Automated Fiber Stub Removal Easily Create and Save Custom Polishing Procedures Factory-preset Polishing Procedures Touchscreen Interface for Easy Use, Touchscreen is Both Water and Chemical Proof Patented Figure 8 Polishing Pattern Designed for High-volume Single Mode (SM) and Multi Mode (MM) Polishing Consistent High-yield Repeatable Performance Works With Existing MCP24 Fixture Radius of Curvature: 7 to 30 mm Apex Offset: <50 µm Undercut/Protrusion: <50 nm Back Reflection: PC -45 dB, UPC -55 dB, APC -65 dB, Multi Mode -35 dB Maximum Connector Load: 48 Dimensions: 368 x 375 x 356 mm Weight: 16.9 kg Applications: High-volume Polishing of Single Mode (SM) and Multi Mode (MM) Fiber Optical

Max. No. of Connectors 96; Connector Type ST, FC, SC, APC, MTP, SMA, E2000, Other; Radius of Curvature 7-30 mm; Apex Offset <50 µm; Undercut/Protrusion <50 nm; Back Reflection -35—65 dB; Automated Fiber Stub Removal Nanometer Technologies’ ACP-24/96 is an automated connector polisher with touchscreen technology for easy use and includes an ASR automated stub removal fiber optic polisher. The ACP-24/96 can polish many types of industry-standard, military and custom connectors. With the ACP-24/96 you can automate polishing times, pressure and motor speeds for each step. Complete polishing procedures are stored inside of the ACP-24/96 to save time and ensure repeatability. Create, save, and recall custom polishing procedures for custom jobs. Polishing procedures can be saved to a computer for easy back-up or for transferring to another ACP-24/96. The ACP-24/96 utilizes Nanometer Technologies’ patented figure 8 polishing pattern that creates an angle of attack on the connector end face that changes 720°, 60 times a second, giving optimal connector end face geometry. The system is compatible with all MCP-24 and MCP-48 polishing fixtures, supporting up to 96 connectors at a time. It includes the ASR system for automated stub removal – no more removing fiber stubs by hand. ASR works with Nanometer Technologies' polishing fixtures reducing the need to purchase special fixture plates. Key Features: Polish 96 LC Connectors at a Time Polish 24 MT Connectors at a Time ASR Automated Fiber Stub Removal Automatically Removes 96 Fiber Stubs in 1 min Change Polishing Times, Pressure and Motor Speed 30 Factory-preset Polishing Recipes for All Types of Connectors Easily Create and Save Custom Polishing Procedures Accurate Control of Pressure, Speed and Time 7” Touchscreen Interface for Easy Use, Touchscreen is Both Water and Chemical Proof Patented Figure 8 Polishing Pattern Designed for High-volume Single Mode (SM) and Multi Mode (MM) Polishing Consistent High-yield Repeatable Performance Works With Existing MCP24 & MCP 48 Fixtures Radius of Curvature: 7 to 30 mm Apex Offset: <50 µm Undercut/Protrusion: <50 nm Back Reflection: PC -45 dB, UPC -55 dB, APC -65 dB, Multi Mode -35 dB Maximum Connector Load: 96 Dimensions: 368 x 375 x 356 mm Weight: 16.9 kg Applications: High-volume Polishing of Single Mode (SM) and Multi Mode (MM) Fiber Optical

Connector Type All; No. of Connectors 24; Process Time <35 s; Programmable RPM Ramp Generator; Dimensions 368x191x191 mm The ASR-24 fiber stub removal system features an automatic stub removal process exclusively from Nanometer Technologies. This process will remove the fiber stub from the connector end face in a seamless process, 24 at a time, in under 35 s. Instead of doing all fiber stub removal by hand, grinding down the fiber stub one by one for each connector, ASR-24 allows you to remove the fiber stub from up to 24 connectors in 35 s or less – a serious decrease in time and labor for this process. The ASR-24 not only removes the fiber stubs and epoxy, it will also help streamline and shorten your polishing processes on your polisher. You can be sure all the connectors are the same length when put into your polisher for polishing. Key Features: Remove 24 Fiber Stubs at a Time Less Than 35 s for Removing 24 Fiber Stubs (Minus Load Time) Touchscreen Technology for Easy Use Programmable RPM Ramp Generator for Controlling Motor Speed Available for All Connector Types No More Removing Fiber Stubs by Hand Dimensions: 368 x 191 x 191 mm Weight: 4.5 kg Applications: Removing up to 24 Fiber Stubs from Fiber Optical Connectors in One Process Step

FC/PC; stainless steel     When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

FC/APC; stainless steel     When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

SMA 905/906; stainless steel When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

ST/SC/FC; stainless steel When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

SC/APC; stainless steel When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

SC/PC; stainless steel  When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

MU/LC; stainless steel When hand polishing fiber optic connectors, you can't afford to leave anything to chance.  These Fiber Optic Hand Polishing Discs, or hockey pucks as some installers call them, enable you to achieve quality endface finishes and consistent results time after time.

All Necessary Tools Included; Special Version for PM Connectors Available; Sturdy Aluminium Case; Weight 7.3 kg OZ Optics’ comprehensive fiber optic termination kits include all of the tools necessary to make field terminations of fibers with commercially available connectors. The kits come in a sturdy, dent-proof aluminium case, providing easy transport with rugged protection. The total weight of the kits is 7.3 kg. The kits contain enough consumable supplies to process about 100 connectors. The consumable supplies may be ordered separately. A special version of the termination kit is available for polarization maintaining (PM) connectors. This kit includes special low-shrinkage epoxies to minimize stresses on the fibers. The epoxy is available as a separate item. The kits include the following tools: Five 230 mm by 330 mm, 5 µm Grit Polishing Film Five 230 mm by 330 mm, 1 µm Grit Polishing Film Ten 230 mm by 330 mm, 0.3 µm Grit Polishing Film 100X Microscope With a Connector Adapter Five Packs of Two-Component Epoxy Three Sizes of Buffer Tube Strippers Screwdriver With Four Bits Glass Polishing Plate Diamond Pen Scribe Index Matching Gel Polishing Disc T-Type Stripper Cotton Swabs Crimping Tool Epoxy Mixer & Pad Utility Knife Kim Wipes Scissors Tape Fiber Cleaner Tweezers Folding Knife Cable Stripper In addition, a number of accessories are available for the kit that may be ordered separately. A connector heater is available for curing the epoxy used in the terminating kit. The heater can handle 24 connectors at once and ensures even curing. A heat gun for curing epoxy and to shrink heat shrink tubing is also available. Key Features: All Necessary Tools Included to Make Field Terminations of Fibers With Connectors Special Version for Polarization Maintaining (PM) Connectors Available Various Additional Accessories Available Sturdy, Dent-proof Aluminium Case Weight: 7.3 kg Applications: Field Termination of Fibers With Commercially Available Fiber Optic Connectors

Connector Type FC, SC, ST, LC, 2.5/1.25 mm; Lowers Back Reflection to -58 dB; Built-in Puck Assembly; Contains Polisher, Hand Pucks, Glass, Rubber Sheet, Polishing Solution, Diamond Lapping Films Nanometer Technologies’ FOCP-1 field polishing kit combines the FOCP-1 field polisher with hand pucks, polishing films and other useful items. The FOCP-1 field polisher is utilized in the field and in the lab as a final "touch up" polisher, upgrading back reflection from -38 dB to -58 dB within seconds. It is based upon an exclusive final polishing process that Nanometer Technologies designed for their mass production polishers. Accommodating most 2.5 and 1.25 mm connectors, the FOCP-1 field polisher will additionally reduce any micro-scratches on the end face of the connector. It also works very well to clean the end face of any connector that has any minor flaws. The FOCP-1 field polishing kit contains the following products: FOCP-1 Polisher 2 Hand Pucks of Your Choice 152 x 152 mm Glass 152 x 152 mm Rubber Sheet UPS-1 Polishing Solution 6 µm 3M Diamond Lapping Film (10 Sheets) 3 µm 3M Diamond Lapping Film (10 Sheets) 1 µm 3M Diamond Lapping Film (10 Sheets) Key Features: Lowers Back Reflection from -38 dB to -58 dB in 5 to 8 s Rechargeable NiCd Battery Operation 10 s Timer Battery Charger Built-in Puck Assembly Compatible With FC, SC, ST and LC Connector Types Accommodates Most 2.5 and 1.25 mm Connectors Replaceable Polishing Pads Durable Package Dimensions: 172 x 121 x 60 mm Applications: Polishing of Fiber Optical Connectors in the Field

Max. No. of Connectors 12; Connector Type FC, SC, ST,FDDI, E2000PC, 2.5 mm, Other; Radius of Curvature 7-30 mm; Apex Offset <50 µm; Undercut/Protrusion <50 nm; Back Reflection -35—65 dB With the ability to polish up to 12 connectors at once and control the polishing process on every level, Nanometer Technologies’ versatile MCP-12 mass connector polisher is the perfect solution to your high-quality connector polishing needs. Fixture plates for the MCP-12 are designed to reduce consumable waste saving money and film. The MCP-12 mass connector polisher features consistent and repeatable processes. The device easily meets the industry-level standards for polishing including the specifications for TIA, IEC/Bellcore and GR326. Nanometer Technologies’ patented figure 8 polishing system allows the user to tightly control radius, apex offset and fiber height. MCP-12 mass connector polishers can polish a wide range of industry standard, military and custom connectors and accommodate a full range of industry standard polishing styles including PC, UPC, 8 DEG APC, 10 DEG APC, FLAT, SPHERICAL, RADIUS and DOMED. The MCP-12 can also polish a wide variety of ferrule material including ceramic, glass, stainless steel and plastic. Nanometer Technologies’ universal polishing fixture accommodates FC, SC, ST,FDDI, E2000PC and most 2.5 mm ferrules, thus reducing the need for several different polishing fixtures. The MCP-12 is very easy to use, desired results can be achieved with minimal training by even the most inexperienced user. Every MCP-12 polisher comes with a detailed training CD to familiarize technicians with the polishing methods. Key Features: Polish 4 to 12 Connectors at a Time Designed for High-Quality Single Mode (SM) and Multi Mode (MM) Polishing Figure 8 Polishing Pattern: Exclusive Patent Design Utilizes the original polish methods which tightly controls the radius, apex offset and fiber undercut. Universal Fixture Plate: Accommodates FC, SC, ST, FDDI, E2000PC and 2.5mm Ferrules Versatility: Easily Accommodates a Full Range of Industry-standard Polishing Styles: UPC, 8 DEG APC, 10 DEG APC, FLAT, SPHERICAL, RADIUS and DOMED Polishes a Wide Variety of Ferrule Material Including: Ceramic, Glass, Stainless Steel and Plastic Every MCP-12 Polisher Comes With an Easy-to-follow Training CD Polish to Industry-level Standards: TIA, IEC/Bellcore, GR326 Reduce Consumables Cost Increase Production Consistent Repeatable Performance Pneumatic Pressure Control Quickload Universal Polishing Plate™ APC and Custom Plates Available Polish 1,500+ Connectors to Bell Core Specs Per Day, Consistently Using Two UNI-32 Fixtures Radius of Curvature: 7 to 30 mm Apex Offset: <50 µm Undercut/Protrusion: <50 nm Back Reflection: PC -45 dB, UPC -55 dB, APC -65 dB, Multi Mode -35 dB Maximum Connector Load: 12 Dimensions: 305 x 305 x 152 mm Weight: 9.6 kg CE-certified Units Available Application: High-volume Polishing of Single Mode (SM) and Multi Mode (MM) Fiber Optical Connectors (PC, UPC, APC, Other); High-volume Polishing of Industry-standard, Military and Custom Fiber Optical Connectors

Max. No. of Connectors 48; Connector Type FC, SC, ST, FDDI, E2000PC, 2.5 mm, Other; Radius of Curvature 7-30 mm; Apex Offset <50 µm; Undercut/Protrusion <50 nm; Back Reflection -35—65 dB With the ability to polish up to 48 connectors at once and control the polishing process on every level, Nanometer Technologies’ MCP-24 mass connector polisher is the ideal fiber optic polisher for high-quality connector polishing. Exclusive figure 8 polishing, universal fixture plates and low consumable costs make this easy-to-use machine the workhorse for polishing your connectors. The MCP-24 versatile polisher is designed for the stringent needs of fiber optic cable assembly production, saving time and money while increasing productivity. The system features consistent and repeatable processes that easily attains the industry level standards for polishing including the specifications for TIA, IEC/Bellcore and GR326. Nanometer Technologies’ patented figure 8 polishing system lets users tightly control the radius, apex offset and fiber height. The MCP-24 also utilizes a pneumatic pressure system, which allows for greater flexibility that is required to attain consistent accurate results. It can polish a wide range of connectors and accommodates a full range of industry standard polishing styles including PC, UPC, 8 DEG APC, 10 DEG APC, FLAT, SPHERICAL, RADIUS and DOMED. The MCP-24 can also polish a wide variety of ferrule material including ceramic, glass, stainless steel and plastic. Nanometer Technologies’ universal polishing fixture accommodates FC, SC, ST, FDDI, E2000PC and most 2.5 mm ferrules, thus reducing the need for several different polishing fixtures. With over 40 styles of fixture plates, the MCP-24 can polish a wide variety of connectors. Nanometer Technologies also makes custom fixture plates to help match your needs. The MCP-24 is very easy to use, desired results can be achieved with minimal training by even the most inexperienced user. Every MCP-24 polisher comes with a detailed training CD to familiarize technicians with the polishing methods. Key Features: Polish up to 48 Connectors at a Time Figure 8 Polishing Pattern: Exclusive Patent Design Utilizes the original polish methods which tightly controls the radius, apex offset and fiber undercut. Designed for High-volume Single Mode (SM) and Multi Mode (MM) Polishing Consistent Repeatable Performance Universal Fixture Plate: Accommodates FC, SC, ST, FDDI, E2000PC and 2.5mm Ferrules Versatility: Easily Accommodates a Full Range of Industry-standard Polishing Styles: UPC, 8 DEG APC, 10 DEG APC, FLAT, SPHERICAL, RADIUS and DOMED Polishes a Wide Variety of Ferrule Material Including: Ceramic, Glass, Stainless Steel and Plastic Every MCP-24 Polisher Comes With an Easy-to-follow Training CD Polish to Industry-level Standards: TIA, IEC/Bellcore, GR326 Reduce Consumables Cost Increase Production Pneumatic Pressure Control Quickload Universal Polishing Plate™ APC and Custom Plates Available Polish 1,500+ Connectors to Bell Core Specs Per Day, Consistently Using Two UNI-32 Fixtures Radius of Curvature: 7 to 30 mm Apex Offset: <50 µm Undercut/Protrusion: <50 nm Back Reflection: PC -45 dB, UPC -55 dB, APC -65 dB, Multi Mode -35 dB Maximum Connector Load: 48 Dimensions: 419 x 432 x 305 mm Weight: 13.6 kg CE-certified Units Available Application: High-volume Polishing of Single Mode (SM) and Multi Mode (MM) Fiber Optical Connectors (PC, UPC, APC, Other); High-volume Polishing of Industry-standard, Military and Custom Fiber Optical Connectors

Interchangeable Fixtures for Connectors, Waveguides, Bare Fibers, Other; Film Size 4 Inch Diameter; Capacity up to 8 Components; Connector Apex Offset <50 µm; Connector Radius of Curvature 5-25 mm; Connector Protrusion/Undercut: 50--120 nm KrellTech’s NOVA™ automated polishing system provides maximum flexibility for optical surface processing and supports a variety of polishing applications from connectors to waveguides, and bare fibers to custom components. NOVA™ is scalable for R&D projects, high-volume production and the rigors of harsh environments and field installation. NOVA™ workholders feature KrellTech’s patented independent suspension at each connector position for controlled pressure and uniform contact. Combined with NOVA’s Microfeed™ fixture advancement, connector “airpolishing” and epoxy removal can be performed directly in the machine. Each position is optically aligned for optimal polish geometry using KrellTech’s patented process and calibration mechanism. Connector types can also be mixed and matched in a single fixture. NOVA’s versatility provides the ability to support the polishing of many photonic components. A quick change-out of workholder fixtures provides processing capability for waveguides, optical chips, PLCs, lenses and fiber arrays. Workholders utilize a unique holding mechanism that can secure a wide range of component dimensions. The polishing angle is adjustable and custom fixtures can be fabricated for specialized applications. Bare fiber can be polished at variable angles using specialized workholders and adapters. A variety of fiber types from standard single mode (SM) to polarization maintaining (PM) and sapphire to PCF can be processed into wedge and chisel tip shapes. A quick swap-out of adapters allow the polishing of fiber diameters from 80 um to >3 mm. NOVA™ features an intuitive user interface for creating polishing programs. All parameters including cycle time, pressure and speed settings are easily inputted for all component types and desired surface geometries. A unique “manual mode” allows the adjustment of polishing parameters in real-time during NOVA™ operation. This feature streamlines process development efforts and facilitates easy and quick program creation and refinement. A new NOVA™ operation software kit is available that upgrades NOVA™ polishers with the enhanced microfeed feature. This polishing routine provides greater programming flexibility for advancing components to the polishing surface at slower and more controllable rates. While version 1 NOVA™ software was limited to 10 pre-programmed microfeed rates, with the slowest being 100 µm/s, version 2 software allows to customize rates as slow as 5 µm/min. This yields precise removal of material stock and continual component advancement. The enhanced microfeed is ideal for larger optical surfaces, delicate bare fibers, and connector air polishing. V2 also provides the ability to create "pop-up" window prompts in between each polishing step, very useful as reminder to technicians to clean fibers, inspect polishing lengths, confirm geometry, etc. before initiating the next process step. New folder management allows programs to be organized according to connector types, fiber diameters, component, etc. Bare Fiber Coning and Chisel Option The optional Orbit™ bare fiber coning and chisel system enhances NOVA™'s bare fiber processing with conical and chisel tip shaping. Unique fiber tip geometries can be formed for lensing, sensing and light guiding applications. The fiber rotation module can be mounted on standard NOVA™ variable angle and waveguide workholders. Fiber "spin" speed is user adjustable and can be set for continual rotation or the unique "360 auto-reverse" motion that prevent fiber twisting and torquing. All variables are entered and selected via a touchscreen on the Orbit™ controller. When combined with NOVA™ Auto-Angle Workholders, Orbit™ precisely positions the polishing fixture at the designed angle on a repeatable basis. Inspection Options Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA™.  NOVA™'s Profile Videoscope allows the real-time monitoring of component polishing. This videoscope aids with bare fiber/component positioning and confirms process completion. Teamed with measurement software, this system verifies the endface geometry of a broad range of photonics components. Teamed with measurement software, this system verifies the endface geometry of fibers, waveguides and arrays. NOVA™'s Surface Videoscope allows the in-line inspection of polished surfaces while the component is still loaded in the polisher. This minimizes material handling and streamlines photonic production compared to the traditional process of transferring components to off-line inspection stations. Polishing and specification compliance can be determined in a single workcell. Key Features: Precision Optical Polishing Wireless Tablet Control With Microfeed™ Telcordia Compliant Interchangeable Fixtures for Waveguides, Bare Fibers and More Air Polishing Machine Polishing Pressure: Programmable & Automated, Linear Displacement With Micron Positioning Control Polishing Speed and Cycling Time: Program Selectable Polishing Motion: Random Orbital Polishing Routines: Programmable (Step by Step Prompts), Microfeed™ Controlled Advancement, Manual Mode With Full Process Control Film Size: 4 Inch Diameter Connector Support: All Industry Standard Connectors, MIL-spec Termini and Ferrules, UPC & APC Geometries Connector Capacity: Up to 8 Components – Selections Can Be Mixed & Matched in Same Workholder Fixture Connector Apex Offset: <50 µm Maximum, <15 µm Typical Connector Radius of Curvature: 10 to 25 mm (2.5 mm Ferrules), 7 to 20 mm (1.25 mm Ferrules), 5 to 12 mm (APC Ferrules) Connector Protrusion/Undercut: 50 nm to -120 nm Connector Back Reflection: <-60 dB (UPC), <-65 dB (APC) Connector Insertion Loss: <0.25 dB Typical Connector Process Time: Approximately 15 s/Connector Waveguide Component Support: Waveguides, Planar Lightwave Circuits, Optical Chips, Fiber Arrays Waveguide Component Dimension Range: Width 5 to 30 mm, Thickness 0.5 to 5 mm, Length >5 mm Waveguide Angle Repeatability: ±0.3° (X/Y Axis Along Edge) Waveguide Adjustable Polish Angle Range: 0° (Flat) to 45° Fiber Type Range: Single Mode (SM), Multi Mode (MM), Polarization Maintaining (PM), Plastic, PCF, Chalcogenide, Sapphire, Specialty Fibers Fiber Diameter: 80 µm to >3 mm Fiber Angle Range: 0° (Flat) to 50° Fiber Angle Repeatability: ±0.5° Typical Equipment Footprint & Weight: 305 x 305 mm, 11.3 kg Applications: Automated Optical Polishing of Connectors, Waveguides, Bare Fibers and More; Research and Development Projects; High-volume Production; Harsh Environments and Field Installation

Processing System for Polishing of Waveguides, PICs, PLCs, and Fiber Arrays The adaptable processing platform of NOVA GEO™ enables it to polish a range of components including waveguides, PIC optical chips, PLCs, and fiber arrays. The angles of polished endfaces can be adjusted from 0 to 50 degrees using either manual or automated workholder stages. Additionally, GEO™ features an adjustable component mounting plate to accommodate varying edge widths and thicknesses. Optional video inspection systems are available to monitor the polishing process and directly inspect the polished surface within GEO™. This in-line viewing capability reduces material handling and provides a way to verify endface geometry prior to component removal from the machine. Applications: Polishing of components, such as waveguides, PIC optical chips, PLCs, and fiber arrays

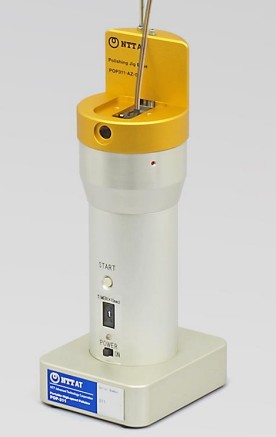

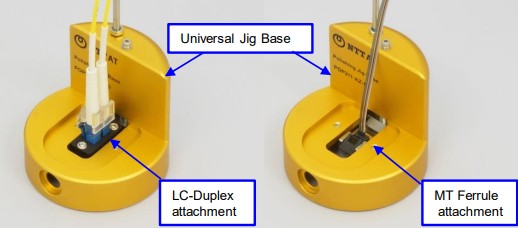

High-speed, Portable Polisher for Field Assembly; Connector/Ferrule Type SC, MU, FC, LC, MT, MTRJ, Custom; Radius of Curvature 10 to 25 mm; Apex Offset <50 µm; Return Loss >50 dB NTT Advanced Technology’s POP-311 series of high-speed portable polishers is suitable for installing optical connectors or extending optical fibers at field work site. Its cylinder jig allows for on-site polishing / re-polishing of MPO connectors and single fiber connectors. High polishing quality equivalent to that of factory use polishers can be achieved. The POP-311 high-speed portable polishers are able to polish connectors at very high velocity – up to 700 revolutions per minute. The POP-311 series is also suitable for re-polishing of MT connectors. When optical fiber connectors due to be laid are found to be damaged, on the spot repolishing makes them ready to be used. Also, LC-Duplex connectors can be simultaneously polished without dismantling. With only three to five processes, polishing MPO connectors and single fiber connectors can easily be done on location. For example, the polishing procedure from adhesive removal to advanced PC polish takes about 150 seconds (SC connector/terminal), while advanced PC polish by re-polishing takes only about 50 seconds (SC connector/terminal). Applicable connectors/ferrules are SC, MU, FC, LC, MT and MTRJ type optical connectors and glass ferrules. A broad range of attachments is available for the various different connector types. Since the attachments are the same as for the factory use ATP-3000 polishing machine, they can be used for a wide range applications such as MPO connectors and single fiber connectors (UPC/APC), and polishing of all types of capillaries and fibers. Widely accessible rechargeable nickel hydride battery (AA) or alkaline dry battery (AA) can be used as power supply. Key Features: Suitable for MT, MTRJ, SC, MU, FC and LC Connectors High Quality- Battery Operated High Speed Polishing Applications: Optical Connector Polishing (for re-polishing and new polishing processes)

Polishes Bare Fibers, Glass Rods, Optical Bundles; Adapters for Connectors, Ferrules; Film Size 4 Inch Diameter; Polishing Angle Range 0°-50°; Polishing Angle Repeatability ±0.5° KrellTech’s Radian™ bare fiber polishing system provides the ability to polish optical fibers at user-selectable and variable angles. Interchangeable adapters accommodate fibers of various diameters and material types. Bare fiber, glass rod or optical bundle polishing is possible with high-speed processing. The rotary stage can be interchanged with a variety of workholders for polishing fiber optic connectors. Radian™ is ideal for laboratory, R&D and low-volume manufacturing applications. Expand Radian’s™ versatility beyond bare fiber processing. Adapters are available for polishing a variety of industry standard and custom connector/ferrule types, as well as rods/lenses. Polish components to flat, UPC and angled geometries. Key Features: Polishes Bare Fibers, Glass Rods or Optical Bundles Also Supports Ferrules and Lenses Variable Angle Control Adapters for Various Fiber Diameters Adapters for Conncetors Cost-effective Processing Interfaces With Radian™ Polisher Flat, UPC and Angle Geometries Variable Angle Polishing – Polishing Angle Range: 0° (Flat) to 50° Polishing Angle Repeatability: ±0.5° Typical Polishing Motion: Random Orbital Polishing Speed: User Adjustable Polishing Film Size: 4 Inch Diameter Applications: Polishing of Bare Fibers, Glass Rods or Optical Bundles; Laboratory; Low-volume Manufacturing; Research & Development

Interchangeable Fixtures for Connectors, Waveguides, Fiber Bundles; Film Size 4 Inch Diameter; Capacity up to 4 Connectors; Connector Apex Offset <50 µm; Connector Radius of Curvature 5-25 mm; Connector Protrusion/Undercut: 0--50 nm KrellTech’s SpecPro™ connector polisher is designed to yield single mode (SM) performance for R&D and medical applications, low-volume cable assembly production and field environments. Up to four components can be simultaneously polished, including industry standard connectors, multifiber ferrules, MIL-spec termini, optical bundles, endoscopes and bare fibers. An integrated air-polish routine is available, and SpecPro™ is also ideal for repairing and retro-polishing damaged connectors. SpecPro™ incorporates KrellTech’s unique independent suspension feature for more uniform and consistent polishing at each connector position. Krell’s SpecVision™ video inspection system can also interface with SpecPro™ for in-line viewing of fiber finishes. In addition to its compact and portable packaging, SpecPro™ features both AC and battery operation. Key Features: Polishes All Connectors and MIL-Spec Termini to Telcordia Compliance Processes up to 4 Connectors Bare Fiber Polishing Independently Suspended and Optically Aligned Workholders In-line Video Inspection Portable, With AC or Battery Operation Polishing Motion: Random Orbital Polishing Timer: User-adjustable, Digital Cycle Timing Film Size: 4 Inch Diameter Connector Support: Most Industry Standard Connectors/Ferrules/Mil-termini Including UPC/APC Versions, Waveguides, Fiber Bundles, etc. Connector Apex Offset:<50 µm Radius of Curvature: 10 to 25 mm (2.5 mm Ferrules), 7 to 20 mm (1.25 mm Ferrules) 5 to 12 mm (APC Ferrules) Undercut/Protrusion: 0 to -50 nm Bare Fibers Fiber Diameters:80 μm to >1.5 mm Using Adapters Video Inspection: Workholders Can Interface With the SpecVision™ For In-line Viewing Fiber Finishes Equipment Footprint & Weight: 178 x 114 mm, 20.4 kg Applications: Research and Development; Medical; Low-volume Cable Assembly Production; Field Environments
