MX400 Precision High Voltage Resistors
Product number:
SW10186
Product information "MX400 Precision High Voltage Resistors"
The MX400 Series models are RoHS non-compliant and have been replaced with the NEW RoHS Compliant MX500 Series models.

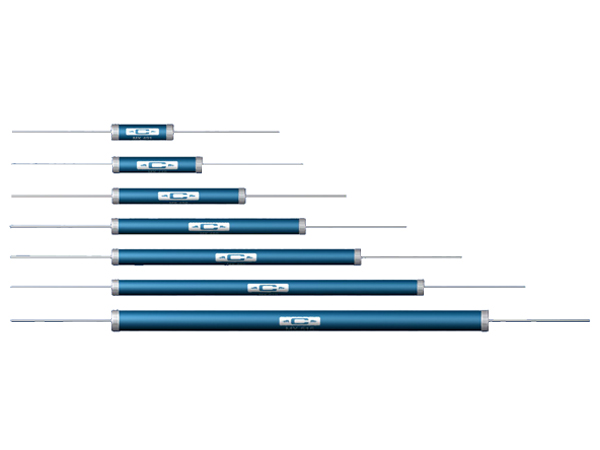

The Type MX400 Precision High Voltage Resistors were specifically developed for use in industrial and general purpose high voltage systems. These resistors combine the proven performance of Caddock's Micronox® resistance system with new cost efficient design elements. These resistors are intended for the design of high voltage systems where the system is not exposed to full military or space grade operating conditions. For full military or space grade operating conditions, we recommend Caddock's Type TG Low TC Precision High Voltage Resistors or Type MG Precision High Voltage Resistors.
The performance features of the Type MX Precision High Voltage Resistors are:
- Five Models with Voltage Ratings from 7.5 KV to 32 KV
- Temperature Coefficient: 80 ppm/°C from 0°C to +70°C
- Load Life Stability of 0.50% per 1,000 hours
- Resistance Tolerance: 1% Standard
- Non-Inductive Design
- Resistance Range from 1 Megohm to 1,000 Megohms
Manufacturer "Caddock Electronics"
