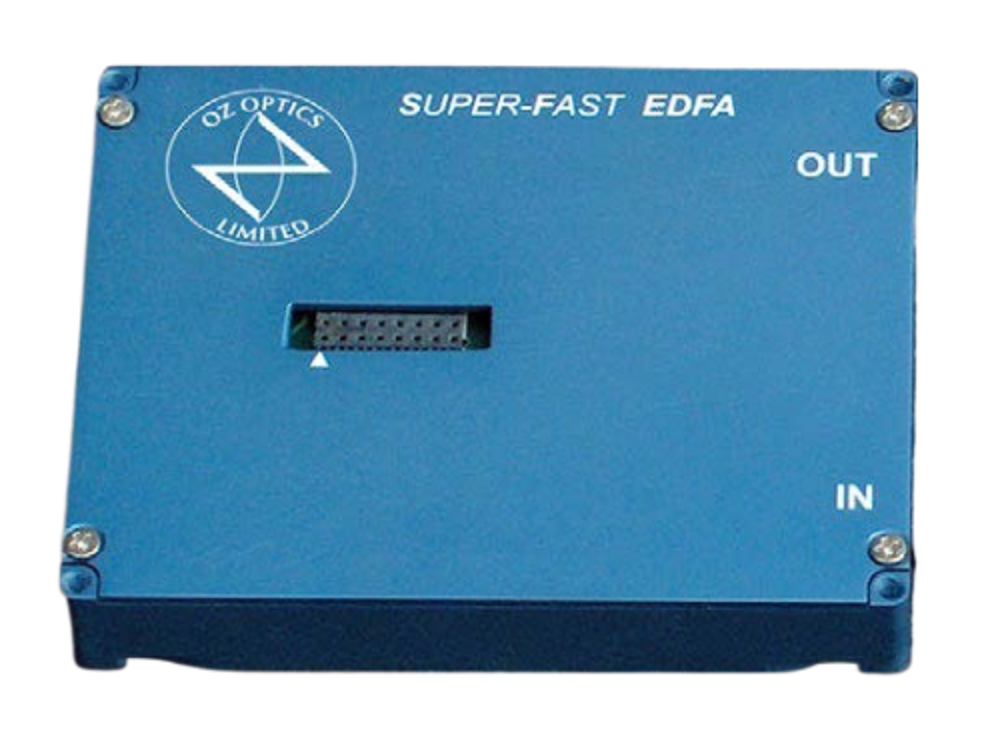

EDFA-11-9/125 EDFA Module

Product number: SW11789

Downloads

EDFA-11-9/125 EDFA Module OZ Optics Datasheet

Product information "EDFA-11-9/125 EDFA Module"

Super-fast, Auto Gain Controlled; Fiber Pigtail 9/125 µm; 1529.16-1558.58 nm; Input Power -19--11 dBm; Output Power 5-13 dBm

OZ Optics’ super-fast Erbium-doped fiber amplifier module EDFA-11-9/125 was developed to address fast transient conditions with sub-μs suppression time. In a WDM transmission line, the addition or removal of channels may cause a transient, to which the EDFA must respond. In response to a sudden change of input power, an EDFA will exhibit transient response, i.e. overshoot or undershoot in its output signal. With a typical EDFA, this transient response can last on the order of 100 μs.

OZ Optics’ super-fast Erbium-doped fiber amplifier module EDFA-11-9/125 features a typical transient suppression time of 50 ns and is designed to be used in the traditional C-band. During operation, the signal wavelengths must be confined to a 3.2 nm region for each optical amplifier, although the band may be anywhere within the C-band. The unit can work with up to four channels.

Due to the nature of the narrowband operation, the transient suppression of the super-fast EDFA module is greatly improved, compared to a traditional EDFA.

Key Features:

Compact Design
Super-fast, Auto Gain Controlled
Operation Wavelength: 1529.16 nm to 1558.58 nm
Input Power per Channel: -19 dBm to -11 dBm
Output Power per Channel: 5 dBm to 13 dBm
Sub-μs Transient Suppression Time: 50 ns Typ.
Transient Undershoot/Overshoot: ≤±0.3 dB
Auto Gain Control Over Wavelength and Signal Amplitude
Low Noise: 5.5 dB
Fixed 24 dB Gain, Independent of Wavelength and Signal Power
Gain Flatness Within 3.2 nm Band (Relative to 24 dB): ±0.3 dB
Polarization Dependent Gain: ≤0.3 dB
Max. Polarization Mode Dispersion: 0.5 ps/√km
Input/Output Return Loss (RL): 40 dB
Residual Pump Power at Output: -25 dBm
Fiber Pigtail: 9/125 µm, 1 m Length
Connector Type: FC/APC
Operating Temperature Range: 0°C to +70°C
Dimensions: 90 x 70 x 14 mm

Applications: ROADM Network; CATV/NETWORK Access; C-Band Channel Preamp

Manufacturer "OZ Optics"

Similar products

BG-HEDFA High-Power EDFA

Erbium-doped; Fiber Type Single Mode SMF 9/125 µm; 1528-1560 nm; Input Power 0 dBm Typ.; Output Power ≤27 dBm; Interface RS232 Beogold Technology's BG-HEDFA high-power EDFA offers an output optical power of up to 27 dBm and is widely used in optical fiber sensing and communications. The BG-HEDFA high-power EDFA consists of a 980 nm or 1480 nm pump laser to provide energy and operates in AGC, ACC or APC mode. It provides high output power, a wide spectral range, and a variable gain range >20 dB. These EDFAs can work across the C-band. Powered by a + 5 VDC power supply, the BG-HEDFA features a user-friendly RS232 serial port as communications interface for easy internal configuration. Beogold’s BG-HEDFA high-power EDFA enables real-time parameter monitoring as well as remote management and control of the line. Key Features: Operating Wavelength: 1528 to 1560 nm Low Noise Figure: 5.5 dB Max. High Output Power: up to 27 dBm Flexible Control Mode Customizable Optical Output Power and Configuration High Stability High Reliability Input Power: 0 dBm Typical Min. Input/Output Isolation: 40 dB Fiber Type: Single Mode (SM) SMF 9/125 µm, NA = 0.13 Fiber Length: Custom Design Fiber Connector: FC/APC or Custom Design Communication Interface: RS232 Serial Port Power Supply: 5 VDC, <30 W Operating Temperature: -20 °C to +60 °C Dimensions: 238 x 120 x 15 mm Applications: BOTDR; OTDR System; LIDAR; Nonlinear Optics Research; Fiber Optic Sensing; Air Monitoring

Product number: SW11528

Manufacturer:

EDFA-CA-SO EDFA Racks

CATV, Erbium-doped; Fiber Type SMF-28; 1530 to 1565 nm; Input Power -5 to +10 dBm; Output Power 13 to 23 dBm LightComm Technology’s 19" rack EDFA-CA-SO is designed for CATV long distance transmission, amplifying low signal power into high signal power or extending transmission distance. Both input and output signals are sampled and monitored with a feedback circuit. An APC (automatic power control) circuit is designed into the amplifier to ensure high stability and reliability of output power.Based on an integrated power monitoring circuit, this amplifier features Ethernet or RS-232 (or RS-485) network interface, capable to support open network management protocol (SNMP) as an option and adding flexibility to maintain connectivity with the customer's network management system.As an option, by using a select set of multi-channels splitters with extremely high reliability and low IL values, users can split the output signal into multiple ports. Key Features: Low Noise Figure High Output and High Gain Optional Output Configuration: 13 to 23 dBm (one output port), 17 dBm * 4 ports, 16 dBm *4 ports, 17 dBm *2 ports, 16 dBm *2 ports etc. Highly Reliable Laser Diode Pumps High Stability and Reliability Wide Operating Temperature Range Intelligent MPU Monitor User-friendly Interface RS232/RS485/SNMP (optional) Applications: Analog and Digital CATV Systems; Long Distance Transmission Systems; Access Networks; LANs and WANs

Product number: SW10479

Manufacturer:

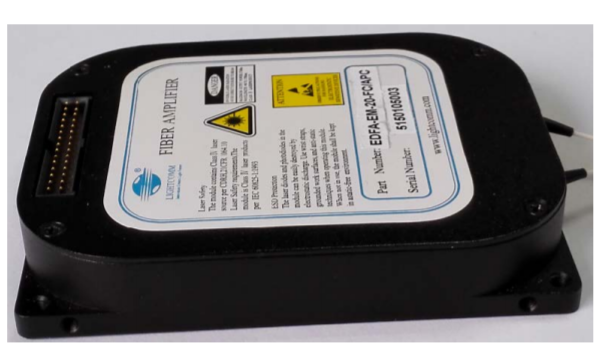

EDFA-EM(-B) EDFA Modules
