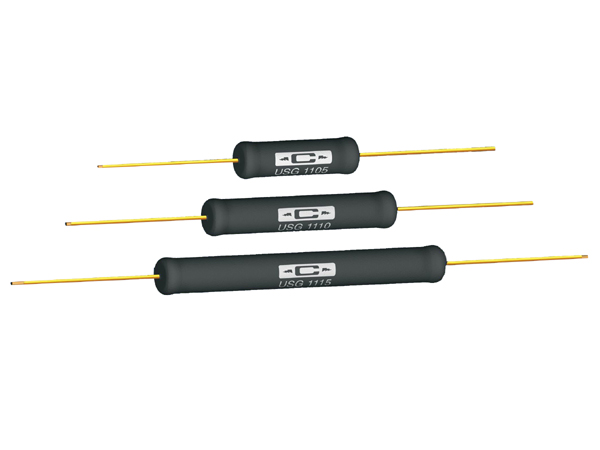

USG Ultra-Stable Precision High Voltage Resistors
Product number:
SW10190
Product information "USG Ultra-Stable Precision High Voltage Resistors"
The very highest performance high voltage applications require the best possible temperature coefficient and long term stability from the high voltage resistors that are used in these applications. To meet these demanding requirements Caddock introduces the Type USG Ultra-Stable Precision High
Voltage Resistors. Utilizing our proven Tetrinox® resistance film system, these Type USG resistors were developed to optimize low temperature coefficient performance and long term stability performance. By utilizing specific ceramic core materials with optimum Tetrinox® processing, we are able to control, very tightly in manufacturing, the important ultra-stable performance parameters in operating temperatures from -40°C to +85°C. This unique process is offered in specific resistance values in three body sizes. The extraordinary operating stability of the Type USG resistors will improve the performance of your high voltage system.
The performance features of the Type USG Ultra-Stable Precision High Voltage Resistors are:
- Temperature Coefficient and Tolerance:10 ppm/°C with ±0.1% or 20 ppm/°C with ±0.2%
- Typical Load Life Stability of 0.025% per 1,000 hours at +85°C, 0.05% per 1000 hrs. maximum.
- Three body sizes provide continuous voltage ratings of 5 KV, 10 KV, and 15 KV.
- The specific resistances that are offered in each body size have been selected for produceability of optimum performance.
- The Ultra Low Temperature Coefficient minimizes self-heating (warm-up) drift following the application of high voltage or resulting from a change in the applied high voltage.
- Custom Low TC HV Strings are available: 50 KV, 100 KV, etc.
Manufacturer "Caddock Electronics"
