IXF.tbs Mirror Mounts

Product number: SW10507

Downloads

IXF.tbs Mirror Mounts Siskiyou Brochure

Product information "IXF.tbs Mirror Mounts"

Flexure Mechanism; Aluminum/Steel; Beam Splitter; Optic Size from 12.7 mm (0.5 inch) to 50.8 mm (2.0 inch); Different Thread Types

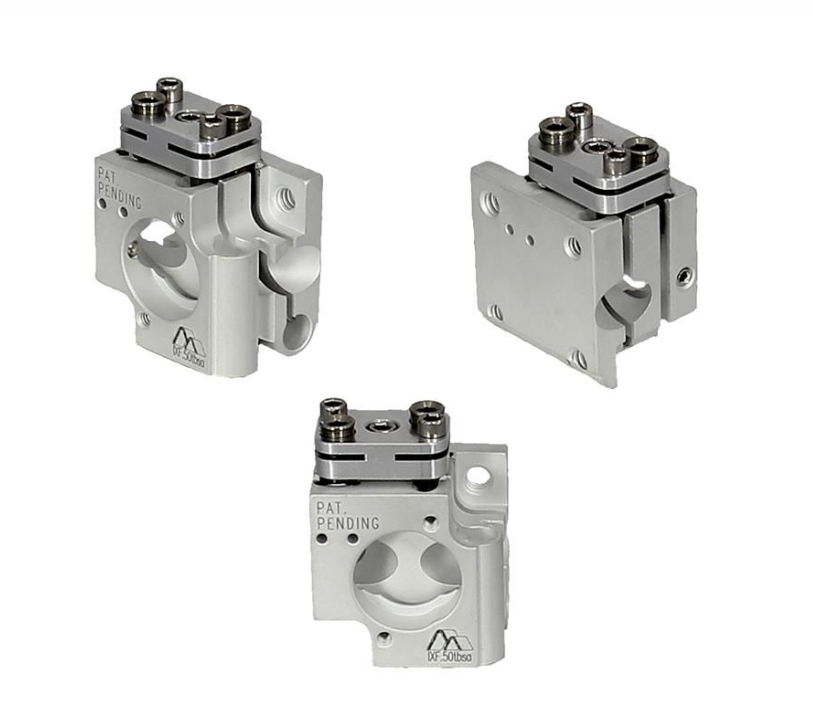

The IXF.tbs series are a new version of Siskiyou popular IXF monolithic flexure mounts. This new variation incorporates the same features as their IXF but has the tip/tilt adjustments moved to create a top adjusted flexure. This feature is ideal for applications where accessibility to the mount is limited and standard model can’t be accessed. Built into the top adjustment mechanism is a simple split-clamp lock for the 100TPI adjustment screws. These locks work best when they are pre-loaded prior to adjustment, adjustment made, then locked in place.

Siskiyou have also added clear aperture cutouts to maximize beam clearance for beamsplitter applications. These cutouts are set at 45°, but are large enough to accommodate beam angle variations of ±5°. These mounts use Siskiyou 100TPI rolled thread adjustment screws for low stiction ﬁne adjustments and are swaged at the end to prevent over-travel of the mount.

The IXF.tbs series mounts are manufactured from one solid piece of spring steel, then nickel plated so they will not corrode and can be used in ultra violet laser environments. These models are also available in aluminum version; for “flight” or vacuum applications. Aluminum models exhibit the same performance speciﬁcations as the steel models. Custom OEM versions available in steel and aluminum.

Manufacturer "Siskiyou"

Similar products

Gimbal Mounts / Laser Diode Positioners

Siskiyou's gimbaled lens positioners cover a broad spectrum of optic configurations. The simple 2-axis models are the basis for more complex positioning requirements, including rotational positioning for polarizers or cylindrical lenses. All models use precision rolled 80TPI adjustment screws for pitch/yaw adjustment. The OG series of optical gimbal mounts is a compact and robust mounting platform for laser cavity applications. It uses color coded Soft Touch knob caps in both non-lockable and lockable versions. These knob caps are comfortable to use and provide quick axis location in low light conditions. The LDP laser diode positioner series is ideal for industrial applications.

Product number: SW10194

Manufacturer:

IM.C2 Mirror Mounts

Kinematic Mechanism; Aluminum; Optic Size 12.7 mm (0.5 inch); 2-Axis Adjustment; 100TPI; Righ/Left Hand Version These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Siskiyou IM05.2 series mounts use precision rolled 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left hand compatibility. These mounts use a full “L” cutaway back for maximum clear aperture. The IM05.C2 versions have a cutaway front face to optimize tight beam layouts, and are available in right hand or left hand versions. Within the back plate Siskiyou use their lockable 100TPI adjustment screws with hard carbide ball bearings that run on hardened rods to provide stable movement. These adjustment screws incorporate Siskiyou one wrench design for optic mounting, adjustment and locking. The 5⁄64 hex adjustment screws may be replaced by SoftTouch™ knobs for ﬁnger adjust-ment.

Product number: SW10509

Manufacturer:

IM.C3 Mirror Mounts

Kinematic Mechanism; Aluminum; Optic Size 12.7 mm (0.5 inch); 3-Axis Adjustment; 100TPI; Righ/Left Hand Version These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. Siskiyou IM05.3 series mounts use 3 precision rolled 100TPI adjustment screws with excellent resolution and feel in the hand. The 3-axis adjustment is ideal for laser cavity applications. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left hand compatibility. These mounts use a full “L” cutaway back for maximum clear aperture. The IM05.C3 versions have a cutaway front face to optimize tight beam layouts, and are available in right hand or left hand versions. Within the back plate Siskiyou use their lockable 100TPI adjustment screws with hard carbide ball bearings that run on hardened rods to provide stable movement. Two adjustment screws incorporate Siskiyou one wrench design for optic mounting, adjustment and locking, while the third axis requires an additional wrench. Two of the hex adjustment screws may be replaced by SoftTouch™ knobs, for ﬁnger adjustment, with the third axis retaining its 5⁄64 hex adjustment screw and 1⁄4 hex lock nut.

Product number: SW10510

Manufacturer:

Only 2 available

IM05.C2 Mirror Mount

Kinematic; Aluminum; 12.7 mm (0.5 inch); M2.5 (2-56); 2-Axis Adjustment These industrial grades kinematic optic mounts offer exceptional performance with a wide variety of flexible options. IM05.2 series mounts use precision rolled 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right-hand compatibility. These mounts use a full “L” cutaway back for maximum clear aperture. The IM05.C2 versions have a cutaway front face to optimize tight beam layouts.

Product number: C006265-6

Manufacturer:

€105.80*

Only 2 available

IM05.C3 Mirror Mount

Kinematic; Aluminum; 12.7 mm (0.5 inch); M2.5 (2-56); 3-Axis Adjustment These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. IM05.3 series mounts use three precision rolled 100TPI adjustment screws with excellent resolution and feel in the hand. The 3-axis adjustment is ideal for laser cavity applications. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right-hand compatibility. These mounts use a full “L” cutaway back for maximum clear aperture. The IM05.C3 versions have a cutaway front face to optimize tight beam layouts.

Product number: C006246-6

Manufacturer:

€118.45*

Only 2 available

IM05.P2 Mirror Mount

Kinematic; Aluminum; 12.7 mm (0.5 inch); M3 (4-40) These industrial grade kinematic optic mounts offer exceptional performance with a wide variety of flexible options. IM05.2 series mounts use precision rolled 100TPI adjustment screws for excellent resolution and feel in the hand. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options for right or left-hand compatibility. These mounts use a full “L” cutaway back for maximum clear aperture. The IM05.C2 versions have a cutaway front face to optimize tight beam layouts.

Product number: C006302-6

Manufacturer:

€105.80*

IVM100 Mirror Mount

Kinematic; Aluminum; 25.4 mm (1.0 inch); M6 (1/4-20); 2-Axis Adjustment This top-adjusted optical mount has unique zero crosstalk system that guarantees true orthogonal motion between the X and Y axes.

Product number: C006227-6

Manufacturer:

€217.35*

pcs

IVM100 Mirror Mounts

Kinematic Mechanism; Aluminum; Optic Size from 12.7 mm (0.5 inch) to 50.8 mm (2.0 inch); M6 (1/4-20) Thread Type; 2-Axis Adjustment These top adjusted or vertical optical mounts have Siskiyou unique zero-crosstalk system that guarantees true orthogonal motion between the tip and tilt axes. By using Siskiyou patented spring-loaded pivot these mounts are the most stable in the industry, far exceeding other mounts. Parallel stainless steel guide rods constrain adjustment screw travel, eliminating crosstalk. Siskiyou IVM series mounts use precision rolled 100TPI adjustment screws for excellent resolution and touch. They come with either 5/64 hex adjustments or capstan knob caps with SoftTouch™ covers. Like all of Siskiyou “I” series mounts, the IVMs use their one wrench design that allows the user to secure the optic, orient the adjustment locks, adjust the optic position, and lock the mount all with one wrench. These mounts come in three sizes: 0.5 inch, 1.0 inch, and 2.0 inch, with other sizes and conﬁgurations available upon request.

Product number: SW10508

Manufacturer:

IXF Mirror Mounts

Flexure Mechanism; Aluminum/Steel/Stainless Steel; Optic Size from 12.7 mm (0.5 inch) to 101.6 mm (4.0 inch); Different Thread Types The IXF series is a unique, monolithic flexure mount found nowhere else in the industry. Unlike other flexure designs, they have lockable 100TPI adjustment screws that have a rolled-cap design to guarantee that the flexure will not be forced past its elastic limit. Three versions are available: steel-bulkhead mounted, steel bulkhead/post mounted, and aluminum-bulkhead/post mounted. The steel-bulkhead mounted version (IXF1.0, IXF.75, and IXF.50) has 4-40 tapped holes on two sides and is electroless nickel plated. The steel-bulkhead/post version (IXF1.0i, IXF.75i, and IXF.50i) has the 4-40 tapped holes on only one side, and has 8-32 (M4) tapped holes on two edges, as well as lock screws for the ﬁne pitch 100TPI adjustment screws. This model is also electroless nickel plated. For vacuum compatible and flight-ready applications, Siskiyou developed a method to produce a spring-loading effect in an aluminum version. The aluminum version (IXF1.0a, IXF.75a, and IXF.50a) has the same features and performance speciﬁcations as the steel bulkhead/post version.

Product number: SW10500

Manufacturer:

IXF.50a M Mirror Mount

Flexure; Aluminum; 12.7 mm (0.5 inch); M2.5 (2-56), M3 (4-40), M4 (8-32)

Product number: C002677-6

Manufacturer:

€132.25*

Only 2 available

IXF.50bsa M Mirror Mount

Flexure; Aluminum; Beam Splitter; 12.7 mm (0.5 inch); M2.5 (2-56), M3 (4-40), M4 (8-32)

Product number: C006234-6

Manufacturer:

€151.80*

Only 2 available

IXF.50bsi M Mirror Mount

Flexure; Steel; Beam Splitter; 12.7 mm (0.5 inch); M2.5 (2-56), M3 (4-40), M4 (8-32)

Product number: C006220-6

Manufacturer:

€190.90*
