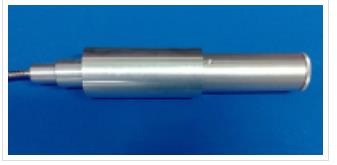

High Power Fiber-to-Free-Space-Isolators

Polarization Sensitive & Insensitive Versions; Fiber Type SM, PM, LMA, PLMA; 1030 nm to 1090 nm; Isolation ≥30 dB; Power Handling ≤50 W FOP(I)-10A fiber-to-free-space isolators are offered with fiber pigtailed or receptacle-style collimators on the input beam, with typical beam diameters of 0.4 mm to 1.1 mm. With receptacle-style collimators, customers can connect a high-power patchcord terminated with an adjustable FC connector. This option gives the user extra flexibility in the control of beam size propagating through the isolator and allows the user to change the fiber if desired. Isolators are optical devices that allow light to be transmitted in one direction only. They block the source from reflected light, thus preventing any feedback problems, such as frequency instability, relaxation oscillations, amplified stimulated emissions, or optical damage – very critical with the recent dramatic increase in laser output powers, especially in the 1030 to 1090nm wavelength range. To meet this demand OZ Optics has developed a line of high power handling isolators, capable of peak isolation levels of 30 dB to 50 dB for 1030 nm to 1090 nm, depending on the input beam size. OZ Optics uses a patented tilt alignment technique to manufacture isolators with fiber pigtails. Light from an optical fiber is first collimated then transmitted through the isolator. The fibers can be standard single mode fibers or Large Mode Area (LMA) fibers. LMA fibers are used to reduce the optical power density in the fiber core and therefore allow guidance of larger input power levels while still achieving near-gaussian output beam quality. This patented tilt alignment technique allows OZ Optics to offer compact pigtailed devices. The isolators come with built-in windows to prevent dust contamination of internal isolator optics. These protection windows are easily removed and replaced by the user. Custom smaller packages can be made for OEM applications – contact us for more details. Key Features: Operating Wavelength Range: 60 nm Power Handling: Up to 80 W Isolation: Up to 50 dB Low Insertion & Polarization-dependent Losses Excellent Beam Quality Removable Protective Windows Pigtail or Adjustable Focus Receptacle Style Collimators/Focusers RoHS compliant Applications: Protection of high power lasers from reflections during a) laser marking and engraving; b) laser cutting and etching of metal surfaces with high reflectance such as Al, Cu, Au or Ag; c) micro machining and trimming

Polarization Sensitive & Insensitive Versions; SM or PM Fiber; 532 nm to 2000 nm; Isolation ≥20 to ≥40 dB; Power Handling 0.5 to 10 W This complete line of pigtailed fiber-to-fiber isolators for wavelengths ranging from 532 nm to 2000 nm combines a free-space Faraday rotator with polarizing optics to provide up to 60 dB of isolation and high power handling with minimum losses. Our isolators are manufactured using OZ Optics' patented tilt alignment technique. Input light from an optical fiber is first collimated, then transmitted through the isolator optics. A focusing lens on the output side of the isolator then couples the light back into the output fiber. This method is highly flexible and allows isolators capable of handling up to 10 W of optical power through single-mode fibers. Isolators are offered in two different versions, polarization sensitive and polarization insensitive. Polarization sensitive isolators are well suited for PM fibers and for some applications where an input free-space beam of constant polarization enters the Faraday optics. However, these isolators are not recommended for SM fibers, as these fibers do not maintain polarization. For this reason we recommend using polarization insensitive isolators with standard SM fibers. Please note however that polarization insensitive isolators are not necessarily available for all wavelengths or power levels. Key Features: Polarization Sensitive and Insensitive Versions Wavelength: 532 nm to 2000 nm High Isolation Levels Low Insertion & Polarization-dependent Losses Different Compact Sizes Including Miniature Packaged Versions Stable and High Reliability Designs Applications: High-power Laser to Fiber Coupling Systems; Optical Amplifiers; CATV Systems; OCT Systems

Polarization Sensitive & Insensitive Versions; Fiber Type SM, PM, LMA, PLMA; 1030 nm to 1090 nm; Isolation ≥30 dB; Power Handling 1 W Isolators are optical devices that allow light to be transmitted in one direction only. They block the source from reflected light, thus preventing any feedback problems, such as frequency instability, relaxation oscillations, amplified stimulated emissions, or optical damage – very critical with the recent dramatic increase in laser output powers, especially in the 1030 to 1090nm wavelength range. To meet this demand OZ Optics has developed a line of high power handling isolators, capable of peak isolation levels of 30 dB to 50 dB for 1030 nm to 1090 nm, depending on the input beam size. The isolators are offered with fiber pigtailed collimators on the input and output beam, with typical beam diameters of 0.4 mm to 1.1 mm. OZ Optics uses a patented tilt alignment technique to manufacture isolators with fiber pigtails. Light from an optical fiber is first collimated then transmitted through the isolator. The fibers can be standard single mode fibers or Large Mode Area (LMA) fibers. LMA fibers are used to reduce the optical power density in the fiber core and therefore allow guidance of larger input power levels while still achieving near-gaussian output beam quality. This patented tilt alignment technique allows OZ Optics to offer compact pigtailed devices. The isolators come with built-in windows to prevent dust contamination of internal isolator optics. These protection windows are easily removed and replaced by the user. Custom smaller packages can be made for OEM applications – contact us for more details. Key Features: Wide Operating Wavelength Range: 60 nm Power Handling: Up to 80 W Isolation: Up to 50 dB Low Insertion & Polarization-dependent Losses Excellent Beam Quality Removable Protective Windows RoHS compliant Applications: Protection of high power lasers from reflections during a) laser marking and engraving; b) laser cutting and etching of metal surfaces with high reflectance such as Al, Cu, Au or Ag; c) micro machining and trimming

PM and SM Versions; PM and Not-PM Fibers; 1060, 1064, 1075, 1080 310, 1550 nm; Isolation ≥28, ≥30, ≥45 dB; Power Handling 0.3 to 100 W (Average) Our portfolio of high power 10xxnm optical isolators comprises a broad range of fiber-to-fiber versions. Some devices feature taps or band pass-filters. These in-line types are characterized with high isolation, compact size, low insertion loss, high power handling, high return loss as well as excellent environmental stability and reliability. The effective heat dissipation technique developed by Lightcomm ensures that the isolators show exceptional performance under high-power and long-time operation. These isolators are ideal for fiber laser and instrumentation applications. Key Features: High Isolation Loss Low Insertion Loss PM and Non-PM are Available Tap and Band-pass Filter Options Excellent Evironmental Stability and Reliability Fiber can be Customized Applications: Fiber Lasers; Fiber Sensors

PM and SM Versions; PM and Not-PM Fibers; 780 to 1080 nm; Isolation ≥22, ≥25, ≥28 dB; Power Handling 10 W (Continuous) Our HP(M)IIT series of high power special wavelength fiber-to-fiber isolators is available for wavelengths from 780 nm to 1080 nm – or even for customized wavelengths on demand. These isolators are characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications. Key Features: High Isolation Loss Low Insertion Loss PM and Non-PM are Available Excellent Evironmental Stability and Reliability Fiber can be Customized Applications: Fiber Lasers; Fiber Sensors

PM and SM Versions; PM and Not-PM Fibers; 1030, 1064 nm; Isolation ≥28 dB; Power Handling 10 W (Continuous) Our HP(M)IITB series of high power in-line fiber optic isolators feature a band pass filter which is filtering the ASE from forward or backward. The devices are characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications. Key Features: Band Pass Filter Attached High Isolation Loss Low Insertion Loss PM and Non-PM are Available Excellent Evironmental Stability and Reliability Fiber can be Customized Applications: Fiber Lasers; Fiber Sensors

PM and SM Versions; PM and Not-PM Fibers; 1030, 1064 nm; Isolation ≥25, ≥28 dB; Power Handling 10 W Our HP(M)IITT series of high power in-line fiber optic isolators feature a tap from the input and the output. The devices are characterized with compact size, low cost, low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications. Key Features: Tap at Input/Output High Isolation Loss Low Insertion Loss PM and Non-PM are Available Excellent Evironmental Stability and Reliability Fiber can be Customized Applications: Fiber Lasers; Fiber Sensors

PM and SM Versions; PM and Not-PM Fibers; 1310, 1550 nm; Isolation ≥30, ≥46 dB; Power Handling 1 to 10 W Isolators are directional optical component used in fiber optical module, EDFA, and communication systems. This high power fiber optical isolator is available for 1310 nm or 1550 nm, in single and dual stage versions as well as with SM and PM fibers. Features: High Isolation Low Insertion Loss High Return Loss Applications: EDFA; Communication Systems; Testing Instruments

Polarization Insensitive, Single/Dual Stage; 1528 to 1565 nm (C-Band); Isolation ≥30, ≥48 dB; Power Handling ≤500 mW; Fiber Type SMF-28e & Hi1060 Fiber WDM/Isolator hybrid is made by special packaging technology, which combines FWDM and isolator into a compact package. It has WDM and isolator function at the same time. It is widely used in EDFA and other fields. Key Features: Compact size Low insertion loss High channel isolation Low cost Applications: EDFA; WDM system; CATV

Polarization Maintaining with Polarization Beam Combiner/Splitter; Single/Dual Stage; PM or SM Fiber; Isolation ≥25 dB, ≥42 dB; Power Handling ≤300 mW, ≤500 mW The Isolator Polarization Beam Combiner/Splitter is a hybrid device that has functions of PBC/PBS and isolator in a single compact package. The IPBC/S is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal choice for application in fiber amplifier, and optical communication systems where signal monitoring is required. Key Features: Low insertion loss High extinction ratio High isolation Excellent stability and reliability Applications: Fiber lasers; Fiber amplifier; Fiber Sensors; Optical Communications

Polarization Insensitive; Single/Dual Stage Versions; Fiber Type Corning SMF-28e XB or Specify; 1310, 1550, 2000 nm; Isolation ≥20 dB to ≥50 dB; Power Handling ≤500 mW Isolator is directional optical component used in fiber optical module, EDFA, and communication systems. Key Features: High isolation Low insertion loss High return los Applications: EDFA; Communication systems; Testing instruments

Polarization Maintaining; Single/Dual Stage Versions; Fiber Type PM (Panda) Fiber, SM15-PS-U25D; 638 to 2000 nm; Isolation ≥20 to ≥46 dB; Power Handling ≤300 mW, ≤500 mW The Polarization Maintaining Isolator is a micro-optic device built with an input and an output PM fiber. It is characterized with low insertion loss, high extinction ratio, high isolation, high return loss and excellent environmental stability and reliability. It is widely used in EDFA, Raman amplifier, fiber lasers, optical fiber sensors and instrumentation. Key Features: Low insertion loss High extinction ratio High isolation Excellent stability and reliability Applications: Fiber amplifier; Fiber lasers; Fiber Sensors; Instrumentation
