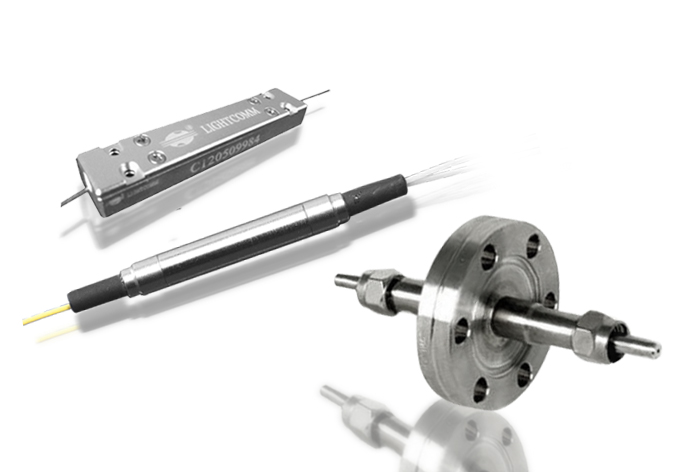

Polarization Maintaining; 780 to 1060 nm; 3/4 Ports; Insertion Loss ≤1.2 to ≤2.0 dB; Fiber Type Panda PM  The high power PM circulator is characterized with low insertion loss, high extinction ratio, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications. Applications: Fiber Laser; Fiber Sensor

Pigtail/Receptacle Versions; Fiber Type SM, MM or PM; Tilt Adjustment Feature for Many Couplers; Pigtail Versions Optional with Pre-configured Connectors (P)FPD fiber to photodiode couplers are available for virtually any photodiode on the market, using either SM, MM or PM fiber. The coupler design is both rugged and flexible, allowing customers to do their own alignment if desired. For OEM applications, miniature pigtail style fiber to photodiode couplers are available that do not use the tilt adjustment technique. These feature both a smaller size and lower cost.Our fiber to photodiode couplers come in three basic designs. The most common design consists of two baseplates (one holding the photodiode and the other one containing the focusing optics and the connector for the input fiber), separated by a resilient O-ring. OZ Optics’ patented tilt adjustment technique is used to achieve the maximum coupling efficiency (typical >80% for SM fibers, depending on fiber and photodiode characteristics) even for very small spot sizes of <10 µm. For the second design, the fiber, lens and photodiode are glued into a single assembly without the tilt adjustment technique. The third and final design uses no lens at all. The fiber is simply butted against the photodiode. Both of these designs are intended for OEM applications. For optimum coupling efficiency, stability, and minimum backreflection, we recommend using pigtail style fiber to photodiode couplers, available with a wide variety of fiber types and cable sizes, also preterminated with different types of connectors. Receptacle style versions are typically only available for multimode applications, or large active area photodiodes. AMS Technologies welcomes opportunities to fiber couple into your specific photodiode. Please contact us with details of the fiber required and the photodiode specifications, and we will determine the best, most cost effective method of fiber coupling. Key Features: High Coupling Efficiency Available in SM, PM and MM Versions Compact Housing InGaAs or Si Photodiodes Standard Contact us for Custom Specific Diodes Small Active Area Photodiodes for High Bandwidth Applications: Power Measurements; Optical Signal Measurements; Optical Power Control Devices; Fiber Optic Sensors; Data Transmission Systems

PM Version Available; 630 to 1550 nm; Fiber Type SM, MM, PM (PANDA); Connector Type FC/UPC, FC/APC, other; Attenuation 0.6 to 50 dB LightComm Technology’s (PM)VOA series of variable optical attenuators is a useful tool for the power adjustment of optical components and systems test. Manual and screwdriver-driven versions are available, also in polarization maintaining (PM) technology. Key Features: High Extinction Ratio (For PMVOA) Wide Attenuation Range High Precision Low Original Loss Compact Size Applications: Fiber Communication System Test; Optical Passive Component Test

Pigtail Style, Optional Removable Filter; Fiber Type SM, PM, MM; 440 to 1625 nm; Connector Type NTT-FC/PC, ST, SC, LC, MU, other; Attenuation 5 to 30 dB OZ Optics’ (R)ND-11 series of expanded beam style neutral density fixed attenuators are ideal for multi mode applications and for applications where attenuating fibers are not available or usable. These pigtail-style attenuators provide mode independent fixed attenuation when used with multi mode fibers. The insertion loss will not depend on how the light is launched into the fiber. This is a significant advantage over other attenuator designs. The attenuators consist of a set of collimating and focusing optics and a central baseplate containing the filter. The expanded beam design permits higher power handling than plug style attenuators. The filters themselves can be either permanent (ND-11 series) or removable (RND-11 series). This provides great flexibility for experimentation. Key Features: Mode Independent Attenuation Level Rugged and Compact Size Pigtail Style Removable Filter Versions (RND-11) Wide Wavelength Range Single Mode, Polarization Maintaining, and Multi Mode Fiber Versions Expanded Beam Technology for Flexible Design Applications: CATV, LAN and Telecommunications; Receiver Padding; Test and Measurement; Optical Power Equalization; Research & Design

Receptacle Style, Optional Removable Filter; Fiber Type MM; 440 to 1625 nm; Connector Type NTT-FC/PC, ST, SC, other; Attenuation 5 to 30 dB OZ Optics’ (R)ND-200 series of expanded beam style neutral density fixed attenuators are ideal for multi mode applications and for applications where attenuating fibers are not available or usable. These receptacle-style attenuators provide mode independent fixed attenuation when used with multi mode fibers. The insertion loss will not depend on how the light is launched into the fiber. This is a significant advantage over other attenuator designs. The attenuators consist of a set of collimating and focusing optics and a central baseplate containing the filter. The expanded beam design permits higher power handling than plug style attenuators. The filters themselves can be either permanent (ND-200 series) or removable (RND-200 series). This provides great flexibility for experimentation. Key Features: Mode Independent Attenuation Level Rugged and Compact Size Receptacle Style Removable Filter Versions (RND-200) Wide Wavelength Range Suitable for Multi Mode Fibers Expanded Beam Technology for Flexible Design Applications: CATV, LAN and Telecommunications; Receiver Padding; Test and Measurement; Optical Power Equalization; Research & Design

Polarization Maintaining; 1064, 1310, 1550 nm; 4 Ports; Insertion Loss ≤1.0 to ≤4.0 dB; Fiber Type PM The 3 ports Polarization Maintaining optical circulator is a 3 ports micro-optic device built with PM fiber. The PM Circulator transmits a signal from port1 to port2 and transmits another signal from port2 to port3 while maintaining the polarization of the signal. It is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is widely used in fiber amplifier systems, fiber lasers and optical fiber sensors. Key Features: Low insertion loss High extinction ratio High isolation Excellent stability and reliability Applications: Fiber lasers; Fiber amplifier; Fiber Sensors; Optical Communications

Polarization Maintaining; Fiber Type PM Fiber; 1064, 1310, 1550 nm; 3 Ports; Insertion Loss ≤0.8 to ≤3.5 dB The 4 ports Polarization Maintaining optical circulator is a 4 ports micro-optic device built with PM fiber. The PM Circulator transmits the incoming signal from port1 to port2, from port2 to port3, from port3 to port4 while maintaining the polarization of the signal. It is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is widely used in fiber amplifier systems, fiber lasers and optical fiber sensors. Key Features: Low insertion loss High extinction ratio High isolation Excellent stability and reliability Applications: Fiber lasers; Fiber amplifiers; Fiber Sensors; Optical Communications

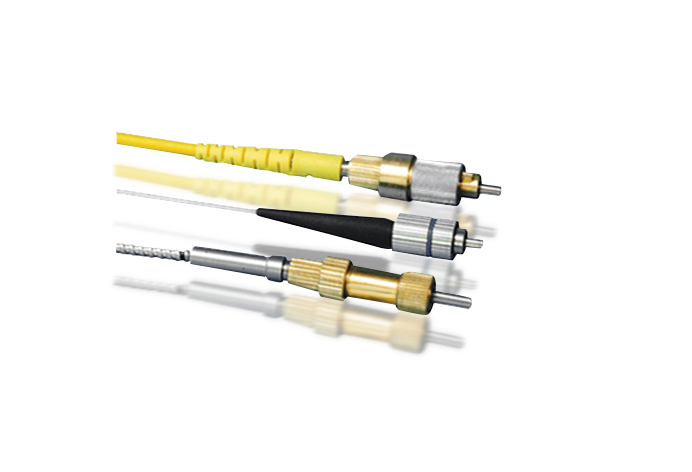

Universal Adapters; Connector Type (Super, Ultra) NTT-FC/PC, SMA 905/906, AT&T-ST, (Angled) SC, Universal; Fiber Type Single Mode (Hybrid Patchcord, Lens Style), Multi Mode (Lens Style) OZ Optics’ AA series of universal connectors and hybrid patchcords are designed for mating two patchcords that have different connectors on their ends. Butt joint style universal connectors feature different female receptacles on either side. Patchcords are simply plugged into either side, and the fiber ends butt together in the middle. These connectors offer an inexpensive and reliable way to connect matching single mode, multi mode, or polarization maintaining patchcords with differing fiber terminations. Connectors with a universal ferrule adaptor design are also available, for connectors that have 2.5 mm diameter ferrules, or 1.25 mm diameter ferrules. These receptacles are best suited for temporary measurements and give added flexibility. Hybrid patchcords have a female receptacle on one side and a male connector on the other side. A small length of fiber lies within the device to transmit the light. Male-to-male hybrid patchcords are also available. Lens style universal connectors are ideal for connecting fibers that have different optical characteristics. They consist of an input receptacle, a collimating lens, a focusing lens and the output receptacle. Light from the input fiber is first collimated, then focused back into the output fiber. The alignment is precisely controlled using OZ Optics’ patented alignment technique. Lens style universal connectors are tilt adjustable to compensate for any offsets between the fiber cores and the connector housings. Please note that universal connectors will not couple light efficiently from a multi mode fiber into a single mode fiber. High losses are unavoidable in this situation, since multi mode fibers have both larger numerical apertures and larger core sizes. Key Features: Mates Patchcords With Different Connector Types Connectors With Different Ferrule Sizes Supported Minimizes Losses Between Fibers With Different Core Sizes And Numerical Apertures Male To Female (Hybrid) Connector Versions Rugged And Compact Design Low Insertion and Return Losses Applications: Patch Panel Interconnects; Fiber Distribution Hubs; Test And Measurement Stations; Optical Delivery Systems

Single Mode Couplers & Combiners, All Band; 1260 to 1620 nm; Coupling Ratio 1/99 to 50/50; Directivity ≥55 dB; Fiber Type SMF-28e, others LightComm Technology builds its ABC all band coupler series using a special technique. The operating bandwidth of the couplers is expanded to 1260 nm to 1620 nm, and the devices feature low excess loss and low PDL. Key Features: Low Excess Loss Low PDL All Band Operating Wavelength High Stability and Reliability Applications: Optical Communication Systems; CATV; FTTH

ST/PC; DD-Shape; Phosphor Sleeve; Simplex; MM

ST/PC; DD-Shape; Zirconia Sleeve; Simplex; SM/PM

SC/PC; Phosphor Sleeve; Simplex; MM; Beige

SC/APC; Zirconia Sleeve; Simplex; SM/PM; Green

SC/PC; Zirconia Sleeve; Simplex; SM/PM; Blue

FC/APC Type R (Narrow Key); Square Shape; Zirconia Sleeve; Simplex; SM/PM

FC/PC Type N (Wide Key); Square Shape; Zirconia Sleeve; Simplex; SM/PM

FC/APC Type R (Narrow Key); D-Shape; Zirconia Sleeve; Simplex; SM/PM

FC/PC Type N (Wide Key); D-Shape; Zirconia Sleeve; Simplex; SM/PM

LC/APC; Zirconia Sleeve; Simplex; SM/PM; Green Further adapters are available. Please check here the whole offer.

LC/PC; Zirconia Sleeve; Simplex; SM/PM; Blue

Fixed; Fiber Type SMF-28; 1425-1605 nm; Fiber Length 0.5, 1 m; Connector Type FC/PC, FC/APC, SC/APC, FC/UPC, SC/UPC, LC, None; Attenuation 1-20 dB, Other; Dimensions Ø3.0x55/65, Ø5.0x80, 80x10x8 mm Gooch & Housego’s AFF-X series of fixed attenuators are compact fused fiber components that reduce optical power by a specified amount. Gooch & Housego (G&H) utilizes a proprietary manufacturing technology that provides accurate attenuation with low wavelength, temperature and polarization dependence. Designed for use where optical power levels need to be managed, G&H’s AFF-xxx0 xBxxx components have standard attenuation values ranging from 1 to 20 dB. Standard wavelength windows are the C, L, C+L or S bands. Attenuators may also be optimized for custom attenuation levels, tolerances and wavelengths – contact AMS Technologies to discuss your customized attenuator solution. Key Features: Fixed Attenuation: 1 to 20 dB, Other Values on Request High Performance Low Back Reflection – Return Loss (RL): 55 dB Proven Reliability C, L, C+L or S Band, 1425 to 1605 nm Wavelength Dependent Loss (WDL): ≤0.10 to ≤1.20 dB Polarization Dependent Loss (PDL): ≤0.09 to ≤0.80 dB Fiber Type: Corning SMF-28 Pigtail Length: 0.5, 1 m Connector Type: FC/PC, FC/APC, SC/APC, FC/UPC, SC/UPC, LC, None Custom Parts Available Compliance: Telcordia GR-1221 Dimensions: Ø3.0 x 55/65, Ø5.0 x 80, 80 x 10 x 8 mm Applications: Power Management in Optical Networks; Receiver Protection; WDM System Channel Balancing; Test Equipment; Fiber Lasers; Sensors

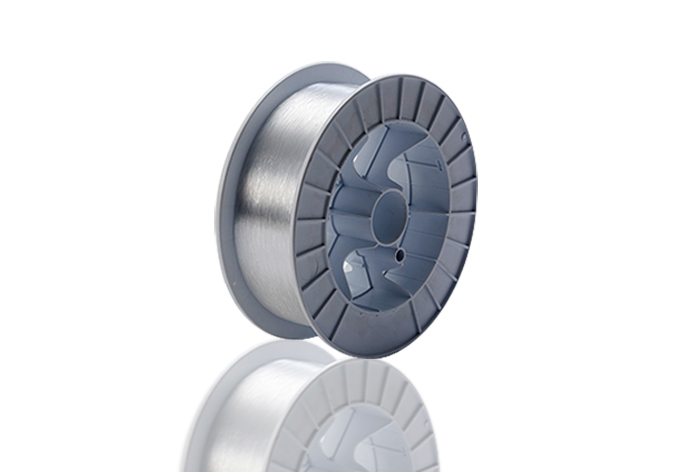

300 - 2400 nm; low numerical aperture; Max Operating Temperature 85 °C; Core Diameter 50 µm; Coating Outside Diameter 250 µm Step Index multi mode fiber with pure fused silica core and fluorine doped silica cladding. With a low concentration of hydroxyl groups (OH), this fiber of the Anhydroguide™ series from Fiberguide Industries is suitable for wavelengths in the visible to infrared domain. It is primarily used in photonics applications where individual or bundled large core (> 50μm) multi mode fibers are needed for the transmission of optical energy.This “AFM” fiber features a low numerical aperture (0.12), resulting in a full acceptance angle of 14°. With a cladding diameter of 140 µm and a silicon buffer coating layer, the minimum bend radius recommended by the supplier is 13 mm (short term) or 25 mm (long term) respectively. The fibers are 100% proof tested using a 4-axis bend method with 100 KPSI. Typical applications are bio-analytical sensing, medical lasers, aerospace/defense, spectroscopy, nuclear plasma sensing or industrial laser systems.

Aluminium Coated, Single Mode, Multi Mode; 190 to 2400 nm; Core Diameter 50 to 400 µm; Mode Field Diameter 4.3, 9.0 µm; Cladding Diameter 125 to 440 µm; Numerical Aperture 0.12 to 0.275Fiberguide’s AFS-A/SFS-A/AGI-A/ASI-A/UVS-H2A series of aluminium coated fibers are designed for a wide temperature range (-269 to +400 °C) and superior strength (>100 kpsi). This allows for long life at extended stress levels in applications that require tight bends. Also, the strong chemical bond between the silica cladding and the aluminum enables direct termination without pistoning. This bond also makes aluminium coating the ideal choice to preserve deep UV performance in Fiberguide’s Solarguide UVS-H2A series of solarization resistant UV multi mode fiber. Within this series of aluminium coated high temperature fibers, users find step index (AFS/SFS, UVS-H2) and graded index (AGI) multi mode fibers as well as anhydrous silica (ASI) single mode fibers. As an option, some types of aluminium coated high temperature fibers can be provided with a broad selection of shaped tips – standard configurations as well as custom designed shapes. Shaped tip fibers provide optimum control over beam delivery and/or increased efficiency of light collection. Some of the fibers can also be end capped to achieve higher coupled power into a fiber core by reducing the power density at the air / silica interface, commonly the point of laser damage. End cap diameters and lengths are offered for select numerical apertures and fiber cores size, but can be easily customized for a variety of fiber types and specialized applications. Additionally, all fiber types can be equipped on demand with Fiberguide’s patented RARe Motheye anti-reflective technology that enhances fiber transmission performance and significantly increases the damage threshold for your application over a large wavelength range. Key Features: Multi Mode (Step/Graded Index) or Single Mode Fibers Pure Fused Silica Core, Fluorine Doped/Pure Silica Cladding Coating: Aluminium Core / Cladding Sizes: 50/125 to 400/440 µm (MM) Mode Field Diameter / Cladding Sizes: 4.3/125, 9.0/125 µm (SM) Numerical Aperture (NA): 0.12 to 0.275 Recommended Bend Radius: Short Term 100 x Clad Diameter, Long Term 200 x Clad Diameter 100% Proof Test Using 4-Axis Bend Method Applications: High Temperature and Cryogenic Temperature Sensing; Semiconductor Manufacturing; Corrosive and Caustic Environments; Ultra-high Vacuum Devices; Radiation Resistant Sensors; Rocket, Turbine and Jet Engine Monitoring

Gold Coated, Single Mode, Multi Mode; 190 to 2400 nm; Core Diameter 50 to 400 µm; Mode Field Diameter 4.3, 9.0 µm; Cladding Diameter 125 to 440 µm; Numerical Aperture 0.12 to 0.275Fiberguide’s AFS-G/SFS-G/AGI-G/ASI-G series of gold coated high temperature optical fibers is designed to achieve the widest temperature range (-269 to +700 °C) of any optical fiber on the market. This, combined with excellent corrosion resistance, and the fiber’s ability to be soldered or brazed, makes it the ideal fiber for many high temperature applications such as turbine flame monitoring, oil and gas down-hole sensing, and high vacuum or pressure applications. As an option, some types of gold coated high temperature fibers can be provided with a broad selection of shaped tips – standard configurations as well as custom designed shapes. Shaped tip fibers provide optimum control over beam delivery and/or increased efficiency of light collection. Some of the fibers can also be end capped to achieve higher coupled power into a fiber core by reducing the power density at the air / silica interface, commonly the point of laser damage. End cap diameters and lengths are offered for select numerical apertures and fiber cores size, but can be easily customized for a variety of fiber types and specialized applications. Additionally, all fiber types can be equipped on demand with Fiberguide’s patented RARe Motheye anti-reflective technology that enhances fiber transmission performance and significantly increases the damage threshold for your application over a large wavelength range.Key Features: Multi Mode (Step/Graded Index) or Single Mode Fibers Pure/Germanium Doped Fused Silica Core, Fluorine Doped/Pure Silica Cladding Coating: Gold Core / Cladding Sizes: 50/125 to 400/440 µm (MM) Mode Field Diameter / Cladding Sizes: 4.3/125, 9.0/125 µm (SM) Numerical Aperture (NA): 0.12 to 0.275 Recommended Bend Radius: Short Term 100 x Clad Diameter, Long Term 200 x Clad Diameter 100% Proof Test Using 4-Axis Bend Method Applications: Turbine Flame Monitoring; Oil and Gas Down-hole Sensing; High Vacuum Applications; High Pressure Applications
