Temperature Sensors

Temperature Sensors available from Stock
AMS Technologies’ extensive range of accurate and fast temperature sensors available from stock is essential for precision temperature control and designed to meet almost any temperature measurement requirement. Our NTC thermistor temperature sensor probes provide very high sensitivity, small size and appropriate speed – perfect for use with our temperature controllers.

Various NTC thermistor types with base resistance values from 5 kΩ to 231.5 kΩ are available, ranging from ultraminiature bare bead, epoxy or phenolic resin coated sensors to cylindrical and pipe versions (polyimide, brass, brass nickel, stainless steel – threaded and unthreaded) all the way to flange mount and plate models. Sizes range from 0.5 mm to 16 cm with Teflon coated lead lengths from 5 cm to 45 cm.

Because most of our temperature sensors are interchangeable within the specified temperature or accuracy range, they can be directly replaced with a new one of the same type in the event of damage - with little or no effort to recalibrate the thermal system.

Product Portfolio
Beyond our general purpose NTC thermistors series and a thermistor series dedicated for use with our range of temperature controllers, AMS Technologies also carries an extensive range of digital output thermopile sensors, detectors, modules and arrays.

These thermopiles offer leading-edge, non-contact temperature measurement for various applications – with some models additionally allowing for motion detection and presence monitoring. Multi-pixel IR thermopile sensors are also available, either as line arrays or 2D modules.

In addition to many standard types, AMS Technologies can also provide customer-specific temperature sensors and probes – please contact the AMS Technologies sensor experts for a temperature sensor solution that matches your project’s requirements.

Related Products
One application of our temperature sensors is the thermal feedback for our broad range of dedicated TEC temperature controllers that are very well suited for drive and control of thermoelectric coolers (TEC) or thermoelectric modules (TEM) based on Peltier technology. Analog and digital TEC drivers with proportional as well as PID type of control are available.

In addition to temperature sensors, AMS Technologies carries a broad range of further sensor solutions.

Our standard and custom liquid level sensors are designed to manage liquid levels of water, foodstuffs, chemicals and fuels in all sorts of containers and vessels. With a large range of different materials, suitable for use in many fluids including corrosive acids, vertical single- and multi-level sensors are available as well as horizontal sensors and cable-suspended versions.

Our portfolio of flow sensors is used to measure flow rates and often also the total volume of liquids flowing through a specified cross-section. With inline, paddle and ultrasonic flow sensors or switches, AMS Technologies provides solutions for a large number of applications.

A broad range of pressure sensors is available from AMS Technologies, comprising models for gauge and absolute pressure sensing with variants for low pressure ranges as well as pressures of up to 400 bar. Featuring piezo-resistive ceramic technology and a microprocessor-based amplifier, these pressure sensors in a stainless-steel housing provide excellent media compatibility and are suitable for a wide range of industrial applications

Our product range of current sensors includes super high performance, lab-grade current transformers allowing non-contact measurement of currents from Microamperes to 20 Kiloamperes, at frequencies ranging from 0.5 Hz to 500 MHz.

Definition
Amongst the different types of temperature sensors, thermistors provide very high sensitivity, small size and appropriate speed. The semiconductor material thermistors are made from shows a large change of its resistance value already for a small change of the temperature it is exposed to.

The term "thermistor" is a short form of "thermally sensitive resistor". NTCs (Negative Temperature Coefficient) and PTCs (Positive Temperature Coefficient) can be distinguished depending on the characteristics of their resistance change with temperature. The main advantage of thermistors is their large operating range of the resistance value, which allows these components to cover a very wide temperature range.

Among the most important properties of a thermistor are its base resistance (in most cases defined at +25°C) and the individual tolerance – important when exchanging the thermistor with an identical model in case of damage. The thermistor’s change of resistance over the defined temperature range is mostly given by the suppler in a detailed temperature-versus-resistance chart.

While thermistors require physical contact to the medium whose temperature is of interest, thermopile sensors allow for indirect, non-contact measurement of temperatures. Thermopile sensors are based on the thermoelectric effect (or Seebeck effect), also known as reverse to the Peltier effect. Applying a temperature difference to two junctions of two dissimilar materials leads to a voltage proportional to this temperature difference.

Fitted with special infrared windows as spectral filters, thermopile sensors work in the mid to far infrared (IR) range without ambient visible light interference. Thermopiles provide a constant voltage output proportional to the net radiation and respond very quickly to radiation changes, allowing to detect fast temperature modulations.

The most important properties of a thermopile sensor are its responsivity, noise, sensitivity, field-of-view and response time. The responsivity (measured in V/W) shows low-pass characteristics. A thermopile detector’s noise (given as RMS value in nV/√Hz) is dominated by the Johnson noise due to its resistance.

Sensitivity is given as a characteristic output voltage versus target temperature at +25°C environment temperature with standard IR filter and different object/blackbody temperatures. Sensitivity is dependent upon the field-of-view of the detector construction. All target points within the field-of-view will contribute to the measurement signal. The field-of-view data describes the dependence of signal from incident angles.

Alternative Terms: Temperature Transducer; Thermistor; NTC Sensor; Thermopile; Thermopile Sensor; Thermopile Detector; Thermopile Array

CaliPile™ Thermopile Sensors

FoV 5°, 120°; Sensitivity 41-400 Counts/K; Noise 8 Counts/K; Time Constant 15, 30 ms; Package ISOthermal TO-5, TO-39, Ceramic SMD Excelitas’ CaliPile™ thermopile sensors offer leading-edge, non-contact temperature measurement for applications in smart home, smart appliances, intelligent thermostats and HVAC control systems, and ear and forehead thermometers. Excelitas’ CaliPile™ thermopile sensors represent the latest innovation in thermal IR sensing. The only one of its kind, CaliPile is an intelligent, multifunction thermal infrared sensor series. In addition to traditional non-contact temperature measurement capabilities, CaliPile offers motion detection and presence monitoring across short to medium ranges… all from a single and compact unit. TPMI has become an industry wide established Excelitas functionality. The CaliPile™ series include specially designed electronic circuitry to provide the algorithm and calibration for temperature measurement, digital output and functionality. This thermopile sensor series provides integrated features that enable measurement as well as presence detection applications. The product line of SMD (surface mount device) thermopiles offer significant space efficiency and streamlined integration. Featuring a thermopile sensor chip connected to internal circuitry within TO packaging with integral lens options, the CaliPile™ sensor TPiS 1T 1086 L5.5 is suited for highly effective, extended-range, multi-function sensing. Equipped with a highly sensitive thermopile detector, onboard processing electronics and a focusing lens for a narrow field-of-view, the TPiS 1T 1086 L5.5 sensor represents the TO housing version of the award-winning CaliPile™ IR Sensor Series. The TPiS 1T 1086 L5.5 is calibrated for temperature ranges up to +350 °C in temperature measurement applications. Higher temperature ranges are optionally available. Users may reference the maximum temperature setting as trigger level since the interrupt function will alert users when the level is exceeded. Featuring a thermopile sensor chip connected to internal circuitry and housed in an ultra-compact SMD package, the CaliPile™ SMD sensor TPiS 1S 1385 is suited for highly effective, near-distance sensing (up to 3 m) without supplemental lensing. This sensor represents Excelitas’ smallest and smartest thermal infrared device to date. To enable these individual functions from a single compact sensor, CaliPile's integrated electronics provide digital conversion and further filtering and processing. The TPiS 1S 1385 is the SMD version of the award-winning CaliPile Series providing I2C bus communication and signal output. An additional interrupt can serve as a ‘Yes/No’ output for the motion, presence and temperature applications. If the application is high remote temperature sensing, we recommend the TPiS 1S 0185 with a higher dynamic range. Applications: Remote or Short-range Temperature Measurement; Fast Remote Over-temperature Protection; Near- or Mid-field Human Presence Sensing; Far-field Human Motion Detection; Passive Light-barrier for People Counting; Space-efficient Integration into Smart Home Products; Optimized for Wake-up Battery-operated Thin Devices

Product number: SW11536

Manufacturer: Excelitas Technologies

DigiPile Thermopile Sensors

Digital Output; FoV 5°, 84°, 120°; Sensitivity 85-530 Counts/K; Noise 8 Counts/K; Time Constant 15, 45 ms; Package ISOthermal TO-5, TO-46, SMD 3x3, SMD 3.8x3.8 Excelitas’ DigiPile® thermopile sensors offer leading-edge, non-contact temperature measurement for applications in smart home, smart appliances, intelligent thermostats and HVAC control systems, and ear and forehead thermometers. TPMI has become an industry wide established Excelitas functionality. The DigiPile series include specially designed electronic circuitry to provide the algorithm and calibration for temperature measurement, digital output and functionality. Excelitas DigiPile was the first digital output thermopile sensor enabling direct connection to your microprocessor and streamlining integration. The DigiPile line of thermal IR detectors are designed specifically for non-contact temperature measurement and are available in traditional TO metal housings as well as in SMD (Surface Mount Device), offering significant space efficiency and streamlined integration. The DigiPile family offers the known high sensitivity together with a 17-bit digital output. Within the bit stream the thermopile signal is followed by another signal given by an internal temperature reference diode. The digital output achieves low interference of electric disturbance to enable optimal performance across many applications and integrations. Excelitas' TPiS 1T 1252B DigiPile sensor features a thermopile sensing chip connected to an internal ADC for amplification and digital conversion. This device engineered into a special TO-46 type housing constriction with Excelitas’ patented ISOthermal design provides improved performance under thermal shock situation. The Excelitas TPiS 1T 1256 L5.5 DigiPile sensor features a thermopile sensing chip connected to an internal ADC for amplification and digital conversion. All included in TO type housing with integral lens. Housed in a compact SMD carrier with optical window, the Excelitas TPiS 1S 1051 / 1252 DigiPile sensor series features thermopile sensing chips connected to an internal ADC to provide amplification and digital conversion. The TPiS 1S 1051 combines the smallest thermopile chip with the smallest housing of any Excelitas thermopile sensor. The TPiS 1S 1252 model delivers higher sensitivity in a modestly larger housing with built-in thermopile chip. Applications: Ear Thermometry; General-purpose Thermometry; Non-contact Temperature Measurements

Product number: SW11537

Manufacturer: Excelitas Technologies

NTC Thermistors

NTC Thermistors; 5, 10, 15, 50, 231.5 kΩ; ±1.0 °C, ±0.1 °C; Bead, Cylindrical, Flange Mount, Metal Plate, 1/8” Pipe Plug Head; Head Material Polyimide, Epoxy, Stainless Steel, Brass, Brass Nickel Plated; Lead Length : 50 to 457 mm Oven Industries produces a wide array of NTC thermistors as well as custom built probes to meet just about any requirement for controlling temperature. Oven Industries’ NTC thermistor temperature sensor probes can easily be integrated with any of Oven Industries’ temperature controllers or any pre-existing system you already have. Tolerances for Oven Industries’ temperature sensors can be as tight as ±0.1 °C (TR136 series). Available in sizes ranging from 1.5 mm diameter to 16 cm length or 2.5 cm2 and with a broad variety of head types from pure bead heads, cylindrical or flange mount heads all the way to 1/8” pipe plug or metal plate heads, these temperature sensors offer excellent versatility through a wide range of applications. Thermistor is a generic term describing a semiconductor device that exhibits an electrical conductivity that is highly sensitive to temperature. NTC thermistors show a negative temperature coefficient (NTC) with respect to their resistance characteristics versus temperature. In addition to their NTC characteristics, Oven Industries’ thermistor sensors are interchangeable from one thermistor to another per the specified tolerance – meaning in the event one is damaged, it can be swapped out with no need to recalibrate the thermal system. Custom designed temperature sensors and probes are also available. If you cannot find a standard product that can satisfy a specific requirement in the data sheets offered for download here, please get in touch with AMS Technologies. Together with our supplier we can build the optimum electronic control solution to meet your needs. Key Features: Negative Temperature Coefficient (NTC) Head Types: Bead, Cylindrical, Flange Mount, Metal Plate, 1/8” Pipe Plug Sizes from 1.5 mm diameter to 16 cm length or 2.5 cm2 Materials: Polyimide, Epoxy, Stainless Steel, Brass, Brass Nickel Plated Resistance Values: 5, 10, 15, 50, 231.5 kΩ Tolerance ±1.0 °C, ±0.1 °C Lead Length: 50 to 457 mm Applications: Industrial; Semiconductor; Medical; Energy; Research & Education; Defense & Aerospace; Automotive; Telecommunications; Food Processing Equipment; Commercial Cooking Equipment

Product number: SW10942

Manufacturer: Oven Industries

TCS Series NTC Thermistors

Thermistor 10, 20, 50, 100 kΩ; -45 to +114 °C; Bead/Cylindrical Head; ±1%; 76 mm Lead Wires Precision temperature control starts with a precision temperature sensor. Wavelength Electronics’ TCS series of thermistors allows for precise temperature measurements across a wide range of temperatures from -45 °C up to +114 °C. This series of 1% thermistors is available with 10, 20, 50 and 100 kΩ at +25 °C. Most of the TCS series thermistors feature a small bead head (3 x 2 mm) and are conformally coated, two-lead thermistors for applications where embedding the thermistor in materials or small laser packages is required. The coating is baked on phenolic for durability and long-term stability. These thermistors have solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. Thermal resistance or dissipation constant is 2 to 3 mW/°C, and the thermal time constant is 6 to 14 s. The TCS10K5 model features a cylindrical size of 0.5 x 3 mm, encapsulated in a polyimide tube with 38 AWG nickel bifilar leads - ideal for tight mounting spaces, assemblies where surface mounting or embedding the thermistor is required, and applications like controlling optical surfaces, thin surfaces or small laser packages. Thermal resistance or dissipation constant for TCS10K5 is 0.2 mW/°C, and the thermal time constant is 200 ms. A complete resistance vs. temperature chart is included in the datasheet. The TCS series thermistors are sold in packs of 10 (5 for TCS10K5). For a given thermistor, to accurately measure the voltage (which is related to the temperature), a bias current must be provided. Since the resistance of a thermistor varies as temperature changes, the bias current must be stable and consistent. In general, there are two commercially available bias current ranges, 10 or 100 µA. Choose the bias current and thermistor combination such that the sensor voltage remains above 0.3 V for the temperature range under consideration. When the sensor voltage falls below 0.3 V, the sensitivity of the measurement is decreased. For more information, see Application Note “Calibration Coefficients and Thermistor Selection”. For optimum performance, system operating temperature should fall in the middle of the thermistor operating range, and within a single bias current range. Key Features: 1% Tolerance Bead or Cylindrical Head 3” Nickel Bifilar or Solid Nickel Wire Leads Isolated Leads Provide Isolation From Metal Housing Small Size - Conformally Coated Wide Resistance Range Available in Five Different R-T Curves Applications: Sensing Temperature When Embedded in Materials or Small Laser Packages; Controlling Optical Surfaces or Thin Surfaces

Product number: SW10836

Manufacturer: Wavelength Electronics

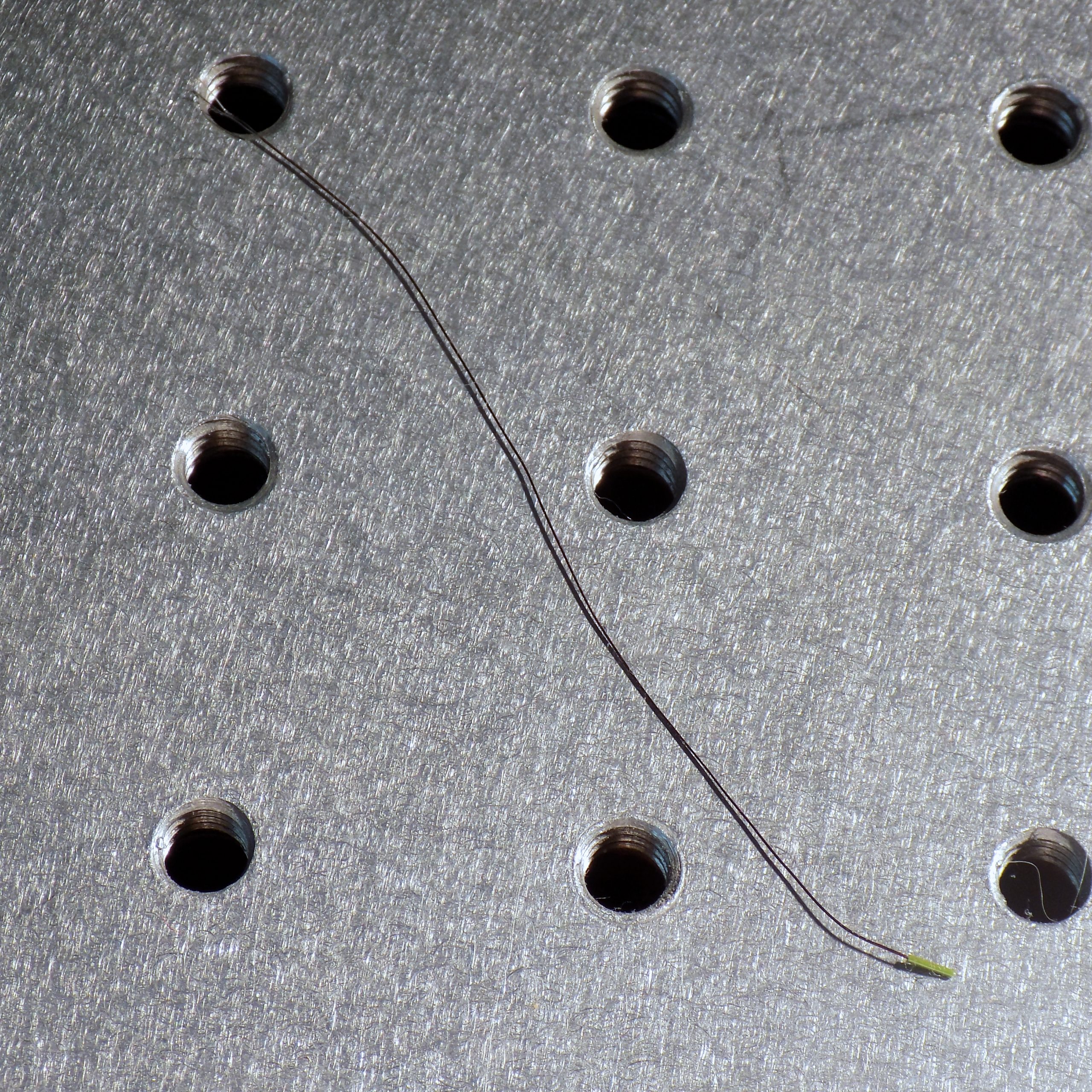

TCS10K5 NTC Thermistor (1 pack = 5 pieces)

10 kΩ; ±1%; Cylindrical Head; DIA 0.5x3.17 mm; Polyimide The TCS10K5 by Wavelength Electronics is an NTC cylindrical head thermistor sold in packs of 5 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is encapsulated in a polyimide tube, for assemblies where surface mounting or embedding the thermistor is required. It is ideal for tight mounting spaces with 38 AWG nickel bifilar leads and a diameter of 0.5 mm by 3 mm. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant: 0.2 mW / °C Thermal Time Constant: 200 mSec Low Cost Ideal for Optical or Thin Surfaces & Small Laser Packages 1% Tolerance 3" Long Nickel Bifi lar Leads Isolated Leads Provide Isolation from Metal Housing RoHS Compliant

Product number: C008971-6

Manufacturer: Wavelength Electronics

Content: 5 pcs (€31.43* / 1 pcs)

€157.17*

pac

TCS610 NTC Thermistor (1 pack = 10 pieces)

10 kΩ; ±1%; Bead Head; 3.04x2.4 mm; Phenolic Resin The TCS610 by Wavelength Electronics is an NTC bead head thermistor sold in packs of 10 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is conformally coated, two-lead thermistors for applications where embedding the thermistor is required. The coating is baked on phenolic for durability and long term stability. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant is 2-3 mW / °C Thermal Time Constant is 6-14 seconds Low Cost Small Size -- Conformally Coated Wide Resistance Range Available in 5 Different R-T Curves 1% Tolerance 3" Long Solid Nickel Wire Leads Teflon® Insulation Provides Isolation from Metal Housing RoHS Compliant (by exemption)

Product number: C008950-6

Manufacturer: Wavelength Electronics

Content: 10 pcs (€15.72* / 1 pcs)

€157.17*

pac

TCS620 NTC Bead Head Thermistor

20 kΩ; ±1%; Bead Head; 3.04x2.4 mm; Phenolic Resin The TCS620 by Wavelength Electronics is an NTC bead head thermistor sold in packs of 10 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is conformally coated, two-lead thermistors for applications where embedding the thermistor is required. The coating is baked on phenolic for durability and long term stability. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant is 2-3 mW / °C Thermal Time Constant is 6-14 seconds Low Cost Small Size -- Conformally Coated Wide Resistance Range Available in 5 Different R-T Curves 1% Tolerance 3" Long Solid Nickel Wire Leads Teflon® Insulation Provides Isolation from Metal Housing RoHS Compliant (by exemption)

Product number: C008951-6

Manufacturer: Wavelength Electronics

Content: 10 pcs (€15.72* / 1 pcs)

€157.17*

pac

Only 1 available

TCS650 NTC Thermistor (1 pack = 10 pieces)

50 kΩ; ±1%; Bead Head; 3.04x2.4 mm; Phenolic Resin The TCS650 by Wavelength Electronics is an NTC bead head thermistor sold in packs of 10 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is conformally coated, two-lead thermistors for applications where embedding the thermistor is required. The coating is baked on phenolic for durability and long term stability. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant is 2-3 mW / °C Thermal Time Constant is 6-14 seconds Low Cost Small Size -- Conformally Coated Wide Resistance Range Available in 5 Different R-T Curves 1% Tolerance 3" Long Solid Nickel Wire Leads Teflon® Insulation Provides Isolation from Metal Housing RoHS Compliant (by exemption)

Product number: C008952-6

Manufacturer: Wavelength Electronics

Content: 10 pcs (€15.72* / 1 pcs)

€157.17*

pac

TCS651 NTC Thermistor (1 pack = 10 pieces)

100 kΩ; ±1%; Bead Head; 3.04x2.4 mm; Phenolic Resin The TCS651 by Wavelength Electronics is an NTC bead head thermistor sold in packs of 10 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is conformally coated, two-lead thermistors for applications where embedding the thermistor is required. The coating is baked on phenolic for durability and long term stability. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant is 2-3 mW / °C Thermal Time Constant is 6-14 seconds Low Cost Small Size -- Conformally Coated Wide Resistance Range Available in 5 Different R-T Curves 1% Tolerance 3" Long Solid Nickel Wire Leads Teflon® Insulation Provides Isolation from Metal Housing RoHS Compliant (by exemption)

Product number: C013332-6

Manufacturer: Wavelength Electronics

Content: 10 pcs (€15.72* / 1 pcs)

€157.17*

pac

Thermopile Detectors

FoV 7°-120°; Sensitive Area Ø0.5, 0.7x0.7, 1.2x1.2 mm; Thermopile Resistance 50-135 kΩ; Responsivity 33-92 V/W; Sensitivity 18.6-200 µV/K; Time Constant 15, 22, 27 ms; Thermistor Resistance @25 °C 100 kΩ Excelitas’ high-sensitivity thermopile detectors are available in TO-46, TO-5 and compact SMD housings, with or without an integrated focusing lens. The thermopile detectors vary by sensor-area size and housing type. With the range of specially designed sensors, Excelitas provides solutions for thermometry (isothermal construction), non-contact measurement (built-in lens) or gas monitoring (two narrowband windows, dual-channel output). Excelitas’ unique ISOthermal sensor concept significantly distinguishes the Excelitas thermopile family by utilizing patented construction to deliver improved performance and measurement accuracy under thermal shock conditions. All thermopile detector versions are equipped as standard with an internal thermistor as temperature reference for thermopile temperature compensation Applications: General-purpose Temperature Monitoring; Non-contact Temperature Measurements; Thermometry; Pyrometry; High-precision Gas Sensing and Monitoring; Space-constrained Applications

Product number: SW11539

Manufacturer: Excelitas Technologies

Thermopile Modules

Analog Output, Factory Calibrated; FoV 4.5°, 5.5°, 60°; Object Temperature Range -20-+250 °C; Response Time 100 ms; Operating Voltage 4.5-5.5 V; Package TO-5, Module With Parabolic Mirror Excelitas’ thermopile sensor modules incorporate a variety of the supplier’s thermopile sensors and detectors mounted on small PCBs with connectors for streamlined plug-and-play systems integration. The PCB caters to features such as voltage regulation and a noise reduction filter. These thermopile modules sense the thermal radiation emitted by objects and convert this to an analog voltage. They include a thermopile sensor chip connected to an internal circuit which provides for the amplification calculation of signals into temperature-related output. Excelitas’ thermopile modules provide gas algorithm and calibration solutions typically utilized in various temperature measuring applications. The ISO-thermal module includes integrated temperature compensation for a defined temperature environment and the calibration to a certain object temperature range. The internal signal processing with 8-bit resolution of the control registers and the E2PROM technology allow for calibration as per customer requirements. In addition to standard versions, TPMI thermopile modules are offered as programmed per customer request. For requirements of defined spot sizes, Excelitas offers sensors with a field-of-view defined by optical apertures, internal lenses or external mirror optics. Get in touch with the AMS Technologies thermopile experts to discuss your custom solution exactly matching your project’s requirements. The TPiM 1T 0134 and TPiM 1T 0234 calibrated TPMI thermopile sensor modules include the TPMI sensor on a PCB with connector in TO-5 housing for easy plug and play and is available with (TPM 1T 0134 M) or without external mirror optics. As standard calibration options, Excelitas provides TPiM 1T 0134 OAA140 P6 for up to +140 °C (TPM 1T 0134 M), TPiM 1T 0134 OAA250 P6 for up to +250 °C or TPiM 1T 0234 OAA060 P6 for up to +60 °C. The TPiM 1T 0136 L5.5 calibrated TPMI thermopile sensor module with lens features the TPMI thermopile sensor on a PCB with connector in TO-5 housing with integral lens for easy plug-and-play integration. As standard calibration options, Excelitas provides TPiM 1T 0136 L5.5 OAA250 P7 for up to +250 °C or TPiM 1T 0136 L5.5 OAA060 P7 for up to +60 °C. Applications: General Purpose Temperature Sensing

Product number: SW11538

Manufacturer: Excelitas Technologies

TPiA 4.4T 4246 L3.9 CoolEYE IR 2D Module

Object Temperature Range 0-+60, 0-+120 °C; Sensing Range 60 °C; FoV 22°; Signal Refresh Time 400 ms; Operating Temperature Range -25-+100 °C; SMBus Digital Interface Excelitas’ TPiA 4.4T 4246 L3.9 CoolEYE IR 2D array module is a small infrared array offering 16 (4x4) pixels including a small IR transmissive lens and the thermopile sensor. A microprocessor on the module board provides for a calibrated signal and digital SMB bus interface. All Excelitas CoolEYE arrays are offered as plug-and-play modules featuring a sensing chip, robust metal housing with focusing lens, a PCB with microprocessor for calibration and bus interface and a 4-pin quick connector for streamlined integration. In many applications, the employment of a multi-pixel sensor provides advantages over single-pixel measurement. A single-pixel IR-sensor delivers an average temperature over the measurement area, while a finer spatial temperature resolution can be obtained when using a multi-pixel (array) sensor. With its 4x4 pixels, this small TPiA 4.4T 4246 L3.9 CoolEYE infrared array sensor offers the benefits of easy signal processing with some form of low spatial infrared resolution at low cost. As standard calibration, Excelitas provides TPiA 4.4T 4246 L3.9 A60 P8 for temperature measurements up to +60 °C and TPiA 4.4T 4646 L3.9 A60 P8 for temperature measurements up to +120 °C. Typical applications for this IR 2D array module are: Room Climate Control: A multi-pixel sensor controls HVAC equipment or a thermostat by measuring the temperature in different zones of a room. The sensor signals are used to direct warm or cold air into the respective areas or to control the water flow in different sections of a floor or wall heater/cooler. Fire and Overheat Detection: IR Thermopiles, more specifically multi-pixel sensors, when integrated with a smoke detector, help to detect hot spots in a room. An emerging application is thermopile arrays combined with a surveillance camera to detect indoor or outdoor fires. Similarly, these sensors are also used in cooking ranges to monitor oven temperature and provide overheating protection. Elevated Skin Temperature (EST) Screening: A 2-dimensional (4 x 4 pixel) array is preferred for use in measuring temperature distribution of the facial skin temperature for fixed installations or portable equipment. Presence and Motion Detection: Multi-pixel sensors allow the detection of people moving through a room including direction of movement and approximate number of people. Key Features: Digital SMBus Interface Factory Calibration Ambient Temperature Output Low Cost Object Temperature Range: 0 to +60 °C (4246), 0 to +120 °C (4646) Operating Voltage: 4.5 to 5.5 V Supply Current: 5 mA Operating Temperature Range: -25 to +100 °C Sensing Range: 60 °C Field-of-view (FoV) X: 22° (pk to pk), Entire Sensor Field-of-view (FoV) Y: 22° (pk to pk), Entire Sensor Signal Refresh Time: 400 ms Dimensions: 21.8 x 14 x 14.5 mm Applications: Presence & Motion Detection and Automatic Processing; Non-Contact Temperature Measurement; Elevated Skin Temperature (EST) Screening; Smart Home Applications; Fire and Overheat Detection; Room Climate Control

Product number: SW11541

Manufacturer: Excelitas Technologies

TPiL/TPL CoolEYE IR Line Arrays

Sensing Temperature Range 0-+60, 0-+120 °C; Object Temperature Accuracy ±1.5 °C; FoV 3°-71°; Signal Refresh Time 100-400 ms; Operating Temperature Range -25-+100 °C; SMBus Digital Interface Excelitas’ TPiL/TPL CoolEYE thermopile IR imager line array family includes three versions for various non-contact temperature measurement applications. Based on Excelitas’ thermopile technology, these IR line arrays feature a sensing chip and a robust metal housing with focusing lens All TPiL/TPL CoolEYE IR line arrays are provided as plug-and-play modules, consisting of an array sensor with multiplexed output signal which is transferred into a calibrated signal by a microprocessor located on a compact PCB. The microprocessor acts as the SMBus interface, and the PCB features a plug-and-play connector for streamlined plug-and-play integration. Exelitas offers 8-pixel, 16-pixel and 32-pixel linear IR imager array modules with multiplexed output signal, supplying a calibrated signal on module board via SM Bus interface. These IR line arrays provide field-proven effectiveness in scanning presence detection, non-contact temperature measurement, smart-home products, and office electronics. Custom solutions also available upon request – get in touch with the AMS Technologies IR line array experts to discuss your customized solution exactly matching your project’s requirements. TPL 32C 3774 L4.7 CoolEYE is an IR line array sensor of 32 pixels with multiplexed output signal, supplying a calibrated signal on module board via SM Bus interface, and represents the improved version of TPL 32C modules for non-contact temperature measurement and scanning applications. It is featured by parallel read out and as such is much faster in response. The new module consists of an improved new array sensor and small microprocessor which provides for a calibrated temperature output signal and is designed to measure temperatures up to +60 °C. As standard calibration, Excelitas provides TPL 32C 3774 L4.7 A60 P7 for temperature measurements up to +60 °C The Excelitas CoolEYE thermopile line array family includes TPiL 16T 3446 L3.9 CoolEYE and TpiL 16T 3546 L3.9 CoolEYE which feature an IR line array sensor of 16 pixels with multiplexed output signal, supplying a calibrated signal on module board via SM Bus interface. As standard calibration, Excelitas provides TpiL 16T 3446 L3.9 A250 P8 for temperature measurements up to +250 °C and TpiL 16T 3546 L3.9 A060 P8 for temperature measurements up to +60 °C. Excelitas’ CoolEYE thermopile line array family also includes TpiL 08T 2246 L3.9 CoolEYE, a line array sensor of 8 pixels with multiplexed output signal, supplying a calibrated signal on module board via SM Bus interface. Custom versions may be enquired as potential options. As standard calibration, Excelitas provides TpiL 8T 2246 L3.9 A60 P8 for temperature measurements up to +60 °C Key Features: Digital SMBus Factory Calibration Ambient Temperature Output Noise Reduction Filter Applications: Non-Contact Temperature Measurement; Smart Homes; Scanning Presence Detection; Household Appliances: Microwave Ovens; Printer/Copier Applications

Product number: SW11540

Manufacturer: Excelitas Technologies

Only 1 available

TR104-1 NTC Thermistor

50 kΩ; ±1.0°C; Bead Head; DIA 1.5 mm

Product number: C017476-6

Manufacturer: Oven Industries

€18.63*

Only 1 available

TR104-138 NTC Thermistor

50 kΩ; ±1.0°C; 1/8" Pipe Plug Head; DIA 3.2x12 mm; Brass

Product number: C017510-6

Manufacturer: Oven Industries

€36.60*

Only 1 available

TR104-154 NTC Thermistor

50 kΩ; ±1.0°C; 1/8" Pipe Plug Head; DIA 3.0x25 mm; Brass

Product number: C017509-6

Manufacturer: Oven Industries

€33.68*

Only 1 available

TR104-170 NTC Thermistor

50 kΩ; ±1.0°C; Cylindrical Head; DIA 0.9x6.35 mm; Polyimide

Product number: C017477-6

Manufacturer: Oven Industries

€19.97*

Only 1 available

TR104-176 NTC Thermistor

50 kΩ; ±1.0°C; Cylindrical Head; DIA 3.1x21 mm; Brass Nickel Plated

Product number: C023660-1

Manufacturer: Oven Industries

€23.32*

Only 1 available

TR104-178 NTC Thermistor

50 kΩ; ±1.0°C; Cylindrical Head; DIA 4.8x25 mm; Epoxy

Product number: C017511-6

Manufacturer: Oven Industries

€25.21*

Only 1 available

TR104-188 NTC Thermistor

50 kΩ; ±1.0°C; Flange Mount Head; 4.8x4.8 mm

Product number: C017512-6

Manufacturer: Oven Industries

€27.37*

Only 1 available

TR104-2 NTC Thermistor

50 kΩ; ±1.0°C; Metal Plate Head; 25x25 mm; Epoxy

Product number: C017508-6

Manufacturer: Oven Industries

€28.87*

Only 1 available

TR104-32 NTC Thermistor

50 kΩ; ±1.0°C; Cylindrical Head; DIA 3.8x16.5 mm; Epoxy

Product number: C017473-6

Manufacturer: Oven Industries

€24.23*

Only 1 available

TR104-64 NTC Thermistor

50 kΩ; ±1.0°C; Flange Mount Head; 6.35x6.35 mm

Product number: C017505-6

Manufacturer: Oven Industries

€25.21*

Only 1 available

TR104-7 NTC Thermistor

50 kΩ; ±1.0°C; Cylindrical Head; DIA 4.8x160 mm; Stainless Steel

Product number: C017513-6

Manufacturer: Oven Industries

€47.45*
