SF8XXX-WT Laser Diode Driver

Name: SF8XXX-WT Laser Diode Driver
Brand: Maiman Electronics
SKU: SW12012
Availability: OutOfStock

REQUEST PRICING AND AVAILABILITY

- Get your individual quote.
- Technical compatibility review included.
- Volume discounts available.

No obligation. Direct access to our engineering team.

Product number: SW12012

Manufacturer: Maiman Electronics

Product information "SF8XXX-WT Laser Diode Driver"

Maximum current LD (I): 250, 750, 1500, 3000 mA; Output voltage LD (V): 0.5-3 V; Current Stability 0.1%; Current Set Accuracy: 1%; Output Current Noise: 10-15 µA

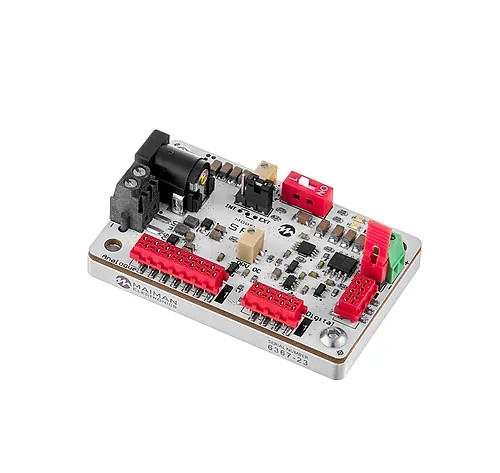

The SF8XXX-WT v1.3 Laser Diode Driver is a high-performance device designed to deliver precise and stable current to laser diodes. It supports a maximum current of up to 3000 mA and an output voltage range of 0.5-3 V. This driver ensures exceptional current stability at 0.1% and a current set accuracy of 1%, making it ideal for applications requiring high precision.

Key Features:

Current and Voltage: Maximum current options of 250 mA, 750 mA, 1500 mA, and 3000 mA. Output voltage range from 0.5 to 3 V.
Stability and Accuracy: Current stability of 0.1% and current set accuracy of 1%. Output current noise is maintained between 10-15 µA.
Protection: Includes current limit, temperature limit, reverse current protection, ESD, and transient protection. Features a soft-start current ramp for laser diode protection.
User Interface: Equipped with trim potentiometers for driver current and TEC power. Supports analog control signals, RS-232, UART, USB (as a paid option), RS-485, and I2C. Bluetooth is available as a paid option for Android app integration.
Dimensions and Weight: Compact design with dimensions of 57.9 x 36.8 x 18 mm and a weight of 50 g.
Package Contents: Includes the driver, 50 cm ribbon cables with 8-pin and 14-pin connectors, a datasheet, user manual, and a USB-UART converter.
Warranty: Comes with a 1-year manufacturer’s warranty.

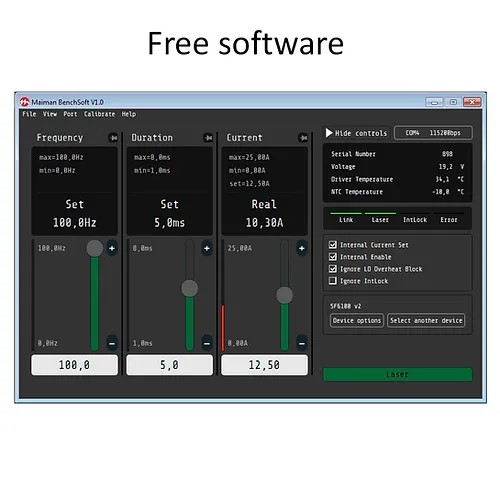

This driver is RoHS3 compliant and offers low current ripple (≤ 10 µA), making it suitable for sensitive laser applications. Additionally, it supports LabView drivers and free software for enhanced control and monitoring.

Applications: Medical instruments, measurement tools, communication systems (EDFA), Raman spectroscopy, microscopy

Manufacturer "Maiman Electronics"

Maiman Electronics' product portfolio includes a wide range of high-current CW laser diode drivers with various output current values as well as a selection of high-voltage laser drivers for multiple emitters and a series of highly stable current sources for Butterfly laser diodes with integrated TEC (thermoelectric cooler) driver - both in OEM module format and as a benchtop device. Maiman Electronics is an important partner for companies across various industries, including laser marking, welding, soldering, and cutting applications, medical equipment, laser measurement equipment, spectrometers, lidar, range finders and laboratory test set-ups.
