Pre-filter pad: F5 Pack of 1 (std), main filter: HEPA/chemical. FumeBuster dual arm fume extraction system supplied with: 1 x Main Filter HEPA/Chemical (110531)1 x Pre-filter F5 Pad (200522) System Features: Audible and visual filter blocked alert Low capital and running costs Quick change pre-filters deliver longer filter life Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns Activated carbon filtration removes harmful gas Simple to install and quiet in operation Easy to relocate Precision made from stainless steel

Pre-filter pad: F8/F9 composite, main filter: HEPA/chemical. FumeCube MAX is a fume extraction tool with single 38 mm arm kit.  38 mm Single arm system supplied with: 1 x Main Filter HEPA/Chemical (110507) 1 x Pre-filter F8/F9 Labyrinth (111124) 1 x 80 - 51 mm reducer 1 x Arm Kit (100295):1 x 2 m x 50 mm flexible hose2 x Connecting cuffs1 x 38 mm stainless steel flexible arm and valve1 x 95 mm conical cowl1 x 38 mm pen nib nozzle 1 x Clamped bench bracket System Features: Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks Adjustable airflow VariColour filter blocked warning system Low capital and running costs Quick change, patented Labyrinth pre-filters deliver longer filter life Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns Activated carbon filtration removes harmful gas Simple to install and quiet in operation Easy to relocate Precision made from stainless steel

Pre-filter pad: F8/F9 composite, main filter: HEPA/chemical. FumeCube MAX is a fume extraction tool with dual 38 mm arm kit. 38 mm Dual arm system supplied with: 1 x Main Filter HEPA/Chemical (110507) 1 x Pre-filter F8/F9 Labyrinth (111124) 1 x 80 - 51 mm dual manifold 2 x Arm Kit (100295) =2 x 2 m x 50 mm flexible hose4 x Connecting cuffs2 x 38 mm stainless steel flexible arm and valve2 x 95 mm conical cowl2 x 38 mm pen nib nozzle 2 x Clamped bench bracket System Features: Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks Adjustable airflow VariColour filter blocked warning system Low capital and running costs Quick change, patented Labyrinth pre-filters deliver longer filter life Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns Activated carbon filtration removes harmful gas Simple to install and quiet in operation Easy to relocate Precision made from stainless steel

Single Arm; with Filters, with Connection Kit; 100-230 V Single arm system supplied with: 1 x Main Filter HEPA/Chemical (110536) 1 x Pre-filter F5 Pad (200036) 1 x Connection Kit (100295):1 x 50 mm x 2 m flexible hose [black]2 x Connecting cuffs [black]1 x Clamped bench bracket1 x 38 mm stainless steel flexible arm and valve1 x 38 mm pen nib nozzle 1 x 95 mm conical cowl  System Features: Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks Adjustable airflow VariColour filter blocked warning system Low capital and running costs Quick change pre-filters deliver longer filter life Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns Activated carbon filtration removes harmful gas Simple to install and quiet in operation Easy to relocate Precision made from stainless steel

Pre-filter pad: F5 Pack of 1 (std), main filter: HEPA/chemical. FumeCube is a fume extraction tool with dual arm kit. Dual arm system supplied with: 1 x Main Filter HEPA/Chemical (110536) 1 x Pre-filter F5 Pad (200036) 2 x Connection Kit (100295):2 x 50 mm x 2 m flexible hose [black]4 x Connecting Cuffs [black]2 x Clamped bench bracket2 x 38 mm stainless steel flexible arm and valve2 x 38 mm pen nib nozzle 2 x 95 mm conical cowl System Features: Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks Adjustable airflow VariColour filter blocked warning system Low capital and running costs Quick change pre-filters deliver longer filter life Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns Activated carbon filtration removes harmful gas Simple to install and quiet in operation Easy to relocate Precision made from stainless steel

Contains one 1.2 m x 75 mm ˜ flexible arm with 2 x 75 mm couplings (120707) and one conical cowl (840114) for FumeBuster dual arm fume extraction tool.

HEPA chemical filter for FumeCube MAX single and dual arm extraction tools.

HEPA chemical filter for FumeBuster dual arm extraction tool.

HEPA chemical filter for FumeCube single and dual arm extraction tools.

Pre-filter pack for FumeCube MAX single and dual arm extraction tools.

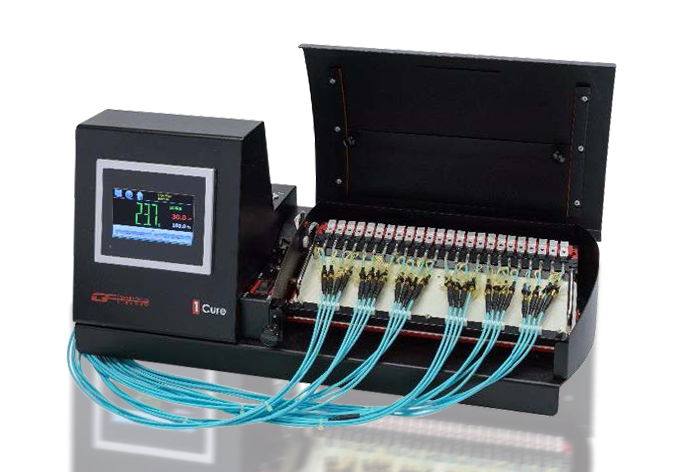

No. of Connectors 24-36; Resolution 0.1 °C; Accuracy ±2 °C; Max. Temperature +155 °C; Stability ±2 °C; Horizontal Curing 0°, +15°, -15°; Step-Cure Capability Connected Fibers’ patented 1Cure is the industry’s first intelligent expoxy curing oven for both horizontal and vertical curing applications. The 1Cure oven features both soak and ramp temperature profile curing capability, a 4” full-color LCD touchscreen as well as network connectivity with remote programmability and access The system stores up to 999 programs. The temperature of the actual connector fixture is monitored and controlled rather than the traditional method of monitoring the hot plate. This eliminates the temperature error created by the thermal offset between these two surfaces in a typical curing oven. 1Cure is also available with an optional advanced cooling system for reducing cycle times between ramp (step) cure profiles. The ramp cure technology eliminates fiber cracking especially on larger core fibers by utilizing ramp and soak cycles. This significant advancement is useful for large-core and multi-fiber applications. It also allows to standardize on one epoxy for various applications by customizing time and temperature profiles. The oven features a horizontal curing base with a removable 24 position fixture for MT (MPO) and a convertible lid providing cable access to a block to accommodate up to 96 single fiber termini (72 for the 1Cure-200) to cure in a vertical position. The internal 15° tilt mechanism for the horizontal cure will allow for 0° or 15° curing angle to prevent fibers from retreating during bare, buffered or ribbon fiber applications. The 1Cure is designed by Connected Fibers to meet all industry performance and safety standards providing leading technology for the heat curing process of fiber optic termini. The oven is suited for all production environments and for all industry standard connectors and ferrules with use of heat-cure epoxies, including MT (MPO) connectors. Key Features: Step-Cure Capable Cooling System Between Cycles (Optional) MT or Single-Fiber Curing Flat to Angled Internal Tilt for Horizontal Curing Precision Temperature Control Integrated Thermocouple in Fixture for Ideal Calibration Networkable for Remote Monitoring and Programming of Oven Touchscreen Interface Up to 999 Programmable Cure Schedules for Various Fiber Types Ramp Curing to Eliminate Fiber Cracking Especially in Multi-fiber or Large-core Fibers Standardize on One Epoxy Temperature Range (Hot Plate Temperature): Ambient +5 °C to +155 °C Temperature Display Resolution: 4 Digit / 0.1 °C Temperature Uniformity: ±2 °C Temperature Accuracy: ±2 °C Horizontal Curing: 0°/+15°/-15° Vertical Curing Capacity: 3 Blocks Horizontal Curing Capacity: 24 MT Ferrule, 36 LC Applications: Cable Assembly Fabrication; Medical; Military; Specialized

No. of Connectors 48; Resolution 0.1°C; Accuracy ±2°C; Max. Temperature +155°C; Uniformity ±2°C; Number of Profiles >99, Number of Steps Per Profile 9; Number of Timers 4 The 1Cure-VI-X™ employs cutting-edge PID microprocessor technology paired with an intuitive, programmable interface. This innovative design ensures a fiber optic curing oven with remarkably stable and uniform temperatures across all heating blocks. With a temperature stability of +/- 0.2°C, the 1Cure-VIX grants precise control over your curing process. Its ramp/soak feature is particularly advantageous for step curing, catering to large core fiber applications and military curing profiles. Constructed with quality materials and insulation, this oven boasts longevity for both the appliance and its electrical components. Its superior craftsmanship and functionality guarantee a controlled process and a wise long-term investment in your curing operations.With the introduction of curing cassettes, you can now efficiently cure the latest VSFF duplex connectors available in the market. Furthermore, the oven is C.E. Certified for sale within the European Union. Key Features: Vertical Curing Blocks for Multiple Applications Including LC, LC Duplex Uniboot, SC, FC, MU, ST, SMA and various Mil/Aero Termini. Curing Cassettes and Block Available for Non-Crimped Termini and the latest High Density Duplex Connectors Patented In-Fixture temperature monitoring for precision temperature control Up to 48 connector capacity for simplex connectors. Temp Range: Ambient +5 to 155°C Temp Uniformity: +/- 2°C Temp Accuracy: +/- 2°C Temp Display Resolution: 0.1°C Number of Profiles: >99 Number of Steps Per Profile: >9 Number of Timers: 4 Electrical Power: 100-120V or 220-240V (150W) Dimensions: 12" x 8" x 4.5" Weight: 9.5lbs (4.3Kgs) Applications: Large Core Fiber Applications; Military

Pre-filter pack for FumeCube single and dual arm extraction tools. The pack contains 4 filters.

Pre-filter pack for FumeBuster dual arm extraction tool. The pack contains 4 filters.

Disc, Sheet and Roll Type Available; Grit from 0.3 to 60 µm; Aluminum Oxide; Stainless Steel Ferrule; Fiber Optic Polishing Nanolap's high-quality lapping films use precision-graded aluminum oxide particles coated on a polyester film. They provide precision finishes in diverse applications including polishing of industrial rolls (coating, calandering, etc.), micromotor shafts, CD/DVD stampers, as well as other applications requiring controlled surface finishes on metals, alloys and ceramics.

5 inch Disc; Grit 0.3 µm; Aluminium Oxide; Stainless Steel Ferrule; no PSA The 26M-0.3-5D fiber optics polishing film from Nanolap comes in a pack that contains 10 pieces.

5 inch Disc; Grit 1 µm; Aluminium Oxide; Stainless Steel Ferrule; no PSA The 26M-1-5D fiber optics polishing film from Nanolap comes in a pack that contains 10 pieces.

5 inch Disc; Grit 12 µm; Aluminium Oxide; Stainless Steel Ferrule; no PSA The 26M-12-5D fiber optics polishing film from Nanolap comes in a pack that contains 10 pieces.

5 inch Disc; Grit 3 µm; Aluminium Oxide; Stainless Steel Ferrule; no PSA The 26M-3-5D fiber optics polishing film from Nanolap comes in a pack that contains 10 pieces.

5 inch Disc; Grit 5 µm; Aluminium Oxide; Stainless Steel Ferrule; no PSA The 26M-5-5D fiber optics polishing film from Nanolap comes in a pack that contains 10 pieces.

Wavelength Band UV-SWIR, 400-2150 nm; Scalar FEM Numerical Engine; Solution in Seconds; ASCII Fiber Profile Input & Data Output; System Requirements 64-bit MS Windows Based on fiber refractive index profile data, Interfiber Analysis’ “2D Mode Solver” software package computes guided modes and mode properties, fiber bending/coiling effects, as well as mode coupling at splices. The software tool can analyze either 1-dimensional or 2-dimensional fiber index data so it can quantify the impact of any asymmetries in the fiber index profile. With this tool, you can: Compute 2-dimensional fiber modefields and mode properties Predict mode coupling at fiber splices Model fiber bending effects Quantify impact of index profile asymmetries Determine overlap between modes and cores Analyze fiber, preform, or synthetic index profiles These capabilities make the software particularly useful for customers working with high-power optical fibers. It is not only useful for existing IFA-100 users (who can use it to compute modes based on their IFA-100 data,) but also for those who use other equipment as it can be applied to fiber index data from other measurement devices (including preform profilers). This very attractively priced software tool runs on MS Windows 64-bit computers, and unlike other competing software packages, we offer multiple licenses at the customer location for the price of a single purchase. Key Features: System Requirements: MS Windows 64-bit Computer Numerical Engine: Scalar Finite Element Method (FEM) Wavelength Band: UV to SWIR (400 nm to 2150 nm) Solution Domain: 140 µm Diameter Disk Solution Time: Seconds Fiber Profile Input: ASCII Text Files (1- and 2-dimensional) Data Output: ASCII Text, PNG or PDF Images Computed Mode Properties: Electric Field, Optical Intensity, Effective Index, Group Index, Dispersion, Mode Field Diameter, Effective Area Applications: Computing of Guided Modes, Mode Properties, Fiber Bending/Coiling Effects, Mode Coupling at Splices

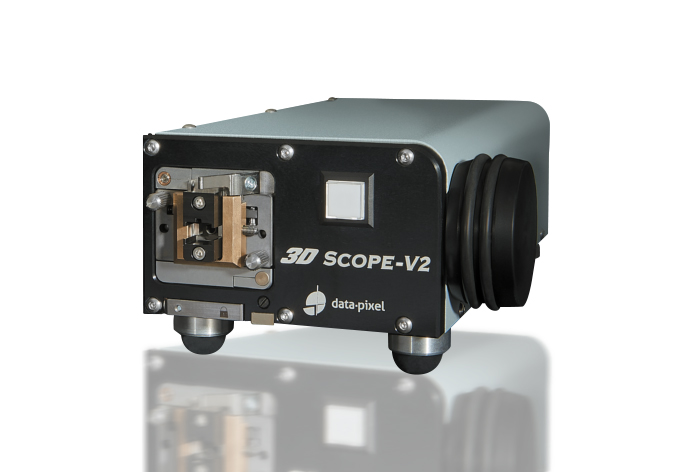

Designed for Production Environment; Manual or Autofocus; Field of View 0.7 x 0.5 mm; Measurement Speed 0.5 s; Output USB 2.0; Connector Type LC, SC, SMA Data-Pixel’s 3D SCOPE-V2 series of interferometers for single-fiber connectors have been specifically designed for use in a production environment. These interferometers are robust, compact and easy to use tools that bring speed and precision to operators. 3D SCOPE-V2 interferometers are available in two versions with manual focus or autofocus. The 3D Scope-V2 interferometers support Data-Pixel’s BLINK software platform (included). Non-compressed, real-time and high-quality images are transferred from the hardware to the software via a USB 2.0 link in addition to the automation and control commands. 3D SCOPE-V2 interferometers are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. The 3D SCOPE-V2 interferometers are fully compliant with industry standards. Key Features: Measurement of PC and APC Connectors, Ferrules and Bare Fibers Lightning Speed Measurement Cycle (0.5 s) PASS/FAIL Result Visual Feedback Via Front Panel Start-button LED Color Integrated PC/APC Tilt Stage, no APEX Re-calibration Required True Phase-shifting Interferometers Vibration Insensitive Autofocus Option Compliance with Industry Standards for Interferometer Measurements Intuitive BLINK Software With Data-base Connectivity Measurement Report in HTML Format Compatible With Desktop PC, Laptop, Tablet PC Applications: Measuring End-face Geometry of Single-Fiber Connectors

Size 25.4-152.4 mm; Reflectance Material Spectralon®, Spectraflect®, Infragold®; No. of Ports 3, 4; Port Diameter 6.35-63.5 mm; Detector Assemblies Si, Ge, InGaAs Labsphere’s 3P/4P-GPS-X series of general-purpose integrating spheres with 3 ports or 4 ports respectively provides a broad range of different models, suitable for various requirements. Choose your sphere by selecting size, ports, and reflectance material/coatings. The addition of a wide range of interchangeable accessories including light sources, assemblies, port reducers and more allows for an endless number of application solutions. This flexibility allows you to create your own uniform source or light measurement system or modify an existing system in a matter of minutes. A variety of system calibration options enable systems to be customized for application specific tasks. Labsphere’s integrating sphere design features sturdy port frames, easy access mounting options, and quick-change accessory options meeting a multiple of requirements. Labsphere’s dedicated Calibration Lab provides calibration options to ensure your system is customized to meet specific application requirements. As you change components, simply click on the system software to recalibrate. Spheres are offered with Spectraflect®, Spectralon® or Infragold® coating which combines a highly reflective surface with nearly perfect Lambertian reflectance. Both durable and highly stable over time, these coatings ensure optimal integration of light over the lifetime of your sphere. All of Labsphere’s products are created in an ISO 9001 registered environment and provide NIST traceable results upon calibration. Once the configuration has been selected, AMS Technologies qualified engineering and support experts are available to help you with your specific application needs. For quick and easy start-up, Labsphere’s 3P/4P-GPS-X series general purpose starter kits are conveniently packaged with the supplier’s most common port accessories, adaptors, and integrating sphere mounting components to help you get started. For specifications about Labsphere’s 3P/4P-GPS-X series of general-purpose integrating spheres and kits, please download the datasheet. Key Features: Sizes: Miniature 25.4-51.2 mm (Cube Style), Standard 76.2-152.4 mm Reflectance Materials: Spectralon®, Spectraflect® Coating, Infragold® Coating Number of Ports: 3 (2 ports on the sphere’s equator at 0° and 90°, 1 port at the top), 4 (an additional port opposite the 0° port) Port Diameter: 6.35-63.5 mm Baffle mounted between the 0° and the 90° port Optional Light Sources: Internal Halogen (5-100 W), Ecternal Halogen (Dichroic 30-120 W, Rhodium 40-100 W) Available Detector Assemblies: Silicon, Germanium; Indium-Gallium-Arsenide InGaAs Accessories: Illuminator or Detector Assemblies, Port Reducers, Port Plugs, Filters, and more… Calibration Options: Total Spectral Flux Calibration, Radiance Calibration, Exit Port Uniformity Mapping, and more… Applications: Light Measurement; Remote Sensing; Image Sensor Test; Researching and Prototyping; Building Your Own Systems

Disc, Sheet and Roll Type Available; Grit from 1 to 30 µm; Silicon Carbide; Stainless Steel and Ceramic Ferrule; Fiber Optic Polishing The 46P series are tightly-graded silicon carbide particles uniformly coated onto a polyester film backing. These polishing films manufactured by Nanolap can be used in a number of applications.
