FCI-InGaAs-8M Si Detectors and Arrays

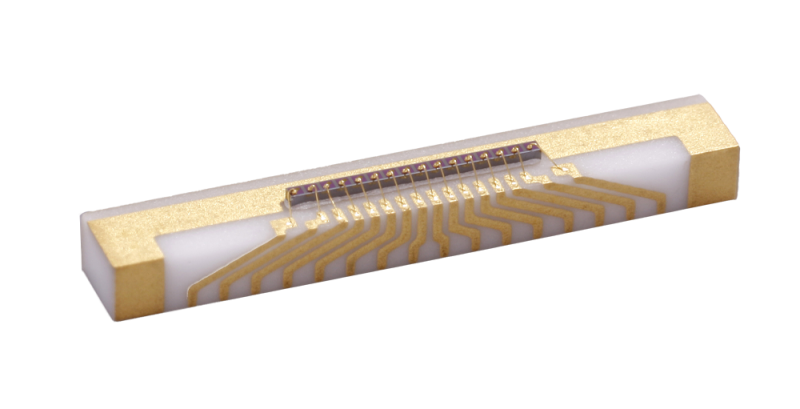

900 to 1700 nm; Active Area 0.004 mm2; AA Dia. 0.075 mm, Pitch 0.25 mm; Responsivity 0.95 A/W; Capacitance 0.65 pF; Package Wraparound Ceramic Submount OSI Optoelectronics’ FCI-InGaAs-XXM series of high speed, IR sensitive InGaAs photodiode arrays are available with 4, 8, 12 and 16 channels. Each anti-reflective (AR) coated element is capable of 2.5 Gbps data rates exhibiting high responsivity from 1100 to 1620 nm. The FCI-InGaAs-XXM photodiode arrays come standard on a wraparound ceramic submount and are designed for multi-channel fiber applications based on standard 250 nm pitch fiber ribbon. Also, 0.500 mm pitch board level contacts make it easy to connect the photodiode arrays to your circuit. Upon request, 55 µm active area, two channel arrays are available. Please contact AMS Technologies for more details. Key Features: High Speed High Responsivity Low Noise Active Area Diameter 75 µm Pitch 250 µm Spectral Range 900 to 1700 nm Applications: High-speed Optical Communications; Single Mode (SM) / Multi Mode (MM) Fiber Optic Receivers; Gigabit Ethernet / Fibre Channel; SONET/SDH, ATM; Optical Taps

1310, 1550 nm; Data Rate 4-1,024 Mb/s; Sensitivity -50—31 dBm; Responsivity 0.85, 0.9 A/W; Transfer Gain 4,000-40,000 V/W; Output Impedance 30-60 Ω With the LPAD PINAMP series, OSI LaserDiode provides a low-cost, high-performance miniature optical receiver module which integrates a high-speed, high-responsivity, low-leakage-current InGaAs photodiode with a GaAs transimpedance amplifier. LPAD series’ transimpedance amplifier incorporates automatic gain control providing high optical overload performance. The receiver package offers high reliability which satisfies Telcordia GR-468-CORE specifications. OSI LaserDiode’s LPAD PINAMP series pigtailed receivers are available with industry standard FC, LC, SC, and ST connectors. Custom connectors are also available on request. Key Features: Data Rates: 4 Mb/s, 52 Mb/s, 155 Mb/s, 622 Mb/s, 1 Gb/s High Responsivity and Low Dark Current InGaAs PIN Detector High Sensitivity @10-9 (BER): -50 to -31 dBm Overload @-5 VDC: -4, 0 dBm Transfer Gain @1310 nm: 4,000 to 40,000 V/W Output Impedance: 30 Ω to 60 Ω Wide Dynamic Range Single Supply Operation: 5 VDC (4.75 to 5.25 VDC) Hermetic Package Single Ended Differential Output (1 Gb/s only) GR-468-CORE Telcordia Qualified Operating Temperature: -40 °C to +85 °C Applications: Supervisory Channel; Long-haul Transmission Networks; Short-haul Transmission Networks; DWDM Transponders; SDH/SONET Single Mode (SM) Applications; Instrumentation and Testing; Data Communications; Gigabit Ethernet
