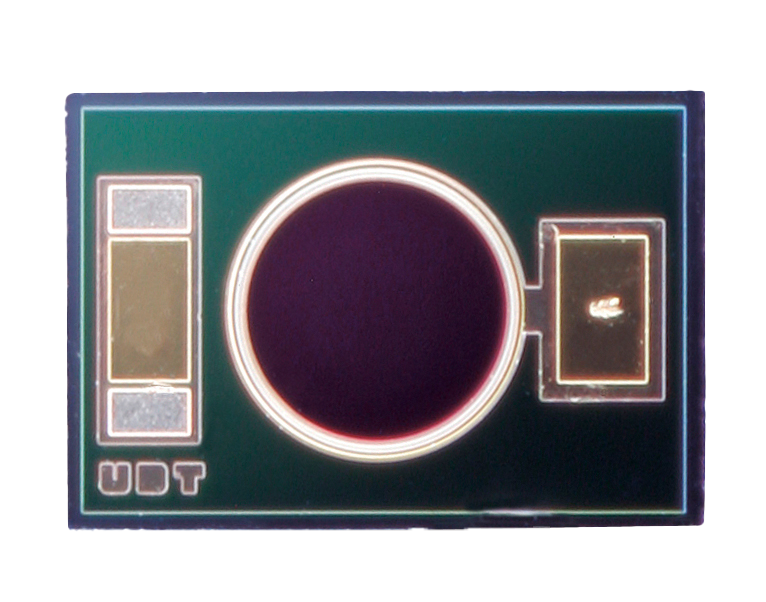

FCI-InGaAs-12M Si Detectors and Arrays
€312.00
Available in 90 days, delivery time 2-5 days
Product information "FCI-InGaAs-12M Si Detectors and Arrays"
| Quantity Per Set: | 1.0 |
|---|---|
| InGaAs Photodiodes Type: | Arrays |
| Responsivity @1550 nm: | 0,95 A/W |
| Capacitance (InGaAs): | 0,65 pF |
| Dark Current (InGaAs): | 0,03 nA |
| Active Area Diameter: | 75,00 µm |
