Arden Photonics

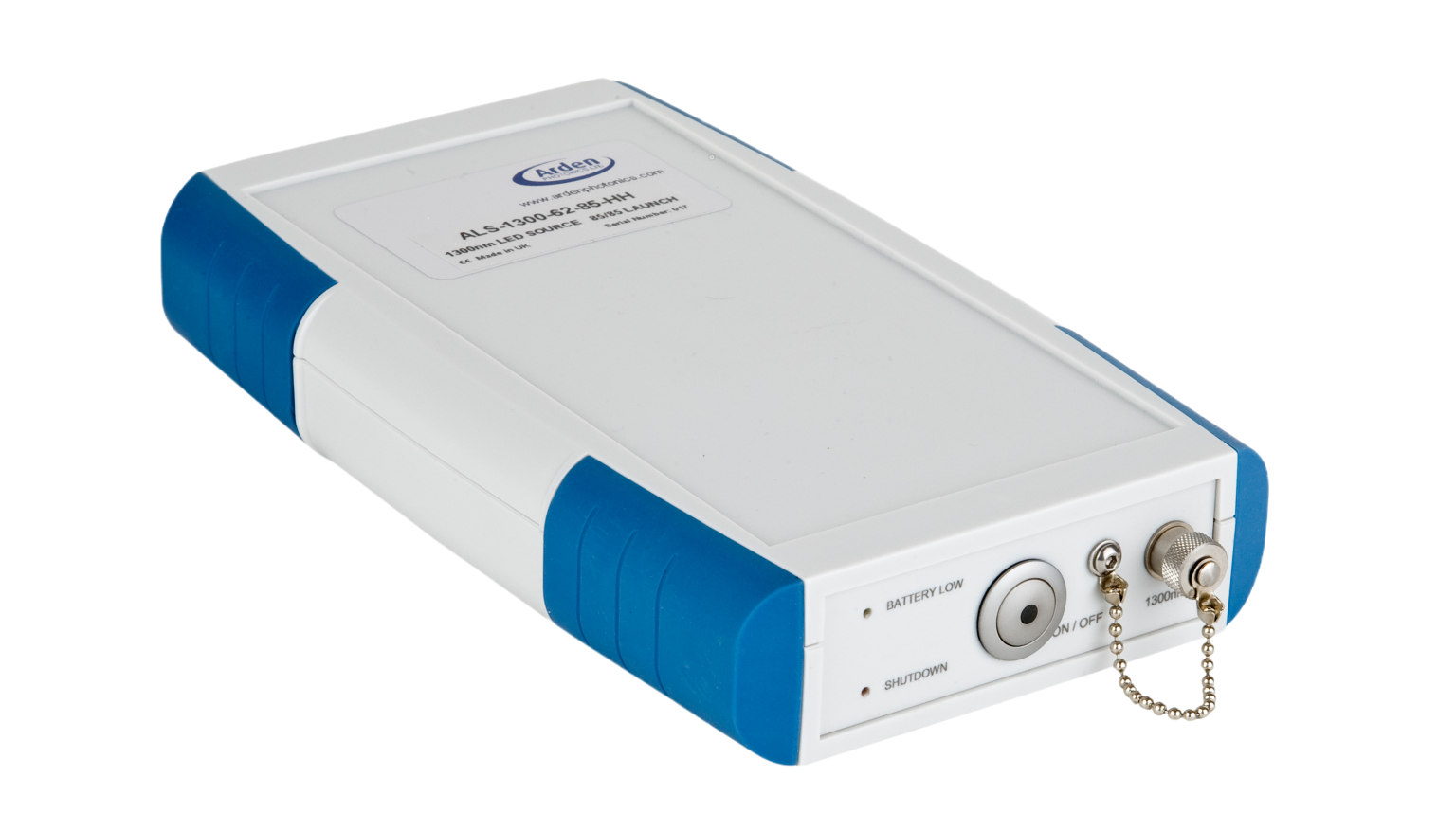

The ALS LED Light Source from Arden Photonics is a compact, handheld optical fiber light source designed specifically for aerospace fiber optic testing applications. Used in conjunction with an optical power meter, the ALS enables accurate insertion loss measurements in multimode optical fiber systems that require 85/85% Limited Phase Space (LPS) modal launch conditions. This highly specialized launch condition is widely adopted within the aerospace industry and is commonly used by Airbus for the certification of optical fiber harnesses,Engineered for reliability, stability, and ease of use, the ALS provides consistent measurement conditions that help ensure repeatable test results and compliance with demanding aerospace standards. By delivering a controlled and stable modal distribution, the light source minimizes measurement uncertainty and supports accurate validation of multimode fiber links throughout manufacturing, installation, and maintenance processes.Its ergonomic handheld design makes it ideal for laboratory environments, production facilities, and field applications where portability and efficiency are essential. Combined with long battery life and robust performance, the ALS LED Light Source is a practical solution for technicians, engineers, and quality assurance professionals working with aerospace optical networks.Key FeaturesThe ALS LED Light Source has been developed to meet the stringent requirements of aerospace fiber optic testing while maintaining simple operation and dependable performance.Key features include:Stable 85/85% modal launch conditions for accurate multimode fiber measurements and insertion loss testing.Designed specifically for aerospace applications, supporting industry-recognized testing methodologies.Compact handheld format that provides excellent portability and ease of operation.Available with 850 nm or 1300 nm LED sources, covering common multimode fiber testing requirements.Compatible with both 50/125 µm and 62.5/125 µm multimode fibers, offering flexibility across different network configurations.Rechargeable Li-Ion battery with up to 48 hours of operating life, enabling extended use between charges.High measurement stability for consistent and repeatable test results.Certificate of Conformance provided as standard, with optional test certification detailing measurements at 850 nm and 1300 nm.Designed to work with aerospace modal controllers, where modal launch conditions are specified using Near Field Pattern width measurements at 5%, 15%, and 75% of maximum intensity.These features make the ALS an ideal choice for organizations that require precise control over launch conditions and dependable performance in mission-critical fiber optic systems.ApplicationsThe ALS LED Light Source is primarily intended for insertion loss testing of multimode optical fiber systems in aerospace environments. Accurate insertion loss measurements are essential for verifying network performance, ensuring compliance with specifications, and maintaining the integrity of optical communication systems used in aircraft and related platforms.One of the most important applications of the ALS is the testing and certification of aerospace optical fiber harnesses. Because aerospace systems demand highly reliable data transmission, standardized launch conditions are required to achieve consistent and repeatable measurement results. The ALS delivers the required 85/85% modal launch condition, making it suitable for qualification and acceptance testing procedures used throughout the aerospace sector.The light source is also valuable for:Aircraft fiber optic harness manufacturing and verificationAerospace maintenance, repair, and overhaul (MRO) testingQuality assurance and production testingFiber optic research and development projectsInstallation and commissioning of aerospace optical networksCompliance testing requiring controlled multimode launch conditionsLaboratory characterization of multimode fiber assembliesBecause the ALS provides controlled and repeatable launch conditions, it helps eliminate variations that can affect measurement accuracy. This allows organizations to achieve greater confidence in test data while supporting compliance with aerospace testing requirements and customer specifications.Whether used on the production floor, in a testing laboratory, or during field maintenance activities, the ALS enables reliable optical loss measurements that contribute to the long-term performance and safety of aerospace communication systems.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextIf your organization requires dependable insertion loss testing for aerospace multimode fiber systems, the ALS LED Light Source offers a proven solution tailored to the industry's unique requirements. Its stable 85/85% modal launch conditions, portability, long battery life, and compatibility with common multimode fiber types make it an effective tool for certification, quality control, and maintenance workflows.By integrating the ALS into your fiber optic testing process, you can improve measurement consistency, enhance confidence in test results, and support compliance with rigorous aerospace standards. Whether you are manufacturing optical harnesses, validating new installations, or maintaining critical aerospace networks, the ALS LED Light Source provides the accuracy and reliability needed to achieve dependable multimode fiber measurements.

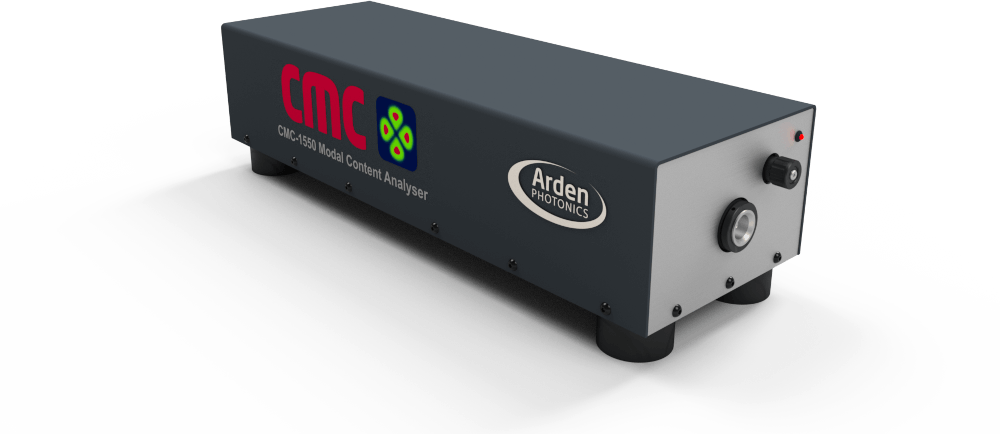

The CMC-1550 Modal Content Analyser from Arden Photonics is an advanced measurement system designed specifically for the characterization of few-mode fibers and hollow-core fibers with complex internal structures. As specialty fiber technologies continue to evolve and support increasingly demanding applications, understanding how individual propagation modes behave within a fiber has become critical for both fiber development and manufacturing quality control. The CMC-1550 provides the detailed modal analysis required to gain this understanding and optimize fiber performance.The system consists of two separate units: a launch unit and a receiver unit. Together, these units employ the Spatially and Spectrally Resolved Imaging (S²) technique to identify, characterize, and analyze the individual modes propagating within the fiber under test. This sophisticated approach enables users to investigate the behavior of each guided mode in detail, providing valuable information that is difficult or impossible to obtain using conventional test methods.The CMC-1550 measures key modal characteristics such as modal intensity, modal phase, differential group delay (DGD), mode-dependent propagation loss, and mode-coupling effects. By examining these parameters, engineers and researchers can gain a comprehensive understanding of how energy propagates through the fiber and how different modes interact with one another.A particular strength of the CMC-1550 is its ability to reconstruct the propagation mode profiles and phases of the guided modes within the fiber. This capability provides a visual and quantitative representation of modal behavior, helping users validate fiber designs, improve coupling efficiency, enhance manufacturing processes, and identify potential performance limitations before fibers are deployed in real-world applications.The instrument also calculates the relative intensity of each higher-order mode compared to the most strongly excited mode, often expressed as Multipath Interference (MPI). In addition, it determines the Differential Group Delay associated with each propagation mode, providing critical information for applications where signal quality, bandwidth, and mode management play an important role.Designed for specialty fibers with diameters up to 400 μm, the CMC-1550 enables researchers, engineers, and manufacturers to fully characterize the modal performance of advanced optical fibers. Its measurement capabilities support both development and production environments, helping organizations improve product quality, validate new fiber designs, and maximize production yields.Key FeaturesMeasures the modal characteristics of individual modes in few-mode fibers and hollow-core fibers.Utilizes Spatially and Spectrally Resolved Imaging (S²) technology for detailed mode identification and characterization.Consists of a dedicated launch unit and receiver unit for comprehensive modal analysis.Supports measurement of specialty fibers up to 400 μm in diameter.Reconstructs propagation mode profiles and modal phase distributions for detailed visualization and analysis.Calculates the relative intensity of higher-order modes compared to the most excited propagation mode.Measures Multipath Interference (MPI) characteristics to assess modal performance.Determines Differential Group Delay (DGD) for each propagation mode, enabling comprehensive time-delay analysis.Estimates mode-dependent propagation losses, providing valuable insight into fiber transmission performance.Evaluates mode coupling effects and interactions between guided modesIncludes a loop measurement mode that enables real-time measurement and monitoring capabilities.Provides a complete understanding of modal behavior within complex specialty fiber structures.ApplicationsThe CMC-1550 is ideally suited for the development and characterization of hollow-core fibers. These advanced fiber designs guide light through air or gas-filled structures and require detailed modal analysis to fully understand their transmission properties, coupling efficiency, and propagation behavior.Few-mode fiber developers can use the system to evaluate individual propagation modes and assess how modal interactions influence overall fiber performance. The detailed information provided by the CMC-1550 supports design optimization and helps validate theoretical fiber models with experimental measurements.Fiber manufacturers benefit from the system’s ability to verify production consistency and ensure that critical modal characteristics remain within specification. By monitoring mode content, DGD, and mode coupling effects, manufacturers can identify process variations early and improve overall production yield.Research institutions and photonics laboratories can use the CMC-1550 to investigate advanced fiber structures, develop new specialty fiber technologies, and gain deeper insight into complex propagation mechanisms. The system's detailed modal reconstruction capabilities make it particularly valuable for next-generation optical communication and sensing research.Additional applications include gas sensing technologies, laser delivery systems, industrial photonics, medical fiber development, and advanced communication systems where accurate control and understanding of modal behavior are essential for performance optimization.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs specialty fiber technologies become increasingly important for communication, sensing, medical, industrial, and scientific applications, the ability to accurately characterize modal behavior is becoming a key requirement for successful product development and manufacturing. The CMC-1550 Modal Content Analyser provides the advanced measurement capabilities necessary to understand, optimize, and validate these complex fiber structures.By combining Spatially and Spectrally Resolved Imaging technology with detailed modal reconstruction, DGD analysis, MPI calculations, and real-time measurement capabilities, the CMC-1550 delivers a comprehensive solution for few-mode and hollow-core fiber characterization. Whether used in research laboratories or production facilities, the system helps organizations improve fiber performance, increase manufacturing consistency, and accelerate the development of next-generation specialty fiber technologies.

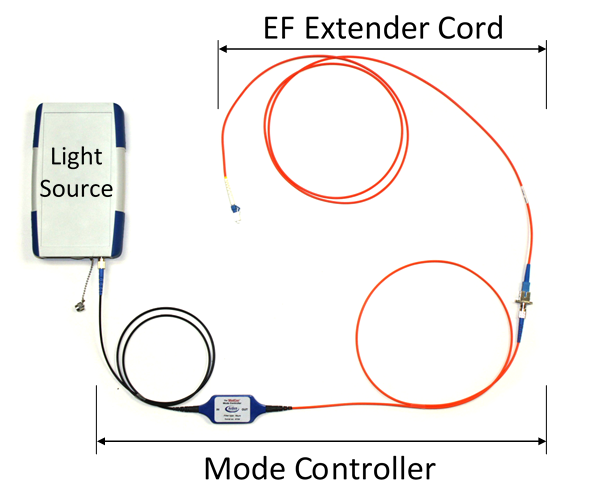

The EF Extender Cord by Arden Photonics is a specially engineered accessory designed to enhance the functionality, convenience, and longevity of the ModCon Mode Controller while helping users maintain Encircled Flux (EF) compliant multimode fiber testing. Developed to work seamlessly with ModCon devices, the EF Extender Cord provides a practical solution for protecting valuable test equipment, extending connector life, and increasing flexibility when working with different connector types and network configurations.As fiber optic networks continue to evolve, accurate multimode fiber testing has become increasingly important. Measurements of optical loss and bandwidth are highly dependent on the modal conditions of the light source used during testing. Different sources, including LEDs, VCSELs, and laser-based systems, can generate significantly different modal distributions, leading to variations in test results and increased measurement uncertainty. The ModCon Mode Controller addresses this challenge by creating stable and repeatable EF compliant launch conditions that satisfy IEC 61280-4-1 requirements.The ModCon EF Extender Cord complements this process by preserving the carefully conditioned output delivered by the ModCon. Designed and tested specifically for use with ModCon devices, the extender cord allows users to maintain EF-compliant performance while benefiting from additional connector protection and increased flexibility in the field. By serving as the connection point between the ModCon and the system under test, the extender cord helps reduce wear on the ModCon itself and simplifies testing environments where multiple connector formats are used.Unlike standard patch cords, the ModCon EF Extender Cord is specifically manufactured and verified to match the optical characteristics required for use with a ModCon. This ensures that the launch conditions established by the Mode Controller are maintained throughout the testing process. As a result, users can continue to achieve accurate, repeatable, and standards-compliant measurements while protecting their investment in test equipment.Key FeaturesDesigned specifically for ModCon Mode Controllers to maintain Encircled Flux compliant launch conditions during multimode fiber testing.Preserves EF-compliant output performance generated by the ModCon, ensuring reliable and repeatable measurements.Protects the ModCon output connector from wear and damage, helping extend the operational life of the device.Reduces maintenance requirements by minimizing repeated connector mating cycles on the ModCon.Allows convenient connector adaptation, enabling users to change output connector formats through the extender cord instead of replacing equipment.Supports multiple connector types, making it easier to test networks with varying interface requirements.Optimizes test efficiency by allowing quick changes between connector configurations.Factory matched and tested for compatibility with ModCon devices to ensure performance consistency.Provides a cost-effective solution for extending the flexibility and usability of existing ModCon installations.Helps support compliance with IEC 61280-4-1 testing requirements when used in conjunction with a ModCon Mode Controller.It is important to note that the EF Extender Cord is designed to preserve compliant launch conditions already established by a ModCon. It is not intended to convert a non-compliant light source into an EF-compliant source on its own. Likewise, it is not interchangeable with a standard patch cord, as conventional fiber patch cables are not designed or tested to maintain the precise modal characteristics required for EF-compliant measurements.ApplicationsMultimode Fiber Certification Testing The ModCon EF Extender Cord is ideal for technicians and engineers performing certification testing on multimode fiber networks. By preserving the controlled launch conditions generated by the ModCon, it helps ensure measurement consistency and supports compliance with recognized industry standards.Data Center Network Validation Modern data centers rely heavily on multimode fiber infrastructure. The extender cord enables testing teams to perform reliable measurements while accommodating different connector types commonly found in high-density data center environments.Installation and Commissioning During network deployment projects, installers often encounter multiple connector formats across different systems. The EF Extender Cord simplifies connector management by allowing users to switch connector interfaces while maintaining validated launch conditions.Maintenance and Troubleshooting Routine testing and troubleshooting can subject test equipment connectors to frequent mating cycles. By acting as the primary connection interface, the extender cord protects the ModCon output connector from excessive wear, reducing the likelihood of connector degradation over time.Laboratory and Research Environments Research facilities and optical laboratories require highly repeatable measurement conditions when evaluating fiber performance and network components. The extender cord helps maintain measurement integrity while providing the flexibility needed for diverse test setups.Manufacturing and Quality Assurance Manufacturers of fiber optic components and systems can use the ModCon EF Extender Cord to streamline testing procedures, preserve equipment performance, and maintain consistent testing conditions throughout production and quality control processes.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextThe ModCon EF Extender Cord is a simple yet highly valuable addition to any multimode fiber testing setup that utilizes a ModCon Mode Controller. By preserving EF-compliant launch conditions, protecting critical connectors, and enabling flexible connector adaptation, it helps improve both the efficiency and longevity of fiber optic test systems.For organizations seeking accurate, repeatable, and standards-compliant multimode fiber measurements, the extender cord provides an effective way to maximize the benefits of the ModCon platform. Whether used in network certification, data center testing, manufacturing, or research applications, it supports reliable measurement performance while reducing equipment wear and simplifying day-to-day testing operations.By combining connector protection, operational flexibility, and preservation of compliant modal launch conditions, the ModCon EF Extender Cord enhances the overall value of the ModCon ecosystem and helps ensure dependable multimode fiber testing for years to come.

2D Array Measurement Up to 22 mm Wide, 0.8 mm Tall; Core Position Repeatability 0.05 µm; ~1 Minute per 8-Fiber Array; Single Mode, Multi Mode & PM Fiber Support; MT Ferrule & FAU Compatible; USB 3.0; WindowsAs data centers move to higher-density optical interconnects, verifying fiber core position and pitch across an entire 2D fiber array unit (FAU) or MT ferrule, rather than one fiber at a time, becomes a production bottleneck for tools built around single-row measurement. The FGC Array from Arden Photonics is a fiber array unit measurement system built for that shift: it measures 1D and 2D FAUs and MT ferrule assemblies up to 22 mm wide and 0.8 mm tall, delivering fiber core positioning, core-to-core pitch, and PM stress rod angle for every fiber in the array automatically.Key features2D fiber array geometry measurement up to 22 mm wide and 0.8 mm tall, alongside standard 1D arrays and MT ferrule assemblies, optimized for 2D MPO connector and FAU production for high-performance data centers.Core X and Y position repeatability of 0.05 µm (1σ), delivered by a fully automated precision linear translation stage.Core illumination technology for each fiber in the array, supporting bare fiber, ribbon fiber, MTP, FC, and FC/APC pigtails, with up to six illumination units linkable to one system.Tiltable 32 mm mount and adjustable-width array holder covering arrays from 2.5 mm to 22 mm, with tilt angles from -8° to +8°.Customizable measurement templates in the FGC Array V2.0 software automate analysis of complex 2D arrays containing a mix of single mode, multi mode, and PM fiber.Setup and analysis in 30 seconds plus 5 seconds per core, around a minute for an 8-fiber array.Supplied as a complete system: cable kit, software package, shipping cases, and a dedicated Windows computer included.ApplicationsThe FGC Array supports MT ferrule core position measurement and 2D MPO connector production for high-performance data center interconnects, verifying fiber core positioning, core-to-core pitch, and PM stress rod angle across each fiber in the array. It measures MT ferrule assemblies by guide-pin-hole referencing as well as V-groove fiber arrays, and handles arrays that combine single mode, multi mode, and PM fiber in the same unit. That combination suits both production-line validation of FAUs and MT ferrules and R&D characterization of new array and connector designs.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAre you ready to order? Buy online, request a quote, or contact our technical experts with your questions.

FGC-GH Fiber Geometry SystemCore Diameter Repeatability 40 nm; Concentricity Repeatability 30 nm; Capillary Diameter Repeatability 20 nm; Cladding Diameter Range 80-250 µm; Hollow Core, Multi-Core & PM Fiber Support; Field-Calibrated; Plug-In ArchitectureSpecialty fibers such as hollow-core, multi-core, and polarization-maintaining designs have geometries that standard step-index fiber measurement tools were never built to resolve. The FGC-GH is a fiber geometry measurement system from Arden Photonics developed specifically for that problem, covering Hollow Core Fiber (HCF), Multi-Core Fiber (MCF), Polarizing-Maintaining Fiber (PMF), and other specialty fiber designs with cladding diameters from 80 µm to 250 µm, smaller sizes available on request. A proprietary software algorithm combined with high-magnification imaging optics and an ultra-high numerical aperture optical system resolves the fine internal structures these fiber types require, while automatic, user-independent measurement removes operator-to-operator variability from the results. The same instrument also performs high-precision characterization of standard singlemode fiber, so one system covers both specialty fiber development and conventional fiber QC.Key featuresAs a field-calibrated fiber geometry system, the FGC-GH uses traceable calibration artifacts for on-site recalibration, no need to return the instrument to Arden Photonics.Repeatability of 40 nm on core diameter, 30 nm on core-to-cladding concentricity, and 20 nm on capillary diameter, as measured on a single 240 µm reference fiber without removing it from the instrument; repeatability on other fiber types is not guaranteed.High-magnification imaging optics, an ultra-high numerical aperture optical system, and a proprietary software algorithm for detailed characterization of complex fiber structures.Plug-in software architecture with dedicated plug-ins for PM fiber, single-mode/multi-mode fiber, active fiber, multi-core fiber, and hollow-core fiber (NANF and DNANF); custom plug-ins can be developed for new fiber designs, and coverage extends to dual-clad, non-circular, and octagonal fiber geometries.Standard measurements complete in under 25 seconds and enhanced-performance measurements in under 150 seconds, both excluding fiber preparation.Supplied as a complete system: fiber handling bench, fiber holders, cable kit, illumination unit, software package, and a dedicated Windows computer are included, not just the sensor head.Automatic measurement that eliminates operator-dependent variability, suited to both production-line quality control and manual R&D characterization.ApplicationsThe FGC-GH validates manufactured hollow-core fiber with high-precision measurement of each double-nested set of tubes within the DNANF structure, providing data that relates directly to loss per kilometer, and supports hollow core fiber geometry measurement for that purpose in HCF production. For multi-core fiber, it verifies the location of cores, cladding, and core-to-cladding concentricity across each signal path. In R&D, an extensive set of manual tools characterizes novel or proprietary fiber designs, and on the production line, software plug-ins deliver deskilled, repeatable quality control measurements.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAre you ready to order? Buy online, request a quote, or contact our technical experts with your questions.

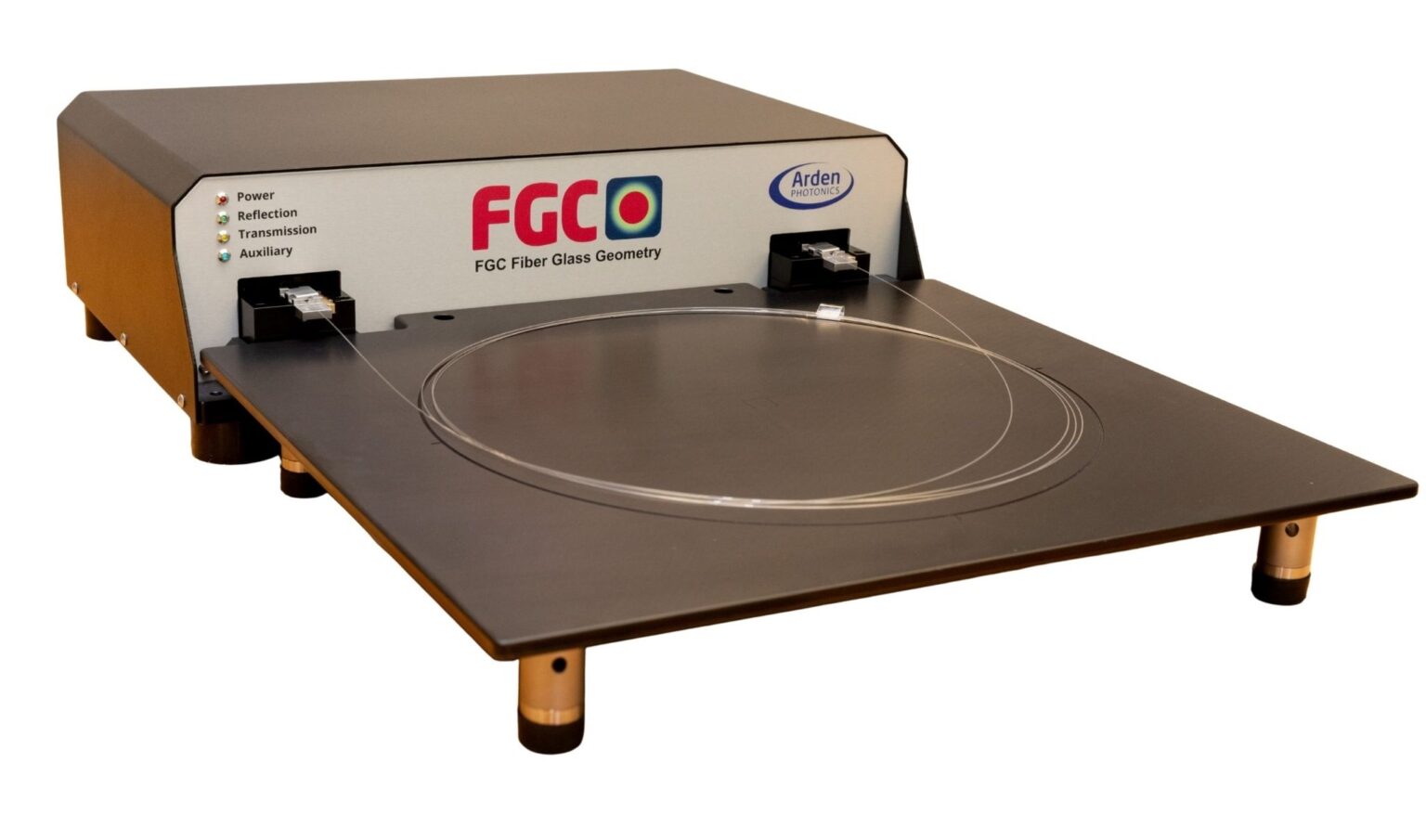

The FGC-GS Fiber Geometry System from Arden Photonics is a comprehensive fiber geometry measurement solution designed for both research and development laboratories and high-volume production environments. Engineered to measure standard and specialty optical fibers with diameters up to 800 μm, the system provides fast, accurate, and repeatable characterization of a wide range of fiber types, including single-mode fibers, polarization-maintaining (PANDA) fibers, active fibers, multi-core fibers, and hollow-core fiber designs such as NANF and DNANF.To address the evolving requirements of the photonics industry, Arden Photonics has redesigned its flagship fiber geometry platform, creating a system that is approximately 25% smaller than previous generations while delivering enhanced accuracy, improved usability, and a more compact footprint. The result is a modern measurement solution that combines advanced performance with practical laboratory and production-floor integration.The FGC-GS has been specifically developed for manufacturers and researchers working with increasingly complex fiber designs. As specialty fibers continue to expand into new telecommunications, sensing, medical, and industrial applications, reliable geometry measurements have become essential for maintaining product quality and ensuring design compliance. The FGC-GS provides the precision required to characterize critical fiber features quickly and consistently.One of the system's standout capabilities is its impressive measurement speed. Advanced optical hardware and software algorithms work together with one-click dual-wavelength illumination to provide rapid results while maintaining exceptional accuracy. This combination supports efficient quality control procedures and accelerates product development cycles without compromising measurement confidence.Absolute measurement accuracy is maintained through Arden’s unique golden-fiber calibration artefact, the FGC-FCD125. This calibration standard is fully traceable to the National Physical Laboratory (NPL) in the United Kingdom, ensuring reliable and traceable results throughout the instrument's operational life. Users can perform in-house calibration, significantly reducing downtime and eliminating the need for frequent factory servicing.The system’s innovative software architecture further enhances its flexibility. Dedicated software plug-ins provide standardized measurement routines for specific fiber types, helping manufacturers establish consistent quality control procedures across production lines. At the same time, powerful manual analysis tools enable engineers and researchers to characterize new and emerging fiber designs that may not yet fit established measurement workflows.Combining excellent repeatability, advanced automation, flexible analysis tools, and industry-leading speed, the FGC-GS delivers the performance required for next-generation optical fiber development and manufacturing.Key FeaturesMeasures the geometric parameters of standard and specialty optical fibers with diameters up to 800 μm.Suitable for a broad range of fiber types, including single-mode, multimode, PANDA polarization-maintaining, active, multicore, NANF, and DNANF hollow-core fibers.Redesigned platform offers a significantly smaller footprint, approximately 25% smaller than previous models, while improving measurement accuracy and usability.Enhanced optical system and advanced algorithms deliver faster measurements without compromising precision.One-click dual-wavelength illumination improves workflow efficiency and enables rapid characterization of fiber structures.User-performed calibration using the FGC-FCD125 golden-fiber artefact ensures long-term measurement accuracy and traceability to the National Physical Laboratory (NPL).In-house calibration minimizes downtime and reduces the need for external servicing and recalibration visits.Improved manual analysis tools allow quick assessment of new or unconventional fiber designs without requiring automated measurement setup.Measurement results can be stored and managed efficiently to support production feedback, traceability, and quality assurance programs.Flexible software plug-in architecture enables dedicated measurement routines for specific specialty fiber types and manufacturing processes.Optional Software Plug-insThe FGC-GS platform can be expanded through optional software plug-ins designed to automate and standardize geometry measurements for specialty fibers with cladding diameters from 80 μm to 800 μm. Available plug-ins currently support:Polarization-maintaining (PM) fibersSingle-mode and multimode fibersActive fibersMulti-core fibersHollow-core fibers, including NANF and DNANF designsThese plug-ins streamline production quality control while ensuring consistent and repeatable measurement procedures across manufacturing operations. Additionally, customized plug-ins can be developed to support emerging fiber technologies and future product requirements.ApplicationsThe FGC-GS is ideally suited for specialty fiber manufacturing environments where precise geometry measurements are required to ensure product consistency and compliance with design specifications. Its automated capabilities help operators verify fiber dimensions rapidly and reliably during production.Research and development laboratories benefit from the system’s flexible analysis tools, which enable detailed characterization of novel fiber structures and emerging optical fiber technologies. Engineers can quickly evaluate design iterations and gather critical geometry data needed for product optimization.Manufacturers of polarization-maintaining fibers use the FGC-GS to verify critical geometric parameters that directly influence fiber performance. Similarly, multicore fiber developers can rely on accurate characterization of complex internal structures throughout development and production processes.The system is also highly effective for active fiber production, where precise geometry plays an important role in optical performance and manufacturing quality. In addition, hollow-core fiber manufacturers can use dedicated plug-ins and advanced measurement capabilities to characterize NANF and DNANF structures with confidence.Quality assurance departments, production engineers, and fiber researchers alike benefit from the combination of measurement speed, traceability, repeatability, and flexibility that the FGC-GS offers.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs optical fiber technologies continue to become more advanced and specialized, accurate geometry characterization is increasingly critical to successful development and manufacturing. The FGC-GS Fiber Geometry System provides a future-ready platform capable of supporting both today’s established fiber designs and tomorrow’s emerging technologies.With its compact design, enhanced optical performance, NPL-traceable calibration capability, powerful software architecture, and expanding library of specialized measurement plug-ins, the FGC-GS delivers the precision, repeatability, and flexibility required by modern fiber manufacturers and research organizations. Whether deployed in quality control, process development, or advanced photonics research, the system provides a reliable foundation for accurate

Pixel Resolution 0.23 µm (max zoom); Rotation Angle ±42°; Field of View 165x165 to 590x450 µm; Fiber Protrusion 11-14 mm; NANF, DNANF & PM Fiber Compatible; Built-In Camera & Screen; 1.2 kgFibers with intricate internal structures, hollow-core, multi-core, and polarization-maintaining designs, need to be rotationally aligned before splicing; get that orientation wrong and the result is data loss, power loss, or cross-talk that only shows up once the network is running. The FRA-250 is a fiber rotational aligner from Arden Photonics built for that step, giving fiber and system manufacturers a dedicated way to view and adjust core rotation before the splice rather than relying on a general-purpose microscope setup.Key featuresBuilt-in high-resolution camera and integrated screen for live monitoring of fiber orientation, with on-screen gain and zoom controls, no separate microscope or display setup required.Pixel resolution of 0.23 µm at maximum zoom, with a field of view ranging from 165 x 165 µm at minimum zoom up to 590 x 450 µm at maximum zoom.Rotation angle range of ±42°, with 11-14 mm of fiber protrusion from the holder.Customizable to a wide range of fiber holders, fiber types, and fiber sizes, including NANF and DNANF fiber, such as NANF fiber at 250 µm, and PM fiber.Production-ready software adaptable to different fiber applications.Compact and low-power: 1.2 kg, 155 x 165 x 90 mm excluding cabling, powered by a 5V/2A supply at 6W consumption.ApplicationsThe FRA-250 supports pre-splice rotational alignment of hollow-core fiber, multi-core fiber, and PM fiber, wherever core misalignment before splicing would otherwise cause data loss, power loss, or cross-talk. Fiber and system manufacturers use it to verify orientation before splicing, supporting production quality control and cost efficiency in fiber network manufacturing.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAre you ready to order? Buy online, request a quote, or contact our technical experts with your questions.

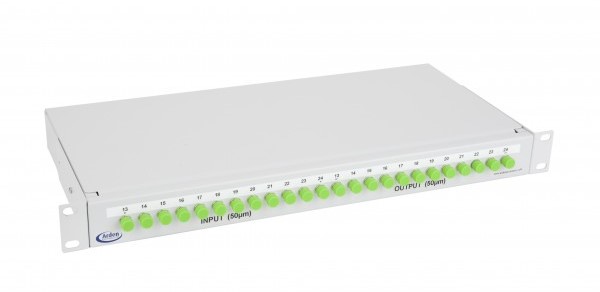

The ModCon Mode Controller 12 Channel by Arden Photonics is a high-performance passive device designed to provide consistent and repeatable mode conditioning for multimode fiber testing across multiple channels. Ideal for 12-way switching systems, ribbon fiber assemblies, and multi-fiber test environments, the ModCon ensures that optical measurements remain accurate, stable, and compliant with international testing standards regardless of the light source being used.Multimode fiber measurements are highly sensitive to the modal distribution of the launched light. Different sources such as LEDs, VCSELs, and Fabry-Pérot lasers can excite fiber modes in different ways, often leading to significant variations in measured loss and bandwidth results. The ModCon eliminates this source dependency by conditioning the launched light to produce a controlled and repeatable modal distribution. As a result, test engineers, network installers, and manufacturers can achieve improved measurement consistency, better correlation between test instruments, and greater confidence in test results.The 12 Channel ModCon is particularly well suited for applications requiring simultaneous testing of multiple fibers. Available in a compact 19-inch, 1U rack-mounted format, it can be configured with MPO-style connectors for high-density fiber connectivity or with individual FC or SC connectors to suit specific test setups. Every unit undergoes rigorous verification using Arden Photonics' advanced modal measurement technology to ensure reliable compliance with industry standards and dependable performance in demanding environments.Key Features12-channel mode conditioning capability for efficient testing of multi-fiber networks, ribbon cables, and 12-way optical switch systems.Source-independent performance, delivering the same modal launch conditions regardless of whether the input source is an LED, VCSEL, or laser.Improved measurement accuracy by reducing variations caused by differing light source modal characteristics.Enhanced consistency between test instruments, helping achieve better agreement between OTDR, loss test set, and bandwidth measurements.Supports compliance with IEC 61280-4-1 Encircled Flux (EF) requirements, enabling standardized multimode fiber testing.Passive operation with no power requirements, simplifying installation and long-term operation.Available in a 19-inch, 1U rack-mounted configuration, making integration into laboratory and production environments straightforward.Flexible connector options, including MPO-style interfaces for high-density connectivity and individual FC or SC connectors for conventional fiber connections.Optimized for multimode optical fiber networks, ensuring repeatable and reproducible launch conditions.Factory tested and verified using Arden Photonics’ advanced modal analysis systems to guarantee standard-compliant output performance.ApplicationsThe ModCon Mode Controller 12 Channel is designed for a wide variety of fiber optic testing, validation, and manufacturing applications where consistent modal launch conditions are critical.Multimode Fiber Loss Testing Loss measurements in multimode fiber networks can vary significantly depending on the characteristics of the source used during testing. By providing controlled mode conditioning, the ModCon minimizes these discrepancies and helps deliver more reliable attenuation measurements.Bandwidth Characterization Accurate bandwidth testing requires repeatable launch conditions to ensure valid and comparable results. The ModCon creates standardized modal distributions that support precise bandwidth analysis and performance verification of multimode fiber infrastructure.High-Density Fiber Testing With support for 12 channels, the ModCon is an excellent solution for testing ribbon fibers, MPO-based connectivity systems, and other high-density fiber assemblies. It enables efficient, simultaneous testing while maintaining consistent launch conditions across all channels.Manufacturing and Quality Assurance Fiber optic component manufacturers and system integrators can use the ModCon to improve repeatability during production testing and quality control processes. Consistent modal conditioning helps reduce measurement uncertainty and supports reliable product validation.Data Center and Enterprise Network Certification Modern data centers frequently rely on multimode fiber networks for high-speed connectivity. The ModCon assists installers and network engineers in achieving standards-compliant measurements during installation, commissioning, and ongoing maintenance activities.Research and Development Laboratories and research facilities can benefit from the ModCon’s ability to eliminate source-dependent measurement variations. This helps improve the repeatability of experimental results and simplifies comparative testing between different optical systems and components.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextThe ModCon Mode Controller 12 Channel provides a practical and proven solution for achieving stable, repeatable, and standards-compliant multimode fiber measurements across multiple channels. By removing the influence of differing light source characteristics, it helps improve measurement accuracy, increase agreement between test methods, and support compliance with industry requirements.Whether you are testing ribbon fibers, validating high-density optical assemblies, certifying data center infrastructure, or conducting advanced fiber optic research, the ModCon delivers the controlled launch conditions required for dependable results. Its passive design, flexible connectivity options, and rigorous performance validation make it a valuable addition to any fiber optic testing environment where precision and consistency are essential.

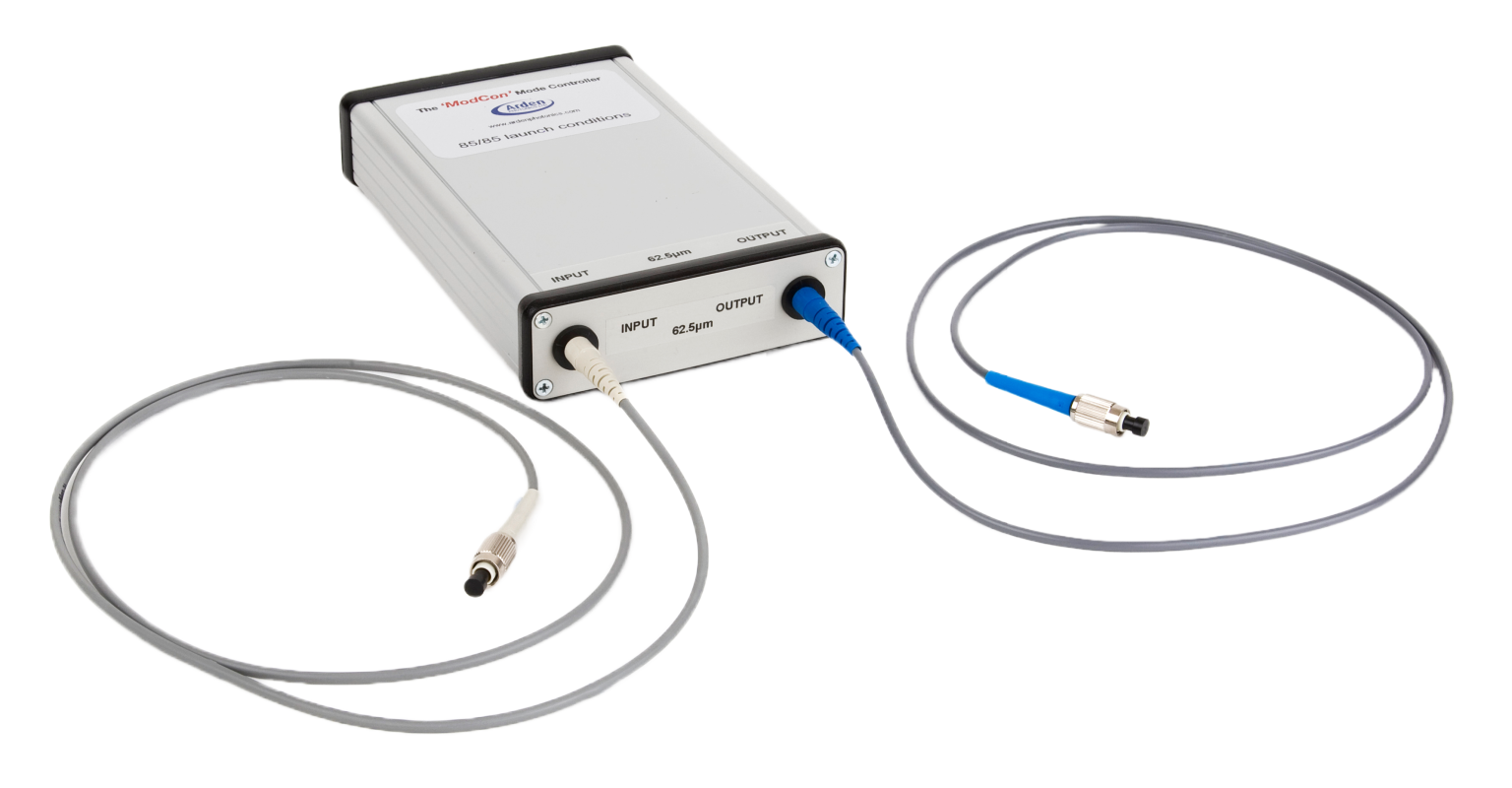

The ModCon Mode Controller for Aerospace by Arden Photonics is a specialized passive mode conditioning device developed to support accurate, repeatable, and standards-compliant testing of multimode fiber optic systems used in aerospace applications. Designed to deliver controlled launch conditions independent of the light source being used, the ModCon helps eliminate one of the most significant sources of measurement uncertainty in multimode fiber testing.Aerospace fiber optic networks demand exceptionally high levels of reliability and consistency. Whether testing aircraft communication systems, avionics networks, military platforms, or other mission-critical optical infrastructures, engineers must be confident that their measurements accurately reflect fiber performance rather than variations introduced by different test sources. The ModCon addresses this challenge by ensuring a consistent modal distribution is launched into the fiber under test, regardless of whether the source is an LED, laser, or another optical transmitter.Available for both 50/125 µm and 62.5/125 µm graded-index multimode fiber, the ModCon Mode Controller for Aerospace can be supplied with FC, ST, SC, or LC connectors, allowing seamless integration into a wide range of aerospace test environments. By simply installing the ModCon between the test equipment and the fiber under test, users can achieve stable and repeatable launch conditions that support compliance with aerospace testing requirements, including the widely adopted 85/85 launch condition standard.Measurements such as insertion loss and bandwidth are highly dependent on the modal characteristics of the light source. For example, results obtained using an OTDR can differ substantially from measurements carried out with a light source and power meter because the launch conditions generated by the respective sources are fundamentally different. The ModCon removes this variability by conditioning the optical signal before it enters the fiber, leading to improved agreement between different measurement techniques and greater confidence in test results.Each ModCon is rigorously verified using Arden Photonics’ advanced MPX Modal Explorer technology to confirm that the device meets the required launch condition specifications independently of the incoming modal distribution. Optional documentation, including a Certificate of Conformance or a detailed Test Certificate with measurements at 850 nm and 1300 nm, is also available to support quality assurance and compliance programs.Key FeaturesDesigned specifically for aerospace multimode fiber testing applications.Provides source-independent mode control, ensuring consistent launch conditions regardless of the light source used.Supports 85/85 launch condition compliance, as specified in various aerospace standards.Available for both 50/125 µm and 62.5/125 µm graded-index multimode fibers.Connector options include FC, ST, SC, and LC interfaces for maximum compatibility.Improves measurement accuracy by reducing source-dependent variations.Enhances agreement between different test methods, including OTDR and loss measurement systems.Passive design requires no electrical power, simplifying deployment and operation.Every unit is tested using the MPX Modal Explorer to verify compliance with launch condition requirements.Optional Certificate of Conformance and detailed Test Certificates are available.Supports measurements at both 850 nm and 1300 nm wavelengths.Also available in 70/70% Limited Phase Space configurations for specialized testing requirements.Enables stable and repeatable multimode fiber testing across manufacturing, maintenance, and qualification environments.The aerospace version of the ModCon specifies launch performance through Near Field Pattern characteristics. The modal launch condition is defined by the width of the Near Field Pattern at 5%, 15%, and 75% of the maximum intensity. This approach provides a reliable and measurable method of ensuring compliance with aerospace testing standards while maintaining consistency across different test platforms and optical sources.ApplicationsAerospace Fiber Optic Network Testing Aircraft increasingly rely on fiber optic networks to support communication, control, sensing, and data transmission functions. The ModCon helps ensure accurate testing of these critical systems by providing controlled launch conditions that minimize measurement uncertainty.Avionics System Validation Accurate insertion loss and bandwidth measurements are essential during the development and validation of avionics components. The ModCon improves repeatability and measurement consistency throughout qualification and acceptance testing procedures.Production Testing and Quality Assurance Manufacturers of aerospace fiber optic assemblies can use the ModCon to standardize testing environments and reduce variability between production batches. Consistent modal launch conditions help facilitate reliable quality control processes and support compliance documentation.Maintenance, Repair, and Overhaul (MRO) During routine maintenance and troubleshooting activities, engineers require dependable testing methods that deliver consistent results. The ModCon enables repeatable measurements regardless of the optical source employed, improving confidence in maintenance decisions.Defense and Military Applications Military communication and sensing systems often operate under stringent performance requirements. The ModCon supports accurate verification of multimode fiber links used in defense platforms by ensuring stable and compliant launch conditions.Research and Development Organizations developing next-generation aerospace fiber optic technologies can benefit from the ModCon's ability to reduce source-related measurement variations, enabling more reliable comparison of experimental results and system performance.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextThe ModCon Mode Controller for Aerospace provides a practical and highly effective solution for achieving accurate, repeatable, and standards-compliant multimode fiber measurements in demanding aerospace environments. By delivering source-independent mode conditioning, it eliminates variations caused by differing light source characteristics and helps ensure that test results truly represent the performance of the fiber under evaluation.Whether deployed in aircraft manufacturing, avionics validation, defense applications, maintenance operations, or research facilities, the ModCon supports improved measurement accuracy, stronger correlation between test methods, and compliance with established aerospace launch condition requirements. Its passive operation, flexible connector options, support for multiple fiber types, and rigorous factory verification make it an invaluable tool for organizations seeking dependable multimode fiber testing.With the ability to simplify compliance, improve repeatability, and enhance confidence in measurement results, the ModCon Mode Controller for Aerospace is an essential component for modern aerospace optical test environments where precision, reliability, and consistency are critical.

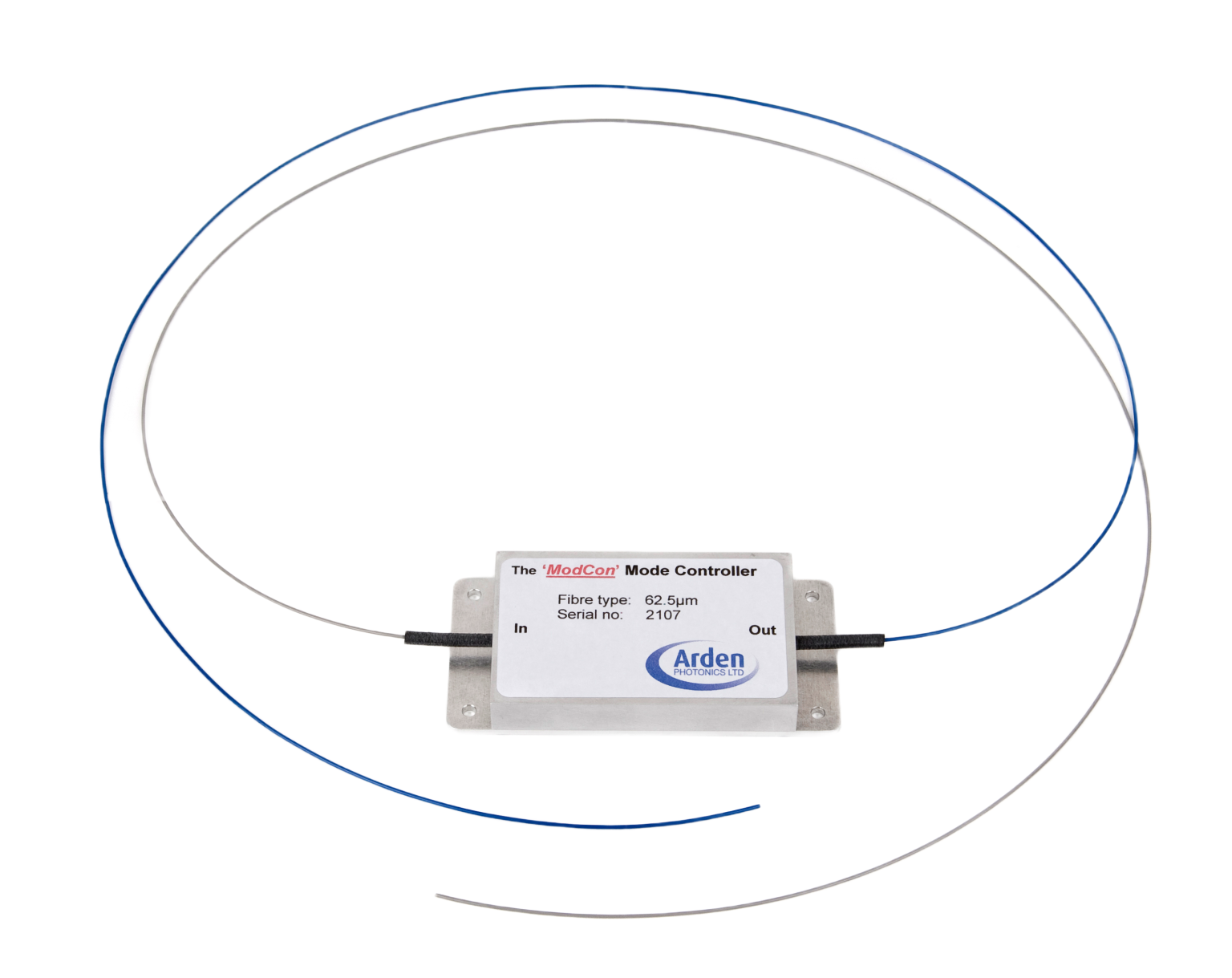

The ModCon Mode Controller for OEM from Arden Photonics is a precision passive device designed to provide consistent and standards-compliant modal launch conditions for multimode fiber testing and measurement applications. Regardless of whether the light source is an LED, VCSEL, or Fabry-Perot (FP) laser, the ModCon ensures that the same distribution of optical modes is launched into the fiber, eliminating one of the most common sources of measurement variation in multimode fiber networks.In multimode optical fiber systems, measurement results such as insertion loss and bandwidth can be heavily influenced by the modal characteristics of the light source. Different sources naturally launch different mode distributions, which can lead to significant discrepancies in test results. For example, Optical Time Domain Reflectometer (OTDR) measurements often differ from Light Source/Power Meter (LS/PM) measurements because OTDRs typically use laser sources while LS/PM systems may use LEDs. These variations can complicate network qualification, troubleshooting, and compliance testing.The ModCon addresses this challenge by creating stable and repeatable launch conditions independent of the connected source. By standardizing the modal distribution entering the fiber, the device improves measurement consistency across different instruments, technicians, and testing environments. This enables more reliable comparisons between measurement systems and increases confidence in test data.As a passive solution, the ModCon requires no power and integrates easily into OEM systems and fiber optic test equipment. Every unit is rigorously verified using Arden Photonics’ MPX Modal Explorer technology to ensure that the output complies with the required standards regardless of variations in the input modal distribution. This quality assurance process helps deliver dependable performance and long-term measurement stability.The OEM version of the ModCon is specified in terms of Encircled Flux (EF), the internationally recognized method for defining multimode launch conditions. Available certification options include a Certificate of Conformance and a detailed Test Certificate for 850 nm devices, providing additional confidence for manufacturers and system integrators who require documented compliance.Key FeaturesProvides source-independent mode control for multimode fiber measurements, ensuring consistent launch conditions regardless of whether an LED, VCSEL, or FP laser source is used.Improves measurement accuracy by eliminating variations caused by differences in source modal characteristics.Supports more consistent loss and bandwidth measurements across multiple test platforms and measurement methods.Helps achieve better agreement between OTDR and LS/PM test results by standardizing modal launch conditions.Ensures stable launch conditions for multimode optical fiber testing, reducing uncertainty and improving repeatability.Designed to meet Encircled Flux (EF) requirements in accordance with IEC 61280-4-1.Passive, compact design enables straightforward integration into OEM optical test equipment and measurement systems.Individually tested using Arden Photonics’ MPX Modal Explorer to verify standards-compliant output performance.Optional Certificate of Conformance and 850 nm Test Certificate available for traceability and documentation.Enhances confidence in multimode fiber qualification, verification, and production testing environments. ApplicationsThe ModCon Mode Controller for OEM is ideally suited for manufacturers and developers of fiber optic test equipment who require reliable and repeatable multimode launch conditions. By ensuring compliance with Encircled Flux requirements, it enables the development of standards-based testing solutions that deliver accurate results across a wide range of network environments.In network installation and certification, the device helps technicians obtain more consistent insertion loss and bandwidth measurements. Standardized mode control reduces discrepancies between test setups and improves the reliability of acceptance testing, helping network operators verify performance with greater confidence.The ModCon is also valuable in research and development laboratories where accurate characterization of multimode fiber performance is essential. Consistent launch conditions allow engineers to compare experimental results more reliably and isolate the effects of fiber characteristics rather than source-induced measurement variation.In manufacturing and quality assurance environments, the device supports repeatable testing of multimode fiber products, transceivers, and network components. Stable and standards-compliant launches improve measurement repeatability and help organizations maintain rigorous quality control processes.The solution is equally effective in calibration facilities and test laboratories where compliance with international standards and traceable measurement practices are critical requirements.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextFor organizations seeking to improve the accuracy, repeatability, and standards compliance of multimode fiber measurements, the ModCon Mode Controller for OEM offers a proven and practical solution. By delivering source-independent mode control and stable Encircled Flux launch conditions, it minimizes measurement uncertainty and helps align results across different instruments and test methodologies.Whether integrated into fiber optic test equipment, manufacturing systems, or laboratory measurement platforms, the ModCon provides a reliable path toward higher-quality multimode fiber testing. With rigorous verification and support for IEC 61280-4-1 EF requirements, it enables OEMs to deliver more consistent, trustworthy, and standards-compliant measurement solutions.

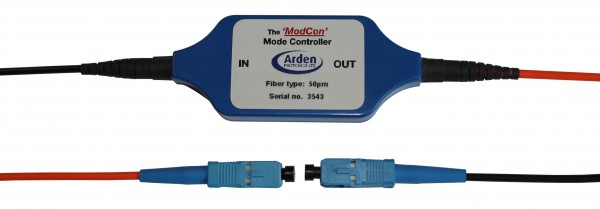

Accurate measurement of loss and bandwidth in multimode fiber networks depends heavily on the modal characteristics of the optical source used during testing. Different light sources, such as LEDs, VCSELs, lasers, OTDRs, and light source/power meter (LS/PM) systems, can launch light into a fiber in significantly different ways. As a result, the same fiber link can produce noticeably different measurement results depending on the equipment being used. This creates uncertainty, reduces repThe Arden Photonics ModCon Mode Controller – Telecom has been developed to solve this challenge. Designed as a passive mode conditioning device, the ModCon ensures that the correct modal launch conditions are achieved regardless of the type of light source being used. By delivering a consistent and controlled Encircled Flux (EF) output, the ModCon significantly improves measurement accuracy, reduces source-dependent variability, and helps organizations meet internationally recognized testing standards.The ModCon is particularly valuable in multimode fiber testing environments where repeatability and consistency are critical. Instead of relying on the natural modal distribution of different optical sources, users can simply connect the ModCon and achieve a stable, repeatable launch condition that remains compliant with industry standards. This enables more reliable comparisons between test results, laboratories, technicians, and measurement systems.Every ModCon Telecom unit is rigorously validated using Arden Photonics' MPX Modal Explorer technology. This testing ensures that the output meets the required Encircled Flux specifications regardless of the modal distribution entering the device. The result is a simple, certifiable, and highly effective solution for improving multimode fiber test performance while supporting compliance with IEC 61280-4-1 requirements.Whether you are performing fiber installation testing, validating network performance, manufacturing optical components, or conducting laboratory research, the ModCon Mode Controller – Telecom provides a practical way to reduce measurement uncertainty and increase confidence in your test results. Its plug-and-play design makes implementation straightforward, while its standards-compliant performance helps organizations maintain high levels of quality and consistency across all stages of optical network testing.Key FeaturesThe ModCon Mode Controller – Telecom combines simplicity, compliance, and performance in a compact solution designed specifically for multimode fiber measurements.One of its most important features is plug-and-play Encircled Flux compliance. Users simply connect the ModCon between the light source and the fiber under test to obtain a stable and repeatable EF-compliant launch condition. This straightforward implementation eliminates the need for complex setup procedures or specialized operator training.The device is fully EF compliant with IEC 61280-4-1, helping organizations meet globally recognized standards for multimode fiber measurements. Consistent compliance reduces uncertainty and improves confidence in loss and bandwidth testing across different environments and measurement systems.Because the ModCon conditions the modal output independently of the source, it helps improve measurement repeatability. By ensuring that the same distribution of optical modes is launched into the fiber regardless of whether an LED, VCSEL, laser source, OTDR, or other test instrument is used, measurement variation is significantly reduced.The ModCon is optimized for both 850 nm and 1300 nm wavelengths, making it suitable for a broad range of multimode fiber applications commonly found in telecommunications, enterprise networks, and data center infrastructures.Additional features include:Passive design requiring no power supply or active control.Compatible with all multimode fiber optic testers.Improved agreement between different test equipment and measurement platforms.Rigorous verification using Arden's MPX Modal Explorer technology.Optional Certificate of Conformance and Test Certificate documentation for traceability and record keeping requirements. These features make the ModCon Telecom a practical and cost-effective solution for ensuring stable launch conditions and accurate multimode fiber measurements.ApplicationsThe ModCon Mode Controller – Telecom is designed for a wide variety of fiber optic testing, validation, and certification applications.One of its primary uses is multimode fiber loss testing, where variations in source launch conditions can significantly influence measurement results. By standardizing the modal distribution entering the fiber, the ModCon helps produce more consistent insertion loss measurements and improves agreement between different test systems.ly effective in multimode bandwidth characterization. Since bandwidth measurements are sensitive to launch conditions, maintaining a controlled and repeatable mode distribution is essential for obtaining reliable and comparable results. The ModCon provides the consistency needed to support accurate bandwidth evaluation.Network installers and certification teams use the ModCon to support industry-standard compliance testing. The device helps ensure that measurements meet Encircled Flux requirements specified by IEC 61280-4-1, improving confidence in network certification and acceptance testing proceduresIn manufacturing and quality assurance environments, the ModCon supports production testing and product validation. By eliminating source-related variability, manufacturers can achieve more reliable quality control data and improve consistency across production batches.The solution is equally valuable in research laboratories and development centers, where engineers require repeatable and traceable multimode measurements when evaluating fiber optic components, transmission systems, and emerging network technologies.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs multimode fiber networks continue to support increasingly demanding applications in telecommunications, enterprise networking, and data centers, measurement consistency becomes more important than ever. The Arden Photonics ModCon Mode Controller – Telecom provides a proven solution for achieving stable, repeatable, and standards-compliant modal launch conditions across a wide range of testing environments.By reducing source-dependent uncertainty, improving agreement between measurement systems, and supporting IEC 61280-4-1 Encircled Flux compliance, the ModCon enables organizations to make better decisions based on more reliable optical data. Whether you are certifying new network installations, validating fiber performance, conducting laboratory research, or maintaining quality control processes, the ModCon Telecom offers a simple and effective path toward higher measurement accuracy and confidence.

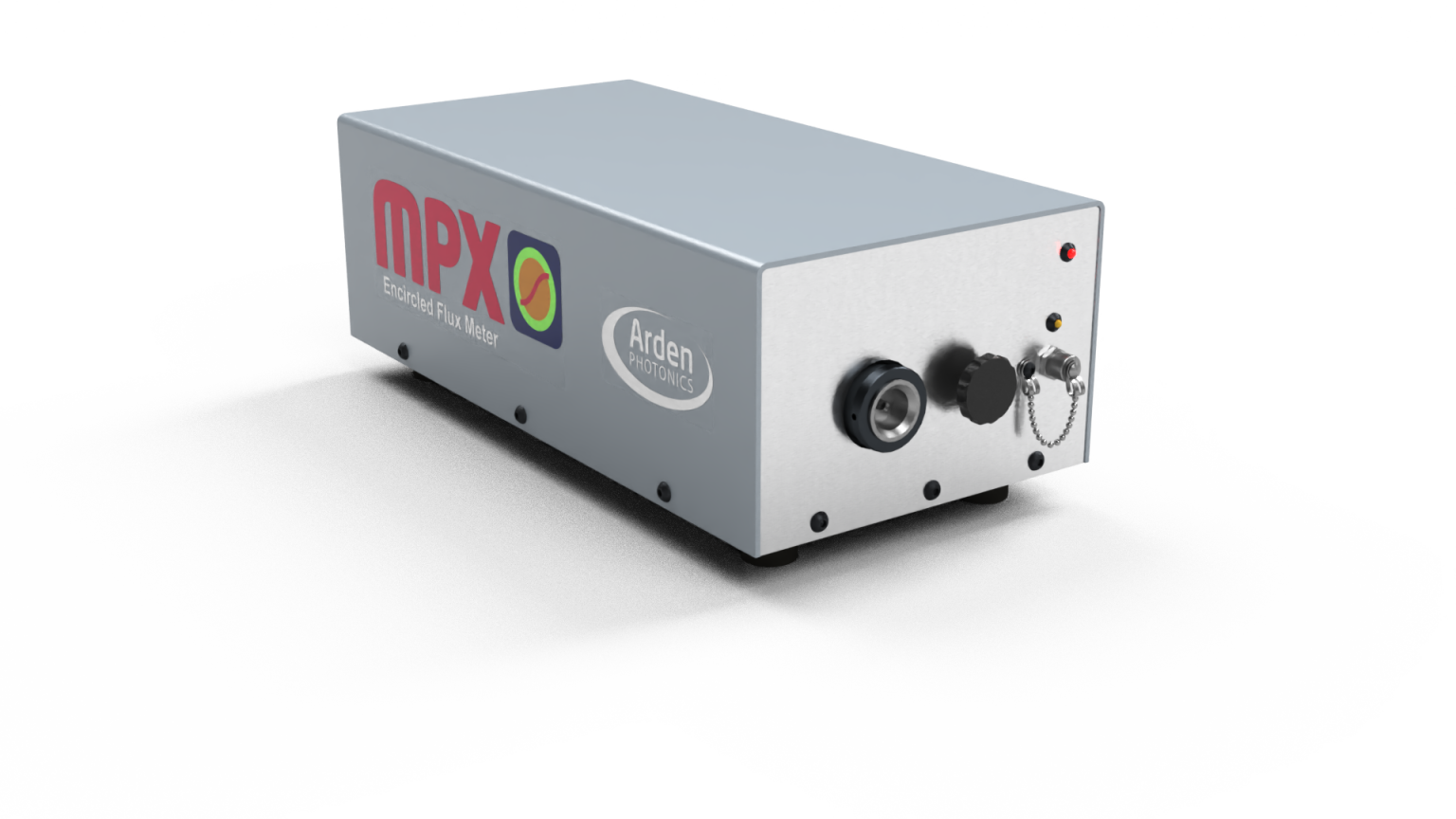

The MPX-1A Encircled Flux Meter by Arden Photonics is a next-generation measurement solution designed to deliver precise, repeatable, and standards-compliant Encircled Flux (EF) measurements for multimode fiber optic systems. Trusted by industry leaders around the world, the MPX-1A has established itself as the benchmark for accurate modal launch condition analysis, helping organizations validate network performance, optimize optical system efficiency, and ensure compliance with internationally recognized testing standards.Encircled Flux measurement plays a critical role in the characterization of multimode fiber networks. By accurately assessing the spatial distribution of light within a fiber, engineers can verify source performance, improve measurement consistency, and reduce uncertainty in network testing. The MPX-1A streamlines this process by providing automated, real-time measurements that remove many of the complexities associated with traditional EF testing methods.Designed for both laboratory and production environments, the instrument enables users to simply connect a source and patchcord and immediately begin monitoring modal launch conditions. Advanced CMOS camera technology, combined with integrated auto-focus and auto-exposure capabilities, delivers highly accurate results while reducing operator dependency. This ensures that measurements remain consistent across different users, locations, and testing scenarios.Whether you are validating multimode network infrastructure, characterizing optical sources, or working to meet IEC, IEEE, and aerospace requirements, the MPX-1A provides the confidence and reliability required for today's demanding fiber optic applications. Its combination of automation, accuracy, and compliance makes it an essential tool for organizations focused on maintaining the highest standards of optical performance.Key FeaturesThe MPX-1A Encircled Flux Meter incorporates a range of advanced technologies that simplify testing workflows while maximizing measurement accuracy.One of its standout features is the Automatic Focus System and Optimal Exposure Filter, which work together to ensure rapid and consistent data capture. These intelligent functions minimize the need for extensive operator training and significantly reduce the possibility of user-induced errors. By automating critical setup parameters, users can achieve reliable results faster and with greater confidence.The system also utilizes state-of-the-art CMOS camera technology, enabling rapid image acquisition and precise analysis of modal launch conditions. This technology improves measurement speed while maintaining the high level of accuracy required for standards-compliant testing.Another major advantage is its real-time measurement capability. Users can instantly observe and adjust modal conditions, making it easier to optimize sources, patchcords, and network components during testing. This real-time feedback enhances productivity and streamlines validation processes.The MPX-1A is designed to meet a broad range of internationally recognized standards, including:TIA-526-14-AIEC 61280-4-1TIA/EIA-455-203IEC 61280-1-4IEEE 802.3Compliance with these standards ensures that measurements are consistent, comparable, and suitable for use in both commercial and specialized environments.For maximum flexibility, the instrument features USB 3.0 connectivity, allowing easy portability and straightforward deployment across multiple testing locations. This makes the system suitable for laboratory research, manufacturing facilities, field testing, and quality assurance applications.Users can also benefit from an optional geometrical calibration artifact, simplifying calibration procedures and helping maintain long-term measurement accuracy and traceability. Together, these features make the MPX-1A one of the most capable and user-friendly Encircled Flux measurement solutions available today.ApplicationsThe MPX-1A Encircled Flux Meter supports a wide variety of fiber optic testing and characterization tasks across telecommunications, networking, manufacturing, and research environments.One of its primary applications is source and patchcord characterization for IEC 11801 and TIA/EIA568 LAN testing. Accurate verification of launch conditions is essential for obtaining repeatable insertion loss measurements and ensuring reliable network certification.The system is also widely used for VCSEL characterization in Gigabit Ethernet applications compliant with IEEE 802.3 requirements. By accurately measuring modal distributions, the MPX-1A helps engineers evaluate source performance and verify that optical transmitters meet specified operational criteriaFor organizations developing or validating multimode fiber components, the instrument supports mode-scrambler and mode-filter characterization. Precise analysis of modal behavior enables engineers to optimize component performance and ensure compliance with industry standards.Additional applications include measuring optical sources to IEC 61280-4-1 requirements, providing confidence that devices meet demanding performance specifications. The MPX-1A is equally effective for the alignment of pig-tailed light sources, where accurate launch characterization is essential for achieving reliable optical coupling and system efficiency.Thanks to its repeatability, automation, and standards compliance, the MPX-1A is suitable for research laboratories, production testing facilities, quality control departments, and network validation teams alike.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs multimode fiber networks continue to evolve and performance requirements become increasingly demanding, accurate Encircled Flux measurement remains essential for ensuring consistency, compliance, and optimal system operation. The Arden Photonics MPX-1A Encircled Flux Meter delivers the precision, automation, and reliability required to meet these challenges with confidence.Whether you are validating network infrastructure, characterizing optical sources, developing fiber optic components, or maintaining compliance with international standards, the MPX-1A provides a proven path to accurate and repeatable results. Explore how the MPX-1A can strengthen your optical testing processes, improve productivity, and help your organization achieve the highest levels of measurement confidence and performance.

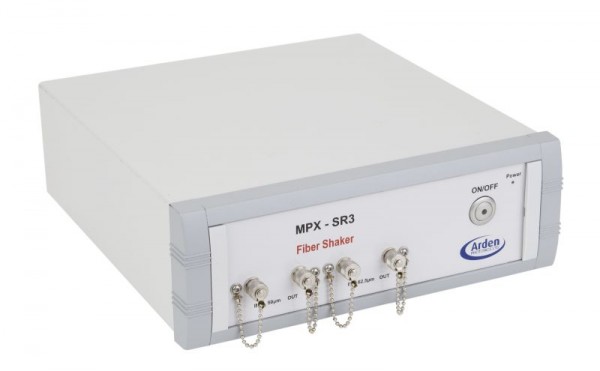

Accurate Encircled Flux (EF) measurements are essential for validating multimode fiber optic networks and ensuring compliance with industry standards. When testing laser-based transmission light sources, however, measurement accuracy can be affected by speckle patterns generated within the fiber. To address this challenge, Arden Photonics developed the MPX-SR3 Fiber Shaker, a compact and reliable mechanical fiber shaker designed to improve measurement repeatability and support standards-compliant multimode testing.The MPX-SR3 is specifically designed to work alongside Encircled Flux measurement systems, including Arden's MPX Modal Explorer. Industry standards such as IEEE 802.3aq and FOTP-203 recommend the use of a mechanical fiber shaker when measuring laser-based multimode sources, helping to minimize the impact of speckle and improve the consistency of test results.The device operates by continuously shaking the fiber during measurement, altering the differential path lengths of the various propagation modes within the fiber. This process effectively averages out speckle patterns, resulting in more stable and repeatable measurements. By reducing measurement uncertainty, the MPX-SR3 helps users achieve greater confidence in their Encircled Flux testing and optical source characterization.Designed for ease of use and portability, the MPX-SR3 combines a compact footprint with low-noise operation and lightweight construction. It is available with multiple multimode fiber options and supports a wide range of testing environments, making it an ideal solution for laboratories, production facilities, and network validation applications. Whether you are performing compliance testing, developing optical components, or validating multimode transmission systems, the MPX-SR3 Fiber Shaker provides the reliability required to achieve accurate and repeatable results.Key FeaturesThe MPX-SR3 Fiber Shaker incorporates several practical features designed to simplify testing procedures while enhancing measurement performance.One of its primary benefits is its ability to reduce speckle in laser-based multimode measurements. By continuously agitating the fiber during operation, the shaker averages modal interference effects and improves the repeatability of Encircled Flux measurements. This capability is particularly important when testing multimode optical transmission systems that rely on laser sources.The system features dual fiber channels, allowing users to support multiple fiber types with a single instrument. Standard configurations include one channel fitted with OM1 (62.5/125 µm graded-index fiber) and a second channel fitted with OM2 (50/125 µm graded-index fiber). Alternative configurations are also available using OM3 and OM4 fibers to meet modern multimode testing requirements.For convenient integration into existing optical test setups, each channel includes input and output ports fitted with FC/PC connectors as standard. This simplifies installation and allows quick connection to light sources, patchcords, and measurement systems.The MPX-SR3 also offers a compact design with dimensions similar to the MPX platform, making it easy to transport between test locations and integrate into busy laboratory environments. Its small footprint minimizes bench space requirements while maintaining robust performance.Additional key benefits include:Dual fiber inputs available in OM1/OM2 or OM3/OM4 configurations.Lightweight construction for improved portability.Low-noise operation suitable for laboratory and production environments.Controlled shake frequency of 10 Hz for effective speckle reduction and measurement stability.Together, these features make the MPX-SR3 an effective and user-friendly tool for improving the quality and reliability of multimode fiber measurements.ApplicationsThe MPX-SR3 Fiber Shaker is designed for a variety of fiber optic testing applications where repeatability and compliance are critical.One of the most common applications is Encircled Flux measurement of laser-based multimode sources. The shaker helps eliminate the measurement variability caused by speckle, enabling more reliable EF assessments and improved confidence in test data.The instrument is also valuable for standards-compliant network testing, particularly where specifications such as IEEE 802.3aq and FOTP-203 require the use of a mechanical fiber shaker during testing procedures. By helping organizations comply with established industry guidelines, the MPX-SR3 supports accurate and repeatable certification workflows.In research and development environments, the device assists with optical source characterization, allowing engineers to evaluate the performance of multimode transmitters, VCSELs, and laser-based optical systems under controlled conditions. Consistent modal averaging helps ensure that measurement results accurately reflect true source behavior.The MPX-SR3 is also well suited for manufacturing and quality assurance testing, where repeatable measurements are essential for validating product performance and maintaining production consistency. Laboratories and production facilities can use the system to improve testing accuracy while reducing operator-related variability.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs multimode optical networks continue to evolve, achieving accurate and standards-compliant measurements remains essential for ensuring network performance and product quality. The Arden Photonics MPX-SR3 Fiber Shaker provides a simple yet highly effective solution for reducing speckle and improving the repeatability of Encircled Flux measurements.Whether you are validating multimode network components, characterizing optical sources, or performing compliance testing to industry standards, the MPX-SR3 can help increase measurement confidence and consistency. Its compact design, dual-fiber capability, low-noise operation, and proven speckle-reduction performance make it a valuable addition to any advanced fiber optic testing environment.

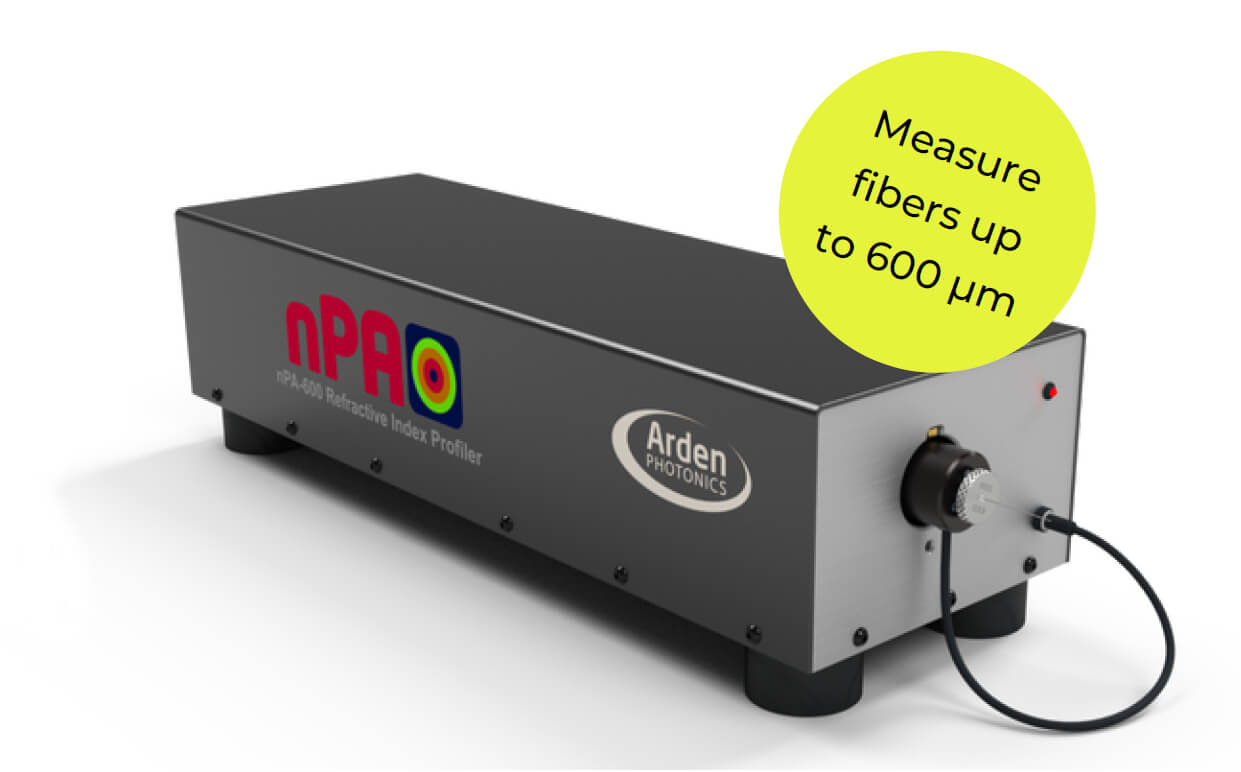

The nPA-600 Refractive Index Profiler from Arden Photonics is a powerful measurement system designed to provide fast, accurate, and comprehensive analysis of optical fiber refractive index profiles. Using a modified refracted near-field technique, the instrument analyzes a fiber end-face and determines the full two-dimensional refractive index distribution, giving fiber manufacturers, researchers, and quality assurance teams the essential data needed to evaluate and optimize fiber performance.As specialty optical fibers become increasingly sophisticated, precise characterization of refractive index profiles is critical for ensuring that designs perform as intended and manufacturing processes remain under control. The nPA-600 simplifies this task by delivering detailed refractive index measurements quickly and efficiently, enabling users to verify fiber designs, monitor production quality, and accelerate development cycles.Designed for both laboratory and production environments, the nPA-600 combines advanced measurement capabilities with an intuitive user experience. The system is supplied with the production-ready nPA v4.0 software platform, which enhances measurement speed, expands customization possibilities, and improves operational efficiency. The software also provides a flexible API, allowing seamless integration with customer workflows, automated systems, and manufacturing environments.One of the key advantages of the nPA-600 is its ability to measure optical fibers with diameters up to 600 μm. The instrument supports both circularly symmetric and non-circularly symmetric fiber designs, making it suitable for a wide variety of specialty fiber types, including polarization-maintaining (PM), octagonal, multicore, and other advanced fiber structures.Speed is another major benefit. Fiber preparation and measurement can be completed in less than two minutes, while full 2D measurements are performed in only seconds. This rapid workflow allows engineers and production teams to obtain high-quality measurement data without slowing development or manufacturing processes.The platform's functionality can be extended further through optional software plug-ins that introduce specialized measurement capabilities for single-mode fibers, PM fibers, bend-insensitive multimode (BIMM) fibers, and multicore fiber designs. Combined with its robust software environment and traceable recalibration options, the nPA-600 offers a future-ready solution for modern optical fiber characterization requirements.Key FeaturesMeasures the full 2D refractive index distribution of optical fibers using a modified refracted near-field measurement technique.Supports fiber diameters up to 600 μm, making it suitable for a broad range of specialty fiber designs.Enables sample preparation and complete measurement in under two minutes, with 2D measurements completed in seconds.Measures both circularly symmetric and non-circularly symmetric fibers, including PM, octagonal, and multicore fiber designs.Supplied with production-ready nPA v4.0 software for enhanced productivity and advanced measurement control.Provides multiple measurement configuration options, including customizable refractive index scales and measurement areas.Supports flexible reporting with output options such as PDF measurement reports.Delivers faster measurement performance for smaller fibers and streamlines routine testing workflows.Includes customizable measurement templates for rapid comparison against target specifications and manufacturing tolerances.Offers an API that facilitates integration with custom software, automated manufacturing systems, and laboratory platforms.Supports in-field traceable recalibration using a dedicated calibration tool and an optional calibration fiber certified by the National Physical Laboratory (NPL) and Arden Photonics, eliminating the need to return the instrument for routine calibration.Optional software plug-ins extend functionality for specialized fiber geometries and measurement requirements. Optional Software Plug-insThe nPA-600 platform can be expanded through dedicated software modules that provide advanced refractive index and geometry measurements for specialty fiber types:nPA-SPI01: Measures refractive index and geometry of Panda-style polarization-maintaining fibers with cladding diameters from 80 to 400 μm.nPA-SPI02: Measures refractive index and geometry of single-mode fibers with cladding diameters from 80 to 400 μm.nPA-SPI03: Measures refractive index and geometry parameters of bend-insensitive multimode (BIMM) fibers with 125 μm cladding diameter.nPA-SPI04: Measures refractive index and geometry of multicore fibers with cladding diameters from 40 to 600 μm.ApplicationsThe nPA-600 is ideal for specialty optical fiber design and development, providing the detailed refractive index information required to validate new fiber concepts and optimize performance characteristics. Researchers can use the system to evaluate complex fiber structures, compare design iterations, and ensure that manufactured fibers meet intended specifications.In production environments, the instrument supports quality control and process monitoring by delivering rapid and repeatable measurements. Manufacturers can use the collected data to verify process consistency, detect deviations early, and maintain high product quality throughout production runs.The system is also well suited for the characterization of polarization-maintaining fibers, multicore fibers, single-mode fibers, bend-insensitive multimode fibers, and other advanced specialty fiber designs. Its ability to measure both refractive index and geometry parameters makes it a versatile tool for a wide range of optical fiber technologies.Academic institutions, industrial research laboratories, and fiber manufacturing facilities can all benefit from the nPA-600's combination of speed, accuracy, flexibility, and automation-ready integration capabilities.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs optical fiber technologies continue to evolve, accurate refractive index characterization remains essential for successful product development and manufacturing control. The nPA-600 Refractive Index Profiler provides a fast, reliable, and highly adaptable solution for obtaining the data needed to understand, optimize, and validate modern fiber designs.With support for fibers up to 600 μm in diameter, advanced nPA v4.0 software, optional specialty measurement plug-ins, and seamless integration capabilities, the nPA-600 is designed to meet the needs of research laboratories, production facilities, and fiber developers alike. It delivers the measurement confidence required to accelerate innovation, improve quality assurance, and support the next generation of optical fiber technologies.

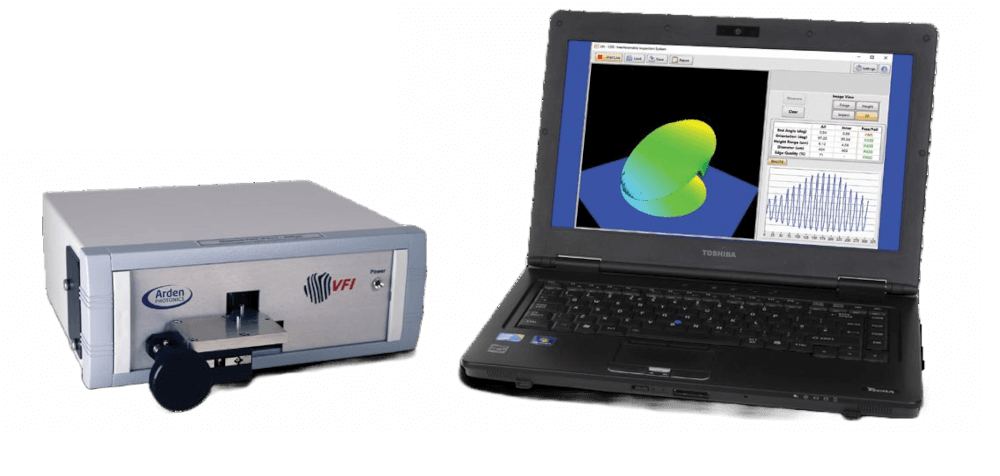

The VFI Interferometric Inspection System from Arden Photonics is a high-precision fiber end-face inspection solution designed to rapidly evaluate the quality, flatness, and geometry of cleaved or polished optical fibers. Suitable for fibers ranging from 125 μm to 2000 μm in diameter, the VFI series enables users to inspect and analyze fiber end faces with exceptional detail, helping to improve manufacturing processes, maintain quality standards, and optimize fiber preparation techniques.Specifically developed for the inspection of optical fiber end faces, the VFI uses interferometric measurement technology to provide detailed information about surface quality and end-face characteristics. The system allows users to examine fibers using multiple viewing modes, including both two-dimensional and three-dimensional displays, giving engineers and technicians a comprehensive understanding of their cleaving and polishing processes.The VFI is capable of measuring a wide range of standard and specialty fibers, including polarization-maintaining (PM) fibers and hollow-core fibers. Its flexibility makes it a valuable tool across research laboratories, manufacturing facilities, and quality assurance departments. By providing fast and reliable measurements, the system helps users identify process variations, verify fiber quality, and maintain consistent production standards.One of the key strengths of the VFI platform is its ability to present inspection data in multiple formats. Users can switch between inspection images, fringe patterns, height maps, and three-dimensional visualizations to gain deeper insight into fiber end-face quality. This comprehensive approach allows potential defects, polishing issues, and cleaving imperfections to be identified quickly and accurately.The system is designed for speed as well as precision. Real-time 2D measurements allow immediate visual inspection, while detailed 3D measurements can be completed in less than seven seconds. This rapid measurement capability supports efficient production workflows and minimizes delays in quality control procedures.In addition to advanced measurement capabilities, the VFI offers flexible data handling and reporting options. Height data can be exported as CSV files, while measurement results can be generated as Excel or HTML reports, making it easy to archive results, share findings, and integrate inspection data into existing quality management systems.Over the years, the VFI Interferometric Inspection System has established itself as a trusted solution in research, production, and quality assurance environments. Its combination of measurement accuracy, ease of use, and broad application range makes it an essential tool for organizations working with optical fibers and fiber-based devices.Key FeaturesDesigned for rapid inspection of fiber end-face surface quality and flatness on fibers ranging from 125 μm to 2000 μm in diameter.Supports inspection of standard and specialty fibers, including PM fibers and hollow-core fibers.Offers three different fields of view to accommodate a variety of fiber sizes and inspection requirements.Compatible with both flat and angled fiber cleaves.Provides dedicated Inspect and Fringe viewing modes for detailed evaluation of end-face characteristics.Supports automated or manual end-angle measurement capabilities.Includes both 2D and 3D measurement modes for comprehensive analysis.Generates detailed 3D end-face height maps for advanced inspection and process validation. Delivers real-time 2D measurements and completes 3D measurements in under seven seconds, enabling efficient workflows.Allows height data export in CSV format for further analysis and record keeping.Produces measurement reports in Excel and HTML formats to simplify documentation and reporting.Optional ribbon-fiber stages are available for efficient imaging and analysis of ribbon fiber structures.ApplicationsThe VFI Interferometric Inspection System is widely used in precision cleaver manufacturing, where accurate evaluation of fiber end-face quality is essential for ensuring consistent cleaving performance and maintaining manufacturing standards.Cleaver maintenance teams use the VFI to verify tool performance, identify wear-related issues, and ensure optimal operational conditions. Detailed inspections help reduce downtime and maintain consistent fiber preparation quality.In laser manufacturing, accurate fiber end-face geometry can have a direct impact on device performance and reliability. The VFI provides the measurement capabilities needed to confirm quality standards and optimize production processes.Medical device manufacturers rely on precision optical fibers in many products and systems. The VFI enables thorough inspection and verification of fiber end faces, supporting stringent quality and performance requirements.Research and development teams use the system to investigate new fiber designs, develop specialized processing techniques, and characterize both conventional and specialty fibers. The ability to examine fibers in 2D and 3D provides valuable insight during product development and process optimization.Additional applications include specialty fiber manufacturing, development and testing of angled cleavers, device pigtailing, large-diameter fiber (LDF) cleaver manufacturing and maintenance, fiber end-cap production, and multifiber bundle manufacturing.Why buy from AMS Technologies?Expert product selection and technical supportProven components from qualified suppliersReliable European service and supplyCustom engineering when standard products are not enoughOne partner from component to complete solutionWhat's nextAs fiber optic technologies continue to advance, maintaining high-quality fiber end faces becomes increasingly important for achieving optimal device performance and long-term reliability. The VFI Interferometric Inspection System provides a comprehensive and efficient solution for inspecting, measuring, and documenting fiber end-face characteristics across a wide range of fiber types and applications.With its combination of rapid measurement speeds, advanced 2D and 3D visualization tools, automated analysis capabilities, and flexible reporting options, the VFI helps organizations improve manufacturing quality, strengthen quality assurance procedures, and accelerate research and development activities. Whether used in production, laboratory, or maintenance environments, the VFI delivers the precision and reliability required for modern optical fiber inspection.
