VFI Interferometric Inspection System

The VFI Interferometric Inspection System from Arden Photonics is a high-precision fiber end-face inspection solution designed to rapidly evaluate the quality, flatness, and geometry of cleaved or polished optical fibers. Suitable for fibers ranging from 125 μm to 2000 μm in diameter, the VFI series enables users to inspect and analyze fiber end faces with exceptional detail, helping to improve manufacturing processes, maintain quality standards, and optimize fiber preparation techniques.

Specifically developed for the inspection of optical fiber end faces, the VFI uses interferometric measurement technology to provide detailed information about surface quality and end-face characteristics. The system allows users to examine fibers using multiple viewing modes, including both two-dimensional and three-dimensional displays, giving engineers and technicians a comprehensive understanding of their cleaving and polishing processes.

The VFI is capable of measuring a wide range of standard and specialty fibers, including polarization-maintaining (PM) fibers and hollow-core fibers. Its flexibility makes it a valuable tool across research laboratories, manufacturing facilities, and quality assurance departments. By providing fast and reliable measurements, the system helps users identify process variations, verify fiber quality, and maintain consistent production standards.

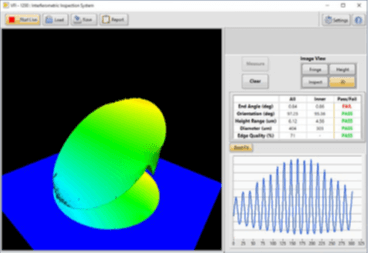

One of the key strengths of the VFI platform is its ability to present inspection data in multiple formats. Users can switch between inspection images, fringe patterns, height maps, and three-dimensional visualizations to gain deeper insight into fiber end-face quality. This comprehensive approach allows potential defects, polishing issues, and cleaving imperfections to be identified quickly and accurately.

The system is designed for speed as well as precision. Real-time 2D measurements allow immediate visual inspection, while detailed 3D measurements can be completed in less than seven seconds. This rapid measurement capability supports efficient production workflows and minimizes delays in quality control procedures.

In addition to advanced measurement capabilities, the VFI offers flexible data handling and reporting options. Height data can be exported as CSV files, while measurement results can be generated as Excel or HTML reports, making it easy to archive results, share findings, and integrate inspection data into existing quality management systems.

Over the years, the VFI Interferometric Inspection System has established itself as a trusted solution in research, production, and quality assurance environments. Its combination of measurement accuracy, ease of use, and broad application range makes it an essential tool for organizations working with optical fibers and fiber-based devices.

Key Features

• Designed for rapid inspection of fiber end-face surface quality and flatness on fibers ranging from 125 μm to 2000 μm in diameter.
• Supports inspection of standard and specialty fibers, including PM fibers and hollow-core fibers.
• Offers three different fields of view to accommodate a variety of fiber sizes and inspection requirements.
• Compatible with both flat and angled fiber cleaves.
• Provides dedicated Inspect and Fringe viewing modes for detailed evaluation of end-face characteristics.
• Supports automated or manual end-angle measurement capabilities.
• Includes both 2D and 3D measurement modes for comprehensive analysis.
• Generates detailed 3D end-face height maps for advanced inspection and process validation.
• Delivers real-time 2D measurements and completes 3D measurements in under seven seconds, enabling efficient workflows.
• Allows height data export in CSV format for further analysis and record keeping.
• Produces measurement reports in Excel and HTML formats to simplify documentation and reporting.
• Optional ribbon-fiber stages are available for efficient imaging and analysis of ribbon fiber structures.

Applications

The VFI Interferometric Inspection System is widely used in precision cleaver manufacturing, where accurate evaluation of fiber end-face quality is essential for ensuring consistent cleaving performance and maintaining manufacturing standards.

Cleaver maintenance teams use the VFI to verify tool performance, identify wear-related issues, and ensure optimal operational conditions. Detailed inspections help reduce downtime and maintain consistent fiber preparation quality.

In laser manufacturing, accurate fiber end-face geometry can have a direct impact on device performance and reliability. The VFI provides the measurement capabilities needed to confirm quality standards and optimize production processes.

Medical device manufacturers rely on precision optical fibers in many products and systems. The VFI enables thorough inspection and verification of fiber end faces, supporting stringent quality and performance requirements.

Research and development teams use the system to investigate new fiber designs, develop specialized processing techniques, and characterize both conventional and specialty fibers. The ability to examine fibers in 2D and 3D provides valuable insight during product development and process optimization.

Additional applications include specialty fiber manufacturing, development and testing of angled cleavers, device pigtailing, large-diameter fiber (LDF) cleaver manufacturing and maintenance, fiber end-cap production, and multifiber bundle manufacturing.

Why buy from AMS Technologies?

• Expert product selection and technical support
• Proven components from qualified suppliers
• Reliable European service and supply
• Custom engineering when standard products are not enough
• One partner from component to complete solution

What's next

As fiber optic technologies continue to advance, maintaining high-quality fiber end faces becomes increasingly important for achieving optimal device performance and long-term reliability. The VFI Interferometric Inspection System provides a comprehensive and efficient solution for inspecting, measuring, and documenting fiber end-face characteristics across a wide range of fiber types and applications.

With its combination of rapid measurement speeds, advanced 2D and 3D visualization tools, automated analysis capabilities, and flexible reporting options, the VFI helps organizations improve manufacturing quality, strengthen quality assurance procedures, and accelerate research and development activities. Whether used in production, laboratory, or maintenance environments, the VFI delivers the precision and reliability required for modern optical fiber inspection.
