FL500 Laser Diode Drivers

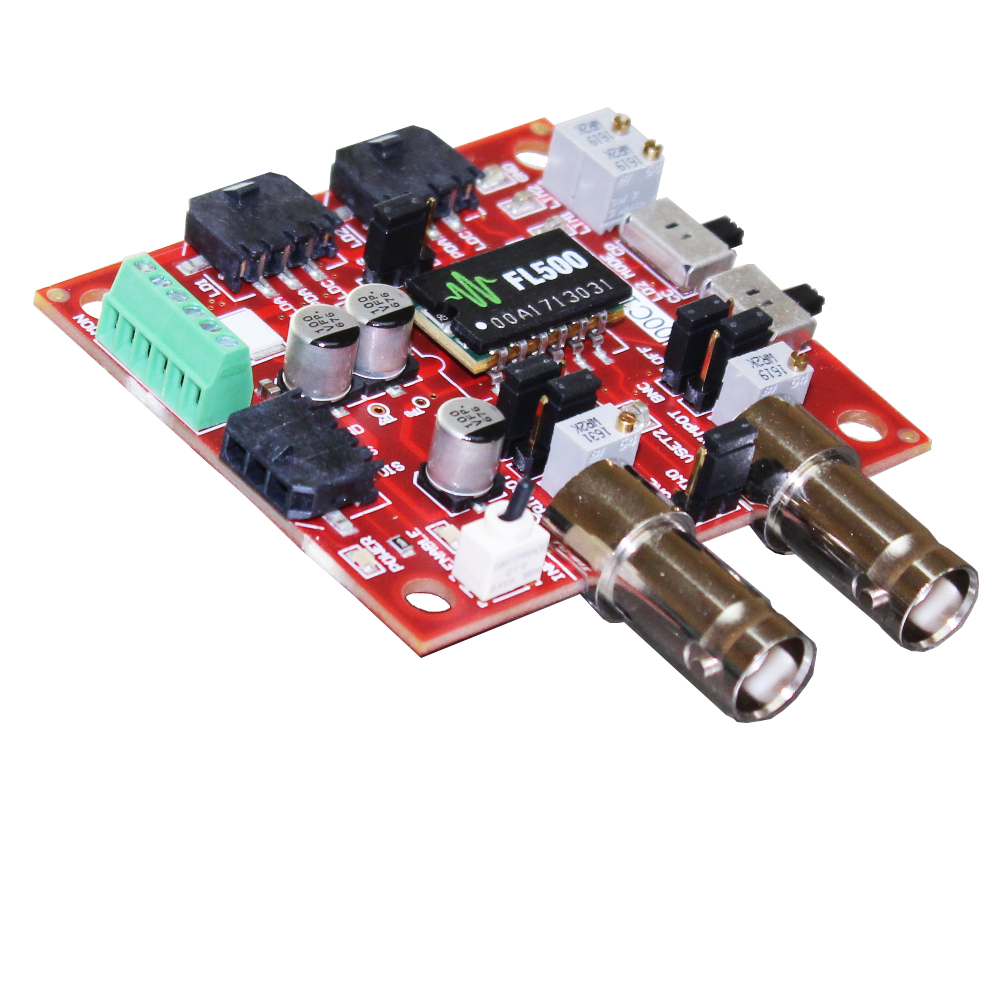

Output Current LD 0.5 A; Chassis Mount; Compatible with Type A & B Lasers  Wavelength Electronics’ FL591FL series of laser diode driver evaluation boards allows you to quickly and efficiently evaluate Wavelength Electronics’ FL500 laser diode driver and prototype your laser electronics system. The evaluation board is designed so that you can fully characterize the included FL500 — you’ll know exactly how it will perform in your application, and there will be no surprises during the development process. Ultimately, you’ll bring your system to market faster and at lower cost. FL591FL can be configured to drive a single 500 mA output or two 250 mA independent outputs by setting onboard jumpers. The drivers operate in constant current or constant power modes. Onboard current setpoint and limit trimpots mean no external electronics are required to operate the drivers. Simply connect the power supply and laser diodes, and you’re ready to go. The FL591FL series is loaded with useful features to help simplify the prototyping process. For example, there are several setpoint-output combinations: Two independent outputs, each driving up to 250 mA, and controlled by separate setpoint signals or by a single setpoint signal alternatively; two independent 250 mA outputs controlled by a single setpoint signal; a single output, driving up to 500 mA. The current limits are set using onboard trimpots and without enabling the output. The setpoint is controlled using the onboard trimpots or the BNC connector for external control – or the two can be summed. Summing the setpoint signals makes modulating a laser easy and foolproof. The control mode — constant current or constant power — is set with onboard switches. When operated as two independent drivers, the two channels can be operated in different modes. An external signal is required to enable the output; this Enable input can be connected to a safety interlock or coupled to a temperature controller that will disable the output if the lasers exceed a safe operating temperature. Drive current and photodiode current monitor outputs can be tied to an external control and monitor circuit so you can characterize every aspect of your laser control system. The FL991FL series provides easy access to the setpoint and current limit reference signals for design evaluation and validation of your laser control electronics. It is also available without the FL500 controller installed – please contact AMS Technologies. Download the datasheet to view a more detailed specification chart, and then get in touch with AMS Technologies’ sales engineers so we can help you choose the right driver for your application. Free, effective and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard products can be easily modified to meet your application requirements. Get in touch with the AMS Technologies laser diode driver experts to discuss your customized solution! Key Features: Evaluation Board for FL500 Laser Drivers, Benchtop or Chassis Mounting Includes FL500 Laser Driver Chip Already Installed Enables Operation of FL500 in Any Mode Up to 500 mA LD Current (single) or Configured as Two 250 mA Drivers Output Current Noise: 3 µA RMS Supply Voltage: 3 to 9 VDC Modulation Bandwidth 500 kHz (CC, Sine Wave) Includes All Safety Features of FL500: Current Limit, Slow Start, Brownout Protection Onboard Trimpots Adjust Output Current and Current Limits Switches Choose CC or CP Mode On-board Switch for Enable / Disable Photodiode Feedback Range: 0 to 1 mA; Adjustable Includes Input/Output Cable Set Monitor Signals on Terminal Strip LED Indicates Laser Enabled Rise / Fall Times: 300/300 ns to Full Scale Applications: Accurately and Efficiently Characterize the FL500 Laser Diode Driver in Your Application Environment; Driving Type A and B Laser Diodes in Space Constrained Environments; VCSELs; Handheld Devices; Spectroscopy Systems; Airborne Applications; Sighting & Detection; Other
