FE456021550 Receptacle Style Collimator

Accessory for TEC Temperature Controller; Display; 4-digit The 5R6-576 display is a 4-digit display for the 5R7-001/5R7-002 TEC temperature controller. The display features a minimum temperature display resolution of 0.1°. Using the switches on the display, the set point of the TEC temperature controller may be changed. There are two LED’s which indicate whether the readout is showing control temperature or set temperature. For instance, if the temperature is over 100° the readout will have a resolution of 0.1. Specifications: Temperature Readout: 4 Digit-Display Temperature Resolution: 0.01° Display Switches: Increasing the set point Decreasing the set point To choose whether to display the set temperature or the control temperature

Together with our supplier Vortex, we are able to provide optical beamsplitters and dichroic filters that are placed in optical systems usually at 45° to separate (or combine) different wavebands or wavelengths. One band is reflected from the front surface, while the 2nd band is transmitted through. Vortex’s beamsplitters and dichroic filters can be used to separate different planes of polarization. Some examples of Vortex’s previous work: Beamsplitter for Visible Region to Split/Combine Two Wavelength Bands, 45° Beamsplitter to Separate Two Wavelength Bands in the Mid IR Region at 45° Mid IR Filter Used for Separating S and P Polarization Bands at 45° Polarizing Beam-Splitter for S and P Polarization for 1550 nm Laser at 45° Filter for Separation of Visible and Far Infrared at 45° We are happy to provide a unique beamsplitter or dichroic filter – designed, specified and manufactured to your application’s requirements. Contact the AMS Technologies experts today to discuss your customized beamsplitter or dichroic filter solution!

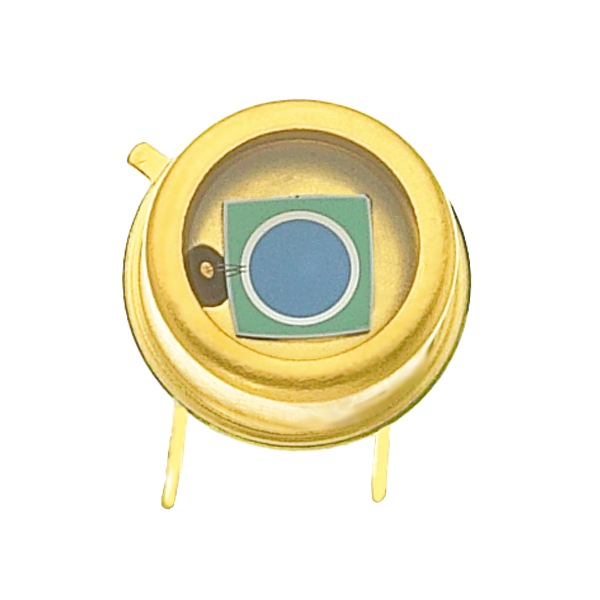

Silicon Photodiodes;UV-Planar Diffused;0,12 A/W;TO-5;980 nm

Interchangeable Fixtures for Connectors, Waveguides, Bare Fibers, Other; Film Size 4 Inch Diameter; Capacity up to 8 Components; Connector Apex Offset <50 µm; Connector Radius of Curvature 5-25 mm; Connector Protrusion/Undercut: 50--120 nm KrellTech’s NOVA™ automated polishing system provides maximum flexibility for optical surface processing and supports a variety of polishing applications from connectors to waveguides, and bare fibers to custom components. NOVA™ is scalable for R&D projects, high-volume production and the rigors of harsh environments and field installation. NOVA™ workholders feature KrellTech’s patented independent suspension at each connector position for controlled pressure and uniform contact. Combined with NOVA’s Microfeed™ fixture advancement, connector “airpolishing” and epoxy removal can be performed directly in the machine. Each position is optically aligned for optimal polish geometry using KrellTech’s patented process and calibration mechanism. Connector types can also be mixed and matched in a single fixture. NOVA’s versatility provides the ability to support the polishing of many photonic components. A quick change-out of workholder fixtures provides processing capability for waveguides, optical chips, PLCs, lenses and fiber arrays. Workholders utilize a unique holding mechanism that can secure a wide range of component dimensions. The polishing angle is adjustable and custom fixtures can be fabricated for specialized applications. Bare fiber can be polished at variable angles using specialized workholders and adapters. A variety of fiber types from standard single mode (SM) to polarization maintaining (PM) and sapphire to PCF can be processed into wedge and chisel tip shapes. A quick swap-out of adapters allow the polishing of fiber diameters from 80 um to >3 mm. NOVA™ features an intuitive user interface for creating polishing programs. All parameters including cycle time, pressure and speed settings are easily inputted for all component types and desired surface geometries. A unique “manual mode” allows the adjustment of polishing parameters in real-time during NOVA™ operation. This feature streamlines process development efforts and facilitates easy and quick program creation and refinement. A new NOVA™ operation software kit is available that upgrades NOVA™ polishers with the enhanced microfeed feature. This polishing routine provides greater programming flexibility for advancing components to the polishing surface at slower and more controllable rates. While version 1 NOVA™ software was limited to 10 pre-programmed microfeed rates, with the slowest being 100 µm/s, version 2 software allows to customize rates as slow as 5 µm/min. This yields precise removal of material stock and continual component advancement. The enhanced microfeed is ideal for larger optical surfaces, delicate bare fibers, and connector air polishing. V2 also provides the ability to create "pop-up" window prompts in between each polishing step, very useful as reminder to technicians to clean fibers, inspect polishing lengths, confirm geometry, etc. before initiating the next process step. New folder management allows programs to be organized according to connector types, fiber diameters, component, etc. Bare Fiber Coning and Chisel Option The optional Orbit™ bare fiber coning and chisel system enhances NOVA™'s bare fiber processing with conical and chisel tip shaping. Unique fiber tip geometries can be formed for lensing, sensing and light guiding applications. The fiber rotation module can be mounted on standard NOVA™ variable angle and waveguide workholders. Fiber "spin" speed is user adjustable and can be set for continual rotation or the unique "360 auto-reverse" motion that prevent fiber twisting and torquing. All variables are entered and selected via a touchscreen on the Orbit™ controller. When combined with NOVA™ Auto-Angle Workholders, Orbit™ precisely positions the polishing fixture at the designed angle on a repeatable basis. Inspection Options Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA™.  NOVA™'s Profile Videoscope allows the real-time monitoring of component polishing. This videoscope aids with bare fiber/component positioning and confirms process completion. Teamed with measurement software, this system verifies the endface geometry of a broad range of photonics components. Teamed with measurement software, this system verifies the endface geometry of fibers, waveguides and arrays. NOVA™'s Surface Videoscope allows the in-line inspection of polished surfaces while the component is still loaded in the polisher. This minimizes material handling and streamlines photonic production compared to the traditional process of transferring components to off-line inspection stations. Polishing and specification compliance can be determined in a single workcell. Key Features: Precision Optical Polishing Wireless Tablet Control With Microfeed™ Telcordia Compliant Interchangeable Fixtures for Waveguides, Bare Fibers and More Air Polishing Machine Polishing Pressure: Programmable & Automated, Linear Displacement With Micron Positioning Control Polishing Speed and Cycling Time: Program Selectable Polishing Motion: Random Orbital Polishing Routines: Programmable (Step by Step Prompts), Microfeed™ Controlled Advancement, Manual Mode With Full Process Control Film Size: 4 Inch Diameter Connector Support: All Industry Standard Connectors, MIL-spec Termini and Ferrules, UPC & APC Geometries Connector Capacity: Up to 8 Components – Selections Can Be Mixed & Matched in Same Workholder Fixture Connector Apex Offset: <50 µm Maximum, <15 µm Typical Connector Radius of Curvature: 10 to 25 mm (2.5 mm Ferrules), 7 to 20 mm (1.25 mm Ferrules), 5 to 12 mm (APC Ferrules) Connector Protrusion/Undercut: 50 nm to -120 nm Connector Back Reflection: <-60 dB (UPC), <-65 dB (APC) Connector Insertion Loss: <0.25 dB Typical Connector Process Time: Approximately 15 s/Connector Waveguide Component Support: Waveguides, Planar Lightwave Circuits, Optical Chips, Fiber Arrays Waveguide Component Dimension Range: Width 5 to 30 mm, Thickness 0.5 to 5 mm, Length >5 mm Waveguide Angle Repeatability: ±0.3° (X/Y Axis Along Edge) Waveguide Adjustable Polish Angle Range: 0° (Flat) to 45° Fiber Type Range: Single Mode (SM), Multi Mode (MM), Polarization Maintaining (PM), Plastic, PCF, Chalcogenide, Sapphire, Specialty Fibers Fiber Diameter: 80 µm to >3 mm Fiber Angle Range: 0° (Flat) to 50° Fiber Angle Repeatability: ±0.5° Typical Equipment Footprint & Weight: 305 x 305 mm, 11.3 kg Applications: Automated Optical Polishing of Connectors, Waveguides, Bare Fibers and More; Research and Development Projects; High-volume Production; Harsh Environments and Field Installation
