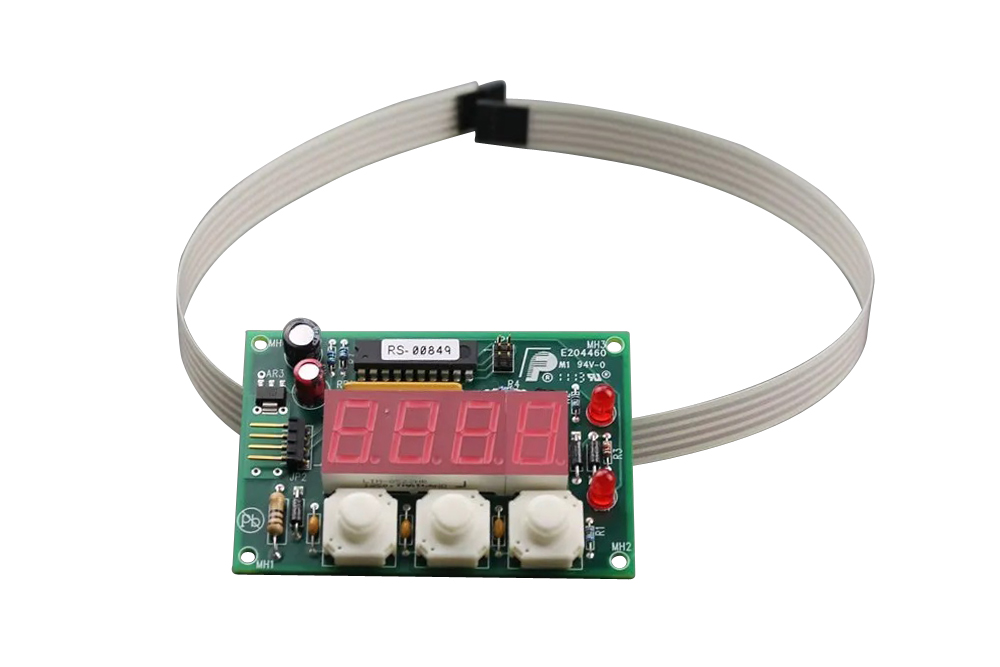

5R6-576 Digital Display for 5R7-001/5R7-002 TEC Temperature Controller

Accessory for TEC Temperature Controller; Display Specifications: Temperature Readout: 4 Digit-Display Temperature Resolution: 0.01° Display Switches: Increasing the set point Decreasing the set point To choose whether to display the set temperature or the control temperature

Accessory for TEC Temperature Controller; Display; 4-digit; for 5R7-582 The 5R7-584 display is a 4-digit display for the 5R7-582 TEC temperature controller. The display features a minimum temperature display resolution of 0.1°. Using the switches on the display, the set point of the TEC temperature controller may be changed. There are two LED’s which indicate whether the readout is showing control temperature or set temperature. For instance, if the temperature is over 100° the readout will have a resolution of 0.1. Specifications: Temperature Readout: 4 Digit-Display Temperature Resolution: 0.01° Display Switches: Increasing the set point Decreasing the set point To choose whether to display the set temperature or the control temperature

User interchangeable mount for using the cLDD base unit with butterfly type devices, including adapter boards for Type 1, Type 2 and custom pin-out routing (mount only).

Connect Laser Diode Drivers and TEC Drivers With Loads, Power Supplies or Other Instrumentation; Unterminated or Pre-Confectioned With USB, SMA, BNC, DB, Teflon, Ring or Other Connector An extensive range of cables for Wavelength Electronics‘ laser diode drivers, quantum cascade laser drivers and temperature controllers is available. The spectrum reaches from simple USB, BNC or SMA cables to cables with DB or other connectors, one or both sides unterminated, all the way to sophisticated cable and connector assemblies and connector kits. These cables can be used to connect the Wavelength Electronics driver series with the power supply, the load, a computer or other instrumentation. More information can be found in the datasheet of the different series. Please contact AMS Technologies for more information. Free, effective and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard products can be easily modified to meet your application requirements. Get in touch with the AMS Technologies experts to discuss your customized solution!

User interchangeable mount for using the cLDD base unit with DIL type devices (mount only).

 Accessory for TEC Temperature Controller; DisplayThe DISP-573 display is a 4-digit display for the 5R-573 TEC temperature controller. The display features a minimum temperature display resolution of 0.1°. Using the switches on the display, the set point of the TEC temperature controller may be changed. There are two LED’s which indicate whether the readout is showing control temperature or set temperature. For instance, if the temperature is over 100° the readout will have a resolution of 0.1. Specifications: Temperature Readout: 4 Digit-Display Temperature Resolution: 0.01° Display Switches: Increasing the set point Decreasing the set point To choose whether to display the set temperature or the control temperature

Evaluation Boards for Easy Set-up and Operation of Laser Diode Drivers and TEC Drivers; 51 x 53 x 11 mm to 114 x 140 x 70 mm; Drivers Not Included Wavelength Electronics provides a wide range of evaluation boards – helping engineers to quickly set up, operate and familiarize with Wavelength Electronics’ various series of laser drivers and TEC drivers. Featuring onboard switches, connectors, trimpots and other components, you can easily and quickly connect power supply and load, set parameters like current range, proportional gain or other setpoints and monitor values like the actual temperature – ideal for prototyping your control system and making it easier to integrate your final design. Use the HTCEVALPCB evaluation board to rapidly prototype a complete temperature control system based on the HTC series of TEC drivers (HTCxxoo-62 variants, not included). This evaluation board includes the HTCHTSK heat sink and measures 107 x 112 x 32 mm with HTC and heatsink installed. DVM cable ready test points monitor the setpoint and actual temperature. The LDDEVALP evaluation board supports the LDD P series of laser diode drivers (not included). Two jumpers set up for Type A, B, or C laser diodes. A power LED indicates when power is connected to the board. A transzorb protects against over-voltage. A cable for TO-3 laser diodes is available. Use the PIDEVALPCB evaluation board to rapidly prototype a complete temperature control system based on the PID1500 series of TEC drivers (not included). This evaluation board measures 61 x 112 x 46 mm with the PID1500 TEC driver installed. DVM cable ready test points monitor the setpoint and actual temperature. The PLDEVALPCB is an evaluation board for the PLD series of laser diode drivers (up to the PLD6500 model, driver not included), simplifying benchtop operation of the PCB mount drivers and reducing prototyping time. For the high-power variants PLD10000 or PLD12500 please refer to the PLD10EV evaluation board below. PLDEVALPCB measures 86 X 112 x 59 mm with the PLD driver installed and includes a terminal strip for easy wiring to the power supply and laser diode. DVM cable ready test points monitor the setpoint, current limit, and photodiode signal voltages. Use the PLD10EV evaluation board to rapidly prototype a complete high-power laser diode control system based on the PLD10000 or PLD12500 laser diode drivers (not included). This evaluation board measures 114 x 140 x 70 mm with the PLD driver installed. Onboard switches, power supply configuration jumpers, and probe-ready test points simplify your setup and configuration tasks, so you will have the PLD up and running in minutes. The PLD10EV board includes high-current screw terminals to connect the power supply and laser diode. Use the PTCEVAL evaluation board to rapidly prototype a complete temperature control system based on the using the PTC series of TEC drivers. This evaluation board measures 102 x 140 x 77 mm with the PTC driver installed. The screw terminal connector provides direct access to all the pins on the controller and speeds setup of the evaluation board with your electronics. Onboard switches and trimpots make configuration and operation of the controller simple. Convenient test points are easy to use for monitoring the setpoint and actual temperature Use the WHY56ND-EV evaluation board to rapidly prototype a complete temperature control system based on the WHY56ND series of TEC drivers (not included). This evaluation board measures 57 x 57 x 28 mm with WHY56ND installed. Onboard switches, connectors, and trimpots make configuration and operation simple. Complete cable sets are included. Power and monitors are on one connector, load and sensor pins are on a second connector. Two SMT test points simplify the resistance measurement. An onboard fan connection can power a WXC30x fan attached to a WHS302 heat sink. Use the WLD33ND-EV evaluation board to rapidly prototype a complete laser diode control system based on the WLD33ND series of laser diode drivers (not included). This evaluation board measures 57 x 57 x 29 mm with standoffs and WLD, but without thermal kits installed. Onboard switches, connectors, and trimpots make configuration and operation simple. Input and output cables are also included. An onboard fan connector can power a WXC30x fan attached to a WHS302 heat sink. The LDMOUNT-5A, a 14-pin butterfly laser diode mount with integrated heat sinking, is available for simple connections between the WLD33ND and the laser. Use the WTC32ND-EV evaluation board to rapidly prototype a complete temperature control system based on the ultra-stable WTC32ND series of TEC drivers (not included). This evaluation board measures 57 x 57 x 53 mm with WTC32ND and full heatsink kit installed. Onboard switches, connectors and trimpots make configuration and operation simple. Configurable jumpers and switches optimize use of the sensor signal. An onboard fan connection can power a WXC30x fan attached to a WHS302 heat sink. When controlling laser diode temperature, the LDMOUNT-5A is available for simple connections between the WTC32ND and a 14-pin butterfly laser diode. The WTCPEVAL Board contains all the external components necessary to evaluate and configure the WTCP5V5A series of TEC drivers (not included). Once operation is understood with the evaluation board, the WTCP can be seamlessly transferred to the WTCP-OEM board (see below). This evaluation board measures 102 x 114 x 32 mm. Test points are provided on the evaluation board so that essential signals can be monitored during the WTCP configuration process. Connectors for power supply and TEC are also provided. The WTCPOEM board condenses the adjustable functions of the WTCPEVAL board for evaluating the WTCP-5V5A series of TEC drivers (not included) into a compact, fixed-value board, perfect for system integration. At 51 x 53 x 11 mm, this board includes a monitor/output connector, either a setpoint trimpot for a variable setpoint or a resistor pair for a fixed setpoint as well as resistors to set cooling and heating limits and all the tuning parameters. The WTCPOEM board is available as raw board or loaded with values specific to your application – please contact AMS Technologies for details.

Heatsinks For Wavelength Electronics Laser Diode Drivers and TEC Drivers; 31 x 31 x 12 mm to 121 x 252 x 45 mm; Aluminium; 0.58 °C/W to 5.6 °C/W A range of various heatsinks is available, suitable for selected Wavelength Electronics laser diode drivers and/or TEC drivers. MULTI-HTSK heatsinks are designed to support a wide range of Wavelength products during product evaluation. MULTI-HSK heatsinks are robustly designed with an 18 W capacity without airflow and a 40 W capacity with airflow. Mounting hardware and one packet of thermal paste are included. With dimensions of 102 x 152 x 29 mm and a natural convection thermal resistance of 1.57 °C/W (per 15 cm), MULTI-HTSK heatsinks are made from black anodized aluminium and support the following Wavelength Electronics series or drivers: LDTC, LDTC2/2, MPL (not MPL7500), PLD5K-CH, PTCxK-CH (not PTC10K-CH/SL), RHM5K-CH. MULTI-HTSK-HI heatsinks for 10 A driver models have mounting holes to support the PLD10K-CH, PLD12.5K-CH, or PTC10K-CH laser diode drivers or TEC drivers. MULTI-HTSK-HI heatsinks are robustly designed with over 20 W capacity without airflow and over 60 W capacity with airflow. Mounting hardware and one packet of thermal paste are included. MULTI-HTSK-HI heatsinks are made from black anodized aluminium with dimensions of 121 x 152 x 45 mm and feature a natural convection thermal resistance of 0.58 °C/W (per 15 cm). The HTSK-BRKT heatsink mounting bracket allows you mount the MULTI-HTSK and MULTI-HTSK-HI heatsinks vertically on your optical bench in order to improve airflow and help organize your work space. HTCHTSK aluminium heatsinks are tapped with two 4-40 holes to match the heatspreader of the HTC TEC drivers series. HTCHTSK heatsinks feature dimensions of 38 x 111 x 16 mm and a natural convection thermal resistance of 5.6 °C/W (per 7.6 cm). Two 4-40 x 0.375″ screws are included. WHS302 aluminium heatsinks are designed for use with the WTCP5V5A, WTC3243 or WHY5640 TEC driver series and the WLD3343 laser diode driver series, allowing them to operate at much higher power. With dimensions of 31 x 31 x 12 mm, these high performance heatsinks are specifically designed to fit the Wxx style packages. The fin configuration of the WHS302 heatsinks allows the units to be mounted in almost any position without affecting heat dissipation. An optional WXC30x fan may be installed on the heatsink for additional cooling.

The HTCHTSK heatsink is used with following temperature controllers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62 or HTC4000-62. The HTCHTSK is tapped with two 4-40 holes to match the HTC heatspreader and two 4-40 x 0.375" screws are included.

The HTSK-BRKT heatsink bracket can be used with following multi-heatsinks from Wavelength Electronics: MULTI-HTSK or MULTI-HTSK-HI. These heatsinks are compatible with following chassis-mounted temperature controllers and laser drivers from Wavelength PLD5K-CH, PLD10K-CH, PLD12.5K-CH, LDTC0520, LDTC1020, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, PTC10K-SL, MPL250, MPL500, MPL2500, MPL7500, MPT2500, MPT5000 or MPT10000. The bracket fits around the module, and the module can be installed without disassembling the bracket assembly. NOTE: module and heatsink are not included with bracket. The bracket mounts the heatsink in a vertical position, freeing space on your optical table. Convection is enhanced with the heatsink mounted vertically, so your Wavelength control module runs cooler at high powers. It's also a lot simpler to force additional airflow over the heatsink with a spare fan so you can use the heatsink to its full-rated capacity. Mounting holes are spaced and drilled to match optical table tops, and additional holes are provided in case you are mounting the bracket to a different surface. The heatsink bracket is compact, economical, and provides valuable benefits that will help streamline your optical table and lab bench setups. Key Features Convenient and simple design Improves airfl ow to the heatsink Helps keep your optical bench organized Works with most Wavelength Electronics chassis mounted Laser Diode Drivers and Temperature Controllers

Replacement for Connectors to Override the Interlocks for Quick Start-up Operation with the LDTC LAB and QCL LAB Series; One BNC 50 Ω Terminator Plus One 9-pin / Two 15-pin DSUB Connectors The LDTC INTLK KIT is used with Wavelength Electronics' LDTC LAB series of laser diode drivers and TEC drivers to override the interlocks for quick start-up operation. One kit is included with each of the LDTC LAB drivers. This kit includes two 15-pin D-SUB connectors with pins 2 & 3 jumpered together (one female and one male) to override the passive interlock on the LD type A/B and LD type C D-SUBs and a BNC 50 Ω terminator for the active lock interlock. The INTLK REPL KIT is used with Wavelength Electronics' QCL LAB series of laser drivers to override the interlocks for quick start-up operation. One kit is included with each QCL LAB driver. This kit includes a 9-pin D-sub male connector with pins 1 & 2 jumpered together to override the passive interlock on the QCL D-SUB and a BNC 50 Ω terminator for the active lock interlock. Free, effective and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard products can be easily modified to meet your application requirements. Get in touch with the AMS Technologies experts to discuss your customized solution!

14-pin Butterfly; 5 A Designed for 14-pin butterfly laser diodes with internal thermistors and Thermo Electric Coolers (TEC), the LDMOUNT is a laser diode mount with integrated heat sinking, and simple connections between the drivers and the diode laser. The LDMOUNT has easy connectivity. A zero insertion force (ZIF) socket holds the laser. Two 9-pin DSUB connectors enable TEC and laser driver control. Two basic butterfly laser diode types are supported. For any other pinout, the LDMOUNT-CU Card is available for hand wiring. LDMOUNT-5A Laser Diode Mount is used with following laser diode drivers, temperature controllers or evaluation boards from Wavelength Electronics: LDTC 2/2 O, LDTC 2/2 E, LDTC0520, LDTC1020, PLD10K-CH, PLD5K-CH, PTC10K-CH, PTC2.5K-CH, PTC5K-CH, LFI3751, TC10 LAB, TC15 LAB, TC5 LAB, WLD3393 or WTC3293.
