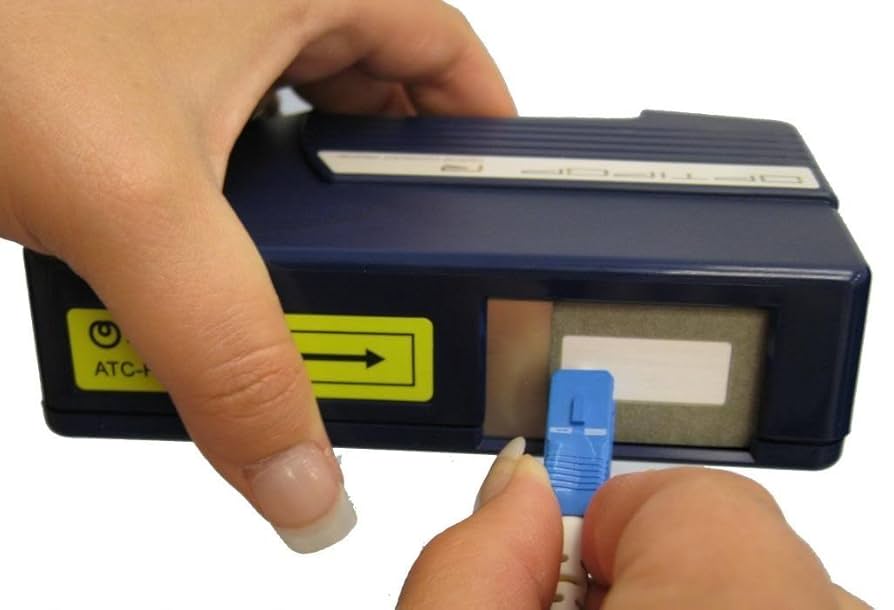

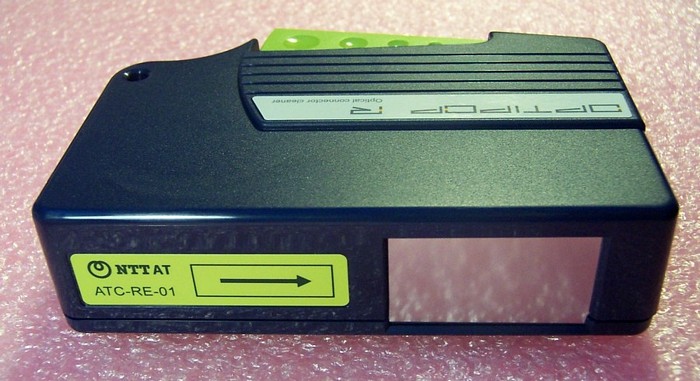

ATC-RE-01 OPTIPOP R1 Cleaning Tools for Optics

Cartridge;OPTIPOP;Consumable

Cleaning Tools for Optics;NEOCLEAN;Pen;Single-Core;MU;LC

Cable Diameter 125 micron, 250 micron, 900 micron, 1.6-3.0 mm.The JIC-375 Three hole Fiber Optic Stripper model performs all common fiber stripping functions. The first hole of this Fiber Optic Stripper strips the 1.6-3 mm fiber jacket down to the 600-900 micron buffer coating. The second hole strips the 600-900 micron buffer coating down to the 250 micron coating and the third hole is used to strip the 250 micron cable down to the 125 micron glass fiber without nicks or scratches. Handle is made of TPR (Thermoplastic Rubber). Cut Type Strip Cable Type Jacket, Buffer, Acrylate Coating Cable Diameter 125 micron, 250 micron, 900 micron, 1.6-3.0 mm Handle TPR (Thermoplastic Rubber) Color Yellow Handle Length 152 mm Weight 140.16 g

Cartridge;OPTIPOP;Consumable

Cartridge;CLETOP;Consumable

The WEV301 thermal solution kit can be used with following laser diode drivers and temperature controllers from Wavelength Electronics: WTCP5V5A, WTC3243, WTC3243HB, WHY5640, WLD3343, WLD3343-2L, WLD3343-3A, WLD33ND-3L or WLD3343HB. The controllers operate to 500 mA without any additional heatsinking (assuming 5 V operation). To operate up to 1 A, add the WTW002 thermal washer and the WHS302 heatsink. To operate to the full 2.2 A, add a fan WXC303 (5 V) or WXC304 (12 V). For convenience, a kit with two 0.75" and two 1" screws is available: WXC305. The WEV301 includes the WTW002 thermal washer, the WHS302 heatsink, and the WXC305 screw kit. Two other kits that add fans are available: WEV300 (includes thermal washer, heatsink, screw kit, and a +5 V fan) or WEV302 (includes thermal washer, heatsink, screw kit, and a +12 V fan).Key Features Extends the Safe Operating Area of the WLD, WTC, WTCP, and WHY to the full-rated output current Allows the WLD, WTC, and WHY to operate at higher ambient temperatures Two fan voltage options: 5 V and 12 V Used with WHY5640 Temperature Controller & WHY5690 Evaluation Board WLD3343 Series Laser Diode Drivers & WLD3393 Evaluation Board WTC3243 Series Temperature Controllers & WTC3293 Evaluation Board WTCP5V5A Temperature Controller & WTCPEVAL Evaluation Board

Cleaning Tools for Optics;CLETOP;Cassette Grip;Single-Core;Multi-Core;MU;LC;SC; FC;ST; MT;MPO;MTRJ

Proof test: 100 kpsi. Bend insensitive, high index single mode specialty optical fibers. Key optical specifications Operating Wavelength (nm)  > 980 Cutoff Wavelength (nm)  930 ± 40 Maximum Attenuation (dB/km)  ≤ 2.5 @ 980 nm    ≤ 1.0 @ 1550 nm  Mode-field Diameter (µm)  4.0 ± 0.3 @ 980 nm    6.3 ± 0.3 @ 1550 nm             Key geometric, mechanical and environmental specifications  Cladding Outside Diameter (µm)  125 ± 0.5 Coating Outside Diameter (µm)  245 ± 10 Core-to-Cladding Offset (µm)  ≤ 0.3 Standard Lengths  500 m, 1 km, 2 km, 5 km, 10 km Proof Test (kpsi)  100 Operating Temperature (°C)  -60 to 85           Performance characterizations* Nominal Delta (%)  1.0 Numerical Aperture  0.22  Refractive Index Value Core  1.472 @ 651 nm  Dispersion (ps/nm/km)  -65 @ 980 nm    -50 @ 1060nm Core Diameter (µm)  3.4           * Values in this table are nominal or calculated values Typical splice   HI 1060 FLEX   SMF-28e+®  RC SMF  ER 1550C3  HI 1060  HI 980  PM 980   Wavelength (nm)  1550 1550 1550 1550 980 980 980  HI 1060 FLEX (dB)   0.03 0.07 -- 0.03 0.06 0.04 0.09

Non-latching; 1xN, 2xN, NxM; Fiber Type SM, PM; 1250 to 1670 nm; Insertion Loss 0.4 to 2.5 dB; Crosstalk 60 dB; Switching Time 5 to 10 ms Sercalo Microtechnology’s co-axial fiber optic MEMS switches are available in 1xN, 2xN and NxM configurations. Their compact design offers a very low size and lower cost than standard switches. Nevertheless, it has slower speed and larger wavelength dependent loss than the SW or SL types. These co-axial switches are non-latching: at power-off they break the optical connection, and routing of ports is not defined. They are based on a strictly non-blocking bidirectional architecture, i.e. the common port can be used as input or output of the light signal. The underlying MEMS technology results in low insertion loss and low crosstalk between channels while keeping a constant switching performance over life. The hermetically sealed MEMS and the laser welded fiber collimators guarantee broad temperature range and superior long-term stability. No epoxy is present in the optical path. The series of co-axial fiber optic MEMS switches is compliant to Telcordia 1221 reliability standards and RoHS requirements 2015/863/EU. Sercalo Microtechnology’s SC type co-axial 1xN and 2xN fiber optic switches are based on a design where a single MEMS mirror redirects light from a common fiber to one of N ports. The miniature packages withstands rugged environments and is well suited for direct mounting on printed circuit boards. These switches are available in four different variants to simplify integration in existing systems and reduce development cost: standard size – ribbon fibers (SC); miniature size – small driver board: 7 x 40 mm (mSC); compatible with industry pinout, 900 um sleeved fibers and connectors (rSC); bare optical component (bSC). Sercalo Microtechnology’s SCBU type co-axial NxM fiber optic switches are based on a design where a matrix of MEMS mirrors redirects light from N inputs to M outputs. The optical networks can be based on a strictly nonblocking matrix (from 4x4 up to 16x16 ports) or on a tree structure (up to 2x540 ports). Key Features: Low Insertion Loss Reliable Non-latching Bidirectional 1xN, 2xN, NxM Variants Up to 2x540 Optical Ports Wavelength Range: 1250 to 1670 nm Insertion Loss (IL): 0.4 to 2.5 dB Response Time: 5 to 10 ms Crosstalk: 60 dB UART, I2C/SMBus and Parallel Interface Ethernet Interface Available on Request RoHS Compliant Applications: Telecom; Optical Network Switching, Reconfiguration, Protection and Restoration; Instrumentation; Test and Measurement

Cleaning Tools for Optics;NEOCLEAN;Stick;Single-Core;SC;FC;FA;FAS
