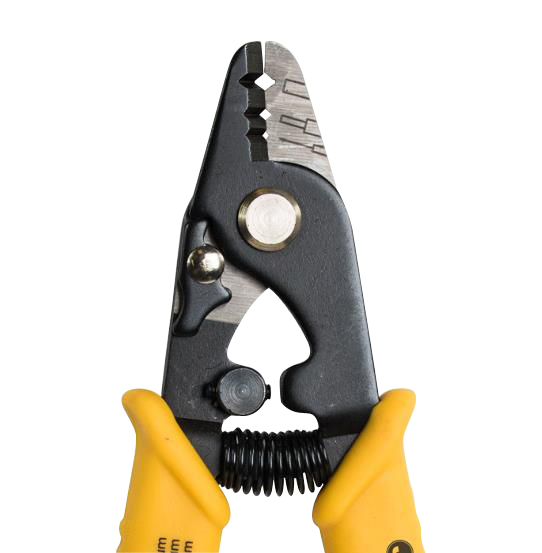

JIC-375 Fiber Optic Stripper Three Hole

€32.75*

Content: 1 pcs

Prices excl. VAT plus shipping costs

Available in 10 days, delivery time 1-2 days

pcs

Product number: C007011-6

Manufacturer: Jonard Tools

Downloads

Product information "JIC-375 Fiber Optic Stripper Three Hole"

Cable Diameter 125 micron, 250 micron, 900 micron, 1.6-3.0 mm.
The JIC-375 Three hole Fiber Optic Stripper model performs all common fiber stripping functions. The first hole of this Fiber Optic Stripper strips the 1.6-3 mm fiber jacket down to the 600-900 micron buffer coating. The second hole strips the 600-900 micron buffer coating down to the 250 micron coating and the third hole is used to strip the 250 micron cable down to the 125 micron glass fiber without nicks or scratches. Handle is made of TPR (Thermoplastic Rubber).

Cut Type	Strip
Cable Type	Jacket, Buffer, Acrylate Coating
Cable Diameter	125 micron, 250 micron, 900 micron, 1.6-3.0 mm
Handle	TPR (Thermoplastic Rubber)
Color	Yellow Handle
Length	152 mm
Weight	140.16 g

Manufacturer "Jonard Tools"

Jonard Tools was founded in 1958 as Jonard Industries Corp. Since that time many changes have shaped and molded the company into a diversified manufacturer extending to 20 distinct product lines. The evolution of when and how this happened is chronicled below. The secret to our success is no secret at all. With distribution expanded to all 50 states and over 100 countries, our brand names are now recognized throughout the world. Jonard manufactures over 700 unique products and in 2014 shipped 98.7% of all orders complete within 48 hours. For end users there are numerous instructional videos on many products, and we gladly provide technical support to meet your individual service requirements. Our engineering department is available to answer your technical questions or address your special needs. Our tools are used in many diversified applications. Throughout this website you will find many unique and patented tools available exclusively from Jonard. Our engineers have worked directly with our customers to develop unique custom products and to make our standard tools as user friendly as possible with all of our products RoHS and REACH compliant.
