Thermal Management

Product Portfolio
AMS Technologies is a leading supplier of components and assemblies for cooling photonics devices and power electronics as well as stabilizing the temperature of reagents, liquids, solids or gases.

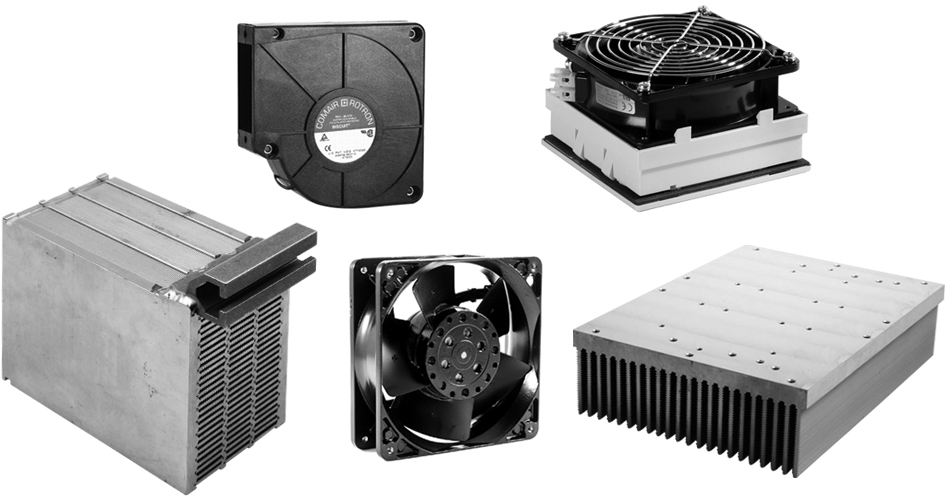

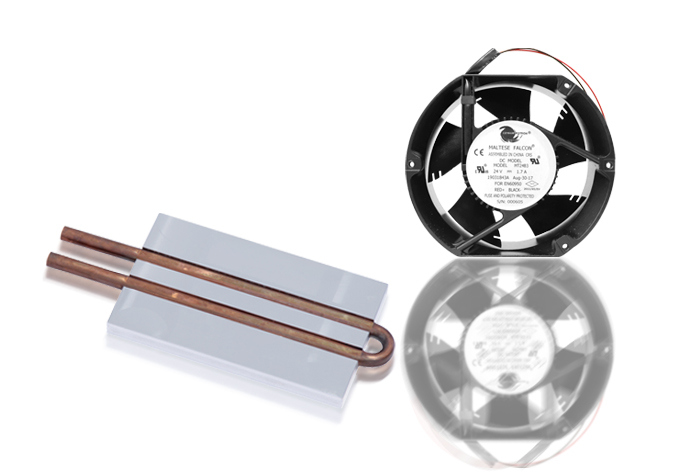

Our air cooling components dissipating heat to the ambient air comprise high-performance heat sinks, general purpose DC fans and AC fans for forced air ventilation, as well as filter fans with exchangeable exhaust filter inserts that ensure clean and reliable air exchange in cabinets.

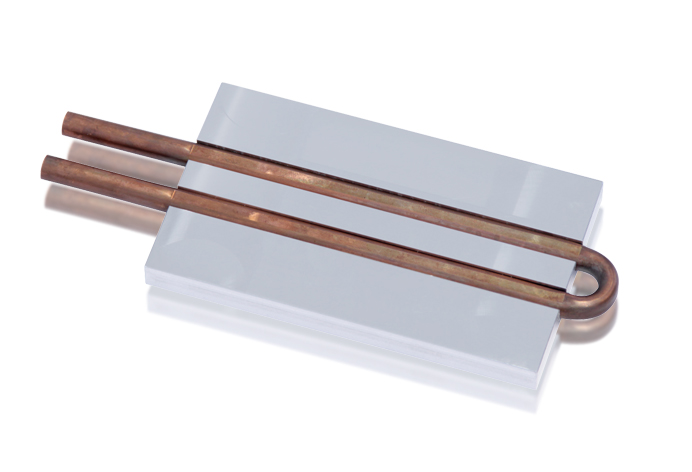

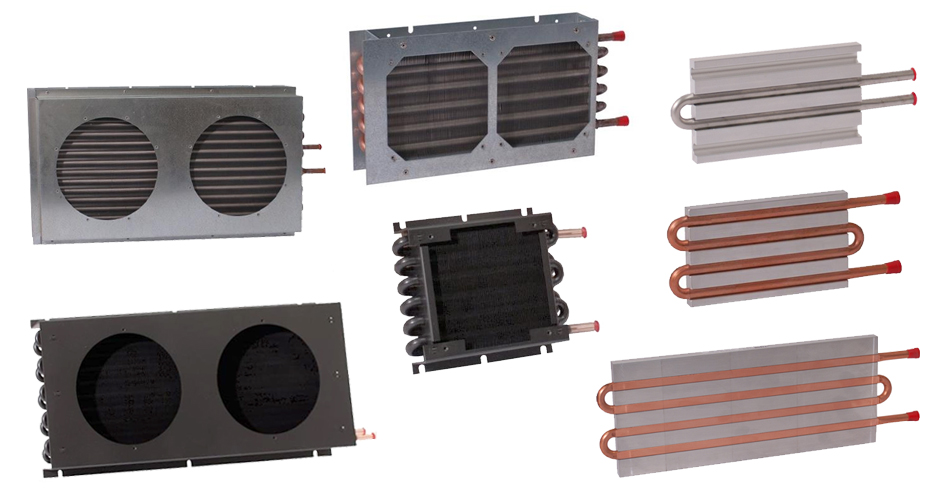

For managing higher heat loads, AMS Technologies carries a broad selection of liquid cooling components, including liquid-cooled cold plates and fin heat exchangers, available with different liquid path materials suitable for various liquids like deionized water or water-glycol-mixtures.

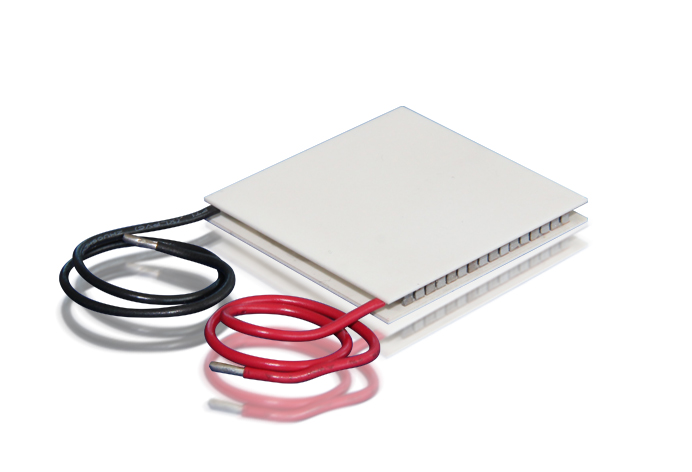

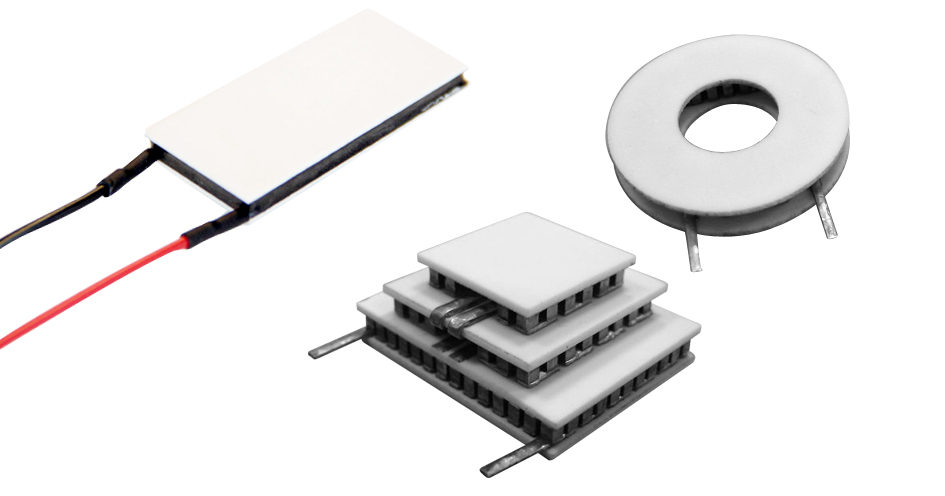

We offer also an extraordinary portfolio of thermoelectric or Peltier modules and provide extensive development services for thermoelectric-based cooling solutions for medical equipment, instrumentation, transportation and other applications.

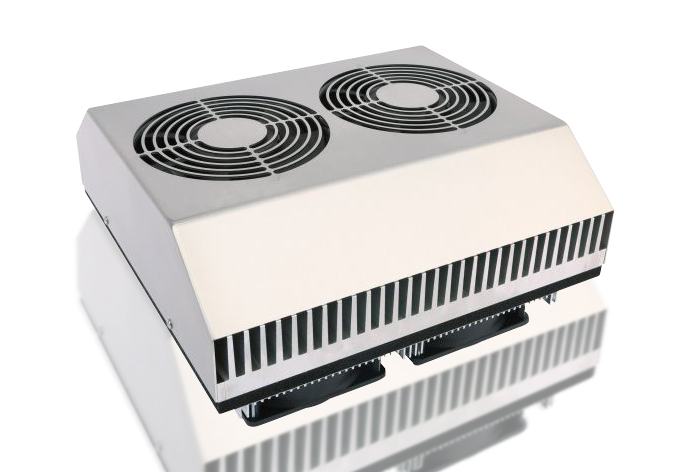

If you are looking for complete thermal management solutions rather than components, AMS Technologies supplies an exceptional portfolio of ready-to-use assemblies – ideal solutions to cool and remove heat from cabinets, control panels and battery packs or to cool reagents and drugs in analytical and life science applications consoles.

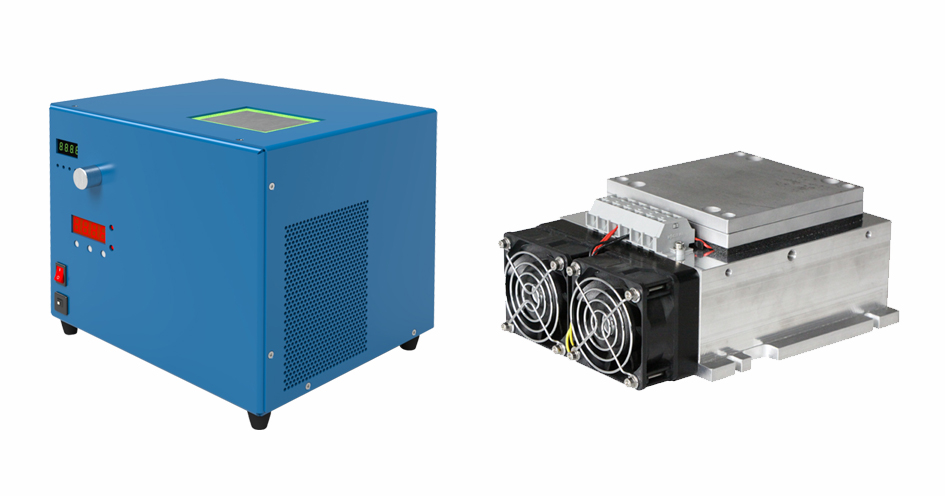

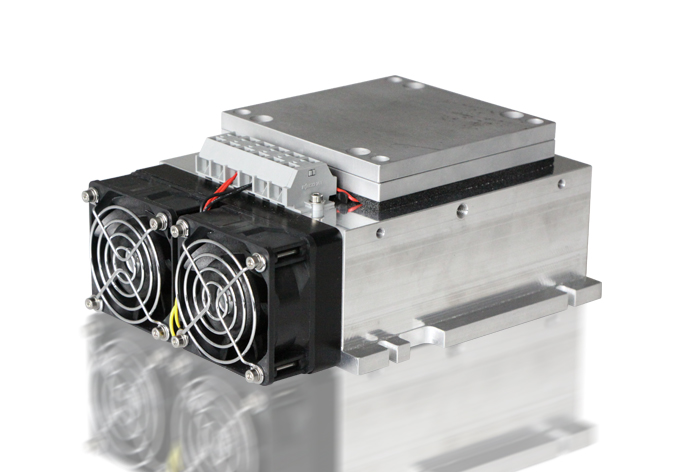

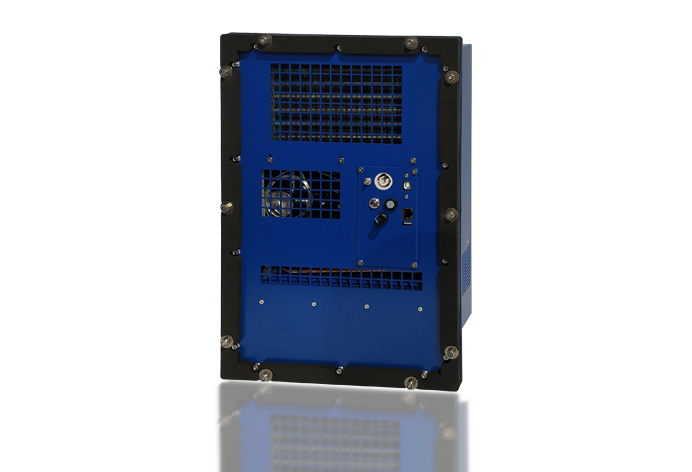

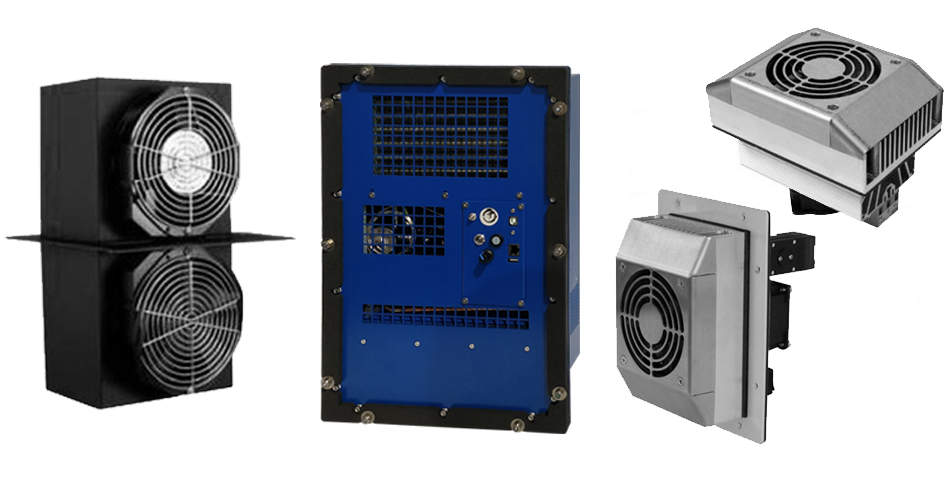

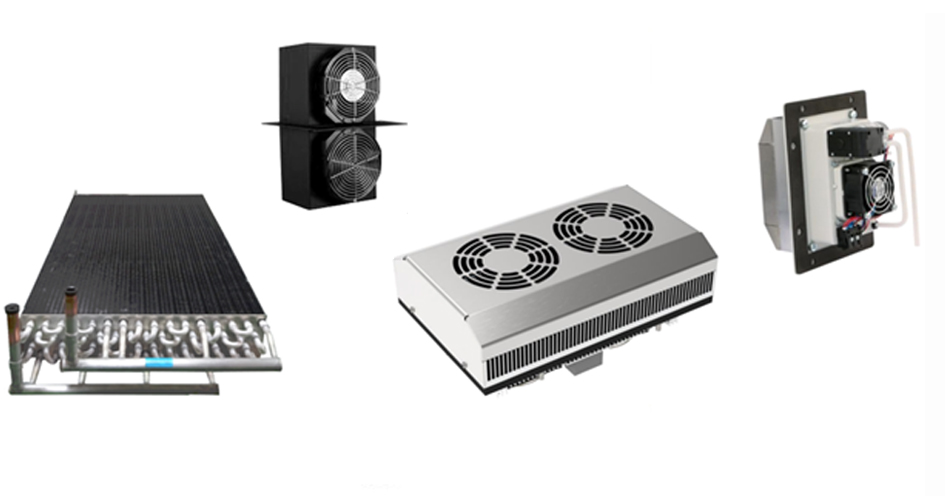

Our air to air thermal management assemblies include cabinet coolers, dehumidifiers and miniature air conditioners, while plate to air thermal management assemblies like our range of direct cooling kits are the ideal solution for photonics cooling when a solid state heat source like a laser diode needs to be cooled and temperature-stabilized by a compact and maintenance free cooling device.

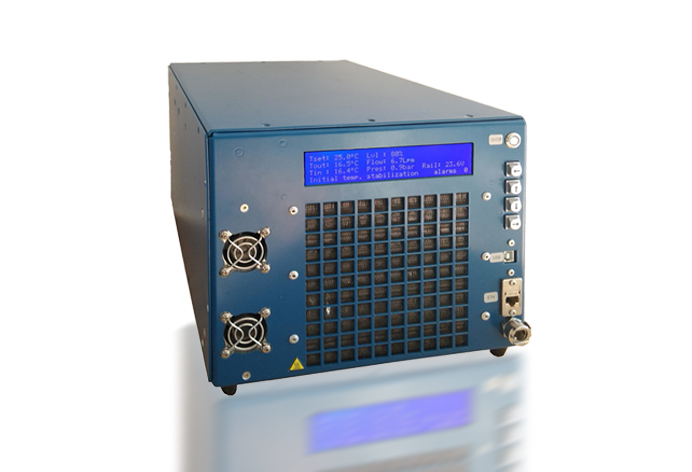

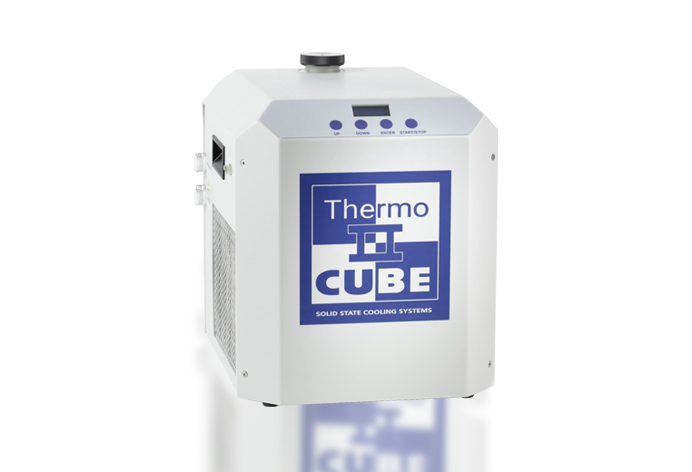

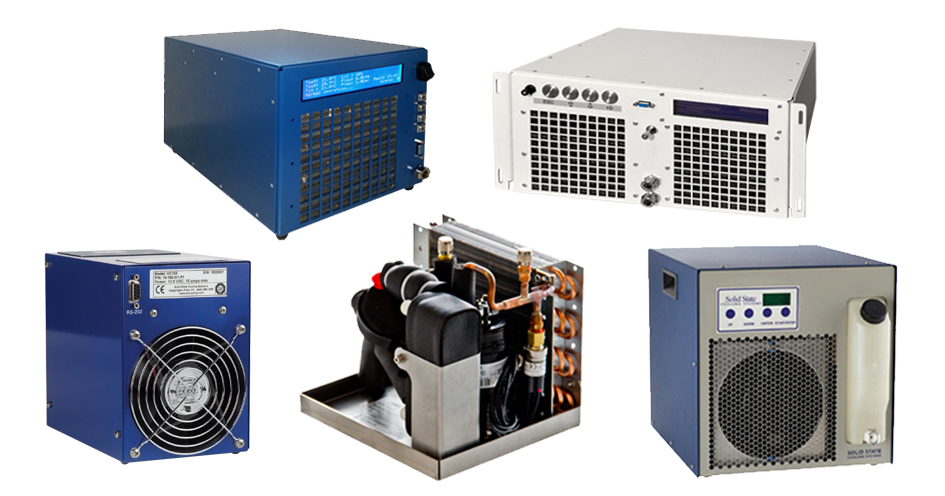

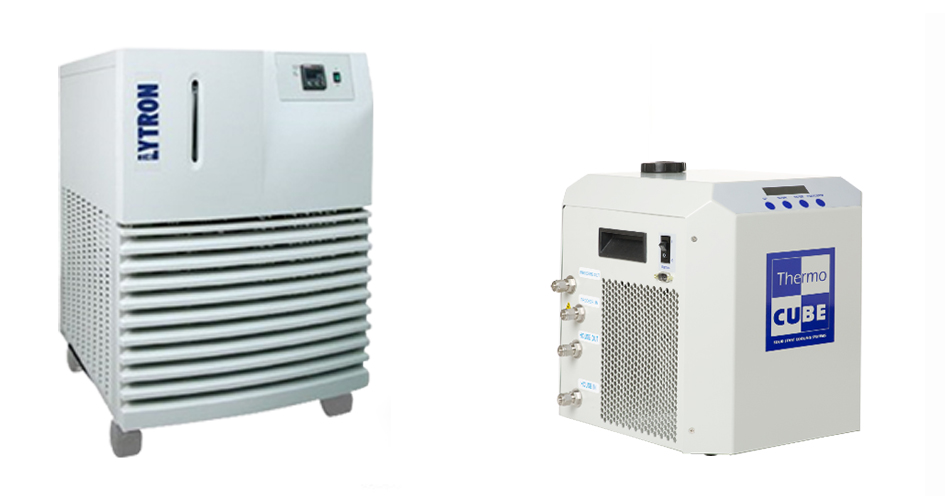

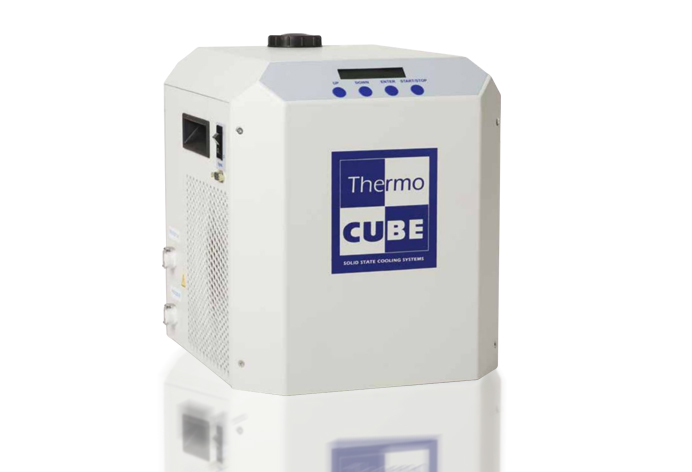

Liquid to air thermal management assemblies like our range of recirculating chillers, ambient cooling systems and other liquid to air thermal management solutions use water or water-glycol mixtures for heat transfer, while liquid to liquid thermal management assemblies like our range of water cooling pump stations, energy-efficient and environmentally friendly turbo compressor recirculating chillers or our LCS cooling systems are ideal solutions for cooling large power electronics or energy storage systems using process water.

If you can’t find an off-the-shelf device or assembly that meets your thermal management needs, please contact the AMS Technologies thermal management experts – together with our suppliers we can create a temperature control solution tailored to your requirements. We guarantee that we can provide a solution to any thermal management issue, no matter how complex.

Related Products
For drive and control of our thermoelectric devices, dedicated TEC temperature controllers or TEC drivers are available from stock, including analog and digital TEC drivers with PI (proportional, integral) or PID (proportional, integral, derivative) type of control.

Our thermal management technologies are used to cool optical technologies components and systems like lasers and light sources, laser diodes or LEDs, but also for removing heat dissipated by power switches, power modules or water-cooled capacitors for high electrical power.

Alternative Terms: Cooling Technologies; Temperature Control Technologies; Heat Removal

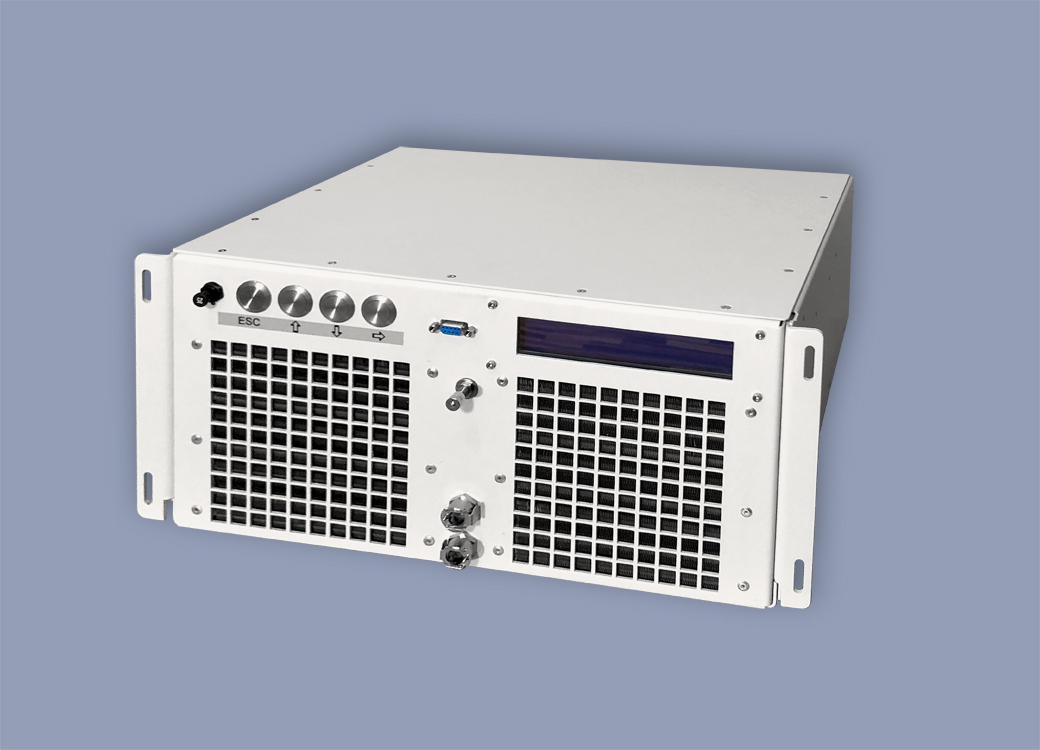

DmRC-C-900-24-KIT" Double Compressor-based Recirculating Chiller

Two recirculating chillers in one cabinet, up to 900 W cooling capacity, 24 V DC power supply The DmRC-C-900-24-KIT is a development kit suitable for applications requiring high water cooling performance in the smallest of spaces for water coolers. Based on miniature compressors, this "mini Recirculating Chiller" development kit provides two independent water cooling systems in a 19-inch rackmount insert, which can provide a combined maximum cooling capacity of 900 W. With this double chiller concept, DmRC-C-900-24-KIT can cool two heat loads independently of each other – the target temperatures for each of the two heat loads can be set individually. The compressors’ BLDC motors are speed controlled and offer low vibration and low noise throughout the speed range. Since the water circuit is pressurized, DmRC-C-900-24-KIT manages with very small tanks (2 x 275 ml) – without the risk of cavitation in the smoothly operating centrifugal pumps. Overpressure on the cooling system also prevents the ingress of bacteria and oxygen and thus extends the maintenance intervals. An electric air pump generates the pressure on the two water circuits and is also used for automatic complete filling and emptying of the cooling water circuits, simplifying the maintenance of the system. For customer requirements that cannot be covered by the DmRC-C-900-24-KIT, our thermal management specialists at AMS Technologies are happy to develop a completely tailor-made solution and offer all services from development through to series production. Specifications: Power Supply: <700 W (max. 29 A @ 24 V DC) Cooling Capacity (approximately): 900 W (2 x 450 W, TWATER +25 °C, TAMBIENT +25 °C) Temperature Range: ± 1 K (over-/undershoot at 250 W load ON/OFF), ± 0.2 K (continuous operation) Hydraulic Parameters: flow rate 1 lpm to 5.5 lpm @ 1 bar to 0.2 bar pressure drop at heat load Cabinet: rack-mount, 19”, aluminium housing Weight: 20 kg (Dry Weight: 19 kg) Dimensions (WxHxD): 440 mm x 220 mm x 350 mm (main body, without flanges)

Product number: SW10292

Manufacturer: AMS Technologies

mRC-C-450-100/240 mini Recirculating Chiller

Vapor Compression Chiller; 450W @+25°C; 230VAC; 2lpm; USB/ Ethernet; Benchtop Key Features: Miniature Recirculating Water Chiller Compact Size, Easy to be Integrated in Customer Application User-Definable PID Parameters and Fan Velocity Calm Operation With Low Vibration and Noise Ideal for Water Cooling Tasks up to 450 W IoT Ready: Remote Operation, Monitoring and Service over Integrated Ethernet Interface Full chiller power in a shoebox form factor: the mRC-C-450-100/240 mini recirculating chiller provides to 450 W cooling capacity and contains a compressor-based refrigerant circuit as well as a closed, recirculating coolant (water) circuit that is pressurized – all that in a compact, 350 x 290 x 230 mm housing. This small size is enabled by utilizing a miniature rotary compressor, customized miniature evaporator and condenser. On the coolant side, pressurizing the circuit allows a very small tank, and a compact centrifugal pump also contributes to reduced space requirements. Due to the speed-controlled compressor, the mRC-C-450-100/240 chiller offers low vibration and noise throughout the compressor’s BLDC speed range. Further features are automatic fill and drain of the coolant circuit, global operability due to a universal 90 to 264 VAC power supply, and an integrated Ethernet interface allowing remote operation, monitoring and service. Specifications: Cooling Capacity: 300 W (Twater = +20°C, Tambient = +40°C) to 500 W (Twater = +20°C, Tambient = +20°C) Temperature Stability: +2/-1.5 K Over-/undershoot at 250 W Heat Load ON/OFF, Down to 0.05 K Continuous Operation Available Pressure Head: 1.5 bar @1 lpm; 0.5 bar @5.5.lpm Noise Level: 63 dBA (fan 40%, compressor 100%) Control: Local, USB/Serial, Internet (Web Browser) via Ethernet (IoT Ready) Interlock I/O Alarms: Liquid Level, Tank Pressure, Coolant Feed Temperature, Coolant Flow Rate, Condenser Pressure Power Supply: 90 to 264 VAC, 24 VDC Derivative Available on Demand Power Consumption: <300 W Dimensions: 350 x 280 x 230 mm, Main Body Without Filter Weight: 13 kg Approval: CE Applications: Water Cooling of Lasers and Other Applications; Integration of Water Cooling Capabilities in Systems with Limited Space

Product number: P000173-3

Manufacturer: AMS Technologies

€4,200.00*

pcs

CP10G01 Aluminum Cold Plate with 2-Pass Copper tube, straight fittings

152.4 mm X 88.9 mm, 0.059 °C/W, tubed cold plate.The CP10™ 2-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008680-6

Manufacturer: Boyd (former Lytron and Aavid)

€241.79*

pcs

CP10G14 Aluminum Cold Plate with 4-Pass Copper tube, straight fittings

152.4 mm X 88.9, 0.015 °C/W, tubed cold plate.The CP10™ 4-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C001039-6

Manufacturer: Boyd (former Lytron and Aavid)

€268.47*

pcs

Only 4 available

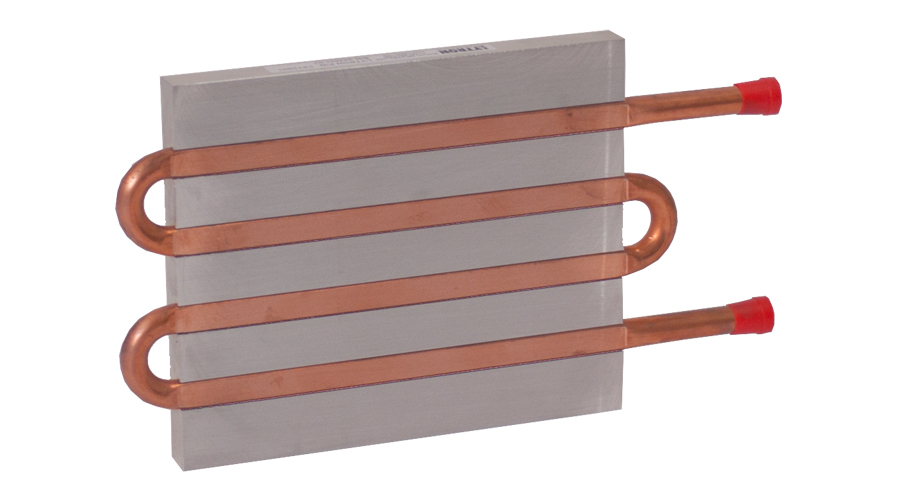

CP12G01 Aluminum Cold Plate with 4-Pass Copper tube, straight fittings

152 mm x 127 mm, 0.009 °C/W, tubed cold plate.The CP12™ is a dual-sided, copper tubed cold plate that offers high performance and a large mounting area. The tubes of the CP12™ cold plates are coplanar with the plate to allow for dual-sided mounting. The cold plate's tube side offers higher performance as the copper tubes are in direct contact with the component being cooled. Its epoxy-free construction results in 30% better performance than other similar sized cold plates. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008682-6

Manufacturer: Boyd (former Lytron and Aavid)

€645.54*

pcs

Only 2 available

CP10G15 Aluminum Cold Plate with 4-Pass Copper tube, beaded fittings

Aluminum Cold Plate 6"x3,5", 15.24 cm x 8.89 cm with 4-Pass 3/8" Copper tube, beaded fittings

Product number: C008683-6

Manufacturer: Boyd (former Lytron and Aavid)

€261.93*

pcs

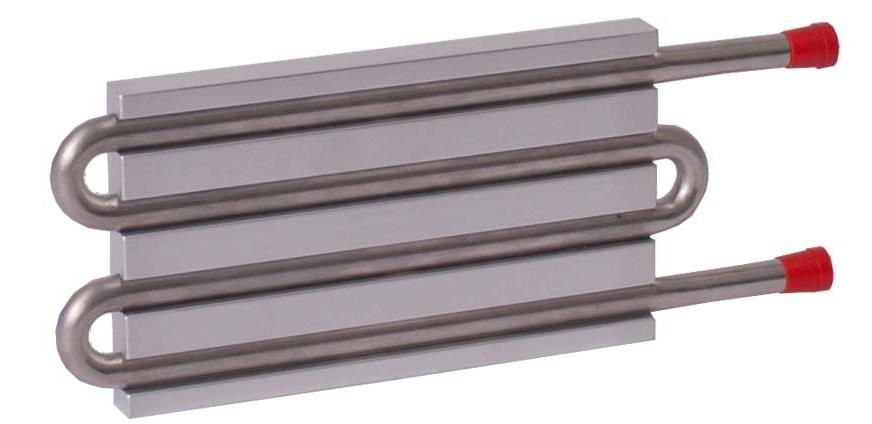

CP10G21 Aluminum Cold Plate with 4-Pass Stainless Steel tube, beaded fittings

Aluminum Cold Plate 12"x3.5", 30.48 cm x 8.89 cm with 4-Pass 3/8" Stainless Steel tube, beaded fittings

Product number: C008684-6

Manufacturer: Boyd (former Lytron and Aavid)

€377.31*

pcs

Only 1 available

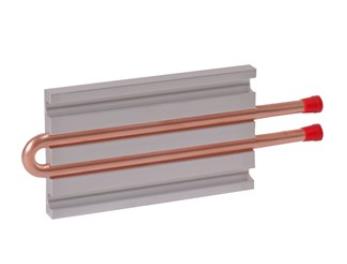

CP10G02 Aluminum Cold Plate with 2-Pass Copper tube, beaded fittings

Aluminum Cold Plate 6"x3,5", 15.24 cm x 8.89 cm with 2-Pass 3/8" Copper tube, beaded fittings

Product number: C019393-6

Manufacturer: Boyd (former Lytron and Aavid)

€350.03*

pcs

CP10G20 Aluminum Cold Plate with 4-Pass Stainless Steel tube, straight fittings

304.8 mm X 88.9 mm, 0.008 °C/W, tubed cold plate. The CP10™ 4-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008685-6

Manufacturer: Boyd (former Lytron and Aavid)

€405.20*

pcs

CP10G03 Aluminum Cold Plate with 2-Pass Stainless Steel tube, straight fittings

Product number: C008686-6

Manufacturer: Boyd (former Lytron and Aavid)

€328.43*

pcs

CP10G17 Aluminum Cold Plate with 4-Pass Stainless Steel tube, beaded fittings

Aluminum Cold Plate 6"x3,5", 15.24 cm x 8.89 cm with 4-Pass 3/8" Stainless Steel tube, beaded fittings

Product number: C019389-6

Manufacturer: Boyd (former Lytron and Aavid)

€341.69*

pcs

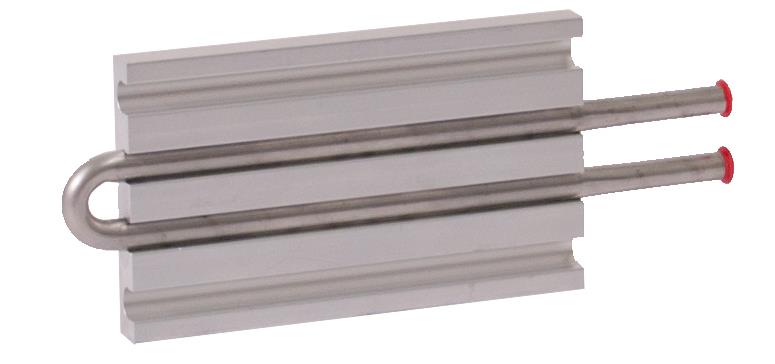

CP10G04 Aluminum Cold Plate with 2-Pass Stainless Steel tube, beaded fittings

Aluminum Cold Plate 6"x3,5", 15.24 cm x 8.89 cm with 2-Pass 3/8" Stainless Steel tube, beaded fittings

Product number: C012834-6

Manufacturer: Boyd (former Lytron and Aavid)

€266.80*

pcs

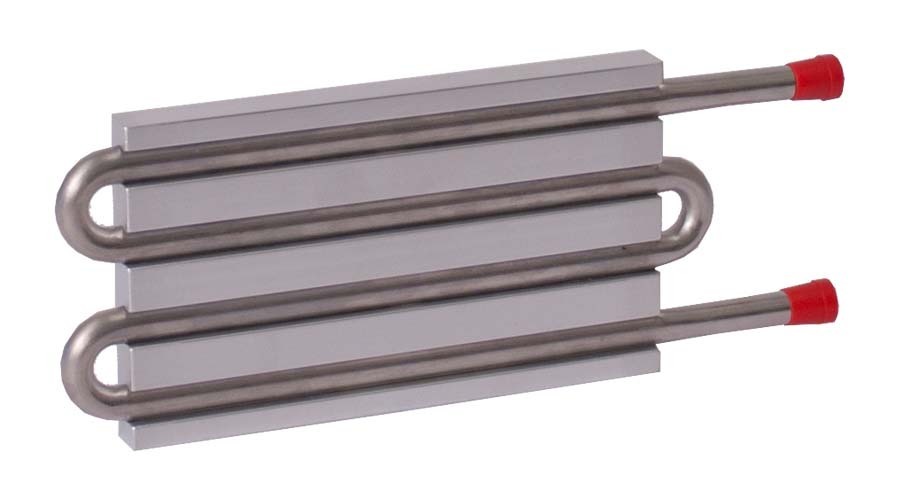

CP10G16 Aluminum Cold Plate with 4-Pass Stainless Steel tube, straight fittings

152.4 mm X 88.9 mm, 0.015 °C/W, tubed cold plate.The CP10™ 4-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008687-6

Manufacturer: Boyd (former Lytron and Aavid)

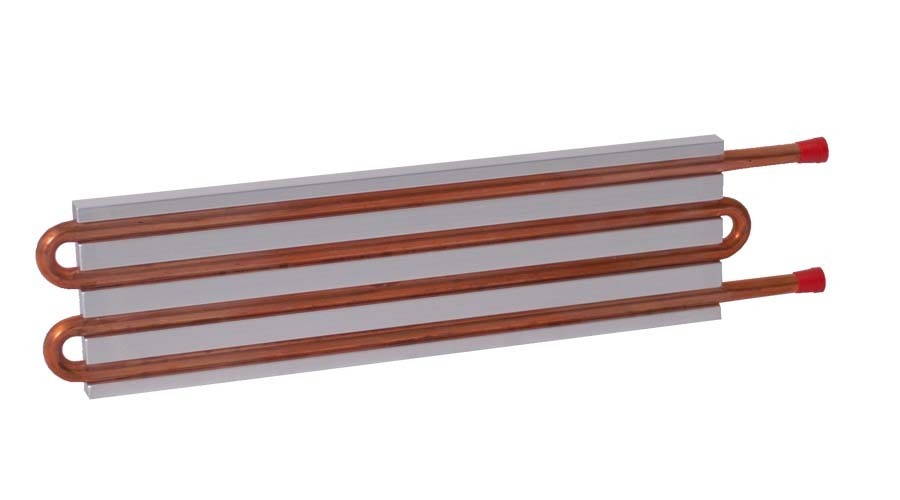

CP10G18 Aluminum Cold Plate with 4-Pass Copper tube, straight fittings

304.8 mm X 88.9 mm, 0.008 °C/W, tubed cold plate.The CP10™ 4-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008688-6

Manufacturer: Boyd (former Lytron and Aavid)

€280.14*

pcs

Only 1 available

CP15G06 Aluminum Cold Plate with 6-Pass Copper tube, beaded fittings

Aluminum Cold Plate 12"x3.75", 30.48 cm x 9.53 cm with 6-Pass 1/4" Copper tube, beaded fittings

Product number: C008689-6

Manufacturer: Boyd (former Lytron and Aavid)

€707.31*

pcs

CP15G01 Aluminum Cold Plate with 6-Pass Copper tube, straight fittings

152.4 mm x 95.3 mm, 0.004 °C/W, tubed cold plate.Components can be mounted on both sides of CP15™, making this compact and lightweight cold plate ideal for applications where heat loads are moderating and space is at a premium. The tubes of the CP15™ cold plates are coplanar with the plate to allow for dual-sided mounting. The cold plate's tube side offers higher performance as the copper tubes are in direct contact with the component being cooled. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008690-6

Manufacturer: Boyd (former Lytron and Aavid)

€348.51*

pcs

CP15G02 Aluminum Cold Plate with 6-Pass Copper tube, beaded fittings

Aluminum Cold Plate 6"x3.75", 15.24 cm x 9.53 cm with 6-Pass 1/4" Copper tube, beaded fittings

Product number: C012691-6

Manufacturer: Boyd (former Lytron and Aavid)

€337.07*

pcs

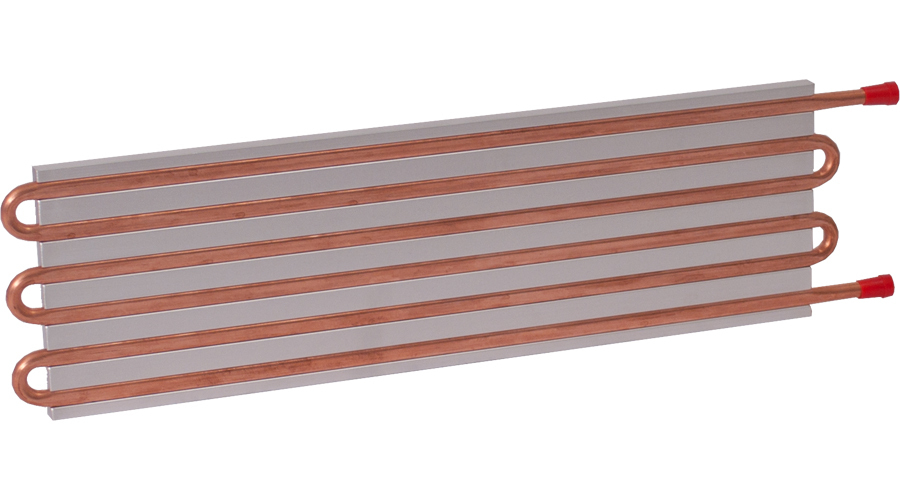

CP15G05 Aluminum Cold Plate with 6-Pass Copper tube, straight fittings

304.8 mm x 95.3 mm, 0.004 °C/W, tubed cold plate.Components can be mounted on both sides of CP15™, making this compact and lightweight cold plate ideal for applications where heat loads are moderating and space is at a premium. The tubes of the CP15™ cold plates are coplanar with the plate to allow for dual-sided mounting. The cold plate's tube side offers higher performance as the copper tubes are in direct contact with the component being cooled. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008691-6

Manufacturer: Boyd (former Lytron and Aavid)

€378.52*

pcs

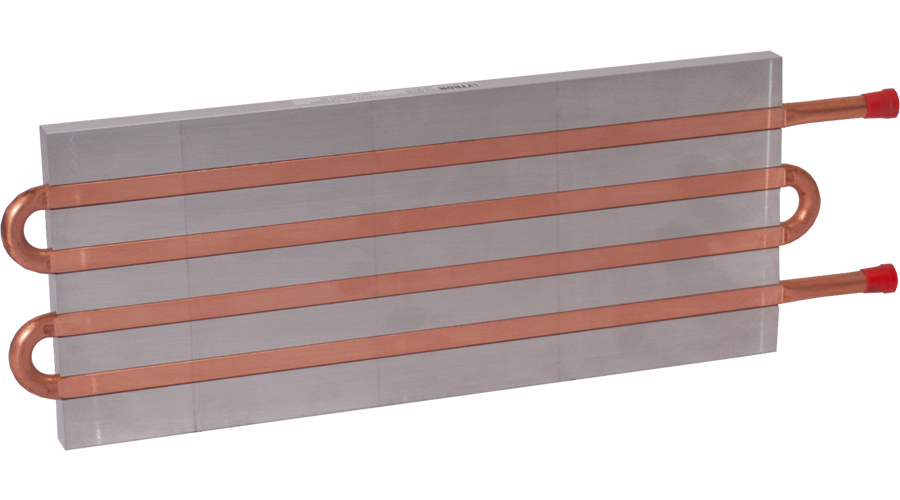

CP12G05 Aluminum Cold Plate with 4-Pass Copper tube, straight fittings

304 mm X 127 mm, 0.004 °C/W, Tubed Cold Plate.The CP12™ is a dual-sided, copper tubed cold plate that offers high performance and a large mounting area. The tubes of the CP12™ cold plates are coplanar with the plate to allow for dual-sided mounting. The cold plate's tube side offers higher performance as the copper tubes are in direct contact with the component being cooled. Its epoxy-free construction results in 30% better performance than other similar sized cold plates. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008692-6

Manufacturer: Boyd (former Lytron and Aavid)

€455.23*

pcs

CP12G06 Aluminum Cold Plate with 4-Pass Copper tube, beaded fittings

Aluminum Cold Plate 12"x5",30.48 cm x 12.70 cm with 4-Pass 3/8" Copper tube, beaded fittings

Product number: C008693-6

Manufacturer: Boyd (former Lytron and Aavid)

€458.56*

pcs

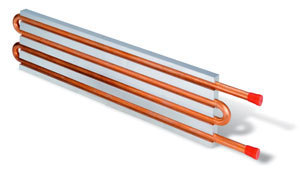

CP10G19 Aluminum Cold Plate with 4-Pass Copper tube, beaded fittings

Aluminum Cold Plate 12"x3.5", 30.48 cm x 8.89 cm with 4-Pass 3/8" Copper tube, beaded fittings

Product number: C008698-0

Manufacturer: Boyd (former Lytron and Aavid)

€313.49*

pcs

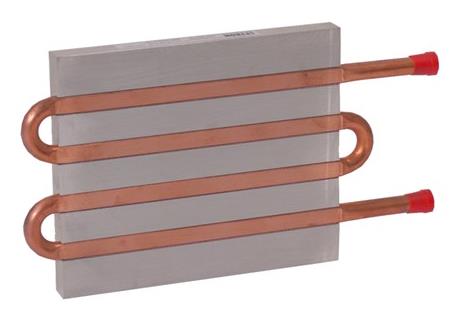

CP12G02 Aluminum Cold Plate with 4-Pass Copper tube, beaded fittings

Aluminum Cold Plate 6"x5", 15.24 cm x 12.70 cm with 4-Pass 3/8" Copper tube, beaded fittings

Product number: C008700-1

Manufacturer: Boyd (former Lytron and Aavid)

€415.21*

pcs

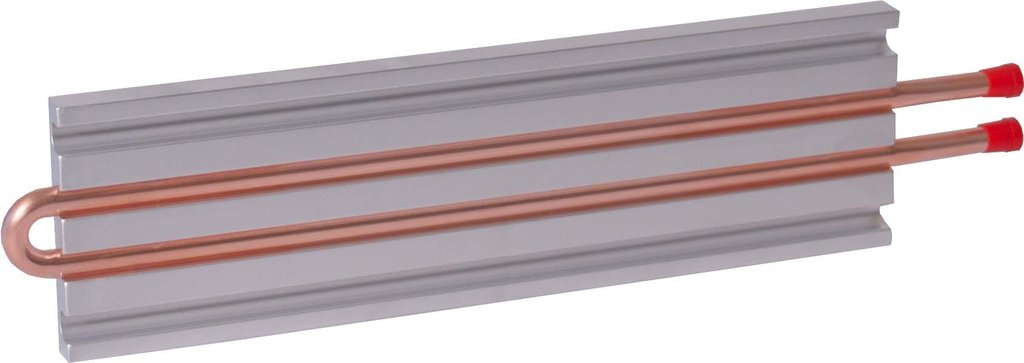

CP10G05 Aluminum Cold Plate with 2-Pass Copper tube, straight fittings

304.8 mm X 88.9 mm, 0.029 °C/W, Tubed Cold Plate.The CP10™ 2-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.

Product number: C008701-6

Manufacturer: Boyd (former Lytron and Aavid)

€276.81*

pcs

CP10G08 Aluminum Cold Plate with 2-Pass Stainless Steel tube, beaded fittings

Aluminum Cold Plate 12"x3.5", 30.48 cm x 8.89 cm with 2-Pass 3/8" Stainless Steel tube, beaded fittings

Product number: C019332-6

Manufacturer: Boyd (former Lytron and Aavid)

€332.72*

pcs
