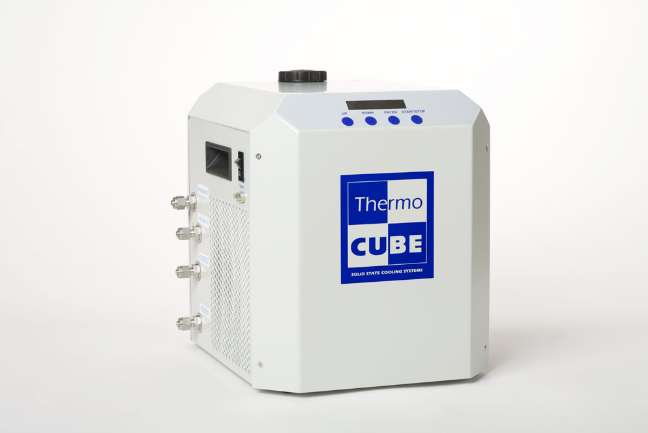

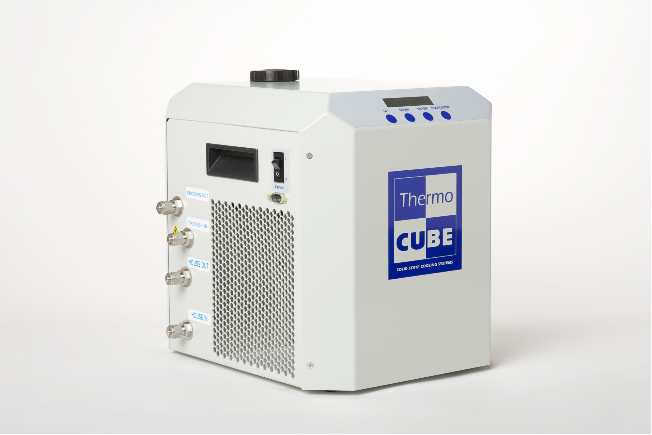

ThermoCube Liquid-to-Liquid Recirculating Chiller

Product information "ThermoCube Liquid-to-Liquid Recirculating Chiller"

Cooling Capacities 350 - >600W @ 20°C; Noise @ 1 m < 48 dBA ;Tank Volume 300 ml; Gear or Centrifugal Pump; Process Wetted Materials Aluminium; Facility Wetted Materials Stainless Steel

The ThermoCube Liquid-Liquid system provides exceptionally quiet and vibration-free thermal control with precision down to ± 0.05 °C, even when operating close to ambient temperatures. Utilizing a foundation of thermoelectric modules renowned for their longevity exceeding 200,000 hours, it ensures compatibility with power sources worldwide. Its variable voltage power control feature ensures efficient power usage, drawing power only as necessary. ThermoCube Liquid-Liquid is versatile and can work seamlessly with either glycol/water solutions or industrial water. The standard pump included in the system is capable of delivering pressures of up to 50 psi, suitable for applications such as laser diodes and other high-pressure requirements. Additionally, low-pressure pumps are available for different application needs.

Key Features:

  • For applications where Facility Water or PCW (Process Chilled Water) is availableHeat is removed from chiller with PCW instead of heat sinks and a fan
  • Cooling capacities from 350 to >600 watts
  • ±0.05°C Temperature Stability/repeatability
  • Utilizes highly reliable, refrigerant-free thermoelectric technology.
  • Responds quickly to change in load
  • Improved design with stainless steel PCW cold plate for improved corrosion resistance
  • Very low noise, low vibration
  • Designed to be configured to meet your specific needs
  • 6 pump choices: Centrifugal or Gear pumps
  • 8 fitting choices (3/8” PCW fittings)
  • 14 other configurable options, such as RS232, extended temperature range, alternate fluids and stainless steel plumbing

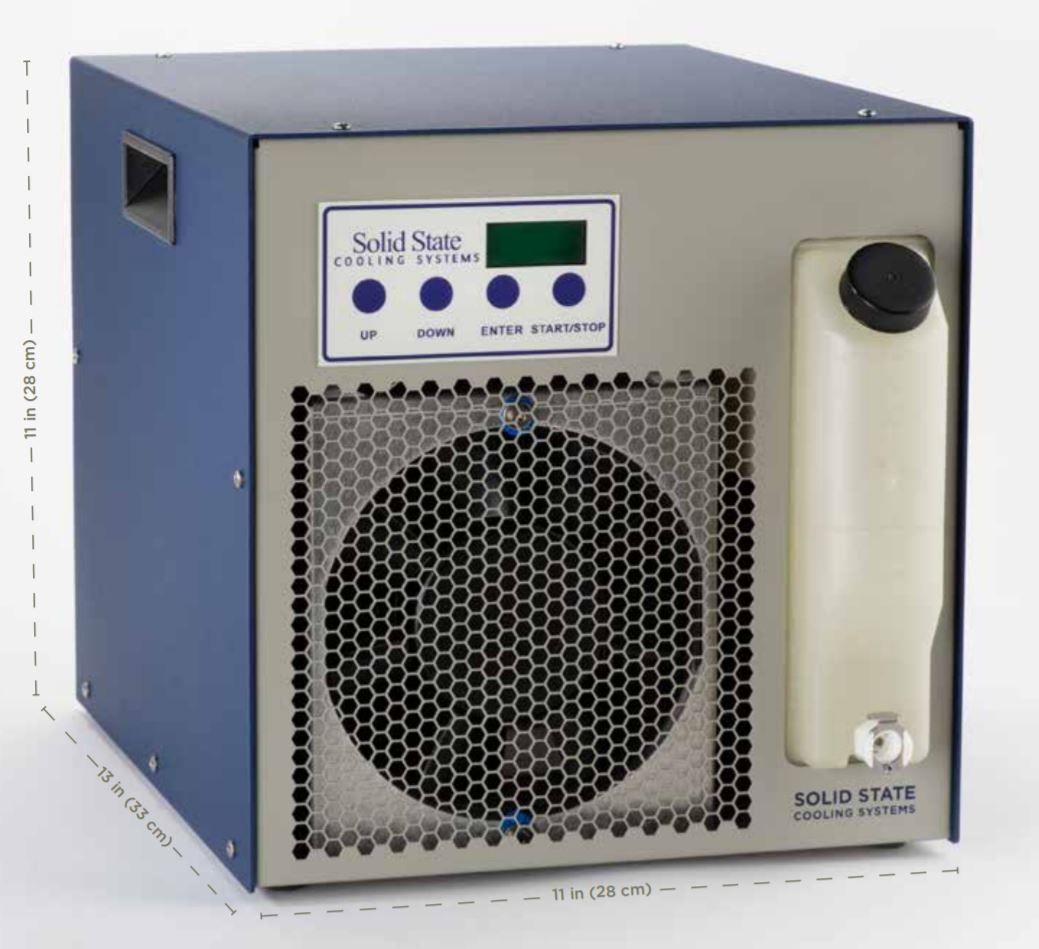

  • Compact size: 13” x 11” x 13”
  • Energy efficient, only uses power when needed to maintain temperature
  • Universal power – plug in and go anywhere in the world
  • Easily customizable beyond the many standard configuration options

Applications: Semiconductors, Life Sciences, Other Applications With Available Facility Water or PCW

Manufacturer "Solid State Cooling Systems"
Related links of the manufacturer

Similar products

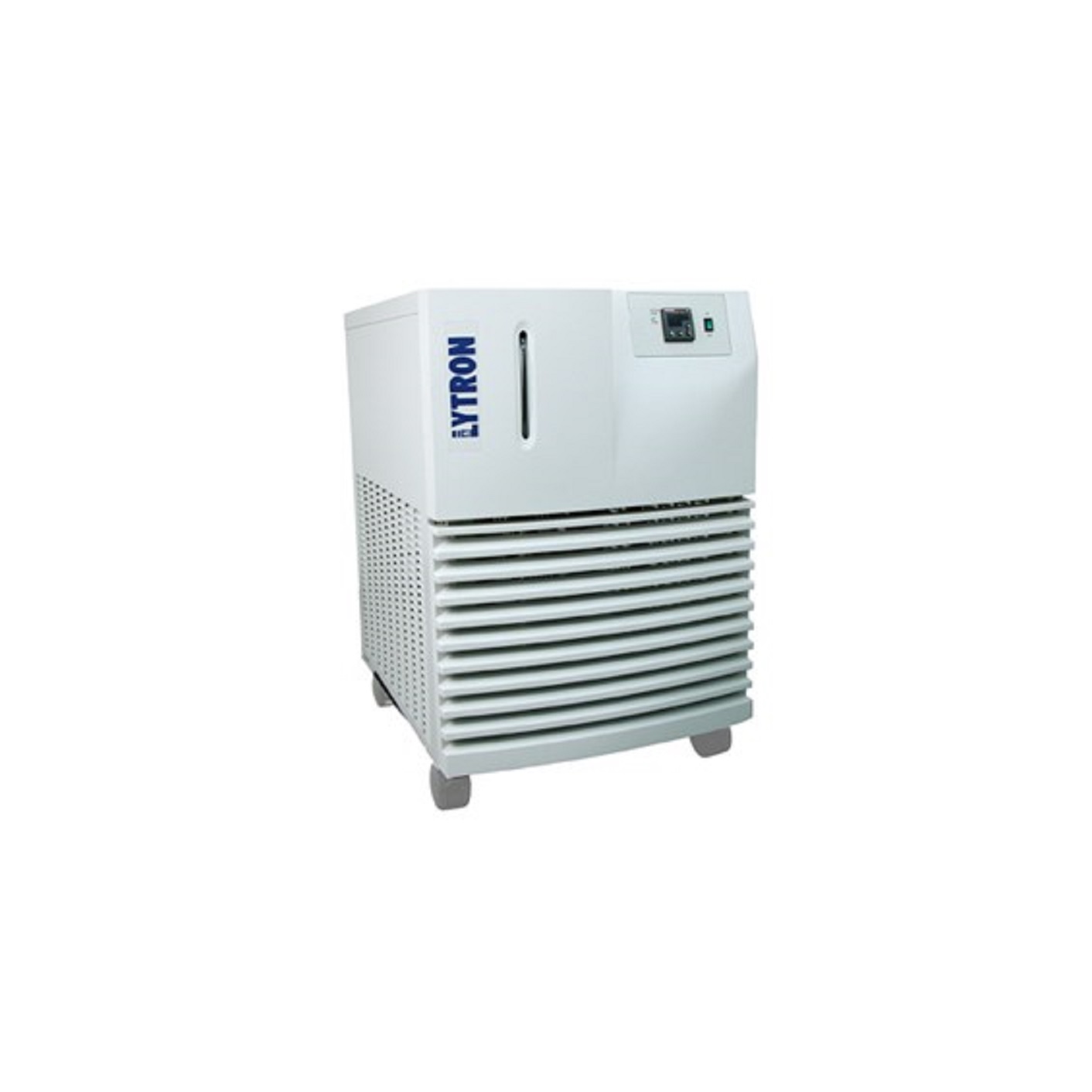

LCS Liquid-to-Liquid Cooling Systems
