SF8075-ZIF14 Laser Diode Driver and TEC Temperature Controller
€680.00*
Content:
1 pcs
Available in 30 days, delivery time 1-2 days
Product number:
C017278-6
Manufacturer:
Maiman Electronics
Product information "SF8075-ZIF14 Laser Diode Driver and TEC Temperature Controller"
LD 750 mA; TEC ±4 A; Chassis Mount; LD Mount with ZIF Socket; Compatible with Butterfly 14-pin Type 1 Lasers; Supply Voltage 4.8-5.2 VDC

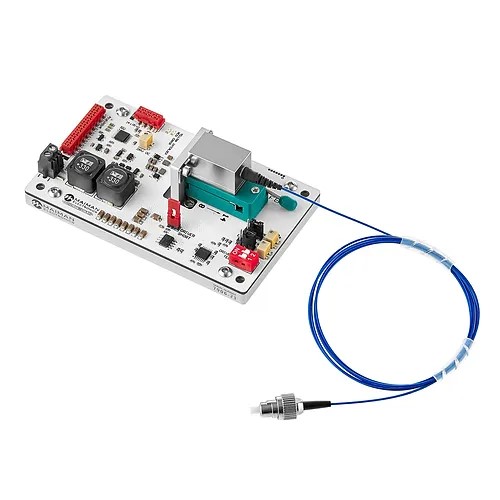

Maiman Electronics’ SF8075-ZIF14 laser diode driver and TEC temperature controller is suitable for driving a fiber coupled laser diode in a butterfly package with 14 pins. The laser diode mount is on the board with an integrated Azimuth socket for a butterfly 14-pin Type 1 laser diode.
The driver includes a highly stable current source (±0.01 A) for the laser diode and a thermoelectric Peltier cooler (TEC). The integrated temperature controller keeps the temperature on the Peltier element with high precision within ±0,01°C.
CURRENT, VOLTAGE & TEC CONTROLLER
- Maximum current LD (I): 750 mA
- Output voltage LD (V): 0.5-3 V
- Current stability: 0.1 %
- Current set accuracy: < +/- 1 %
- Output current noise: 10-15 µA
- ТЕС output power: ±4А
- TEC output voltage: ±4V
- TEC output current ripple: 2 ~ 4mА
- TEC Feedback Sensor: 10 kOhm NTC
- Temperature Control Range: +15 to +40 °C
LASER DIODE PROTECTION
- Soft-Start Current Ramp
- Current limit
- Temperature limit
- Reverse current protection
- ESD and transient protection
PINOUT
- SF8XXX support laser diode Type 1: Pump Laser Diode
DIMENSIONS AND WEIGHT
- Dimensions: 101.6 x 61 x 28.3 mm
- Weight: 142 g
USER INTERFACE
- Trim Potentiometers for Driver Current and TEC Power
- Analog
- RS-232 / UART/ USB
INPUT
- Input Voltage Supply (Vin): 5 VDC
PACKAGE SET
- Driver – 1 pcs
- 50 cm ribbon cable with one 8-pin connector – 1 pcs
- 50 cm ribbon cable with one 20-pin connector – 1 pcs
- Datasheet & User Manual – 1 pcs
- USB-UART converter – 1 pcs
