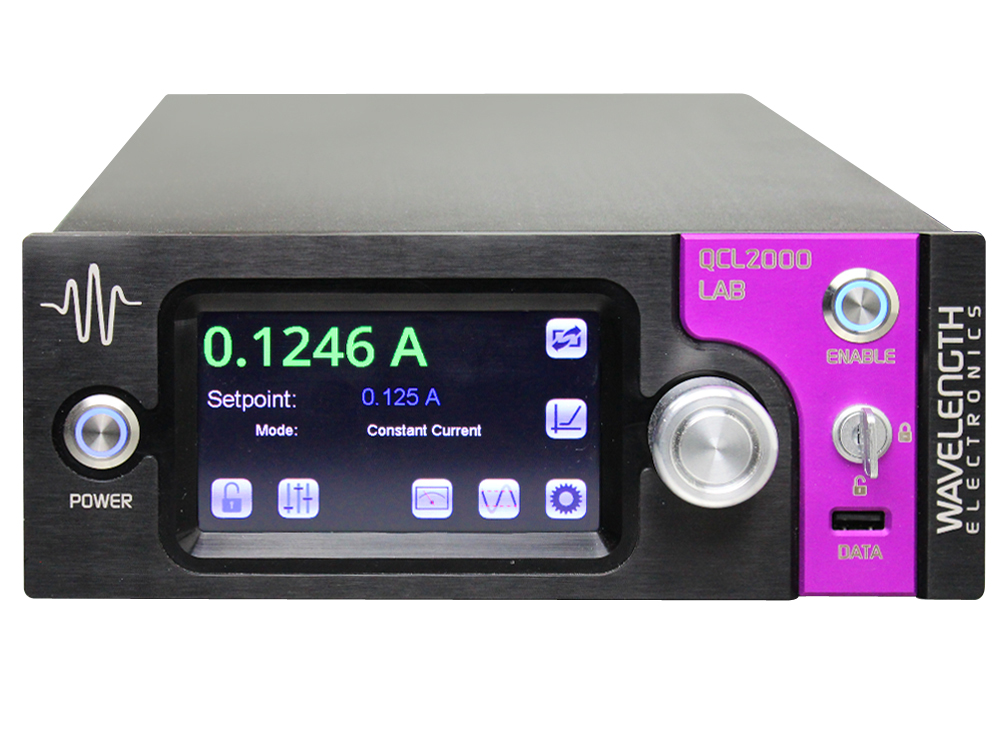

QCL2000 LAB 2A QCL Driver Instrument

0,5A Laser Diode Driver PCB Mount PLD500

The PLD Series Laser Diode Drivers deliver the reliability and performance you expect from a Wavelength Electronics laser driver in a compact and easy-to-integrate package. Tens of thousands of PLD drivers are deployed in particle counters, manufacturing vision systems, wavefront scanners, fiber aligners, and other laser systems around the world, proving beyond doubt the reliability and stability of the design.The PLD drivers operate from a single 5 V power supply. To accommodate high compliance lasers, or multiple stacked lasers, the PLD laser diode drivers allow the laser to be driven from a separate power supply up to 30 V.

Product number: C009004-1

Manufacturer:

€487.12*

1,5A QCL Driver - QCL1500

The QCL OEM Series drivers use patented1 circuitry to produce the lowest current noise density of any commercially available QCL driver. The 500 mA QCL driver exhibits noise performance of 0.5 µA RMS to 100 kHz, and average current noise density of 1 nA / √Hz - the lowest available. In order to maintain their characteristically tight center linewidths and minimize jitter, quantum cascade lasers must be powered by drivers with exceptionally low current noise density. Our customers have reported achieving narrower linewidths with these drivers than any other they've used.Key Features Off-the-shelf models at 500 mA, 1 A, 1.5 A, 2 A Can be delivered in other current ranges up to 2 A Compliance voltage 16 V (standard), Compliance 7-20 V with factory modification Safety features protect your QCL investment Adjustable soft-clamping current limit Brown-out, reverse-voltage, & over-voltage protection Driver over-temperature protection circuit Relay shorts output when current is disabled Local and Remote Power-On and Enable control,TTL-compatible Analog modulation input between -5V and +5V.

Product number: C019337-6

Manufacturer:

€3,136.15*

1.25A Laser Diode Driver PCB Mount - PLD1250

The PLD Series Laser Diode Drivers deliver the reliability and performance you expect from a Wavelength Electronics laser driver in a compact and easy-to-integrate package. Tens of thousands of PLD drivers are deployed in particle counters, manufacturing vision systems, wavefront scanners, fiber aligners, and other laser systems around the world, proving beyond doubt the reliability and stability of the design. The PLD drivers operate from a single 5 V power supply. To accommodate high compliance lasers, or multiple stacked lasers, the PLD laser diode drivers allow the laser to be driven from a separate power supply up to 30 V. Key Features Models: 200 mA, 500 mA, 1.25 A, 5 A, and 6.5 A Operates from a 5 VDC supply Separate power supply can be used to drive high-compliance lasers up to 28 V Constant Current or Constant Power modes Safety features protect your laserAdjustable latching current limitSlow-start circuitryRelay shorts output when current is disabled Local and Remote Power-On and Enable controls Integral heatsink and fan on high current model

Product number: C019341-6

Manufacturer:

€529.48*

10A Laser Diode Driver Chassis Mount - PLD10K-CH

The PLD10K-CH is a 10 A Laser Diode Driver in a small chassis mount package. Operating from a single +5 V supply minimizes internal heat dissipation. Modular packaging makes it easy to integrate the PLD into your system. For applications that require a higher forward voltage, a separate laser diode power supply input lets you provide a higher compliance voltage.Key Features Models: 5 A, 10 A, 12.5 A 5 A and 10 A models operate from a single 5 VDC supply; 12.5 A model requires two supplies Separate power supply can be used to drive high-compliance lasers up to 28 V Constant Current or Constant Power modes Safety features protect your laserAdjustable latching current limitSlow-start circuitry Local and Remote Enable controls

Product number: C008974-6

Manufacturer:

€698.92*

Only 2 available

10A Laser Diode Driver PCB Mount - PLD10000

The PLD10000 is powered by a 5 V supply, and the laser can be driven from the same supply. High-compliance lasers can be driven by using a separate supply up to 30 V. Key Features Two models: 10 A and 12.5 A output current PLD10000 can be operated from a 5 VDC supply Separate power supply can be used to drive high-compliance lasers, up to 27.5 V Constant Current or Constant Power modes Safety features protect your laserAdjustable latching current limitSlow-start circuitry Remote Enable controls Optimized heatsink and fan simplifi es integration

Product number: C006586-6

Manufacturer:

€698.92*

12,5A Laser Diode Driver Chassis Mount PLD12.5K-CH

The PLD12.5K-CH is a 12.5 A Laser Diode Driver in a small chassis mount package. Modular packaging makes it easy to integrate the PLD into your system. For applications that require a higher forward voltage, a separate laser diode power supply input lets you provide a higher compliance voltage. One power supply is required for the internal electronics; a separate supply is required to power the laser diode.Key Features Models: 5 A, 10 A, 12.5 A 5 A and 10 A models operate from a single 5 VDC supply; 12.5 A model requires two supplies Separate power supply can be used to drive high-compliance lasers up to 28 V Constant Current or Constant Power modes Safety features protect your laser »» Adjustable latching current limit»» Slow-start circuitry Local and Remote Enable controls

Product number: C008990-6

Manufacturer:

€808.07*

Only 2 available

12,5A Laser Diode Driver PCB Mount - PLD12500

The high current PLD drivers couple the high-reliability architecture of Wavelength Electronics' lower-current PLD Series with a robust high-current output stage. Tens of thousands of PLD drivers are deployed in laser systems around the world, proving beyond doubt the reliability and stability of the design. PLD Series laser power supplies are found in fiber laser pumping, materials processing, pyrotechnic ignition, industrial welding and cutting applications, and laser diode LIV testers. It is CE certified. A PDF version of the Declaration of Conformance is available.The PLD10000 drives up to 10 A, and the PLD12500 drives up to 12.5 A. With a compliance voltage capability of 27.5 volts, these PLD drivers are ideal for driving laser bars and stacks for high-power industrial applications. Lower-current drivers are offered in the PLD Series, available in SIP PCB-mounted models at 200 mA, 500 mA, 1.25 A, 5 A, and 6.5 A output.Key Features Two models: 10 A and 12.5 A output current PLD10000 can be operated from a 5 VDC supply Separate power supply can be used to drive high-compliance lasers, up to 27.5 V Constant Current or Constant Power modes Safety features protect your laserAdjustable latching current limitSlow-start circuitry Remote Enable controls Optimized heatsink and fan simplifies integration

Product number: C006603-6

Manufacturer:

€808.83*

QCL2000 LAB 2A QCL Driver Instrument

Downloads

Product information "QCL2000 LAB 2A QCL Driver Instrument"
