Product information "Pentapod Fusion Splicer PFS"

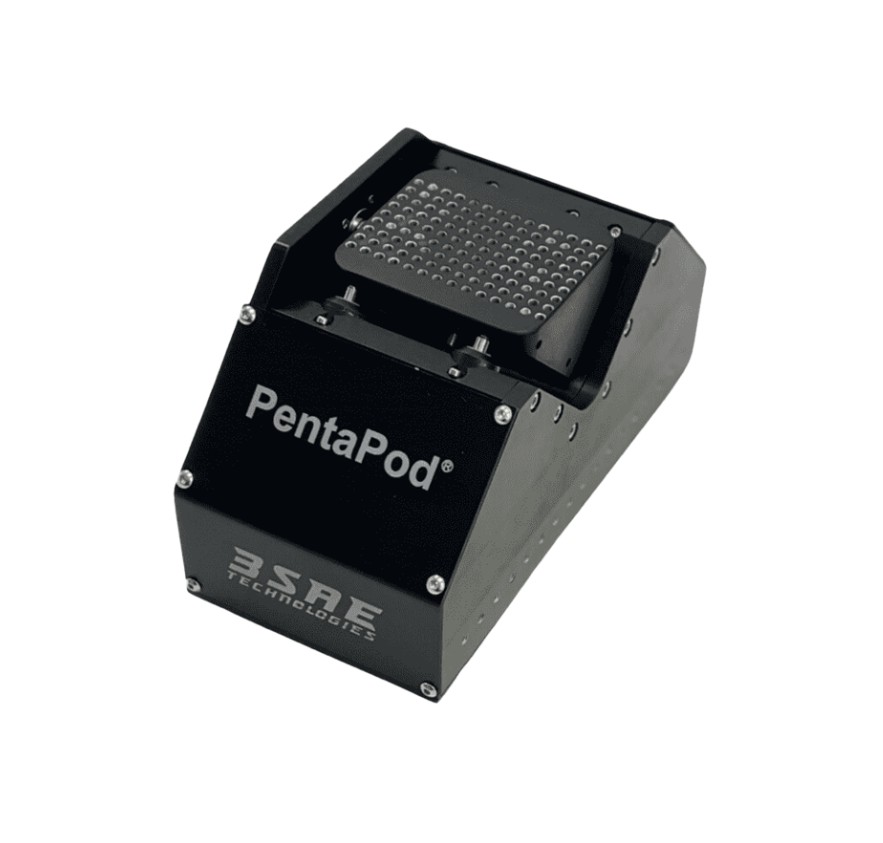

The PentaPod® Fusion Splicer (PFS) from Solid 3SAE represents a new benchmark in precision fiber optic splicing for high‑power and specialty photonics applications. Designed specifically to overcome the limitations of conventional fusion splicers, the PFS is the world’s first table‑top fusion splicer engineered for angle‑critical, high‑precision processes such as end‑cap splicing and dissimilar fiber joining. By combining patented multi‑axis alignment technology with an advanced plasma heat source, the PFS delivers unmatched control, repeatability, and splice quality for both R&D and production environments.
Built around 3SAE’s proven heritage in high‑performance fiber processing, the PentaPod Fusion Splicer integrates mechanical stability, intelligent machine vision, and semi‑automated operation into a compact, user‑friendly platform. It is purpose‑built for manufacturers and research teams working at the forefront of fiber laser development, where micron‑level accuracy and thermal stability are essential to achieving reliable, scalable results.
Key features
- Uses unique, patented, 5-degree of freedom joints that facilitate sub-micron precision motion in 5 or 6 axes.
- Offers a simple system integration with a single USB connection and no external controller required.
- Parallel Kinematic design providing exceptional positioning accuracy and stiffness.
- Software adjustable point of rotation.
- Small size and low profile without compromising on strake, precision, or crosstalk.
- A fraction of the cost and complexity of a comparable Hexapod.
Applications
The PentaPod Fusion Splicer is specifically designed for precision end‑cap splicing, a critical process in high‑power fiber laser fabrication where alignment accuracy and thermal uniformity directly impact performance and lifetime. Its extended positional range and angular control make it ideally suited for both R&D prototyping and repeatable production workflows.
Beyond end‑caps, the PFS excels in bundle‑to‑fiber splicing and the joining of dissimilar fiber sizes and structures, including specialty and large‑diameter fibers. These capabilities are essential for advanced photonics manufacturing tasks such as pump combiners, fiber laser delivery systems, and complex optical assemblies where conventional splicers lack sufficient degrees of freedom.
The system is widely applicable in fiber laser manufacturing, photonics research laboratories, aerospace and defense programs, and specialty optical component production. Any environment that demands high splice quality, process repeatability, and detailed quality assessment will benefit from the precision‑driven design of the PentaPod Fusion Splicer. [3sae.com]
What’s next?
With the PentaPod® Fusion Splicer, Solid 3SAE offers a platform that not only addresses today’s most demanding fiber splicing challenges but also provides a foundation for future innovation. Organizations adopting the PFS can scale seamlessly from laboratory development to full production while maintaining identical alignment accuracy and splice quality.
To take the next step, users can explore application‑specific carriage configurations, process optimization support, and training options to fully leverage the system’s capabilities. Whether your goal is to improve yield, expand into new fiber technologies, or push the limits of high‑power laser performance, the PentaPod Fusion Splicer is designed to evolve with your needs and help future‑proof your fiber processing workflow.
