LWA 7601-C Lightwave Analyzer C Band
Price on request
Product information "LWA 7601-C Lightwave Analyzer C Band"
The LWA 7601-C Lightwave Analyzer C Band from Luna is a high-performance optical test and measurement instrument designed for the characterization of modern optical components, photonic integrated circuits (PICs), silicon photonics devices, and fiber optic networks. Utilizing advanced Optical Frequency Domain Reflectometry (OFDR) technology, the LWA 7601-C measures backscattered and transmitted light as a function of distance, time, or wavelength, delivering unparalleled insight into optical performance.
Engineers and manufacturers face increasing demands for accuracy, speed, and efficiency when testing optical devices. The LWA 7601-C addresses these challenges by combining return loss (RL), insertion loss (IL), and length measurements within a single instrument, significantly reducing test complexity while improving throughput. Its exceptional sensitivity and 20 μm sampling resolution make it particularly valuable for applications where precise fault location and detailed optical analysis are critical.
Whether deployed in research laboratories, production environments, or network validation applications, the LWA 7601-C provides a comprehensive solution for analyzing optical components in both reflection and transmission modes. With a measurement range of up to 500 meters for path length analysis and high-speed acquisition rates of up to 12 Hz, users can quickly identify issues, optimize device performance, and streamline testing workflows.
Key features
- The LWA 7601-C offers a powerful feature set that enables accurate and efficient testing of optical components and assemblies.
- Return Loss (RL) and Insertion Loss (IL) Analysis
- Simultaneously evaluate critical optical performance parameters to gain a complete understanding of component quality and behavior.

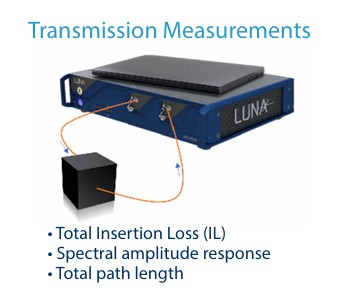

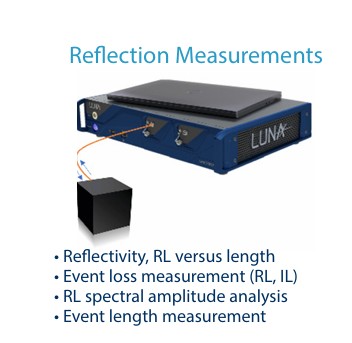

- Reflection and Transmission Measurements
- Analyze optical devices in both reflection and transmission modes with a single instrument, eliminating the need for multiple test systems.
- Distributed RL Measurement
- Trace return loss along the entire optical path, making it possible to identify reflections and losses at specific locations within a device or network.
- Spectral Analysis Capabilities
- Perform detailed spectral analysis of insertion loss and return loss characteristics to better understand wavelength-dependent performance.
- Precise Event Location and Length Measurement
- Detect, isolate, and accurately locate reflective events while measuring optical path length up to 500 meters, supporting rapid troubleshooting and validation.
- High Resolution and Sensitivity
- A sampling resolution of 20 μm enables detailed analysis of optical structures and facilitates the detection of even minor performance variations.
- Fast Acquisition Speed
- With a measurement rate of up to 12 Hz, the analyzer supports high-throughput testing and production optimization.
- Production-Ready Design
- An optional 19-inch rack-mount version allows seamless integration into automated test benches and manufacturing environments.
These capabilities help organizations reduce testing costs, improve repeatability, and increase productivity across research, development, and manufacturing operations.
Applications
The LWA 7601-C is designed to support a broad range of optical testing applications across telecommunications, datacom, silicon photonics, and advanced photonics manufacturing.
Spatial Return Loss Testing
The instrument makes it possible to identify and quantify reflections throughout an optical path, allowing engineers to locate defects, connector issues, and component mismatches with exceptional precision.
Automated Insertion Loss Analysis
Manufacturers can automate insertion loss measurements and analysis processes, improving consistency while reducing manual testing effort and overall production time.
High-Precision Skew Measurements
The LWA 7601-C supports skew measurements with sub-picosecond resolution, making it an excellent choice for applications requiring precise timing and path matching.
Photonic Integrated Circuit Testing
The analyzer is ideally suited for testing advanced photonic devices, including:
- Photonic Integrated Circuits (PICs)
- Waveguide devices
- Planar Lightwave Circuits (PLCs)
- Arrayed Waveguide Gratings (AWGs)
- Reconfigurable Optical Add-Drop Multiplexers (ROADMs)
Its high resolution enables detailed characterization of complex photonic structures and integrated optical systems.
Fiber Optic Networks and Cables
The extended measurement range and distributed analysis capabilities make the instrument highly effective for validating fiber networks, cable assemblies, and optical links. Users can rapidly identify losses, reflections, and length-related issues throughout the system.
Optical Components and Subassemblies
The LWA 7601-C is also widely used for testing passive optical components such as filters, couplers, switches, beam splitters, fiber Bragg gratings (FBGs), and specialty fiber assemblies, ensuring they meet performance specifications before deployment.
What’s next?
As photonic technologies continue to advance, the need for faster, more accurate, and more comprehensive optical testing solutions becomes increasingly important. The LWA 7601-C Lightwave Analyzer C Band provides the precision, speed, and versatility required to support next-generation optical component development and production. By combining return loss, insertion loss, spectral analysis, and length measurement capabilities into a single platform, it simplifies testing workflows while delivering highly accurate results.
Whether you are developing cutting-edge photonic integrated circuits, optimizing manufacturing processes, or troubleshooting complex fiber optic networks, the LWA 7601-C offers a reliable and scalable solution for achieving superior optical performance. With its advanced OFDR technology, high-resolution measurements, and production-ready design, it is an investment that can help accelerate innovation while maintaining the highest standards of quality and efficiency.
