CP10G05 Aluminum Cold Plate with 2-Pass Copper tube, straight fittings

€276.81*

Content: 1 pcs

Prices excl. VAT plus shipping costs

Available in 45 days, delivery time 1-2 days

pcs

Product number: C008701-6

Manufacturer: Boyd (former Lytron and Aavid)

Downloads

Product information "CP10G05 Aluminum Cold Plate with 2-Pass Copper tube, straight fittings"

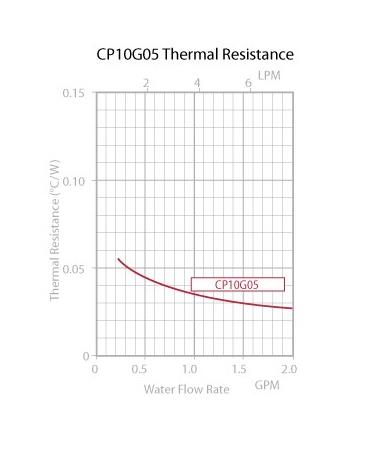

304.8 mm X 88.9 mm, 0.029 °C/W, Tubed Cold Plate.
The CP10™ 2-pass is a cost-effective, single-sided aluminum cold plate available with either copper or stainless steel tubes. It is ideal for component cooling applications where the heat load is low-to-moderate. Our range of standard tubed cold plates provide cost-effective thermal solutions for component cooling applications where the heat load is low-to-moderate. These tubed cold plates consist of copper or stainless steel tubes pressed into a channeled aluminum extrusion. This “Press-Lock” technology eliminates the need for performance-limiting epoxy between the tube and the plate, resulting in superior thermal performance. Each tubed cold plate has a single tube with no joint, ensuring leak-free operation.
