mFVU-3000 FlexLight Dual-Objective Connector Microscope

Product number: SW12021

Manufacturer: VIAVI Solutions

Downloads

mFVU-3000 FlexLight Dual-Objective Connector Microscope Viavi Datasheet

Product information "mFVU-3000 FlexLight Dual-Objective Connector Microscope"

The mFVU-3000 FlexLight Dual-Objective Connector Microscope by Viavi is a state-of-the-art inspection solution engineered for high-precision fiber optic connector analysis in demanding manufacturing and research environments. Designed to meet the rigorous standards of next-generation optical networks, this fully automated microscope delivers unmatched imaging clarity, speed, and flexibility—empowering users to detect and resolve defects that compromise performance in AI, HPC, and data center infrastructures.

With its dual-objective system, advanced lighting control, and REST API integration, the mFVU-3000 is purpose-built to streamline workflows, reduce test times, and ensure compliance with IEC 61300-3-35 standards. Whether inspecting MPO, VSFF, or legacy connector formats, this microscope provides actionable insights that go far beyond basic pass/fail criteria.

Key features:

Precision Dual-Objective Imaging

The mFVU-3000 combines 400X high-resolution magnification with a 30X wide field of view, enabling detailed inspection of both individual fiber endfaces and full connector arrays in a single unit. This dual capability ensures comprehensive analysis without the need for manual reconfiguration.

Advanced Lighting and Imaging Control

Axial and oblique lighting modes with programmable angle and direction control allow users to distinguish between scratches and contaminants with exceptional clarity. This flexibility enhances defect detection and polish quality assessment.

Automated and Scalable

With full automation via open REST API, the mFVU-3000 supports seamless integration into manufacturing environments. It enables programmable workflows, automated pass/fail analysis, and customizable reporting—reducing operator dependency and increasing throughput.

Connector Versatility

Supports a wide range of connector types, including PC/APC ferrules from 1 to 64 fibers, and next-gen VSFF formats such as CS, SN, MDC, and MMC. Magnetic quick-connect adapters with auto ID simplify setup and ensure repeatable results.

Compliance and Quality Assurance

Ensures full compliance with IEC 61300-3-35 standards, providing real-time, full endface visualization for reliable quality control in high-density optical networks.

Applications:

Optical component manufacturing: Ensures high-yield production by identifying polish defects and contamination early.

AI and HPC infrastructure: Validates high-density parallel optical connectors critical for data-intensive workloads.

Data center deployment: Verifies connector integrity to prevent costly downtime and performance degradation.

R&D and quality assurance: Provides detailed visual analytics for connector design and process optimization.

Manufacturer "VIAVI Solutions"

Similar products

CI-1100 Handheld Fiber Inspection Microscope

Magnification 400x; Field of View 425x320, 640x480 µm; Focus Manually; Resolution 0.5 µm; Light Source Blue LED; Connector USB 2.0 Optional Lightel’s eye-safe CI-1100 connector inspector is a portable video microscope used to inspect fiber optic connector endfaces for contamination. The handheld probe design makes it easy for users to inspect both patch cords and hard-to-reach in-adapter connectors. The CI-1100-A2 package includes a folding LCD monitor, four inspection tips, a charger/adapter and a carrying case. An optional USB adapter including ConnectorView™ software (CI-1000-USB2) is also available to display and capture images on a PC. Lightel offers a large variety of adapter tips, allowing you to view almost any connector in any location. Key Features: Magnification: 400x (With 9" Monitor), Lower Magnification Optional Field of View (FOV): ~425 x 320 µm (Standard), ~640 x 480 µm (Lower Magnification Option) Resolution: 0.5 µm Detectable Ergonomic Design Fast, Easy Focus: Manual Adjustment, Travel 2 mm Max. One-hand Operation Inspect Patchcords (Male) and In-adapter Connectors (Female) Foldable 3.5" TFT LCD Monitor Set With Adjustable Viewing Angle Portable Set With a Charger and Rechargeable Batteries Change Tips in Seconds Comprehensive Line of Tips for Both PC and APC Type Connectors Uses Lightel’s Series 2 Inspection Tips, and Can Also Use All Lightel CI-1000 Tips With an Optional Adapter USB 2.0 Option "Hot" Fiber Viewing Option CE Approved, RoHS Compliant Light Source: Blue LED Dimensions: ø 35 x 175 mm (Microscope, Without Cap), 105 x 90 x 45 mm (Monitor, When Closed) Weight: 200 g (Microscope), 255 g (Monitor, Without Battery) Applications: Inspection of Fiber Optic Connector Endfaces for Contamination; Inspection of Patch Cords; Inspection of Adapter Bulkhead Connectors

Product number: SW11493

Manufacturer:

ConnectorView™ Plus Microscope Software

Software for Lightel USB2.0 Microscopes; Self-calibrating; Connector Types SM, MM; Adjustable Acceptance Criteria Lightel’s ConnectorView™ Plus software is designed for users needing portable automated pass/fail software to check for fiber optic connector endface contamination. Whether you want to improve objective evaluation of connector cleanliness in the field, train others to recognize acceptable standards, or improve documentation, ConnectorView™ Plus is designed to save time and improve accuracy. Use ConnectorView™ Plus software with any Lightel USB2.0 microscope:, CI-1100 with USB2.0 option, DI-1000, ViewConn® Pro VC-8200 as well as the discontinued Lightel microscopes CI-1000 and ViewConn®. Self-calibrating and virtually instantaneous, ConnectorView™ Plus software will highlight contamination and defects and create an analysis report. It will capture and save the image together with the pass/fail report. A summary report can also be automatically generated. ConnectorView™ Plus v2 offers an all new even easier to use interface and adds additional new features. It is available as a free upgrade for existing ConnectorView™ Plus users. Key Features:Self-calibrating - No Need to Constantly Re-adjust SettingsSingle Mode (SM) and Multi Mode (MM) Connector SettingsAdjustable Acceptance Criteria – Use the Default IEC 61300-3-35 Standard or Set to Your Own Corporate Requirements, Create as Many Profiles as You NeedLive or Frozen Connectors Can Be AnalyzedSimple Automated Analysis Reports or Including Detailed Notes and ObservationsSummary Reports Available in Excel or Text File for Every Saved Analysis ReportSave Only the Reports You Choose, or Save Them AutomaticallyAutomatically Locate the Ferrule or Manually Position ItInstall on Multiple Computers and Use With Multiple Lightel Microscopes (One Seat at a Time With Full Functionality Per License)System Requirements: Windows XP®, Windows Vista®, Windows 7®, Windows 8®, or Windows 10®; 32 or 64 Bit Processor; USB2.0 Port Applications: Automated Pass/Fail Tests of Fiber Optic Connector Endfaces With Lightel Microscopes; Improve Objective Evaluation of Connector Cleanliness in the Field; Training Others to Recognize Acceptable Standards; Improve Documentation

Product number: SW11495

Manufacturer:

D SCOPE Benchtop Fiber Microscopes for Single-Fiber Connectors

Magnification x100 to x800; Field of View 0.3 x 0.3 mm to 3.3 x 2.7 mm; Focus Manually, Auto; Light Source Coaxial, Stray Light; Output Interface USB 2.0 Data-Pixel’s D SCOPE series of digital benchtop fiber microscopes for single-fiber connectors combines high-quality optics with a modern and ergonomic design ideally suited to fiber optic applications. Four variants of the D SCOPE series benchtop fiber microscopes are available with magnifications from x100 to x800. Until the D SCOPE, most microscopes were suffering from poor illumination quality yielding variable and non-reproducible image quality even amongst scopes of the same kind. With Data-Pixel’s BLINK software and an automated inspection plugin, the D SCOPE series microscopes are able to detect and measure automatically scratches and defects compatible with industry standards or customized parameters. D SCOPE series microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: True Koehler Optical Design for Homogeneous Lighting Real-time Detection and Analysis of Surface Defects With Blink Software Independent Gain and Contrast Levels for Fiber and Ferrule Regions Adapters for All PC & APC Connectors High-speed USB 2.0 for Live Digital Image Deep Blue Long Life LED Light Source Second Stray-light Source for Surface Cleanliness Inspection (Optional) Ergonomic Fine Focus Control Automation Capabilities USB-powered – No External Power Supply Needed Compatible With Desktop PC, Laptop, Tablet PC Applications: Detect and Measure (Automatically) Scratches and Defects on PC & APC Connectors; Detection and Measurement Compatible With Industry Standards or Customized Parameters

Product number: SW10890

Manufacturer:

D SCOPE EFI Benchtop Fiber Microscope for Multi-Fiber Connectors

Cost Effective; Magnification x50; Field of View 6.7 x 5.3 mm; Focus Manually; Light Source Stray Light; Output Interface USB 2.0 Data-Pixel’s D SCOPE EFI benchtop fiber microscope for MTP/MPO and multi-fiber field connectors is a cost-effective microscope for inspecting fiber optic patchcords. Easy to use, the D SCOPE EFI microscope allows the operator to check the cleanliness of the endface or the guide holes before any connection. All adapters accept both PC and APC connectors or ferrules. With Data-Pixel’s BLINK software, the D SCOPE EFI microscope is able to detect and measure scratches and defects compatible with industry standards or customized parameters. D SCOPE EFI microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: Inspection of PC/APC, MTP/MPO Connectors, Field Connectors and MT Ferrules Real-time Full Connector Endface View High-resolution Optics Intuitive Blink Basic Edition Software Compatible With Desktop PC, Laptop, Tablet PC Applications: Inspecting Fiber Optic Patchcords With MTP/MPO and Multi-fiber Field Connectors

Product number: SW10891

Manufacturer:

D SCOPE MT Benchtop Fiber Microscope for Multi-Fiber Connectors

Fastest Microscope for MTP/MPO Connectors; Magnification x400; Defect Size Detection 0.5 µm; Autofocus; Output Interface USB 3.0, 2.0 Data-Pixel claims that its D SCOPE MT benchtop fiber microscope for multi-fiber MTP/MPO connectors is the fastest on the market. In one and the same measurement cycle, D Scope MT checks every optical fiber surface condition and allows the operator to control the cleanliness of the connector endface and guideholes. The fully automatic D SCOPE MT microscope is the ideal instrument for checking the conformity of multi-fiber connectors to industry standards. With very high measurement accuracy, D SCOPE MT has been designed for use in high-volume manufacturing environments or the most demanding laboratories. D SCOPE MT microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: Testing of PC/APC Connectors and Ferrules From 1 to 64 Fibers Ultra-fast Measurement Time Automatic Pass/Fail Defect Analysis Automatic Focus Adjustment High Resolution Optics With Defect Size Detection of 0.5 μm Compliance With Industry Standards as IEC 61300-3-35 Real-time Full Connector Endface View Intuitive BLINK Software With Database Connectivity Compatible With Desktop PC, Laptop, Tablet PC USB-powered – No External Power Supply Needed Applications: Testing of PC/APC Connectors and Ferrules From 1 to 64 Fibers; Checking Optical Fiber Surface Conditions; Controlling the Cleanliness of the Connector Endface and Guideholes

Product number: SW10894

Manufacturer:

D SCOPE PM Benchtop Fiber Microscope for Single-Fiber Connectors

Cost Effective; Magnification x400; Field of View 0.7 x 0.5 mm; Focus Manually, Auto; Light Source Coaxial, Stray Light; Output Interface USB 2.0 Data-Pixel’s D SCOPE PM benchtop fiber microscope for single-fiber connectors is dedicated to PANDA polarization maintaining (PM) fibers. It combines the high-quality inspection image of the D SCOPE microscope with low cost. The D SCOPE PM microscope is able to measure in real time the angular alignment of the stress elements relative to the connector key position. With Data-Pixel’s BLINK PM Aligner software, the D SCOPE PM microscope provides operators with an automated tool to control and measure PM fiber orientation inside connectors. D SCOPE PM microscopes are compatible with Data-Pixel’s SUPERVISOR software, a MES style software which is in charge of the execution, management and monitoring of the production in an assembly workshop for fiber optic connectors. Its role is to supervise machines and help operators with complete traceability of the manufacturing information. Key Features: Measures PANDA Style Fibers Magnification x 400 True Koehler Optical Design for Homogeneous Lighting Automated and Real-time Measurement Easy Calibration With BLINK PM Aligner High-speed USB 2.0 for Live Digital Image Field Stop Diaphragm Ergonomic Fine Focus Control USB-powered – No Outside Power Supply Needed Compatible With Desktop PC, Laptop, Tablet PC Applications: Measure the Angular Alignment of the Stress Elements in a PANDA PM Fiber Relative to the Connector Key Position in Real-time; Automated Control and Measurement of PM Fiber Orientation Inside Connectors

Product number: SW10892

Manufacturer:

DI-1000 Handheld Fiber Inspection Microscope

Magnification 400x; Field of View 425x320, 680x510 µm; Focus Manually; Resolution 0.5 µm; Light Source Blue LED; Connector USB 2.0 The ergonomically designed DI-1000 is Lightel's all digital video microscope probe. It connects directly to your PC through the computer's USB2.0 port. Featuring easy single-finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5 µm, the DI-1000 package includes Lightel’s free ConnectorView™ (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools. The DI-1000 uses Series 2 inspection tips and can also use all of Lightel’s CI-1000 tips with an optional adapter. Lightel’s optional ConnectorView Plus analytical software adds pass/fail analysis and detailed reporting capabilities to the DI-1000. Key Features: Magnification: 400x (With 9" Monitor), Lower Magnification Optional Field of View (FOV): ~425 x 320 µm (Standard), ~680 x 510 µm (Wide View Version) Resolution: 0.5 µm Detectable Fast, Easy Focus: Manual Adjustment, Travel 2 mm Max. One-hand Operation Inspect Patchcords (Male) and In-adapter Connectors (Female) Direct USB2.0 Connection to PC Connect to Your Smartphone With the Optional DI-1000-WIFI Adapter Power Supply: Powered by USB Connection Built-in Freeze/Capture Button Slim Ergonomic Design Rapid Tip Change Comprehensive Line of Tips Free Image Capture and Software Included Digital Zoom Pass/Fail Analytical Software Option Available Light Source: Blue LED Dimensions: ø 35 x 175 mm (Without Tip Applications: Inspection of Fiber Optic Connector Endfaces for Contamination; Inspection of Patch Cords; Inspection of Adapter Bulkhead Connectors

Product number: SW11494

Manufacturer:

Customers also viewed

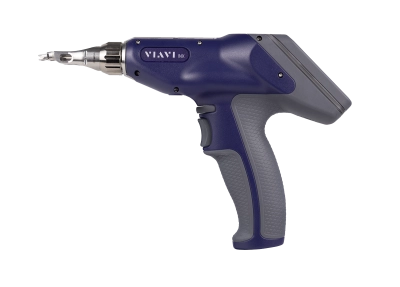

INX 760 Probe Microscope
