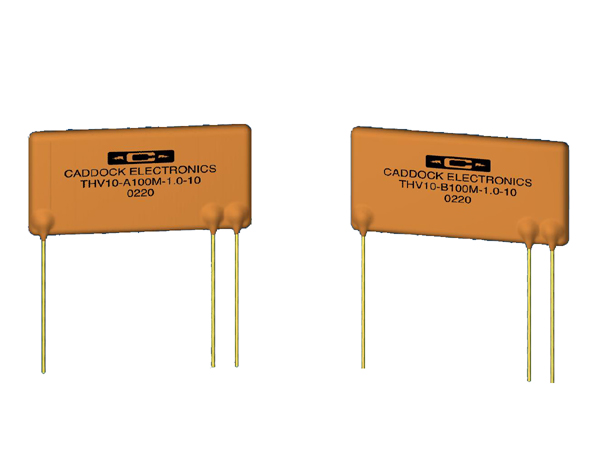

THV Precision High Voltage Divider Networks
Product number:
SW10187
Product information "THV Precision High Voltage Divider Networks"
The Type THV Precision High Voltage Divider Networks introduce Caddock's advanced high voltage resistor technology which doubles the allowable working voltage over the length of the high voltage section. This technology combines
Caddock's Tetrinox® resistance films with a patented lasergenerated V-Notch Geometry which optimizes the voltage gradient over the length of the resistance pattern.
Type THV networks provide tighter ratio temperature coefficients and tighter ratio tolerances than have previously been available in standard high voltage divider products.
- Ratio Temperature Coefficients of 10 ppm/°C or 25 ppm/°C from -55°C to +125°C.
- Ratio Tolerances of ±0.25%, ±0.5%, or ±1.0% at Rated Voltage.
- Voltage Ratings of 10 KVDC or 15 KVDC
- Standard Voltage Division Ratios of 1,000:1 or 100:1, with custom ratios available.
Manufacturer "Caddock Electronics"
