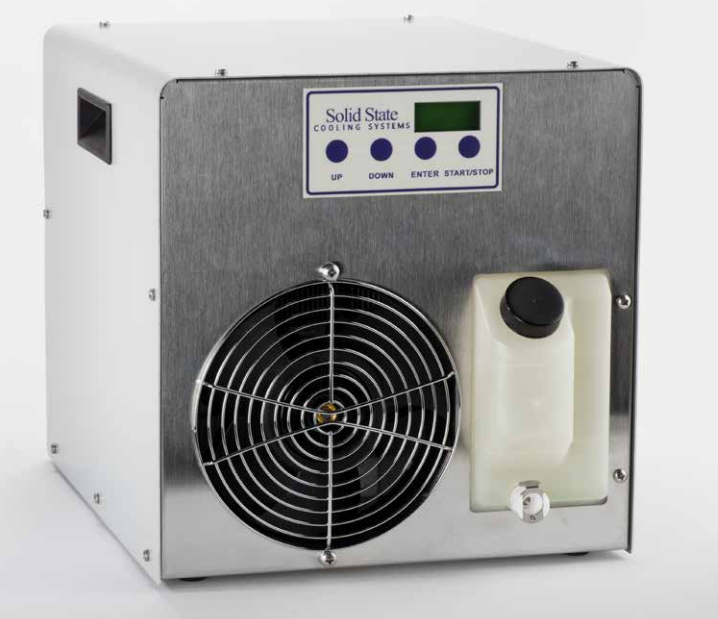

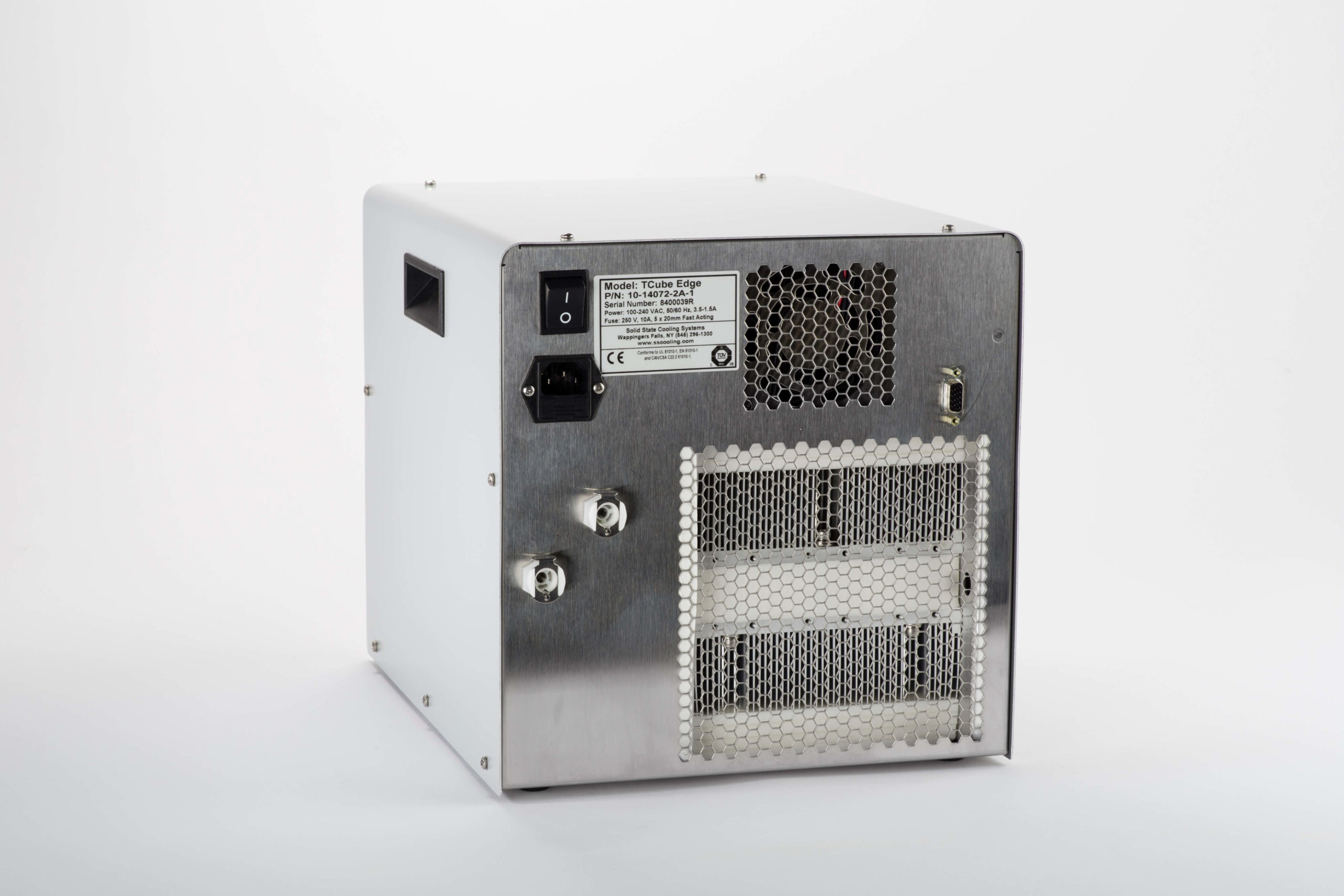

TCube Edge 3S (10-14072-3S-0-F3P3A7) TEC Chiller

PD Brass, 2.3 gpm, 60 psi (BE). The 205-0006 displacement pump fits to following chillers and cooling systems: Lytron Kodiak chillers: RC006, RC009, RC011, RC022, RC030, RC045 Lytron Modular Cooling Systems: MCS10, MCS20, MCS30, MCS40, MCS50

Motor, pump, 1/2 hp, 115/230 VAC, 1 ph, 50/60 Hz, 4.3 gpm. The 230-0203 replacement motor fits to following chillers and cooling systems: Lytron Kodiak chillers: RC011, RC022, RC030, RC045 Lytron Modular Cooling System: MCS50

Two recirculating chillers in one cabinet, up to 900 W cooling capacity, 24 V DC power supply The DmRC-C-900-24-KIT is a development kit suitable for applications requiring high water cooling performance in the smallest of spaces for water coolers. Based on miniature compressors, this "mini Recirculating Chiller" development kit provides two independent water cooling systems in a 19-inch rackmount insert, which can provide a combined maximum cooling capacity of 900 W. With this double chiller concept, DmRC-C-900-24-KIT can cool two heat loads independently of each other – the target temperatures for each of the two heat loads can be set individually. The compressors’ BLDC motors are speed controlled and offer low vibration and low noise throughout the speed range. Since the water circuit is pressurized, DmRC-C-900-24-KIT manages with very small tanks (2 x 275 ml) – without the risk of cavitation in the smoothly operating centrifugal pumps. Overpressure on the cooling system also prevents the ingress of bacteria and oxygen and thus extends the maintenance intervals. An electric air pump generates the pressure on the two water circuits and is also used for automatic complete filling and emptying of the cooling water circuits, simplifying the maintenance of the system. For customer requirements that cannot be covered by the DmRC-C-900-24-KIT, our thermal management specialists at AMS Technologies are happy to develop a completely tailor-made solution and offer all services from development through to series production. Specifications: Power Supply: <700 W (max. 29 A @ 24 V DC) Cooling Capacity (approximately): 900 W (2 x 450 W, TWATER +25 °C, TAMBIENT +25 °C) Temperature Range: ± 1 K (over-/undershoot at 250 W load ON/OFF), ± 0.2 K (continuous operation) Hydraulic Parameters: flow rate 1 lpm to 5.5 lpm @ 1 bar to 0.2 bar pressure drop at heat load Cabinet: rack-mount, 19”, aluminium housing Weight: 20 kg (Dry Weight: 19 kg) Dimensions (WxHxD): 440 mm x 220 mm x 350 mm (main body, without flanges)

Vapor Compression Chillers; 21, 50 kW @+20 °C; 1" FPT; Coolant Temperature +5 to +30 °C Lytron’s series of extreme high capacity recirculating chillers are designed to cool high heat loads while still maintaining tightly controlled output temperatures. These high capacity chillers can be designed with either centrifugal pumps for temperature control within ±0.5 °C or turbine pumps, which have a higher compressor capacity that enables the highest level of cooling of up to 50 kW. Pumps have dual voltage options, which allows chillers to be easily switched from 50 to 60 Hz. By using field tested and enduring components, extreme high capacity recirculating chillers offer high reliability in even the most demanding applications. Lytron’s high capacity recirculating chillers use either water, Propylene Glycol based water solutions (PGW) or Ethylene Glycol based water solutions (EGW). Lytron and AMS Technologies engineering teams work with specific customer requirements to accommodate different process fluids, performance specifications, electronics and controls, dimensional and hardware specifications for integration as well as regulation and certification compliance. Please get in touch with the AMS Technologies thermal technology experts to discuss your customized recirculating chiller solution! Key Features: Cooling Capacities: 21,50 kW Compressor Pump: Centrifugal or Turbine Pump Temperature Stability: ±0.5 to ±1 °C Process Fluid: Clean Water EGW PGW Fluid Connections: 1” FPT Coolant Temperature Range: +5 to +30 °C Applications: Analytical & Laboratory Equipment; Factory Machinery Cooling Systems; Plastic Injection & Molding Equipment; Chemical Processing Temperature Control; Food and Beverage Processing; Electric Discharge Machining (EDM); Laser Cutting; Induction Heating and Ovens; Diode Pumped Lasers; Medical Imaging Equipment; MRI Machines; Dental Equipment; Lasers & Optical Equipment; Power Supplies; Power Generation Stations

Vapor Compression Chillers; 550 to 7,000 W @-80/-40/-20/+20 °C; 1/2, 3/4" FPT, 1/2" Swagelok Lytron’s extreme temperature recirculating chillers are designed to maintain process fluid temperature stability over a wide range of target coolant temperatures from -80 to +90 °C or +4 to +200 °C. Lytron’s extreme temperature chillers can be designed with either magnetically coupled gear pump or turbine pump. Chillers can be installed with internal heaters to maintain temperatures above ambient. Pumps have dual voltage options, which allows chillers to be easily switched from 60 to 50 Hz. By using field tested and enduring components, extreme temperature recirculating chillers offer high reliability in even the most demanding applications. Lytron and AMS Technologies engineering teams work with specific customer requirements to accommodate different process fluids, performance specifications, electronics and controls, dimensional and hardware specifications for integration as well as regulation and certification compliance. Please get in touch with the AMS Technologies thermal technology experts to discuss your customized recirculating chiller solution! Key Features: Cooling Capacities: 550 to 7,000 W Models for Low Temperature (-80 to +90 °C) or High Temperature (+4 to +200 °C) Compressor Pump: Magnetically Coupled Gear or Turbine Pump Temperature Stability: ±0.5 to ±3 °C Fluid Connections: ½” FPT, ½” Swagelok, ¾” FPT (Facility) Coolant Temperature Range: -85 to +50 °C to +10 to +200 °C Applications: Analytical & Laboratory Equipment; Factory Machinery Cooling Systems; Plastic Injection & Molding Equipment; Chemical Processing Temperature Control; Food and Beverage Processing; Electric Discharge Machining (EDM); Laser Cutting; Induction Heating and Ovens; Diode Pumped Lasers; Medical Imaging Equipment; MRI Machines; Dental Equipment; Lasers & Optical Equipment; Power Supplies; Power Generation Stations

Filterhousing  5" (1/2" NPT) for Lytron's RC006/045, MCS40/50 330-0024A
