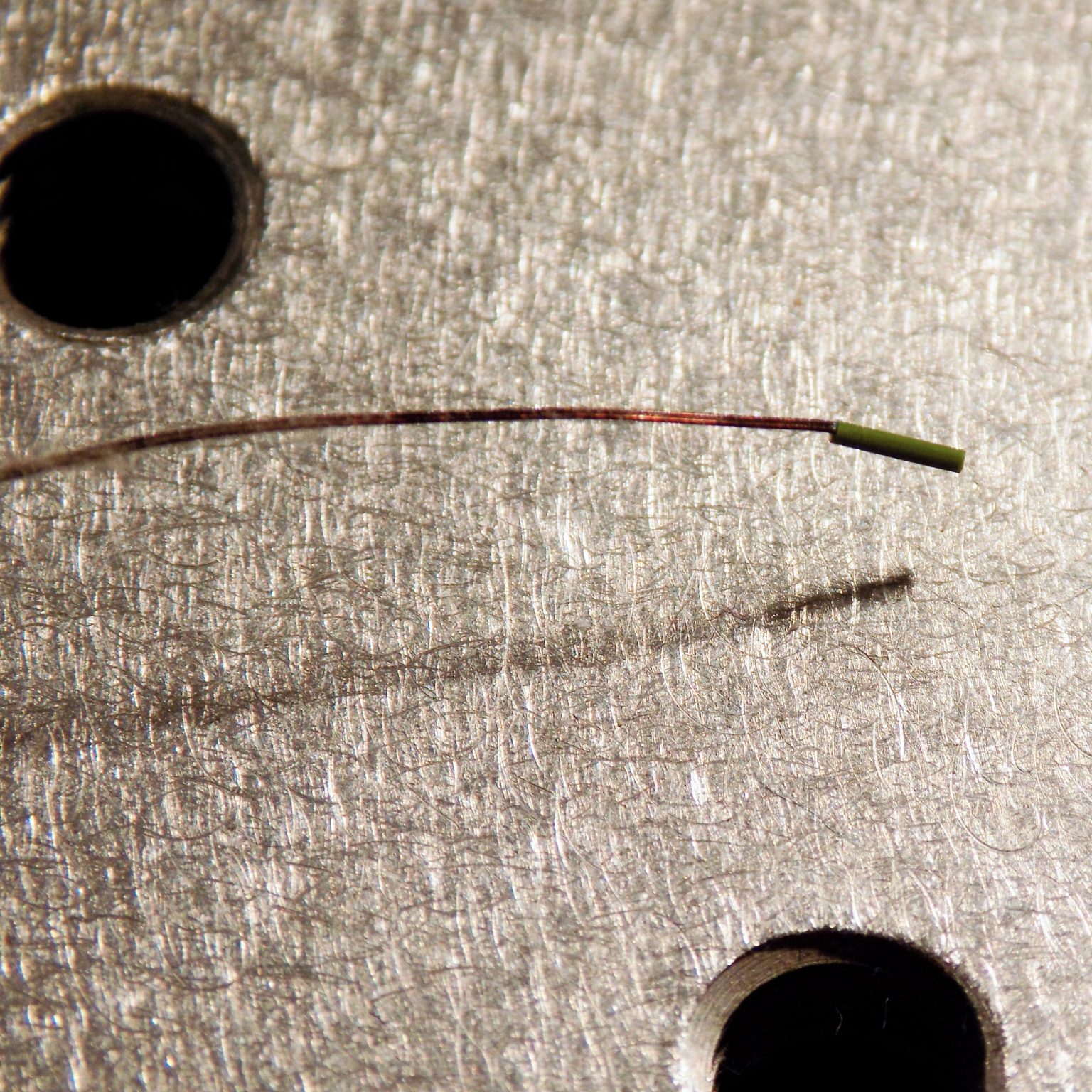

TCS10K5 Temperature Sensors

10 kΩ; ±1%; Bead Head; 3.04x2.4 mm; Phenolic Resin The TCS610 by Wavelength Electronics is an NTC bead head thermistor sold in packs of 10 that can be used with following temperature controllers and laser diode drivers from Wavelength Electronics: HTC1500, HTC1500-62, HTC3000, HTC3000-62, HTC4000-62, MPT2500, MPT5000, MPT10000, PID1500, PTC5000, PTC10000, PTC2.5K-CH, PTC5K-CH, PTC10K-CH, RHM5K-CH, WHY5640, WTC3243, WTC3243HB, WTCP5A5V, LDTC 2/2 O, LDTC 2/2 E, LDTC0520 or LDTC1020. It is conformally coated, two-lead thermistors for applications where embedding the thermistor is required. The coating is baked on phenolic for durability and long term stability. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings. It is ideal for controlling optical surfaces, thin surfaces and small laser packages. A complete resistance vs. temperature chart is included in the datasheet. Key Features Thermal Resistance or Dissipation Constant is 2-3 mW / °C Thermal Time Constant is 6-14 seconds Low Cost Small Size -- Conformally Coated Wide Resistance Range Available in 5 Different R-T Curves 1% Tolerance 3" Long Solid Nickel Wire Leads Teflon® Insulation Provides Isolation from Metal Housing RoHS Compliant (by exemption)

50 kΩ; ±1.0°C; Bead Head; DIA 1.5 mm

15 kΩ; ±1.0°C; Bead Head; DIA 1.5 mm

NTC Thermistors; 5, 10, 15, 50, 231.5 kΩ; ±1.0 °C, ±0.1 °C; Bead, Cylindrical, Flange Mount, Metal Plate, 1/8” Pipe Plug Head; Head Material Polyimide, Epoxy, Stainless Steel, Brass, Brass Nickel Plated; Lead Length : 50 to 457 mm Oven Industries produces a wide array of NTC thermistors as well as custom built probes to meet just about any requirement for controlling temperature. Oven Industries’ NTC thermistor temperature sensor probes can easily be integrated with any of Oven Industries’ temperature controllers or any pre-existing system you already have. Tolerances for Oven Industries’ temperature sensors can be as tight as ±0.1 °C (TR136 series). Available in sizes ranging from 1.5 mm diameter to 16 cm length or 2.5 cm2 and with a broad variety of head types from pure bead heads, cylindrical or flange mount heads all the way to 1/8” pipe plug or metal plate heads, these temperature sensors offer excellent versatility through a wide range of applications. Thermistor is a generic term describing a semiconductor device that exhibits an electrical conductivity that is highly sensitive to temperature. NTC thermistors show a negative temperature coefficient (NTC) with respect to their resistance characteristics versus temperature. In addition to their NTC characteristics, Oven Industries’ thermistor sensors are interchangeable from one thermistor to another per the specified tolerance – meaning in the event one is damaged, it can be swapped out with no need to recalibrate the thermal system. Custom designed temperature sensors and probes are also available. If you cannot find a standard product that can satisfy a specific requirement in the data sheets offered for download here, please get in touch with AMS Technologies. Together with our supplier we can build the optimum electronic control solution to meet your needs. Key Features: Negative Temperature Coefficient (NTC) Head Types: Bead, Cylindrical, Flange Mount, Metal Plate, 1/8” Pipe Plug Sizes from 1.5 mm diameter to 16 cm length or 2.5 cm2 Materials: Polyimide, Epoxy, Stainless Steel, Brass, Brass Nickel Plated Resistance Values: 5, 10, 15, 50, 231.5 kΩ Tolerance ±1.0 °C, ±0.1 °C Lead Length: 50 to 457 mm Applications: Industrial; Semiconductor; Medical; Energy; Research & Education; Defense & Aerospace; Automotive; Telecommunications; Food Processing Equipment; Commercial Cooking Equipment

50 kΩ; ±1.0°C; 1/8" Pipe Plug Head; DIA 3.0x25 mm; Brass
