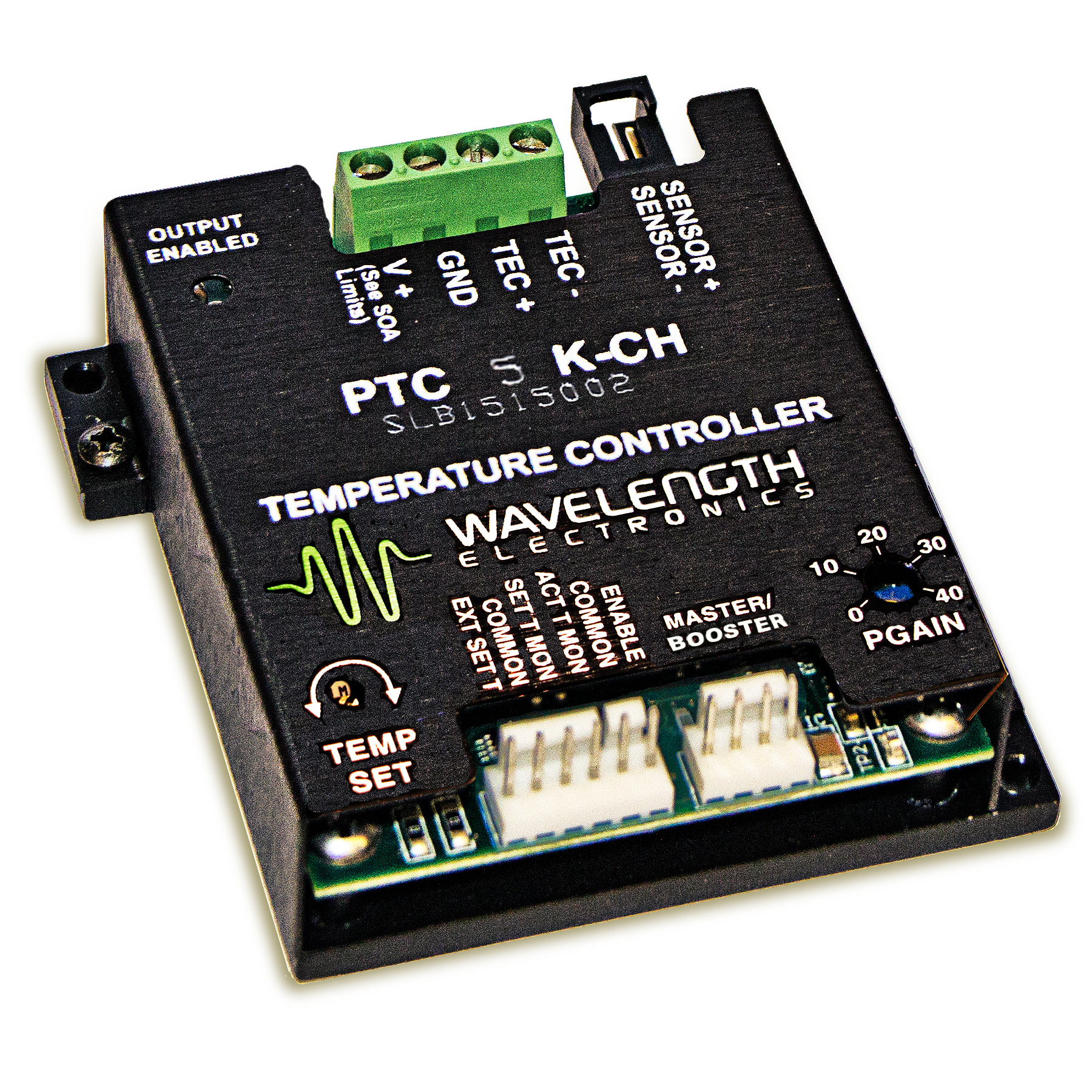

PTC5000 TEC Temperature Controllers

Single Channel; Fiber Type Step Index Multi Mode; Core Size 200 to 600 µm; Flange Options Bolt, Conflat & ISO Klein Flange; Connector Type SMA905 Fiberguide’s VFT series of fiber vacuum pressure feedthroughs is designed to allow optical fibers to penetrate a pressure vessel without compromising the integrity of the vacuum. The VFT series can be configured as stand-alone feedthroughs or integrated into cable assemblies as needed. The VFT series of vacuum feedthroughs are ideal for laser power delivery or optical sensing applications that must be conducted in a pressure or vacuum chamber. Optional specifications for the VFT series of vacuum feedthroughs are pigtail or bundle configurations, alternate connectors or fiber types as well as variants for high or low temperature. Key Features: Fiber Type: Step Index Multimode Core Sizes: 200, 400, 600 µm Wavelengths: 190 to 1250 (High OH), 300 to 2400 nm (Low OH ) Numerical Aperture (NA): 0.22 Connector Options: SMA905 Flange Options: Bolt Style, ConFlat Flange, ISO Klein Flange (KF) Bulkhead Temperature Range: -40 to +125 °C Vacuum Rating: 1 x 10-9 Torr Applications: Laser Power Delivery or Optical Sensing in a Pressure or Vacuum Chamber

Benchtop or Chassis;5 A;60 W

Wavelength range 200-2500 nm; Pressure Probe Head 10 bar @ 25°C; Connector Type SMA-905Transmission dip probes are designed for on-line and inline absorbance measurements in fluids. By dipping or permanently mounting the probe end into the fluid, absorbance can be measured. Explore our range of transmission dip probes below.Transmission ProbesTransmission dip probes are used for on-line and inline absorbance measurements in fluids. By dipping or permanently mounting the probe end into the fluid, absorbance can be measured. A standard SMA-905 connector couples light into a fiber bundle, typically consisting of six fibers (other configurations available upon request). The light is transmitted to the probe end, where it crosses a predetermined gap and is reflected against a diffuse white reflective material back onto the receiving read fiber, which is coupled to a spectrometer on the second leg of the probe. The read fiber is centrally placed within the illumination fiber bundle to provide optimal collection efficiency. Both bundles are housed in flexible stainless steel jacketing, and the probe tip is also made of stainless steel. At the mid-point of the assembly, a ferrule splits the fibers into their respective legs (illumination and read), which are terminated in SMA-905 connectors.Mini Transmission ProbesFor absorption measurements in miniaturized centrifuge tubes or vessels, Avantes offers the mini transmission dip probe. It features a miniaturized tip that is 130mm long and 3.2mm in diameter. The mini transmission dip probe has a fixed optical path length of 5 or 10 mm. It is available in three versions: one for UV/VIS (200-800 nm) measurements, one for VIS/NIR (350-2500 nm), and one for UV/VIS/NIR (250-2500 nm). For best results below 240 nm, solarization-resistant fiber (-SR) is recommended. The probe features Avantes ME, chrome-plated brass, and jacketing. Optionally, the probe can be configured with a longer stainless steel or Hastelloy® tip or other jacketing options (MS, BX, or PVC). It has two SMA connectors (FC/PC also available) for convenient coupling to the Avantes line of spectrometers and light sources.Mini Transmission Dip Probes with Variable Path LengthThis fiber-optic probe features a variable and adjustable path length for more flexibility during absorbance measurements in fluids. The gap between the fiber and the diffuser can be set anywhere between 0.25 and 10 mm. A standard SMA-905 connector couples light into a fiber bundle, typically consisting of six fibers (other configurations available upon request). The light is transmitted to the probe end, where it crosses the predetermined gap and is reflected against a diffuse white reflective material back onto the receiving read fiber, which is coupled to a spectrometer on the second leg of the probe. The read fiber is centrally placed within the illumination fiber bundle to provide optimal collection efficiency. Both bundles are housed in flexible stainless steel jacketing, and the probe tip is also made of stainless steel. At the mid-point of the assembly, a ferrule splits the fibers into their respective legs (illumination and read), which are terminated in SMA-905 connectors.Applications: On-line and in-line absorbance measurements in fluidsPlease note that Avantes products are available from us only in Denmark, Iceland, Norway, and Sweden.
