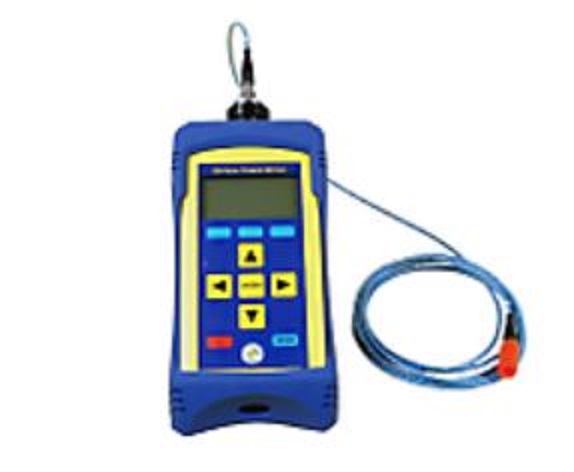

POM-300 Fiber Power Meters

Dynamic Range 1-1000 nW; 780-1650 nm; Integration Time 1 ms-1 min; USB Interface; Internal Light Source 1.55 µm Fibotec Fiberoptics’ dBM-00-C3rd-FCP dB-Meter measures power stability and power changes across a wide dynamic range with high accuracy and high speed. A stabilized 1550 nm light source is built in for quick and easy testing of passive components or local fiber loops. Alternatively light of external sources within a wavelength range of 780 nm to 1650 nm can be used. The power signal is provided both through an analog interface (0 V –3 V) and serial (USB) interface in a digital way. The measurement value is provided on command (“pull”), in fixed time intervals (“push”) or self-triggered on a pre-defined level. No extra power supply is needed when connecting the USB interface. Key Features: Operation With Internal Stabilized Light Source or External Light Source Flexible Operation, 3 Readout Options USB Powered High Dynamic Range: 1 nW to 1 mW Source Wavelength: 1.55 µm (Typical, Special Wavelengths on Demand) Receiver Wavelength Range: 780 nm to 1650 nm (InGaAs Detector) Integration Time: 1 ms to 1 min Max. Fiber Core Diameter (FC/PC): 62.5 µm Power: USB Powered Dimensions: 145 x 100 x 17 mm Operating Temperature: +5°C to +35°C (Non-condensing) Applications: Monitoring of Processes Causing Fast Optical Power Changes; 24/7 Power Monitoring; Testing of Components

Optical Power -70-+33 dBm; 600-1700 nm; Accuracy 1%; Display mW, μW, nW, dB, dBm; Detector InGaAs, Ge; Resolution 0.01 dB Kingfisher’s KI 2600 Series handheld fiber meters measure absolute or relative light levels and test tones and are used by professional installers and contractors to test power, loss, continuity and faults on all types of fiber optic systems. Superior measurement confidence is achieved through a combination of excellent basic accuracy, intuitive use and rugged reliability. KI 2600 Series power meters have comprehensive report generation capabilities and a variety of useful features for productivity. Various detector options cover power levels from +33 to -70 dBm, all useful wavelengths, many connector styles including duplex / ribbon, and large core POF fiber. The meter displays mW, μW, nW, dB, dBm to 0.01 dB resolution, with no range-changing delays. A separate reference for each wavelength is stored and displayed. Superior high-power performance is achieved. Autotest provides fast, easy and automatic multi λ (wavelength) loss testing up to 6 wavelengths, with up to 3 wavelengths displayed simultaneously, along with the respective source nominal power levels. Any Kingfisher Autotest light source/LTS with matching wavelength can be used. Unique in the industry, the tight total uncertainty specification covers all power levels, temperatures, connectors and fibers, without warm-up or user dark current offset. Calibration is ISO 17025 traceable. Interchangeable connectors are dust and drop protected. SC adaptors are supplied, with others available including small form factor LC styles. Metal-free adaptors avoid contamination of connectors in high-power systems. Loss test results can be stored in the large memory, along with a user-input cable name and time stamp. Results can be copied onto a USB memory key with one button push. Alternatively, live readings can be put directly onto a customer report computer using KITS™ customizable Excel-based reporting software. Reports can be easily customized for any terminology, language or format. KITS™ also provides a one-button file dump to a PC with Windows OS. When used with Multi-fiber ID sources, the Multi-fiber ID tone feature uniquely identifies up to 12 fibers, in addition to common test tones. The VFL (Visible Fault Locator) option offers simple fault finding and continuity testing. Flexible power options include a choice of batteries, with a jumper selectable battery charger. External power is provided via USB. For optical power meters with large area optical detectors up to +33 dBm for testing e.g. ribbon fiber, MPO/MT/MTP and MTRJ, large core fiber such as POF, fiber bundles, high power pump lasers, other general optical applications etc., please refer to Kingfisher’s KI 2600XL Series. Key Features: Easy to Use, Rugged & Versatile Optical Power Range: -70 to +33 dBm Wavelength Range: 600 to 1700 nm Detectors: InGaAs, H5 (InGaAs), Ge 28 Genuine 1% Traceable Calibration Wavelengths 1% Accuracy ISO 17025 Traceable Calibration Certificate Improved High Power Accuracy Autotest With up to 3 Wavelengths Displayed Minimum Tone & Autotest Sensitivity: -35 to -50 dBm Typical Wavelength Sensitivity (±30 nm): 0.03 dB Typical Midrange Linearity: 0.04, 0.06 dB Typical Polarization Sensitivity: <0.05 dB Maximum Total Uncertainty: 0.3 to 0.5 dB Power Averaging Mode for Modulated Signal Max/Min Recording Very Long Battery Life, External Micro USB Power Large Back-lit LCD, Sunlight-readable Interchangeable Connectors With Dust Cap/Tilt Bail Large Memory With Text, Time Stamp and USB Dump KITS™ Flexible Real-time PC Reporting Software With Data Security One-Button Memory Dump to USB Key Multi-fiber ID Tone Detection for Fiber Identification VFL Visual Fault Finder Laser Option Size & Weight: 190 x 105 x 35 mm, 420 g Full QA & Linearity Test Report 3 to 7 Years Warranty 3 Years Recommended Calibration Cycle Applications: System Power Testing; Attenuation Testing, Fiber Identification; Fault Finding & Continuity Testing

Optical Power -70-+33 dBm; 350-1700 nm; Accuracy 1%, 2%; Display mW, μW, nW, dB, dBm; Detector InGaAs, Ge, Si; Resolution 0.01 dB Kingfisher’s KI 2600XL & KI 9600XL Series optical power meters / radiometers have large area optical detectors. Typical test applications include specialty fiber optic or free space systems employing multi-fiber connectors such as MPO/MT/MTP and MTRJ, large-core fiber such as POF, fiber bundles, and high-power pump lasers. KI 2600XL & KI 9600XL Series optical power meters / radiometers measure absolute and relative light levels and display mW, μW, nW, dB, dBm to 0.01 dB resolution. A separate reference for each wavelength can be stored and displayed. Up to 1% traceable accuracy, ease of use and high availability combine to achieve superior measurement confidence and makes these series ideal for field and laboratory use. Operational savings result from up to 1000-hour battery life, and no range changing delays. Detector & calibration options cover a wide range of optical connectors, fiber types, wavelengths and power levels. The industry standard 7/8” 28 TPI connector interface can be equipped with screw-on adaptors available for a wide variety of optical connectors. For non-standard calibration wavelengths or connector styles, please contact our power meter specialists to discuss your requirements. Since KI 2600XL & KI 9600 XL Series power meters are ideal for both free space & fiber applications, they are ideal traceable transfer standards for calibrating fiber optic laboratory equipment. For KI 2600XL, powerful KITS software provides a practical logging / acquisition / reporting environment straight out of the box. The handy tone detector is a useful craft aid for fiber identification. The actual modulation frequency is measured and displayed, so that source modulation frequencies can be checked. For more general versions of these series, please refer to Kingfisher’s KI 2600 Series handheld optical power meters and KI 9600A Series pocket power meters. Key Features: Active Area to 5 mm Diameter or 3.5 x 7 mm Optical Power Range: -70 dBm / 100 pW to +33 dBm / 2 W Wavelength Range: 350 to 1700 nm Detectors: 5 mm Diameter or 7 x 3.5 mm Ge, InGaAs, Si, 2 mm Diameter High-power InGaAs & Ge Response Uniformity Across Detector: ±1%, ±2% Very Long Battery Life: 300 to 1,000 h Industry Standard Screw-on Connector Adapters Calibrations at 9 to 28 Wavelengths from 400 to 1650 nm Calibration Accuracy: ±1%, ±2% KI 2600XL: External Power / Charger via Micro USB KI 2600XL: Memory With Text, Timestamp, USB Dump, KITS™ Data Logging / Reporting Software Test Tone Detection Minimum Tone & Autotest Sensitivity: -20 to -45 dBm Typical Wavelength Sensitivity (±30 nm): 0.03, 0.04 dB Typical Midrange Linearity: 0.02 to 0.06 dB Typical Polarization Sensitivity: <0.05 dB Maximum Total Uncertainty: 0.3, 0.5 dB Max/Min Recording Compact, Rugged and Light Weight Size & Weight: 124 x 81 x 25 mm, 150 g (KI 9600XL), 190 x 165 x 38 mm, 420 g (KI 2600XL) Sunlight-readable Display ISO 17025 Traceable Calibration Certificate 3 to 7 Years Warranty 3 Years Recommended Calibration Cycle Applications: Testing Optical Power, Attenuation & Continuity for Duplex, Ribbon & POF Fibers, Fiber Bundles & Free Space and Unusual Fiber Optic Connectors

Optical Power -60-+24 dBm; 635-1625 nm; Accuracy 2%; Display mW, μW, nW, dB, dBm; Detector InGaAs, Ge; Resolution 0.01 dB Kingfisher’s inexpensive KI 9600A Series are simple and reliable shirt-pocket optical power meters for testing power and loss on all types of fiber optic systems. The KI 9600A Series’ 2% traceable calibration accuracy, ease of use and high availability combine to achieve superior measurement confidence. Detector & calibration options cover a wide range of connector types, fiber types, common wavelengths and power levels from +24 to -60 dBm. The small KI 9600A Series pocket fiber power meters are ideal for measuring absolute / relative light levels or test tones on single mode (SM), multi mode (MM) or plastic optical fiber (POF) systems. High traceable accuracy and ease of use make it perfect for field or laboratory. The series’ tough construction includes moisture resistance, rubber corners, a captive connector dust cap and it can be dropped over 2 meters onto a hard surface. These instruments meet MIL PRF 28800F Class 2. When used with multiple KI 9800A Series light sources, the multi-fiber ID feature uniquely identifies up to 12 fibers. The tight total uncertainty specification covers the entire range of measurement, temperature, connectors and fiber types, without warm up or dark current offset. Calibration is ISO 17025 traceable. Operational savings come from a 3-year warranty, 300 hours of battery life and fast operation. The meter displays mW, μW, nW, dB, dBm to 0.01 dB resolution. A separate reference for each wavelength can be stored. A power averaging mode measures the average power of modulated signals. The tamper-lock mode enables a site manager to lock and track instrument settings to reduce measurement skill and improve both test confidence and traceability. Interchangeable optical connectors are dust and drop protected. Other styles include the popular LC. The InGaAs meter is the preferred solution for single mode testing from 900 to 1650 nm. Ge meters offer modest accuracy from 660 to 1550 nm. H series InGaAs meters are available for high-power testing. They offer good immunity to wavelength and reflection effects. For testing 1 mm POF, ribbon fiber, MT-RJ, expanded beam connectors etc., refer to the KI 9600-XL series for instruments with large-area detectors. Key Features: Shirt Pocket Size With Spring Clip: 124 x 81 x 25 mm Low Weight: 0.15 kg Detector: InGaAs, H3B (InGaAs), H5 (InGaAs), Ge Up to 12 Calibrated Wavelengths: 635 to 1625 nm Calibration Accuracy: ±2% ISO 17025 Traceable Easy to Use, Rugged & Reliable 2 x AA Batteries, 300 h Life Large Sunlight-readable Display Displays dBm, dB, linear, Tone Hz Optical Power Level: -60 to +24 dBm Resolution: 0.01 dB Typical Wavelength Sensitivity (±30 nm): 0.03, 0.04 dB Typical Midrange Linearity: 0.04, 0.06 dB Typical Polarization Sensitivity: <0.05 dB Maximum Total Uncertainty: 0.3, 0.5 dB Power Averaging Mode for Modulated Signal Max/Min Recording & Display Hold Tone Detector With Multi-fiber ID for Fiber Identification: -20 to -50 dBm Sensitivity Easy to use Tamper-lock Mode for Low-skill Measurement Patented Low-cost Interchangeable Connectors Full QA Reports ISO 17025 Traceable Calibration Certificate 3 Year Warranty & Calibration Applications: System Power Testing; Attenuation Testing; Fiber Identification; Wavelength Selective Option for PON

The NEW Kingfisher Handheld Fiber Meter is a premium power meter used to test power, loss, continuity and faults on fiber optic systems, The InGaAs detector is recommended for testing singlemode fiber from 1000 - 1650 nm at up to +10 dBm and 200u core diameter,

The small KI 9600A-XL Shirt-Pocket Fiber Meter is a simple and reliable power meter recommended for testing fiber optic systems where a large area detector is required, Two types of 5 mm detector are offered: Si and Germanium, These meters are commonly used for measuring up to 3 mm core diameter POF / PCS / HCS fiber, MTRJ connectors, and MPO / MP / MTP ribbon fiber connectors up to 72 fibers, Typical application areas include Audio, Profibus, industrial, LAN and Telecom, Industry standard screw-on adaptors are available for a wide variety of optical connectors, Our Applications Engineers would be glad to assist with your special needs,

Kingfisher’s KITS™ software is a flexible, powerful and secure cable software solution for real-time data acquisition, labeling, analysis and reporting of fiber optic attenuation, power and optical return loss (ORL). This software can be used with Kingfisher power meters, ORL and loss testers and it easily integrates with cable & rack label printers. KITS™ dramatically improves testing productivity, lowers skill level, minimises errors and enhances report customizing capability. KITS™ can be used across any size of organisation as a true enterprise level solution for performing measurement, reporting and database entry. It quickly produces professional cable pass/fail reports suited to outside plant and LAN / data center requirements. KITS™ is built into Excel. It is a convenient out-of-the-box solution for most users and can be easily customised in many ways. Key Features: Real-time Acquisition, Display, Data Transfer, Report Building and Pass/Fail Using KI 2xxx & 7xxx Series Instruments Integration With Kingfisher Autotest Instruments Easy to Use, Productive & Flexible Pass/Fail Bi-directional Loss & ORL in 5 s, With a KI734x Two-Way Tester Pass/Fail Reporting to TIA 568, IEC 14763, Other & Custom Standards Easily Customize Multiple Customer Reports Print Labels via Cable & Rack Labeling Wizard With Brother P-Touch Editor Software Works on Windows, With Familiar Excel™ User Interface Built-in Demo Instrument Emulation for Easy Trial Flexibility to Accommodate Many Work Practices Data Security With Secure Data Mode and Secure Data Import/Export Formats Use On- or Off-site: Either Work Live or Download Results From Instrument Memory Data Logging Mode for Monitoring & Intermittent Fault Finding Australian LAN, Telstra & NBN Reporting Solutions Compatible Power Meters or Loss Test Sets / Two-Way Testers Easy Data Integration With Corporate Asset Database Demo Mode for Easy Trial Evaluation Free Software & Updates Computer Requirements: Windows 32 or 64 Bit 10/8.x/7/Vista/XP, Apple OSX (Mavericks) using Parallels 9, for Full Functionality: 32 Bit MS Office 2016/2013/2010/2007 Applications: Data Acquisition, Reporting and Data Integration for Fiber Optic Loss, Power & ORL

OEM Type Optical Power Meters, No Display; 450 to 1650 nm; Power Measurement -65 to +10 dBm; Accuracy ±5%; Resolution 0.01 dB; FC, SC, ST, LC Receptacles OZ Optics’ LSDH/POM-600 series of smart detector heads/optical power monitors offers OEM modules (with no built-in display) that can be embedded in systems for remote power monitoring or for long term power logging for burn-in test stations. These OEM versions come with a USB interface in the LSDH (round base) and with RS232 in the POM-600 (rectangular base). SPI or I2C remote interfaces can be provided on demand for volume OEM orders. Customers can install OZ Optics’ provided user graphical interface on a host PC to display the measured optical power. Or customers can use the device commands to develop their own user graphical interface. The LSDH/POM-600 series of smart detector heads/optical power monitors offers a high, greater than 60 dB linear dynamic range and can be easily embedded in long-term power monitoring stations like environmental optical test systems or long term burn-in stations. The device can be offered with calibration at discrete wavelengths or with no wavelength calibration for relative power measurements. Customers may also perform their own calibration. OZ Optics also offers equivalent pocket size units with built-in displays. For further information please refer to the POM-500 series of pocket fiber power meters and the POM-400 series of miniature fiber power meters. For handheld units with built-in displays and a choice of additional receptacles, please refer to OZ Optics’ POM-300 series of handheld fiber power meters. Key Features: Slim and Compact Built-in InGaAs Detector for IR Range or Si Detector for Visible Interchangeable Optical Connectors Available Calibrated and Uncalibrated Versions Available Customers May Perform Their Own Calibration USB and RS232 Interfaces Applications: Long-term Remote Power Monitoring; Fiber Optic Assembling and Testing; Optical Test Systems; Passive Optical Components Burn-in Stations; General Optical Power Measurements; Embedded Systems

Optical Power Meter Modules; 750 to 1700 nm; Power Measurement -100 to +27 dBm; Accuracy ±3.0% to ±7.9%; Fiber Type Single Mode, Multi Mode; FC, ST, E2000, MU, MTP, Bare Fiber Adapters Viavi Solutions’ mOPM-C1 MAP series of Multiple Application Platform (MAP) fiber power meter modules (mOPM-C1) is a second-generation power meter that brings a range of panel mount and remote head configurations to the Viavi Solutions MAP-300 (and legacy MAP-200) platform. The mOPM-C1 MAP series extends the optical power measurement capability of MAP-300 by offering three grades of optical performance available in panel-mount or remote-head configurations with 1, 2, or 4 inputs per module. All four performance grades are based on indium gallium arsenide (InGaAs) detectors and are suitable for applications using single mode (SM) or multi mode (MM) fiber. They feature high accuracy, high linearity, and extremely low polarization dependant loss (PDL). The general purpose grade provides a measurement range of -70 to +10 dBm. The high-performance detector features thermal stabilization, which results in an extended wavelength range and a power measurement range of -80 to +11 dBm. The high-power grade extends high-power measurement capability to +27 dBm. The ultra-performance detectors features enhanced thermal stabilization and noise control, which results in a power measurement range of -100 dBm to +11 dBm and best in class noise performance. A member of the LightDirect Family of MAP-300 modules, the mOPM-C1 MAP can be deployed in the compact MAP-220C 2-slot chassis, the MAP-330 3-slot chassis or the larger MAP-380 8-slot chassis systems. Alongside the many other modules, such as amplifiers, precision attenuators, power meters and spectrum analyzers, MAP-300 is the ideal modular photonics test platform for 100G+ test applications. The MAP-300 platform’s industry-leading density and configurability enables test engineers to meet specific application requirements in the smallest possible footprint. Key Features: Panel-mount or Remote-head Configuration Single-, Dual-, or Quad-channel Configurations Available 250 kHz Sampling Rate for High-speed Applications 750 to 1700 nm Operating Wavelength Range 110 dB Dynamic Range and High-power Options Compatible With Single Mode and Multi Mode Fiber Ability to Store up to 100,000 Data Points per Channel Applications: Amplifier Characterization; Receiver and Transmitter Testing; Absolute Power Measurement; Optical Switching Time Measurement

The Kingfisher International OPT701 mandrel wrap mode filters are used to improve loss testing accuracy on multimode optical fiber.They comply with standard TIA/EIA-568-C, when used with 2 - 3 mm test ords and 50 or 62.5 μm core fiber.Features Simply improve multimode power and loss testing Comply with TIA/EIA-568-C standards Unique hinged clip eases attachment and removal of test cord Includes mandrels for both 50 and 62.5 μm core fiber Grooved body to ensure correct number of fiber loops are made on the mandrel

Handheld Optical Power Meters; 800 to 1700 nm; Power Measurement -75 to +26 dBm; Accuracy ±0.25 to ±0.35 dB; 3.5-in Color LCD Touch Screen; 2014/00.xx Type, PC, APC Adapters With a 100 dB dynamic range, Viavi Solutions’ OLP-85/85P series of SmartClass fiber inspection-ready handheld optical fiber power meters is perfect for any fiber-optic network power or loss test application. These optical power meters combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. Their 100 dB dynamic range and their high accuracy over the entire range means that the OLP-85/85P series perfectly fit applications where low power or very high power needs to be measured. In addition to providing a full day of battery-operated field use, the optical power meters are perfect for fixed installations in central offices, production environments and for laboratory workbenches because they can operate via mains or be remotely controlled via USB 2.0 and Ethernet. The OLP-85/85P series is compatible with the P5000i digital analysis microscope so users can check fiber end-face quality and get pass/fail acceptance results with one button push. The OLP-85P features an integrated patch-cord microscope (PCM) for added value and improved workflow efficiency. Combining Viavi Solutions’ OLS-85 optical light source and OLP-85/85P optical power meters provides the greatest functionality, and automated tests avoid handling errors and speed testing. Automatic functions, such as auto-lambda and multi-lambda test, enable users to receive information about emitted wavelengths, automatically set wavelengths on the compatible power meter, and accurately measure up to four wavelengths simultaneously. Users can also easily save test results (power, loss, fiber inspection) with real-time stamps on the OLP-85/85P series to generate comprehensive certification reports. Key Features: Battery-operated Field-portable 800 to 1700 nm Measurement Wavelength Range (1 nm incremental setting High Accuracy Over an Ultra-wide 100 dB Dynamic Range 2.5 mm and Optional 1.25 mm Universal Push-pull (UPP) Adapter System Compatible with All Optical Connector Types 3.5-in Color Touch Screen with Integrated Stylus Individual Threshold Settings for Power and Loss Pass/Fail Analysis Onboard Fiber Inspection and Test Results Storage with Time Stamp Data Transfer and Remote Control via USB or Ethernet Interface Auto-lambda and Multi-lambda Test Functions in Combination with Viavi Light Sources Applications: Measurement of Optical Power (Absolute and Relative); Measurement of Optical Insertion Loss Together with a Viavi Optical Light Source OLS-3x or OLS-8x; Inspection of Optical Connectors (IBYC); In-service Loss Test Option

1250 to 1620 nm; Tap Ratio 1%; Return Loss 70 dB; Dynamic Range -32-+20 dBm; Directivity 35 dB; Fiber Type SM, PM; Connector FC/UPC As part of its series of inline optical power monitors and tap couplers, OZ Optics offers the OPM-200, a digital inline optical power monitor. Based on a groundbreaking, patented fabrication process, these all-fiber taps and monitors provide a way to easily measure the average signal intensity through an optical fiber via tapped light channeled into a built-in photodiode, without interrupting the traffic. The photodiode produces a signal proportional to the optical power traveling through the fiber with high directivity. The OPM-200 power monitor integrates a novel inline optical tap with a low-noise InGaAs detector in combination with a high dynamic range logarithmic amplifier. The built-in microcontroller processes and displays the power transmitted through the selected fiber channel on an LCD display. The optical tap modules and display units are independently calibrated, so any display unit can be plugged into any tap module, and the measured power will be automatically calibrated. A low-voltage circuitry design ensures a long lifetime for the built-in battery. The detector module can be calibrated for either a single wavelength or for a broad wavelength range. Optional, RS-232 and analog outputs are also available. The OPM-200 inline power monitor is ideal for network monitoring, out of specification alarms, and/or DWDM systems for real time monitoring and feedback. OZ Optics’ inline taps are highly directional and ideal for monitoring traffic traveling in one direction only. They may also be used for measuring return losses instead of transmitted power. In the same product family, OZ Optics now provides OEM single channel optical power monitors and can offer multi-channel power monitors for DWDM system integration on demand. Key Features: Low Insertion Loss Continuous Fiber – No Interruptions to Optical Path Display Units are Interchangeable Wide Input Power Dynamic Range: -32 dBm to +20 dBm Tap Ratio: 1% Detector Type: InGaAs Wavelength Range: 1250 nm to 1620 nm with PIN InGaAs Detector Calibrated Wavelength: 1550 nm Optical Return Loss: 70 dB (Excluding Connector) Directivity: 35 dB Polarization Dependent Response (PDR): <0.2 dB Polarization Dependent Loss (PDL) Along the Transmission Path: < 0.1 dB High Power Handling Fiber Type: 9/125 μm Fiber Jacket: 3mm PVC Connector: FC/UPC Polarization Maintaining (PM) Fiber Versions Available Rugged and Compact Design Long Battery Life Automatic Shut Off Output Interface: RS-232 and Analog Output Options Available Applications: Optical Power Control Devices; Channel Balancing for WDM Systems; Dynamic Optical Amplifier Gain Monitoring; Power Monitoring; Network Monitoring; Real Time In-line Test and Measurement; Network Installation; Fiber Optic Sensor
