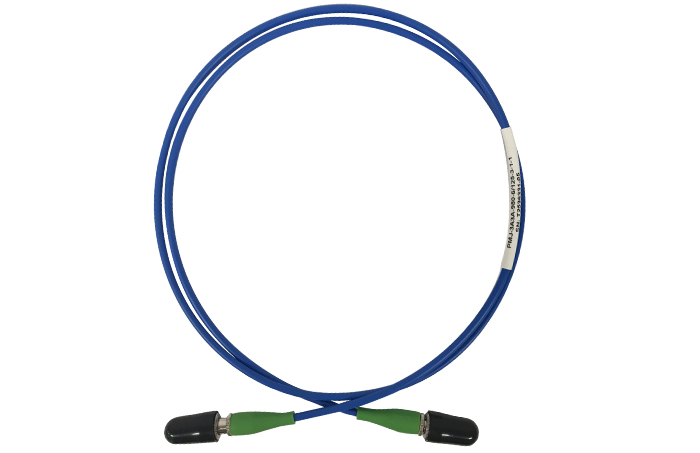

PMJ-3A3A-980-6/125-3-1-1 PM Patch Cable

Polarization Maintaining Patchcords, Glass Solder; Polarization Extinction Ratio >20, >25, >30 dB; Helium Leak Rate <10-8 ATM-cc/s; Operating Temperature -40 to +85 °C; Max. Installation Temperature +280 °C OZ Optics’ HGPMJ series of hermetically sealable polarization maintaining (PJ) patchcords with glass solder are designed for today's stringent requirements for component packaging. Utilizing bare fiber without costly metalization, and a proprietary sealing process, these patchcords feature a rugged hermetic feedthrough that can be soldered into an opto-electronic package using standard tin/lead solders. The hermetic seal tube is gold plated to promote good on-site sealing and corrosion resistance. These assemblies are capable of easily creating a seal that meets industry hermeticity requirements. PM fibers offer a means to control polarization of optical signals throughout the system, thus controlling Polarization Dependant Losses (PDL) and Polarization Mode Dispersion (PMD). This control is crucial in developing high speed, 40 Gbs, 100 Gbs coherent detection systems. In general, OZ Optics uses polarization maintaining fibers based on the PANDA fiber structure when building polarization maintaining components and patchcords. However OZ Optics can construct devices using other PM fiber structures. If necessary, OZ Optics is willing to use customer supplied fibers to build devices. Key Features: High Polarization Extinction Ratios up to 30 dB Single or Multiple Fiber Designs up to 24 Channels Ribbon Fiber Versions Available Alternative to fiber Metalization Methods Terminated with Round or Rectangular Ferrules Designed to Meet Telcordia Rrequirements Custom Configurations Possible Applications: Laser Diode Packaging; Waveguide Packaging; Integrated Optics Packaging; Vacuum Feedthrough Assemblies

Polarization Maintaining Patchcords. Metal Solder; Polarization Extinction Ratio >20, >25, >30 dB; Helium Leak Rate<10-8 ATM-cc/s; Operating Temperature -40 to +85 °C; Max. Installation Temperature +210 °C OZ Optics’ HPMJ series of hermetically sealable polarization maintaining (PM) patchcords with metal solder are designed for today's stringent requirements for component packaging. Utilizing metalized fiber and a proprietary sealing process, these patchcords feature a rugged hermetic feedthrough that can be soldered into an opto-electronic package using standard tin/lead solders. The hermetic seal tube is gold plated to promote good on-site sealing and corrosion resistance. These assemblies are capable of easily creating a seal that meets industry hermeticity requirements. PM fibers offer a means to control polarization of optical signals throughout the system, thus controlling Polarization Dependant Losses (PDL) and Polarization Mode Dispersion (PMD). This control is crucial in developing high speed, 40 Gbs, 100 Gbs coherent detection systems. In general, OZ Optics uses polarization maintaining fibers based on the PANDA fiber structure when building polarization maintaining components and patchcords. However OZ Optics can construct devices using other PM fiber structures. If necessary, OZ Optics is willing to use customer supplied fibers to build devices. Key Features: High Polarization Extinction Ratios up to 30 dB Single or Multiple Fiber Designs up to 24 Channels Ribbon Fiber Versions Available Can be Installed into Packages with Standard Solders Gold Plated Seal Tube for Easy Sealability and Corrosion Resistance Terminated with Round or Rectangular Ferrules Designed to Meet Telcordia Rrequirements Custom Configurations Possible Applications: Laser Diode Packaging; Waveguide Packaging; Integrated Optics Packaging; Vacuum Feedthrough Assemblies

Polarization Maintaining Patchcords; 633 to 1550 nm; Fiber Type PM; Insertion Loss ≤0,3 to ≤1,5 dB; Return Loss ≥50, ≥60 dB LightComm Technology’s PMCONN series of polarization maintaining patchcords are manufactured with FC, SC, ST, LC, MU, SMA905 and other types of fiber connectors. LightComm Technology’s PMCONN series of patchcords offers low insertion loss, high return loss and high repeatability. PMCONN patchcords are available with both input and output connectors or as pigtail. All PMCONN patch cables are manufactured according to Telcordia GR-326-CORE. Key Features: Low Insertion Loss High Return Loss High Repeatability Connectors: FC/UPC, FC/APC, SC/UPC, SC/APC, etc. Applications: Fiber Devices; Fiber Systems

Polarization Maintaining; 480 to 1625 nm; Fiber Type PANDA, others; Insertion Loss ≤0.4 to ≤1.5 dB; Operating Temperature Range -20 to +70 °C OZ Optics’ PMJ series of polarization maintaining (PM) patchcords are based on a high precision butt-style connection technique. The PM axis orientation is maintained by using male connectors with a positioning key and a bulkhead female receptacle with a tightly toleranced keyway, ensuring good repeatability in extinction ratios and insertion losses.The polarization axis of a fiber is aligned with the connector key by rotating either the connector frame or the fiber itself until the polarization axis is in line with keyway of the connector. Once the fiber is correctly aligned, the alignment can be fixed with a drop of glue or epoxy. OZ Optics minimizes backlash and rotational errors in the PM axis alignment by using specially designed PM ferrules and connector housings.Patchcords are normally offered pre-aligned and referenced with the slow axis aligned to the connector key for optimum coupling efficiency and extinction ratios. Non-angled FC PM connectors are also available unaligned and unlocked (rotatable) for lab use. Unless otherwise specified, pre-aligned patchcords are oriented such that the slow axis of the fiber is aligned with the key of the connector and locked. These patchcords maintain polarization to better than 20 dB. Higher extinction ratios are available upon request. In general, OZ Optics uses polarization maintaining fibers based on the PANDAfiber structure when building polarization maintaining components and patchcords. However OZ Optics can construct devices using other PM fiber structures, including 80 µm cladding sizes. If necessary, OZ Optics is willing to use customer supplied fibers to build devices. OZ Optics uses a 2.00 mm housing key for its standard FC/PC PM connector design. This is known also as a type “R” keywidth. Also available are FC/PC connectors with a 2.14 mm housing key (Type “N”). Sleeve through adaptors are available to connect same size keys or to convert from a 2.00 mm to a 2.14 mm key connector. In addition to patchcords and sleeve through adaptors, OZ Optics provides male PM connectors and ferrules for fiber termination, bulkhead receptacles to attach fibers to devices as well as ferrules for different fiber sizes. Key Features: Terminations Available: FC/PC, SC, ST, LC, MU, E2000 Custom Ferrule Terminations Available High Extinction Ratios (20 dB to 40 dB) Low Insertion Losses (<0.2 dB typ.) Custom Angles Available Compatible with Industry Standard Connectors Designed to Meet Telcordia Specifications Applications: High-speed (10 Gbs / 40 Gbs) Telecommunications; Interferometric Sensors; Integrated Optics; Fiber Amplifiers; Coherent Telecommunications

1290-1550 nm; 1280 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 1 m Cable Length The PMJ-3A3A-1300-7/125-3-1-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 1 m long and 3 mm OD jacketed.

1290-1550 nm; 1280 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 2 m Cable Length The PMJ-3A3A-1300-7/125-3-2-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 2 m long and 3 mm OD jacketed.

1290-1550 nm; 1280 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 5 m Cable Length The PMJ-3A3A-1300-7/125-3-5-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 5 m long and 3 mm OD jacketed.

1460-1625 nm; 1450 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 1 m Cable Length The PMJ-3A3A-1550-8/125-3-1-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 1 m long and 3 mm OD jacketed.

1460-1625 nm; 1450 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 10 m Cable Length The PMJ-3A3A-1550-8/125-3-10-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 10 m long and 3 mm OD jacketed.

1460-1625 nm; 1450 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 2 m Cable Length The PMJ-3A3A-1550-8/125-3-2-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 2 m long and 3 mm OD jacketed.

1460-1625 nm; 1450 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 5 m Cable Length The PMJ-3A3A-1550-8/125-3-5-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 5 m long and 3 mm OD jacketed.

620-820 nm; 620 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 1 m Cable Length The PMJ-3A3A-633-4/125-3-1-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 1 m long and 3 mm OD jacketed.
