PMJ-3A3A-1550-8/125-3-1-1 PM Patch Cable

€95.00*

Prices excl. VAT plus shipping costs

Available, delivery time: 1-2 days

pcs

Product number: C005068-6

Manufacturer: OZ Optics

Available stock: 20

Downloads

PMJ PM Patch Cables OZ Optics Datasheet

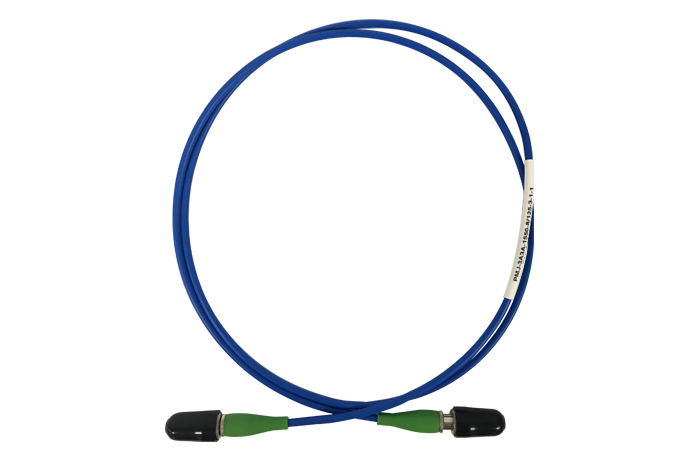

Product information "PMJ-3A3A-1550-8/125-3-1-1 PM Patch Cable"

1460-1625 nm; 1450 nm Cutoff Wavelength; Ø3 mm, blue, PVC Jacket; FC/APCs; 1 m Cable Length

The PMJ-3A3A-1550-8/125-3-1-1 polarization maintaining fiber patchcord is terminated with angle FC/APC connectors on both ends that are pre-aligned and locked on the slow axis. The PM patch cable is 1 m long and 3 mm OD jacketed.

Manufacturer "OZ Optics"

Located in Canada's capital city of Ottawa and established in 1985, OZ Optics Ltd. is a leading worldwide supplier of fiberoptic products for existing and next-generation optical networks such as components and test equipment. Target markets include telecommunications, cable television, medical, military, industrial, aerospace, petrochemical and educational sectors. OZ Optics is ISO 9001:2000 and Telcordia certified.

Customers also bought

PM Fiber, 1550nm, PM 15-U40D

Wavelength 1550nm, coating outer diameter 400µm ± 15.PANDA high performance polarisation maintaining specialty optical fiber. Key optical specifications Wavelength (nm) 1550 Mode-field Diameter (μm) 10.5 ± 0.5 Beat Length Range (mm) 3.0-5.0 Maximum Cross Talk at 100 m (dB) -30 Typical Cross Talk at 4 m (dB) -40 Cutoff Wavelength (nm) 1300-1440 Maximum Attenuation (dB/km) 0.5 Key geometric, mechanical and environmental specifications (-U40D) UV/UV Acrylate Core-to-Cladding Offset (μm) ≤ 0.5 Coating Outer Diameter (μm) 400 ± 15 Cladding Outer Diameter (μm) 125 ± 1 Standard Lengths* 100 m, 200 m, 300 m, 400 m, 500 m, 1 km Proof Test (kpsi) 100 (200 optional) Operating Temperature (°C) -40 to 85 * For longer lengths contact us

Product number: C019304-6

Manufacturer:

€17.49*

m
