OCL-480 GIR LEDs

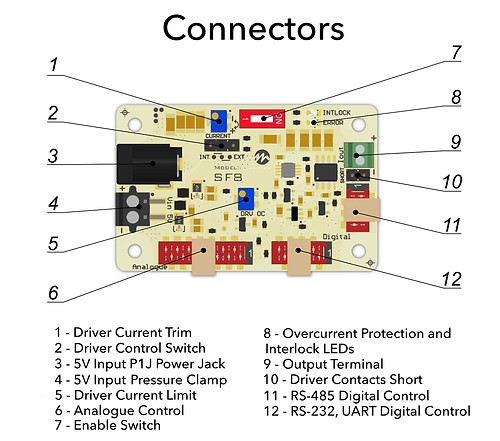

Maximum current LD (I): 250, 750, 1500, 3000 mA; Output voltage LD (V): 0.5-3 V; Current Stability 0.1%; Current Set Accuracy: 1%; Output Current Noise: 10-15 µAThe SF8XXX-WT v1.3 Laser Diode Driver is a high-performance device designed to deliver precise and stable current to laser diodes. It supports a maximum current of up to 3000 mA and an output voltage range of 0.5-3 V. This driver ensures exceptional current stability at 0.1% and a current set accuracy of 1%, making it ideal for applications requiring high precision.Key Features:Current and Voltage: Maximum current options of 250 mA, 750 mA, 1500 mA, and 3000 mA. Output voltage range from 0.5 to 3 V.Stability and Accuracy: Current stability of 0.1% and current set accuracy of 1%. Output current noise is maintained between 10-15 µA.Protection: Includes current limit, temperature limit, reverse current protection, ESD, and transient protection. Features a soft-start current ramp for laser diode protection.User Interface: Equipped with trim potentiometers for driver current and TEC power. Supports analog control signals, RS-232, UART, USB (as a paid option), RS-485, and I2C. Bluetooth is available as a paid option for Android app integration.Dimensions and Weight: Compact design with dimensions of 57.9 x 36.8 x 18 mm and a weight of 50 g.Package Contents: Includes the driver, 50 cm ribbon cables with 8-pin and 14-pin connectors, a datasheet, user manual, and a USB-UART converter.Warranty: Comes with a 1-year manufacturer’s warranty.This driver is RoHS3 compliant and offers low current ripple (≤ 10 µA), making it suitable for sensitive laser applications. Additionally, it supports LabView drivers and free software for enhanced control and monitoring.Applications: Medical instruments, measurement tools, communication systems (EDFA), Raman spectroscopy, microscopy

Broadband SMD Surface-Mount Device;500-800 nm;350 mA

THT Through-Hole Technology;UV;255 nm;20 mA

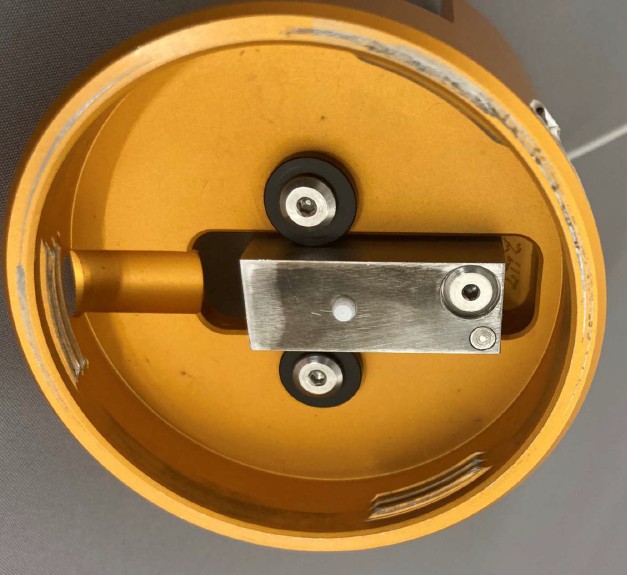

Attachment;POP311;SC/PC Ferrule

High-speed, Portable Polisher for Field Assembly; Connector/Ferrule Type SC, MU, FC, LC, MT, MTRJ, Custom; Radius of Curvature 10 to 25 mm; Apex Offset <50 µm; Return Loss >50 dB NTT Advanced Technology’s POP-311 series of high-speed portable polishers is suitable for installing optical connectors or extending optical fibers at field work site. Its cylinder jig allows for on-site polishing / re-polishing of MPO connectors and single fiber connectors. High polishing quality equivalent to that of factory use polishers can be achieved. The POP-311 high-speed portable polishers are able to polish connectors at very high velocity – up to 700 revolutions per minute. The POP-311 series is also suitable for re-polishing of MT connectors. When optical fiber connectors due to be laid are found to be damaged, on the spot repolishing makes them ready to be used. Also, LC-Duplex connectors can be simultaneously polished without dismantling. With only three to five processes, polishing MPO connectors and single fiber connectors can easily be done on location. For example, the polishing procedure from adhesive removal to advanced PC polish takes about 150 seconds (SC connector/terminal), while advanced PC polish by re-polishing takes only about 50 seconds (SC connector/terminal). Applicable connectors/ferrules are SC, MU, FC, LC, MT and MTRJ type optical connectors and glass ferrules. A broad range of attachments is available for the various different connector types. Since the attachments are the same as for the factory use ATP-3000 polishing machine, they can be used for a wide range applications such as MPO connectors and single fiber connectors (UPC/APC), and polishing of all types of capillaries and fibers. Widely accessible rechargeable nickel hydride battery (AA) or alkaline dry battery (AA) can be used as power supply. Key Features: Suitable for MT, MTRJ, SC, MU, FC and LC Connectors High Quality- Battery Operated High Speed Polishing Applications: Optical Connector Polishing (for re-polishing and new polishing processes)
