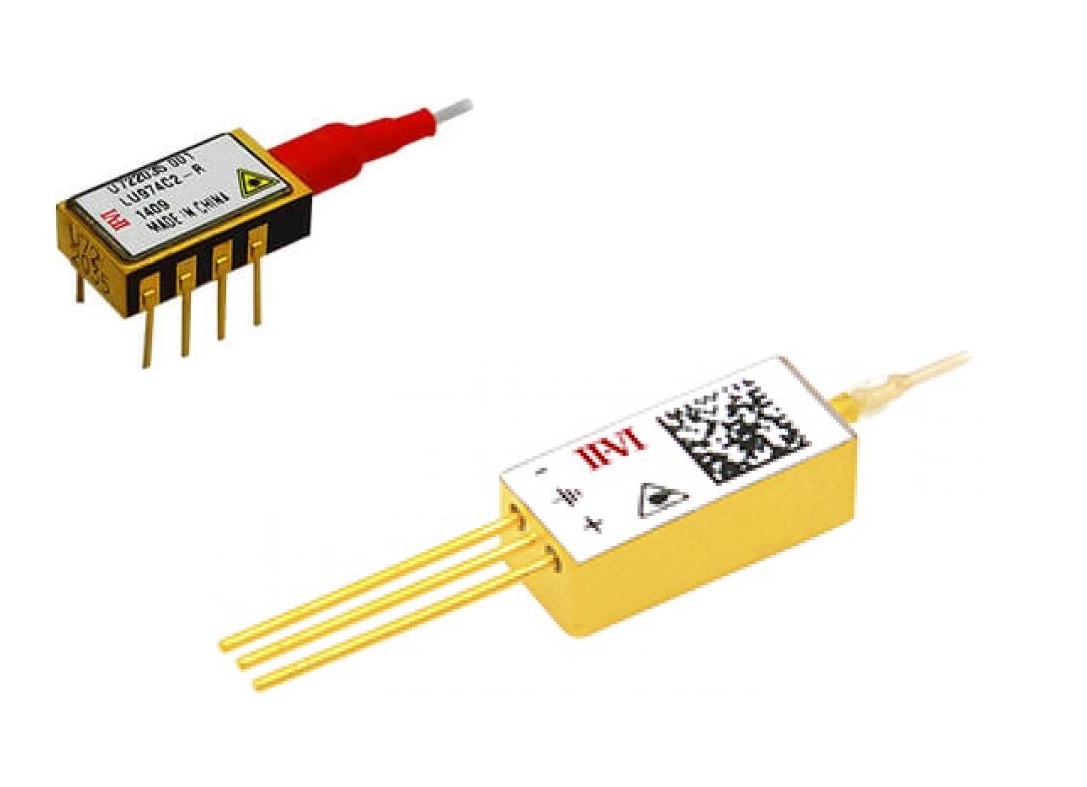

LCx Pump Laser Modules

653-1120 nm; Spectral Width 2-10 nm; Output Power 1-19 W (CW), 1.8-90 W (Pulsed); Threshold Current ≤500-3000 mA; Slope Efficiency 0.6-1.0 W/A; Forward Current 1,6-100 A Toptica egleyard’s BAL series of multi mode laser diodes are high brightness, broad area laser (BAL) diodes operating multi mode spatially and longitudinally. Within the BAL series, wavelengths between 653 and 1,120 nm are available with output powers between 1 and 19 W in cw mode or even up to 90 W in pulse mode. Its high pulse energy and fast rise time makes the BAL series of multi mode laser diodes the laser source of choice for high resolution sensing applications under harsh environmental conditions. Stripe widths from 100 to 400 µm are available to optimize beam structure and power for the application. Toptica eagleyard’s hermetically sealed TO packages as well as C-mount or fiber pigtailed flat packages make such laser diodes ideally suited for applications with either demanding size restrictions or with preferred fiber pigtail handling. The output power of the fiber of a cost efficient pigtailed single emitter starts at 1 W and reaches up to 90 W peak in pulsed mode. Key Features: Broad Area, Edge Emitting Laser Diodes Broad Wavelength Range: 653 to 1,120 nm High Output Power: 1 to 19 W (CW) and 1.8 to 90 W (Pulsed) Hermetically Sealed Fast/Slow Axis Collimation Typ. Spectral Width: 2 to 10 nm Stripe Width: 100 to 400 µm Cavity Length: 1 to 4 mm Beam Divergence: Parallel (Slow Axis) 1.5° to 10° (FWHM), Perpendicular (Fast Axis) 0.6° to 30° (FWHM) Extreme Operating Temperature Range: -60 to +90 °C Packages: C-Mount, 9 mm TO TO with Thread, Integrated FAC/SAC, Flatpack With Window   Product Wavelength Output Power Operational Mode Package Specifics Downloads BAL-0653-01000-1510-CMT02-0000 653 nm 1 W CW C-Mount 2 mm Powerful, High Brightness, Longitudinally Multi Mode Datasheet BAL-0670-00001-1510-SOT23-0010 670 nm 1.5 W Pulsed TO-Can 9 mm Suitable for Harsh Environments Datasheet BAL-0670-00004-1510-SOT23-0010 670 nm 4 W Pulsed TO-Can 9 mm Suitable for Harsh Environments Datasheet BAL-0670-00010-1510-SOT23-0016 670 nm 10 W Pulsed TO-Can 9 mm Suitable for Harsh Environments Datasheet BAL-0808-00005-2013-SOT12-0010 808 nm 6 W Pulsed TO-Can 9 mm Suitable for Harsh Environments Datasheet BAL-0808-08000-4020-CMT04-0000 808 nm 8 W CW C-Mount 4 mm Suitable for Harsh Environments Datasheet BAL-0808-00020-4020-FLW01-0010 808 nm 20 W Pulsed Flatpack With Window Suitable for Harsh Environments Datasheet BAL-0808-00025-2013-SOT23-0016 808 nm 25 W Pulsed TO-Can 9 mm Suitable for Harsh Environments Datasheet BAL-0905-00010-1040-TOE02-0010 905 nm 12 W Pulsed TO With Thread Suitable for Harsh Environments Datasheet BAL-0905-00050-1040-TOE22-0010 905 nm 50 W Pulsed TO With Thread Suitable for Harsh Environments Datasheet BAL-0905-00090-1040-TOE22-0010 905 nm 90 W Pulsed TO With Thread Suitable for Harsh Environments Datasheet BAL-0980-08000-4020-CMT04-0000 980 nm 8 W CW C-Mount 4 mm Suitable for Harsh Environments Datasheet BAL-1064-08000-4020-CMT04-0000 1064 nm 8 W CW C-Mount 4 mm Suitable for Harsh Environments Datasheet   Applications: Time-of-Flight LIDAR; Laser Sensing in Missiles; Laser Ignitors of Optopyro Elements for Satellites or Launchers; Active Protection Systems; Material Processing; Medical; Solid-state Laser Pumping

Wavelength 795-1927nm; Power 5-40 W; Fiber Core Diameter 105-1000 µm Applications: Pumping Rb Vapor, Spin Exchange Optical Pumping (SEOP); Pumping DPSSL; Fiber-Coupled Module for Pumping DPSSL; Fiber Lasers; Surgery, Fat Reduction, Materials Processing; Skin Rejuvenation; Varicose Vein Treatment; Fiber-Coupled Module for Varicose Vein Treatment; Pumping Er:YAG Lasers; Wavelength Stabilized Diode Laser for Pumping Er:YAG Crystal; Fiber-Coupled Module for Medical Applications; Aesthetics; Illumination; Nerve Stimulation. Item number Series Wavelength Power Fiber Core Diameter  Additional Information Applications Downloads 6109-0000 BrightLock® Ultra-50 795 nm 25 W 1000 µm Spectrally Narrowed Pumping Rb Vapor, Spin Exchange Optical Pumping (SEOP) Datasheet 6008-1118 BrightLock® Ultra-50 808.5 nm 30 W 400 µm Wavelength Stabilized Pumping DPSSL Datasheet 6108-0007 BrightLock® Ultra-50 880 nm 40 W 400 µm Wavelength Stabilized Pumping DPSSL Datasheet 6108-0000 BrightLase® Ultra-50 888 nm 40 W 400 µm Medica Options Fiber-Coupled Module for Pumping DPSSL Datasheet 6107-0000 BrightLock® Ultra-50 976 nm 25 W 200 µm Wavelength Stabilized Pumping DPSSL and Fiber Lasers Datasheet 6019-0007 BrightLase® Ultra-50 1064 nm 35 W 400 µm Medica Options Surgery, Fat Reduction, Materials Processing Datasheet 6119-0000 BrightLase® Ultra-50 1410 nm 5 W 105 µm Medica Options Skin Rejuvenation Datasheet 6018-M003 BrightLase® Ultra-50 1470 nm 12 W 200 µm Medica Options Surgery, Varicose Vein Treatment Datasheet 6015-0007 BrightLase® Ultra-50 1470 nm 17 W 400 µm Medica Options Fiber-Coupled Module for Varicose Vein Treatment Datasheet 6015-0010 BrightLase® Ultra-50 1470 nm 8 W 105 µm Medica Options Pumping Er:YAG Lasers Datasheet 6115-0000 BrightLock® Ultra-50 1532 nm 15 W 400 µm Wavelength Stabilized Wavelength Stabilized Diode Laser for Pumping Er:YAG Crystal Datasheet 6015-M100 BrightLase® Ultra-50 1532 nm 15 W 300 µm Medica Options Fiber-Coupled Module for Medical Applications Datasheet 6014-M002 BrightLase® Ultra-50 1540 nm 12 W 105 µm Medica Options Aesthetics, Skin Rejuvenation Datasheet 6014-M001 BrightLase® Ultra-50 1550 nm 15 W 400 µm Medica Options Illumination, Skin Rejuvenation, Surgery Datasheet 6014-0017 BrightLase® Ultra-50 1875 nm 5 W 400 µm Medica Options Surgery, Nerve Stimulation Datasheet 6014-0019 BrightLock® Ultra-50 1908 nm 6 W 400 µm Wavelength Stabilized Wavelength Stabilized Diode Laser for Pumping Ho:YAG Crystals Datasheet 6010-M006 BrightLase® Ultra-50 1927 nm 2.5 W 105 µm Medica Options Skin Rejuvenation Datasheet

Wavelength 888-1908 nm; Power 40-350 W; Fiber Core Diameter 400-800 µm Applications: Pumping DPSSL; Resonant Pumping; High Power Diode Laser for Lung and Liver Surgery; Fiber-Coupled Diode Laser for BPH (Benign Prostate Hyper-Growth) Surgery; Wavelength Locked Diode Laser for Pumping Er:YAG; Fiber-Coupled Bar-Based Modules; Fiber-Coupled Module for Transparent Plastic Welding; Wavelength Locked Diode Laser for Pumping Ho:YAG. Item number Series Wavelength Power Fiber Core Diameter  Additional Information Applications Downloads 6508-0001 BrightLock® Ultra-500 880 nm 350 W 800 µm Wavelength Stabilized Pumping DPSSL, Resonant Pumping Datasheet 6408-0004 BrightLase® Ultra-500 888 nm 250 W 400 µm Medica Options Pumping DPSSL, Resonant Pumping Datasheet 6413-M200 BrightLase® Ultra-500 1318 nm 150 W 600 µm Medica Options High Power Diode Laser for Lung and Liver Surgery Datasheet 6414-0001 BrightLase® Ultra-500 1470 nm 100 W 400 µm Medica Options Fiber-Coupled Diode Laser for BPH (Benign Prostate Hyper-Growth) Surgery Datasheet 6515-0000 BrightLock® Ultra-500 1532 nm 90 W 400 µm Wavelength Stabilized Wavelength Locked Diode Laser for Pumping Er:YAG Datasheet 6415-0002 BrightLase® Ultra-500 1540 nm 150 W 600 µm Medica Options Fiber-Coupled Bar-Based Modules Datasheet 6417-0001 BrightLase® Ultra-500 1710 nm 60 W 400 µm Fiber-Coupled Module with Options Fiber-Coupled Module for Transparent Plastic Welding Datasheet 6519-0004 BrightLock® Ultra-500 1908 nm 60 W 600 µm Fiber-Coupled Module with Options Wavelength Locked Diode Laser for Pumping Ho:YAG Datasheet 6519-0002 BrightLock® Ultra-500 1908 nm 40 W 600 µm Wavelength Stabilized Wavelength Locked Diode Laser for Pumping Ho:YAG Datasheet

Wavelength 795-1470nm; Power 25-120 W; Fiber Core Diameter 200-1000 µApplications: Pumping Rb Vapor; Spin Exchange Optical Pumping; Pumping DPSSL; Resonant Pumping; Pumping Fiber Lasers; Fat Reduction; Surgery; Materials Processing; Diode Laser for Pain Relief and Wound Healing; Fiber-Coupled Bar-based Modules; Pumping Er:YAG Lasers; BPH Treatment; Diode Laser for Transparent Plastic Welding. Item number Series Wavelength Power Fiber Core Diameter  Additional Information Applications Downloads 6307-0002 BrightLock®Ultra-100 795 nm 75 W 1000 µm Wavelength Stabilized Pumping Rb Vapor, Spin Exchange Optical Pumping Datasheet 6308-0005 BrightLock®Ultra-100 880 nm 120 W 400 µm Wavelength Stabilized Pumping DPSSL, Resonant Pumping Datasheet 6208-0006 BrightLase® Ultra-100 888 nm  100 W 400 µm  Fiber-coupled Module Pumping DPSSL Datasheet 6309-0004 BrightLock®Ultra-100  976 nm 75 W 200 µm Wavelength Stabilized Pumping DPSSL, Pumping Fiber Lasers Datasheet 6309-0001 BrightLock®Ultra-100  976 nm 120 W 400 µm Wavelength Stabilized Pumping DPSSL, Pumping Fiber Lasers Datasheet 6210-0007 BrightLase® Ultra-100 1064 nm 120 W 400 µm Fiber-coupled Module Fat Reduction, Surgery, Materials Processing Datasheet 6212-M002 BrightLase® Ultra-100 1270 nm 40 W 400 µm Medica Features Diode Laser for Pain Relief and Wound Healing Datasheet 6213-M002 BrightLase® Ultra-100 1320 nm 45 W 400 µm Medica Features Fiber-Coupled Bar-based Modules Datasheet 6214-M002 BrightLase® Ultra-100 1470 nm 45 W 400 µm Medica Features Fiber-Coupled Bar-based Modules Datasheet 6214-0011 BrightLase® Ultra-100 1470 nm 18 W 105 µm Fiber-Pigtailed Module Pumping Er:YAG Lasers Datasheet 6214-0002 BrightLase® Ultra-100 1470 nm 45 W 400 µm Medica Features Surgery, BPH Treatment Datasheet 6315-0003 BrightLock®Ultra-100 1532 nm 25 W 200 µm Wavelength Stabilized   Datasheet 6315-0002 BrightLock®Ultra-100  1532 nm 40 W 400 µm Wavelength Stabilized   Datasheet 6217-0003 BrightLase® Ultra-100 1710 nm 30 W 400 µm Optional Aiming Beam Diode Laser for Transparent Plastic Welding Datasheet

375 to 785 nm; 18 to 120 mW; Beam Size 0.8 to 1.3 mm Circular, 1x2 to 4x1 mm Elliptical Blue Sky Research’s CHROMALASE II™ series of high-performance laser diode modules has been optimized to meet the demanding performance requirements of medical, life sciences and automated instrumentation. These laser diode modules incorporate highly integrated sophisticated electronics for laser drive and protection, modulation and feedback functions. The CHROMALASE II ultra-compact stand-alone assembly is RoHs compliant and can be ordered with a variety of collimation optics which allows easy integration into your system. A wide variety of wavelength and power options are available including the very popular 405, 488, 532 and 635 nm products. Blue Sky Research’s CHROMALASE II design incorporates standardized control and alarm firmware, protection circuitry and low-noise operation into a compact, stand-alone assembly. Everything you need to operate this laser from a simple 12 VDC supply is integrated in the laser module. The CHROMALASE II laser diode modules are temperature stabilized with a thermoelectric cooler (TEC), and the integrated controller includes laser driver, output power stabilization, adjustable power level control, modulation capability, reverse and over voltage protection and ESD-fast transient suppression circuitry. Each semiconductor laser diode system can be ordered with or without Blue Sky Research’s patented “µLens” or micro-optic beam correction optics. Systems with µLens will have near perfect Gaussian and circular beam shapes and corrected laser diode wave front distortions. Laser systems without the micro-optic beam correction have all the advantages of Blue Sky Research’s small, highly integrated packaging while retaining the standard elliptical shape (typical 3:1 aspect ratio) of semiconductor lasers. For the CHROMALASE II series of fiber-coupled diode laser modules the dedicated power supply CLPS is available as an accessory. This device provides up to 2.5 A of current for laser diode and TEC and allows the operation of the CHROMALASE II series from standard power sockets with 100 to 240 VAC. Key Features: Diffraction Limited Optical Performance Wavelength Range: 375 to 785 nm Variable Laser Diode Power: 18 to 120 mW (Depending on Wavelength) Power Stability (2 h): <0.5% Configurable Launch Optics Simplify OEM Integration Circular (0.8 to 1.3 mm) or Elliptical (1x2 to 4x1 mm) Output Beams Integrated Drive and Power Electronics Electrical Power Consumption: <12 W Optical Noise (RMS): <0.5% Beam Alignment Accuracy: <5 mrad Beam Pointing Stability <10 µrad/°C Solid State Reliability Applications: Analytical Instruments; Biomedical & Medical; Flow Cytometry; Confocal Microscopy; Ophthalmology; Defense & Homeland Security

For CHROMALASE II and FiberTec II Lasers; Output Current LD 2.5 A; Output Current TEC 2.0 A; Supply Voltage 100 to 240 VAC With its CLPS series, Fibotec Fiberoptics provides dedicated power supplies for Blue Sky Research’s CHROMALASE II™ and FiberTec II™ series of diode laser modules. The users can configure the power supply with an optional DB9-cable for the operation of FiberTec II lasers at their own PCB. The CLPS series of diode laser power supplies allows the operation of the CHROMALASE II and FiberTec II series from standard power sockets with 100 to 240 VAC and frequencies from 50 to 60 Hz. With dimensions of 170 x 103 x 56 mm, the CLPS series provides up to 2.5 A of current for laser diode and TEC. Operation of the laser (12, 5 or 6.5 VDC dependent on CHROMALASE II, respectively FiberTEC II version) is possible with a current of up to 2.5 A. The TEC current (3.3 V) – if needed by the laser – is limited to 2.0 A, and the sum of currents cannot exceed 2.5 A. The BNC-modulation input gives access to the modulation option of CHROMALASE II and FiberTEC II lasers. Key Features: Allows Operation of CHROMALASE II and FiberTec II Lasers From Standard Power Sockets Supply Voltage: 100 to 240 VAC, 50 to 60 Hz Laser Diode Current up to 2.5 A TEC Current up to 2.0 A Laser Diode Voltage 5, 6.5, 12 V BNC Modulation Input Size: 170 x 103 x 56 mm Application: Supplying CHROMALASE II and FiberTec II Lasers From Standard Power Sockets

Single Chip; 973-977 nm; Spectral Width 0.2 nm; Max. Output Power 0.18-0.6 W; 10-pin Mini Butterfly Package; Threshold Current 50-60 mA Within the CM96x series, II-VI Incorporated offers a variety of single-chip pump laser modules addressing all areas of low-noise all-optical amplification and power consumption requirements. Increasingly, network providers are concerned with component density and power consumption which translates into cost of installation and cost of ownership of a network. To address this, II-VI Incorporated offers a suite of 980 nm pump lasers from uncooled, semi-cooled and traditional-cooled pumps over a set of market leading power ranges. CM96x series pump laser modules are designed as pump sources for erbium-doped fiber amplifier (EDFA) applications. Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature. The CM96x series uses a 10-pin mini-butterfly (mBTF) package with mounting holes for ease of integration and thermal management, enabling smaller form factor designs. The 10-pin mBTF package is backward compatible with 14pin BTF package footprint and pinout. CM96Z***-7* TEC-cooled, 10-pin butterfly, 980 nm pump laser modules utilize a fiber Bragg grating design for enhanced wavelength and power stability performance. This product has been designed to ensure superior wavelength locking over drive current, temperature and optical feedback changes. CM96Z***-7* devices are available with kink-free output powers to 600 mW. CML96Z***-7* is the low power consumption version of CM96Z***-7*. These pump modules operate at significantly reduced TEC and overall power consumption. CML96Z***-7* devices are also available with kink-free output powers to 600 mW. The UM96Z***-7* high power, extended temperature, uncooled, 980 nm pump laser are II-VI Incorporated’s third-generation uncooled pump modules providing higher powers and lower consumption. These lasers enable designers to create reliable SFF single- and multi-channel, high-bit-rate per-channel amplification as well as replace traditional cooled pumps in high-power EDFA applications with reduced power consumption. The UM96Z-series is designed for uncooled operation at high temperature and power levels. Qualification of the enhanced G08 chip ensures high reliability even at 460 mW operating power and +75 °C. External fiber Bragg grating (FBG) stabilization provides excellent wavelength and power stability over the entire operating temperature range. Key Features: High Output Power: up to 600 mW Kink-free Low Power Consumption/Dissipation (CML96Z***-7*, UM96Z***-7*) Single Mode (SM) Fiber Pigtail, Polarization Maintaining (PM) Fiber (UM96Z***-7*) Fiber Bragg Grating (FBG) Stabilization for Wavelength Locking Over the Entire Operating Conditions Small Form Factor: Hermetically Sealed 10-pin Mini-Butterfly Package Pin-out Compatibility With 14-pin Butterfly Package Operating Wavelength: 973 to 977 nm Spectral Width: 0.2 nm Typical Threshold Current: 50, 55, 60 mA Typical Operating Forward Voltage: 1.7, 1.85 V Typical Maximum Operating Current: 375 to 1,000 mA Return Loss (RL): >35 dB Internal Thermoelectric Heatpump and Monitor Photodiode (CM96Z***-7*, CML96Z***-7*) Telcordia GR-468-CORE Compliant Field-proven High Reliability RoHS Compliant Applications: Low-noise EDFAs; Single- or Multi-stage EDFA Applications Including Single-channel and Dense Wavelength Division Multiplexing (DWDM) Designs; CATV Applications

976, 1030, 1064 nm; Spectral Width 0.15-2 nm; Output Power Peak 0.8-1.5 W; Output Power CW 0.2-0.91 W; Butterfly Package; Threshold Current 40, 60 mA; For the CM97x series of high-power single mode laser diode modules, II-VI Incorporated has applied processes and techniques of coupling the fiber to the laser that allow very high output powers that are stable with both time and temperature. CM97x series laser diode modules in hermetically sealed 10-pin Mini-Butterfly packages utilize a polarization maintaining (PM) fiber pigtail and achieve a high pulse output power of 0.8 to 1.5 W. Five versions of CM97x series single mode laser diode modules are available: The 976 nm wavelength-stabilized module CM97-1000-76PM with fiber Bragg grating (FBG) has been designed as a pump source for industrial pulsed fiber pre-amplifiers as well as for erbium doped fiber amplifier (EDFA) laser applications. The pump module utilizes a PM fiber pigtail and a fiber Bragg grating design for enhanced wavelength and power stability performance. Devices achieve high kink free output powers of 1 W. The pulsed 1064 nm module CM97A1064 without fiber Bragg grating (FBG) has been designed as a light source for pulsed fiber lasers and CW applications that require 1064 nm single mode light. Devices achieve high kink free output powers of 1.5 W pulse peak. The pulsed 1064 nm wavelength-stabilized ultra-broadband module CM97A1064BFBG with fiber Bragg grating (FBG) has been designed as a light source for pulsed fiber laser applications. An ultra-broad bandwidth grating enables a controlled broad spectrum that helps to suppress SBS generation in pulsed fiber lasers. The pulsed 1064 nm wavelength-stabilized narrow-bandwidth module CM97A1064NFBG with fiber Bragg grating (FBG) has been designed as a light source for pulsed narrow bandwidth fiber laser and direct frequency conversion applications. A narrow bandwidth grating located in the polarization maintaining optical fiber close to the package allows for short pulse operation. The 1064 / 1030 nm wavelength-stabilized module CMDFB10xxA has been designed as a light source for pulsed narrow bandwidth fiber laser and direct frequency conversion applications. A distributed feedback grating (DFB) located in the laser cavity results in the wavelength stabilization within couple of round trips. The laser chip and package are optimized for sub-ns pulse operation. Key Features: Model CM97-1000-76PMMini-Butterfly Pump Laser Diode Module CM97A1064Pulsed Mini-Butterfly Laser Diode Module CM97A1064BFBGPulsed Mini-Butterfly Laser Diode Module CM97A1064NFBGPulsed Mini-Butterfly Laser Diode Module     CMDFB10xxAMini-Butterfly Laser Diode Module  Peak Wavelength  976 nm (Stabilized)  1064 ±5 nm  1064 nm (Stabilized)  1064 nm (Stabilized)  1064 or 1030 ±2 nm (Stabilized)  Spectral Width  0.2 nm (-13 dB)    1-2 nm (FWHM)  0.15 nm (FWHM)    Pulse Width    5 to 500 ns  5 to 500 ns  5 to 500 ns  10 to 200 ns  High Output Power  1 W Kink Free  ≤1.5 W Peak, Kink Free, Pulse  ≤1.5 W Peak, Kink Free, Pulse  ≤1.5 W Peak, Kink Free, Pulse  0.2 W (CW), 0.8 W (Pulse)  CW Operating Power  >910 mW  700 mW (@1.1 A)  650 mW (@1.1 A)  700 mW (@1.1 A)  200 mW  Threshold Current  60 mA  60 mA  60 mA  60 mA  40 mA  Operating Forward Voltage  2 V  1.7 V  1.7 V  1.7 V  2 V  Grating  Fiber Bragg Grating (FBG)  No Fiber Bragg Grating (FBG)  Fiber Bragg Grating (FBG)  Fiber Bragg Grating (FBG)  Distributed Feedback Grating (DFB)  Polarization Maintaining (PM) Fiber Type  Nufern PM980-XP or Corning PM 98-U25  Nufern PM980-HP or equivalent (e.g. Fujikura SM98)  Nufern PM980-HP or equivalent (e.g. Fujikura SM98)  Nufern PM980-XP or Corning PM 98-U25  Nufern PM980-HP or equivalent (e.g. Fujikura SM98)  Thermal Management  Internal Thermoelectric Heat Pump  Internal Thermoelectric Heat Pump  Internal Thermoelectric Heat Pump  Internal Thermoelectric Heat Pump  Internal Thermoelectric Heat Pump  Monitoring  Internal Monitor Diode  Internal Monitor Diode  Internal Monitor Diode  Internal Monitor Diode  Internal Monitor Diode  Package  Hermetically Sealed 10-pin Mini-Butterfly  Hermetically Sealed 10-pin Mini-Butterfly  Hermetically Sealed 10-pin Mini-Butterfly  Hermetically Sealed 10-pin Mini-Butterfly  Hermetically Sealed 10-pin Mini-Butterfly  Compliance  Telcordia GR-468-CORE and RoHS Compliant  RoHS Compliant  RoHS Compliant  RoHS Compliant   Applications: Fiber Lasers; Frequency Conversion; Sensing; Spectroscopy; EDFA

450 nm; Spectral Width 1 nm; Min. Peak Optical Power 2 W; Max. Forward Current 2,500 mA; Forward Voltage 6 V; Package 3-pin Coaxial OSI LaserDiode’s CVB 450-TO56R laser diode module is a 450 nm GaN laser diode packaged in a 3 pin coaxial format. The laser diode is optically coupled to a 200/230/500 µm fiber pigtail. The device includes an ESD protection diode. The CVB 450-TO56R laser diode modules are specifically designed for uncooled optical metrology applications where pulsed optical power is desired. The CVB 450-TO56R is RoHS compliant. Key Features: Center Wavelength: 450 nm Spectral Width (RMS): 1 nm Minimum Peak Optical Power (Ex-Fiber): 2 W Maximum Forward Current: 2,500 mA Threshold Current: 300 mA Forward Voltage: 6 V Fiber Type: Step Index 200 µm SiO2 Core, 230 µm HPC, 500 µm Tefzel Coating Fiber Numerical Aperture (NA): 0.37 Fiber Length: 1m Operating Temperature: -30 °C to +70 °C Dimensions: 6.25 mm Dia. x 21.4 mm Length Applications: Optical Metrology

Dual Laser; 650, 905 nm; Optical Power 5 mW, 3 W Typ.; Package TO5T; Spectral Width 3, 5 nm; Drive Current 29 mA, 4A OSI LaserDiode’s CVDR 46650-TO5T Dual Aiming Laser combines two laser diodes in one package for range finding applications. This device’s laser package contains a 905 nm pulsed laser diode (CVD 46) and a 650 nm laser diode mounted side by side on a common platform, with “+” (common positive electrode) connected to the case. The distance between the two laser diodes’ centers of emission is 720 µm, and the emission pattern of the two laser dies is centered on the package axis to within ± 0.25 mm. Key Features: Two Laser Diodes in One Package Peak Wavelengths: 650 nm (Visible), 905 nm (Infrared, IR) Spectral Width FWHM: 3, 5 nm Peak Power: 5 mW, 3 W Device Emitting Width: 5 µm, 62 µm Optical Pulse Width: 5, µs, 100 ns Drive Current: 29 mA, 4 A Rise Time (905 nm): 1 ns Maximum Duty Factor (650 nm): 5% Beam Spread: 10° x 35° Operating Temperature: -45 °C to +85 °C Applications: Range Finding

1550 nm; Spectral Width 15 nm; Min. Peak Optical Power 10-125 W; Peak Forward Drive Current 30-75 A; Rise/Fall Time 1 ns; No. of Diodes 1-5; Package TO18T/C/F, TO5F, 9 mm, 5.6 OSI LaserDiode’s CVLL Series of extremely high brightness 1550 nm pulsed laser diodes are capable of up to 75 W output power. The CVLL Series devices feature low divergence, high brightness and stable output from -40 °C to +85 °C. These 1550 nm high-brightness pulsed laser diodes are well suited to most range finding applications requiring “eye safe” operation. This series is RoHS compliant. Within the CVLL Series, the CVLL 350-CL90 1550 nm pulsed laser diode offers a far field beam pattern with equivalent divergence values for both the fast (perpendicular) and the slow (parallel) axes of emission. The adjusted far field pattern offers higher coupling efficiency into standard spherical lens systems. The CVLL 350-CL90 diode’s laser/lens is hermetically sealed in a 9 mm package that offers robust environmental survival capability for demanding applications such as field deployed range finders. Key Features: Very High Brightness “Eye Safe” Operation Low Divergence Stable Output From -40 °C to +85 °C Peak Wavelength: 1550 nm Spectral Width: 15 nm Minimum Peak Power: 10 W to 125 W Peak Power (Fiber): 5 W to 62 W Peak Forward Current: 30 A to 75 A Number of Diodes: 1 to 5 Typical Emitting Area: 95 x 1 µm to 350 x 720 µm Beam Divergence: 10° x 24°, 8° x 8° (CVLL 350-CL90) Pulse Width: 150 ns Duty Factor: 0.07%, 0.1% Rise/Fall Time: 1 ns Fiber Core Size: 100 µm to 1,000 µm Hermetic Package RoHS Compliant Operating Temperature: -40 °C to +85 °C Applications: Rangefinding; Hunting; Targeting; Surveying

632, 633 nm; Typ. Linewidth 1.0 MHz; Max. Output Power 10 mW CW; Threshold Current ≤120 mA; Slope Efficiency 0.4 W/A; Side Mode Suppression Ratio ≥30 dB Toptica eagleyard’s DBR series of distributed Bragg grating (DBR) laser diodes contains a multi-section laser with gain, phase and distributed feedback (DFB) sections. DBR series laser diodes feature a built-in wavelength-selective grating stabilizing the wavelength The DBR series’ resonator comprises a periodic structure. Thus, the devices operate on a single resonator mode emitting quasi-monochromatic radiation with a very small line width and low phase noise. The lasers can have very low-intensity noise because of the lack of mode partition noise. Due to the Gaussian mode the output is diffraction-limited.. Special variants are available, especially suitable for spectroscopy with mode‐hop free operation and small linewidth guaranteed at the specified target wavelength for spectroscopic applications – these laser diodes are reaching the target wavelength by temperature tuning and allow wavelength tuning around this target wavelength. Key Features: Center Wavelength: 632 nm, 633 nm Narrow Linewidth: Typ. 1.0 MHz Threshold Current: ≤120 mA High Side Mode Suppression Ratio: ≥ 30 dB Max. Output Power: 10 mW CW Max. Forward Current: 160 mA Including Monitor Diode, TEC Cooler and Thermistor Package: Hermetic 14-pin Butterfly Applications: HeNe Laser Replacement; Spectroscopy; Metrology; Sensing
