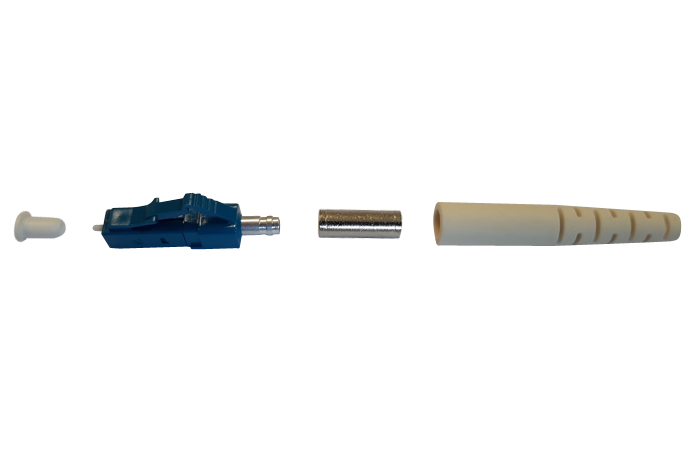

KTLCBPP125X3BW10 LC/PC Connector Kit

FC/PC, FC/APC – 2 mm Type R (Narrow Key), 2.2 mm Type N (Wide Key); Ferrule Outer Diameter 2.5 mm; Bore Tolerance 0/+1 µm; Crimp 1.6, 2.0, 2.5, 3.0 mm  FC fiber optic cable connectors are popular connector types for single mode fibers, although they can also be used for multi mode applications. These screw-in type fiber optic cable connectors use a threaded plug and socket for strong contact and high stability.   Within FC connectors, the fiber is inserted in a spring-loaded, floating ferrule with 2.5 mm diameter, providing good mechanical isolation of the contact and allowing the use in environments with high vibration. FC connectors are equipped with a mechanical key (available in two sizes – narrow key 2 mm type R / wide key 2.2 mm type N) to prevent fiber rotation when the plug is screwed into the receptacle.  Optoplast’s FC/PC and FC/APC crimp type connector kits are suitable for application with single mode and multi mode optical fibers. Crimp is available for 1.6, 2.0, 2.5 and 3.0 mm fiber optic cable, while FC/PC and FC/APC connectors for Ø 900 μm buffer don’t provide a crimp option.  Optoplast FC connector kits are supplied as standard in three configurations – multi mode (black boot), single mode PC (black boot) and single mode APC (green boot for 2 mm cables only). Standard key width for both FC/PC and FC/APC connector kits is narrow key 2 mm type R, with a key width of 1.97 mm (min) to 2.02 mm (max). On request, the FC/PC connector kits are also available with wide key 2.2 mm type N (2.09 to 2,14 mm).  All these FC connector kits can be ordered either as multi-piece or pre-assembled one-piece versions. A 3 mm, 90° boot (black) is available as accessory, suitable for 1.6 to 3 mm fiber optic cable. Other boot colours are available on request. Further accessories include a dust cap with latch for dust protection.  Each separate component of the FC crimp type connector kits is packed as standard in transparent plastic bags of 500 pieces. The ferrules are packed in blisters of 100 pieces each. All components of the connector are RoHS and REACH compliant.  Key Features:  - FC Type Connector for Single Mode and Multi Mode Fibers  - Mating Durability >500 Connections  - Cable Retention 100 N, 120 s  - 900 μm Buffer Retention 5 N, 60 s  - Vibration 10 to 55 Hz, 1 octave/min: 3 axis of 15 cycles, 0.5 h/axis, amplitude 0.75 mm  - Repeated Bending Cable 100 cycles -90°/0°/+90°/0° 5 N Load   - Repeated Bending 900 μm Buffer 100 cycles -90°/0°/+90°/0° 0.2 N Load   - Cable Torsion 1.5 to 2.5 kg for 2 to 3 mm cable diameter  - Drop 1.5 m, 5 times  - Static Side Load 1 N, 1 h  - Static Side Load 900 μm Buffer 0.2 N, 5 min  - Temperature -25 (96 h) to +70 °C (96 h), 12 cycles  Applications: Fiber Coupling of Lasers, Test and Measurement, Life Science, Laboratory

Connector Type FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, LC/APC, E2000, ST, SMA; Fiber Type SM, MM, PM; Ferrule Hole Diameter 79-127 µm; Fiber Jacket Outer Diameter 0.9-5 mm OZ Optics provides a variety of male connectors to perform your own fiber terminations. Connectors are available for Single Mode (SM) Fibers (SMPC series), Multi Mode (MM) Fibers (MMPC series), or Polarization Maintaining (PM) Fibers (PMPC series). OZ Optics’ connectors are precision made and tested to exacting standards to ensure top performance. The connectors have been tested in a variety of applications and environment conditions, from medical equipment to industrial lasers, underwater and in space. OZ Optics also provides OFOC termination kits – these kits provide all the tools necessary to make your own manual fiber terminations in the field. Key Features: Industry Standard Connectors Wide Variety of Connector Types : FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, LC/APC, E2000, ST and SMA Fiber Connectors Precision Components for Low Insertion Losses (IL) and Return Losses (RL) Fiber Type: Single Mode (SM), Multi Mode (MM), Polarization Maintaining (PM) Ferrule Hole Diameter: 79 µm to 127 µm for FC-type Connectors, Values for other Connectors on Request Fiber Jacket Outer Diameter: 900 µm to 5 mm A Wide Variety of Configurations Available Telcordia Tested Applications: All Types of Fiber Termination Tasks

SMA; Bore 126 µm; Ferrule Outer Diameter 3.17 mm; Bore Tolerance 0/+1 µm; Crimp 3 mm

SMA; Bore 127 µm; Ferrule Outer Diameter 3.17 mm; Bore Tolerance 0/+4 µm; Crimp 3 mm

SMA; Bore 145 µm; Ferrule Outer Diameter 3.17 mm; Bore Tolerance 0/+5 µm; Crimp 3 mm

SMA; Bore 230 µm; Ferrule Outer Diameter 3.17 mm; Bore Tolerance 0/+10 µm; Crimp 3 mm

SMA; Bore 240 µm; Ferrule Outer Diameter 3.17 mm; Bore Tolerance 0/+10 µm; Crimp 3 mm
