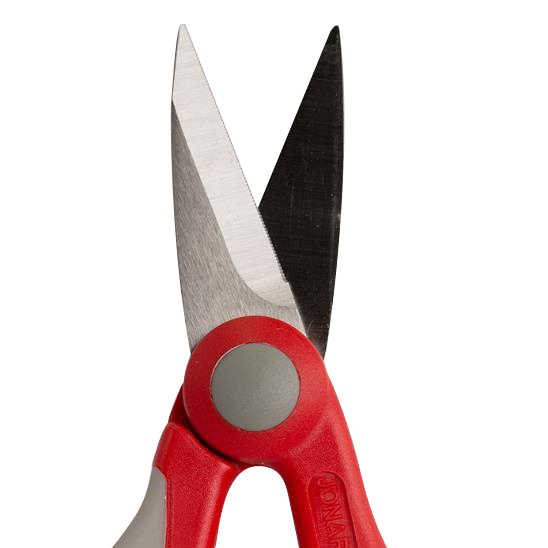

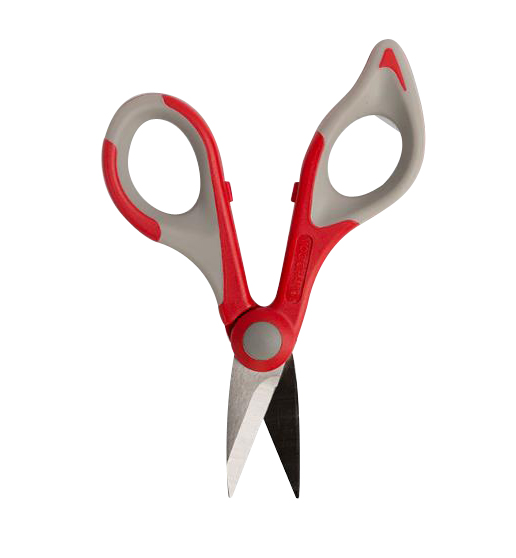

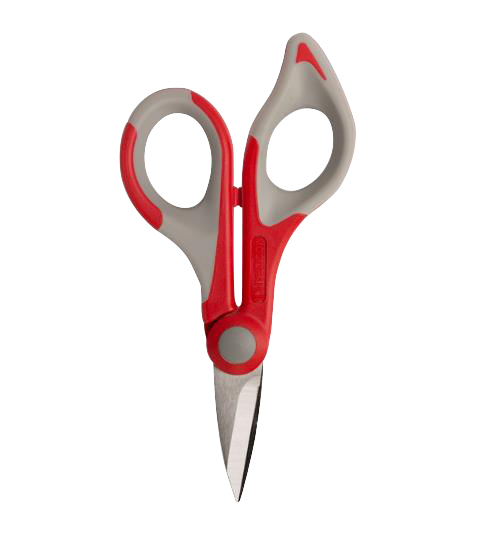

JIC-186 Wire & Kevlar Cutting Shears

8oz Solvent Dispenser with Touch-and-Go Pump

Automated, Mid-span; Window Strip Length 2-150 mm; Fiber Coating Diameter ≤1,000 µm; Fiber Cladding 125-400 µm; Pulling Speed 20-100 mm/min The AutoStrip II is designed for fast, chemical free window stripping of optical fibers. Utilizing SAE Technologies’ patented “Burst Technology™”, this system accomplishes the often difficult task of window stripping fibers with acrylate coating diameters up to 1,000 µm. The AutoStrip II automated, mid-span window stripping unit meets the need for variable window strip lengths at high strength and ultra cleanliness. The proven Burst Technology™ method instantly vaporizes the fiber coating. The result is a clean, stripped fiber at substantially higher strength than any mechanical stripping method. The fiber is free of debris at 400x magnification. Equipped with a built-in, high-force fiber tensile tester, the AutoStrip II system can pull the fiber up to 20 N (235 kpsi). To ensure high quality, repeatability and high production yield, all critical processes and parameters such as stripping distance, burst temperature, burst speed, and strength test are controlled automatically by a built-in microprocessor. The AutoStrip II can be used as a stand-alone unit or integrated into different sub-systems. The use of chemicals for high-strength fiber stripping is now a thing of the past! Key Features: Chemical-Free (No Cleaning or Stripping Chemicals Required) Easy, Low-maintenance Bench-top Design Fast Cycle Time & High First-pass Yield Accommodates Acrylate Coating Fiber Diameters up to 600 μm (Custom Nozzles up to 1,000 μm) Variable Window Strip Lengths From 2 up to 150 mm Fiber Cladding: 125 to 400 μm Fiber Strength: Typical >35 N on 125 μm Fiber Fiber Cleanliness: Free of Debris at 400x Magnification Built-in High-force Linear Tensile Tester, Tensile Strength: 0 to 20 N Pulling Speed: 20 to 100 mm/min, Hold Time: 0 to 5 s Power Supply: 115 to 230 V AC Compressed Air: External Compressor, 95 psi - 5 SCFM Flow PC Interface: RS232C Software-adjustable Parameters Automated Fiber Clamps Built-in Graphical LCD Control Storage of up to 10 Programs Dimensions: 465 x 315 x 225 mm Application: Automated, Mid-span Window Stripping of Optical Fibers With Acrylate Coating Diameters up to 1,000 µm

Optical Fiber Splicing/Processing System; Heat Source <300->3,000 °C; Splicing of 125-2,000 µm Dia. Fibers; Automatic Bidirectional Tapering ≤175 mm Length; Semi-automatic Cleaving of Fibers ≤500 µm Dia. 3SAE Technologies’ CMS Combiner Manufacturing System is the supplier’s latest and most advanced optical fiber splicing/processing system. The CMS is specifically designed to maintain production level repeatability for multi-kilowatt class high-power fiber combiners and other fused optical components. The CMS system operates in partial vacuum and is utilizing the unique “Thermally Stabilized Plasma™” technology which generates an extremely repeatable and stabilized heat source with a wide dynamic range of operation from <300 °C to >3000 °C. This makes the CMS ideal for repeatable glass processing and high-volume optical component manufacturing. The main CMS functionalities are:SPLICING Splicing of 125 to 2000 µm fibers supported Automatic alignment with an exclusive <50 nm X and Y fiber positional resolution Automatic pitch and yaw alignment End cap splicing for cylindrical, chamfered and tapered end caps TAPERING Taper lengths of up to 175 mm supported in bidirectional mode Automatic taper creation via intuitive software interface or manual table editing Exclusive "Table Based Tapering™" software included for easy user level single direction or bidirectional taper program creation and nearly infinite engineer level process control CLEAVING Semi-automatic in-situ cleaving of fibers up to 500 µm Adjustable precision cleaving location via image feedback Key Features: Extremely Repeatable Glass Processing Heat Source Ideal for High-volume Optical Component Manufacturing With a Range of Operation From <300 °C to >3000 °C Unsurpassed Heat Source Circumferential Thermal Uniformity for Symmetrical Ultra-low Loss Tapering and Reduced Thermally Induced Component Stress Contamination-free Heat Source Capable of Producing Ultra-high-strength Multi-kilowatt Class Optical Components Fastest Cycle Times Based on Standard Splice, Taper and Cleave Cycle Times Averaged Together In-situ Cleaver Included for Fiber Diameters ≤500 µm Applications: Splicing/Processing of Optical Fibers; Repeatable Glass Processing; High-volume Optical Component Manufacturing; Maintaining Production Level Repeatability for Multi-kilowatt Class High-power Fiber Combiners and Other Fused Optical Components

Rapid Loading of up to 19 Fibers; Fiber Fixtures for 700, 870 µm Outer Diameter & Custom; Air Gap Fiber Bundle/Capillary 10 µm; Fiber Cleaning With Ultrasound & Chemical; Separate Cleaning and Loading Stages; Onboard Heater 3SAE Technologies’ Capillary Speed Loader (CSL) facilitates rapid loading of up to 19 fibers into a capillary. Using the CSL, fiber bundles can be loaded into a capillary with as little as 10 μm of air gap between the bundle and the capillary. The CSL utilizes a funnel shaped capillary to hold the capillary during the fiber loading process. The system uses an ultrasonic cleaner in conjunction with acetone or chemical of choice, to lubricate and remove static from the fibers during the loading stage. The ultrasonic cleaner features one touch operation with a user adjustable cycle and visual and audible notifications. Two individual reservoirs facilitate separate cleaning and loading stages. The CSL also includes an onboard heater to expedite the evaporation process of the acetone after loading. The CSL Capillary Speed Loader includes standard fixturing for 700 μm and 870 μm outer diameter capillaries. Custom sizes are available on request. Key Features: Rapid Loading of up to 19 Fibers into a Capillary Separate Cleaning and Loading Reservoirs One-touch Ultrasonic Operation Onboard Heater Application: Rapid Loading of Fiber Bundles with up to 19 Fibers into a Capillary

Carbide Tip Fiber Optic Scribe

Ruby Tip Fiber Optic Scribe The  45-357 Reversible-Blade Fiber Optic DualScribe™ has a double-ended Ruby blade with a 30° single-bevel edge,

Sapphire Tip Fiber Optic Scribe The  45-358 Sapphire scribe comes with blue handle for easy identification

Fiber Type Large Diameter (LD); Fiber Cladding 400-2,000 µm; Non-angle or Angle Polishing <0.30-15° Typ.; Cycle Time 1-3 min; Scrap Fiber Waste <2 mm Typ. Large diameter (LD) optical fibers are increasingly important in the development of new optical technologies. Cleaving these fibers presents many challenges, more so as the fiber diameter increases. Low angle offsets and smooth, flat end faces are required. Many fibers are non-round or have internal structures that interfere with conventional cleaving. With some fibers priced in hundreds of euros per meter, the length of cutoff scrap must be minimized. 3SAE Technologies’ EPS II End Face Preparation Station meets these challenges with a novel, polishing-based design that now features both flat and angle polishing. The results are consistent, even for shaped fibers. The end faces are flat and highly polished. EPS II is not an adapted connector polisher – it is a purpose-built large diameter (LD) optical fiber preparation unit optimized for splicing and other large diameter fiber termination applications. Choose from a selection of standard programs, or create and store a custom program for a specific fiber. Selectable programs ensure repeatable performance and the bright, clear LCD screen guides the user with the correct action for each step. No special skill or “touch” is required –the EPS II’s precision fixturing holds the fibers precisely, and the automated system lowers the fibers smoothly onto the adjustable-speed polishing plate. A filtered-air final cleaning/drying system is used to dry the fiber after cleaning in the included 3SAE Technologies Ultrasonic Cleaner, a purpose-built ultrasonic fiber cleaner that was designed specifically for fiber applications. Many years of splicing experience went into the functional, ergonomic design that ensures consistent cleaning results. When the preparation process is complete, the fiber end faces are flat, low-angle and ready for splicing. Less than 2 mm of scrap length means less wasted expensive fiber and allows more accurate placement of splices and components. Key Features: Angled Polishing Capabilities High First-pass Yield Lowest Available Cleave Angles: <0.30° Typical Scrap Fiber Waste: <2 mm Typical Fiber Cladding: 400 to 2,000 µm Angle Cleaving: Up to 15° of Rotation (From Vertical) Cycle Time: 1 to 3 min Per Fiber Typical Easy Handling, No Additional Fiber Handling System Required Operator Independent No PC Required Power Supply: 24 VDC External Dimensions: 299.7 x 292 x 223.5 mm Compressed Air: Max 95 psi, 0.6 SCMF Applications: Splicing of Large Diameter (LD) Fibers up to 2,000 µm Fiber Cladding; Other Large Diameter (LD) Fiber Termination Applications

All Necessary Tools Included; Special Version for PM Connectors Available; Sturdy Aluminium Case; Weight 7.3 kg OZ Optics’ comprehensive fiber optic termination kits include all of the tools necessary to make field terminations of fibers with commercially available connectors. The kits come in a sturdy, dent-proof aluminium case, providing easy transport with rugged protection. The total weight of the kits is 7.3 kg. The kits contain enough consumable supplies to process about 100 connectors. The consumable supplies may be ordered separately. A special version of the termination kit is available for polarization maintaining (PM) connectors. This kit includes special low-shrinkage epoxies to minimize stresses on the fibers. The epoxy is available as a separate item. The kits include the following tools: Five 230 mm by 330 mm, 5 µm Grit Polishing Film Five 230 mm by 330 mm, 1 µm Grit Polishing Film Ten 230 mm by 330 mm, 0.3 µm Grit Polishing Film 100X Microscope With a Connector Adapter Five Packs of Two-Component Epoxy Three Sizes of Buffer Tube Strippers Screwdriver With Four Bits Glass Polishing Plate Diamond Pen Scribe Index Matching Gel Polishing Disc T-Type Stripper Cotton Swabs Crimping Tool Epoxy Mixer & Pad Utility Knife Kim Wipes Scissors Tape Fiber Cleaner Tweezers Folding Knife Cable Stripper In addition, a number of accessories are available for the kit that may be ordered separately. A connector heater is available for curing the epoxy used in the terminating kit. The heater can handle 24 connectors at once and ensures even curing. A heat gun for curing epoxy and to shrink heat shrink tubing is also available. Key Features: All Necessary Tools Included to Make Field Terminations of Fibers With Connectors Special Version for Polarization Maintaining (PM) Connectors Available Various Additional Accessories Available Sturdy, Dent-proof Aluminium Case Weight: 7.3 kg Applications: Field Termination of Fibers With Commercially Available Fiber Optic Connectors

Processing Time 1 to 4 s; Cut Length Adjustable 0 to 600 µm; Exchangeable Adapters; Connector Type MT 0°, MT 8°, LC, LC/APC, LC-Duplex, SC, SC/APC, Others; Power Supply 100 to 240 VAC; Dimensions 108x146x76 mmPhenix Fiber Optics’ fibersect.multi® automated mechanical connector cleaver quickly cuts off the protruding epoxy and fibers of all ferrules and connectors, including MT ferrules and MTP® connectors, SC, LC, LC Duplex, FC, SMA, ST and MU. In just seconds, the device produces a flat cut very close to the ferrule face, presenting the ideal surface for polishing and markedly improving end face geometry.The fibersect.multi® automated mechanical connector cleaver improves throughput and first pass yield by eliminating manual steps and reducing human variables, thereby minimizing polishing, maximizing reliability and precision, and producing significant savings in production.One-button operation, battery power, and small footprint provide exceptional versatility, portability, and ease of use. With its simple, one button operation, this device cleaves an optical fiber in a fast cut cycle time of one to four seconds. Reliably and reproducibly cutting parallel to the face of the ferrule at 0° (flat) or 8° angle (APC), fibersect.multi® features adjustable cut length, increases throughput by significantly reducing core cracks and improves the polished end face geometryFurther process steps like denubbing or air polishing are eliminated. By cutting close to ferrule, fibersect.multi® minimizes polishing and significantly reduces final polishing steps. A broad range of easy-to-change adapters enables cutting of all ferrules and connectors.Key Features: Processing Time: 1 to 4 s Ferrule/Connector Adapters: MT 0°, MT 8°, LC, LC/APC, LC-Duplex, SC, SC/APC, Others MT Ferrule Capabilities: 4 to 72 Fibers Adapter Changeover Time: 30 s Allowable Fiber Protrusion From Ferrule: 0 to 10 mm Cut Length: Adjustable, 0 to 600 μm From Face of Ferrule Cut Flatness: +/- 10 μm Options: Vacuum Dust Collector, Cut Counter, Foot Switch Power Supply: 100 to 240 VAC, 50/60 Hz + Rechargeable Battery Dimensions: 108x146x76 mm Weight: 0.9 kg Application: Cleaving Protruding Epoxy and Fibers of All Fiber Optic Ferrules and Connectors

Fiber Preparation Unit; Chemical-free; Strip Length 2-30 mm; Fiber Coating Diameter 80-1,000 µm; Fiber Type: Polyimide or Carbon Coated 3SAE Technologies’ FPU II Fiber Preparation Unit provides non-contact and chemical-free window or end face stripping of polyimide or carbon coated optical fibers in a small, affordable package. The FPU II window or end face stripping unit features 3SAE Technologies’ patented “Ring of Fire®” technology which surrounds the fiber with a uniform heat in controlled ionic conditions. This patented low temperature arc plasma process will window or end face strip polyimide and carbon coated fibers quickly and cleanly without use of any mechanical blades, acid or any other chemicals. The automated process provides consistent stripping results without requiring any special operator skills. The FPU II system is adaptable to your process and can accommodate fiber holders from the most common fusion splicer manufacturers. Strip lengths are adjustable and easily programmable. Tough polyimide or carbon coatings are difficult to remove without severely degrading the fiber’s mechanical integrity. Other polyimide stripping technologies use mechanical blades or rapid thermal decomposition, which produces low tensile strength while leaving the fiber dirty. A more commonly used method, strong acid/alkali chemistry, is hazardous and produces toxic waste. Utilizing 3SAE Technologies’ patented Ring of Fire® pulsed plasma etching technology, the FPU II window or end face stripping unit removes polyimide and carbon coatings safely and cleanly. The standard FPU II system accommodates a single fiber up to 1,000 μm diameter, with appropriate fixtures. The FPU II’s control interface is accessed via the mounted LCD and keypad. This interface provides operational status updates and provides the operator with advanced control of plasma characteristics, temperature and positioning. The operator can quickly and easily recall and store parameters in any one of up to eight available recipe locations. This allows quick translations between fiber stripping programs. Key Features: Chemical-free Fiber Stripping and Cleaning Variable Strip Lengths: 2 to 30 mm Compact Bench-top Design Supports Fiber Holders From Fitel, Fujikura and 3SAE Technologies Software-adjustable Parameters Power Supply: 100 to 240 VAC Supported Fiber Types: 80 to 1000 μm Polyimide or Carbon Coated Dimensions: 190 x 200 x 140 mm Application: Non-contact, Chemical-free Window or End Face Stripping of Tough Polyimide or Carbon Coatings From up to 1,000 µm Diameter Optical Fibers
