IXF1.0bsa M Optical Mounts

Aluminum Beamsplitter Flexure Mirror Mount; 1,0 inch Optic Size; Pitch & Yaw Range 5,0 °; Minimum Controllable Motion 4,5 arc sec.; 100 TPI Lockable Adjustment Screws; Front Adjustment

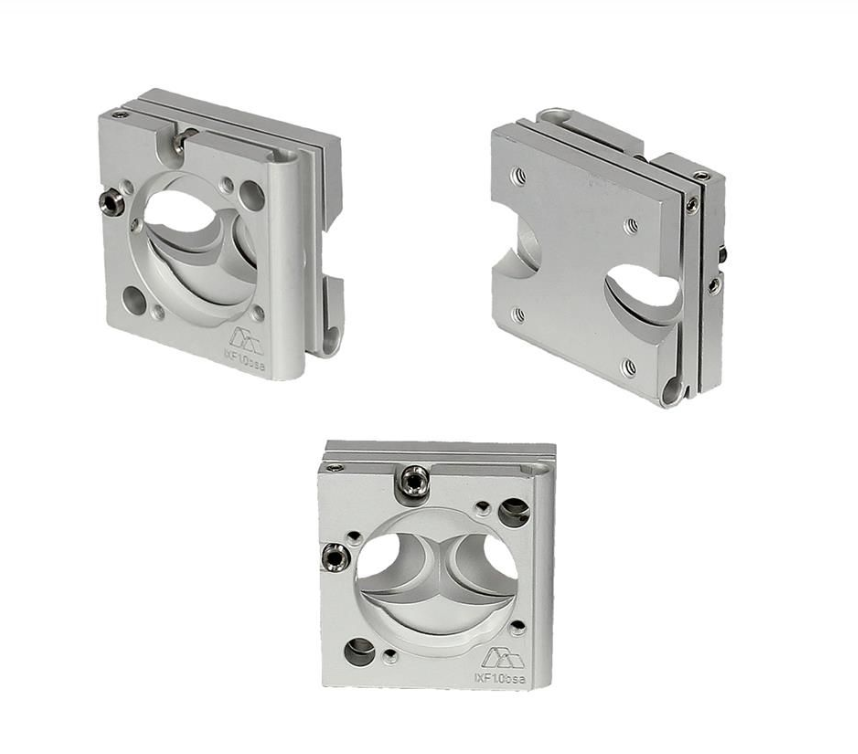

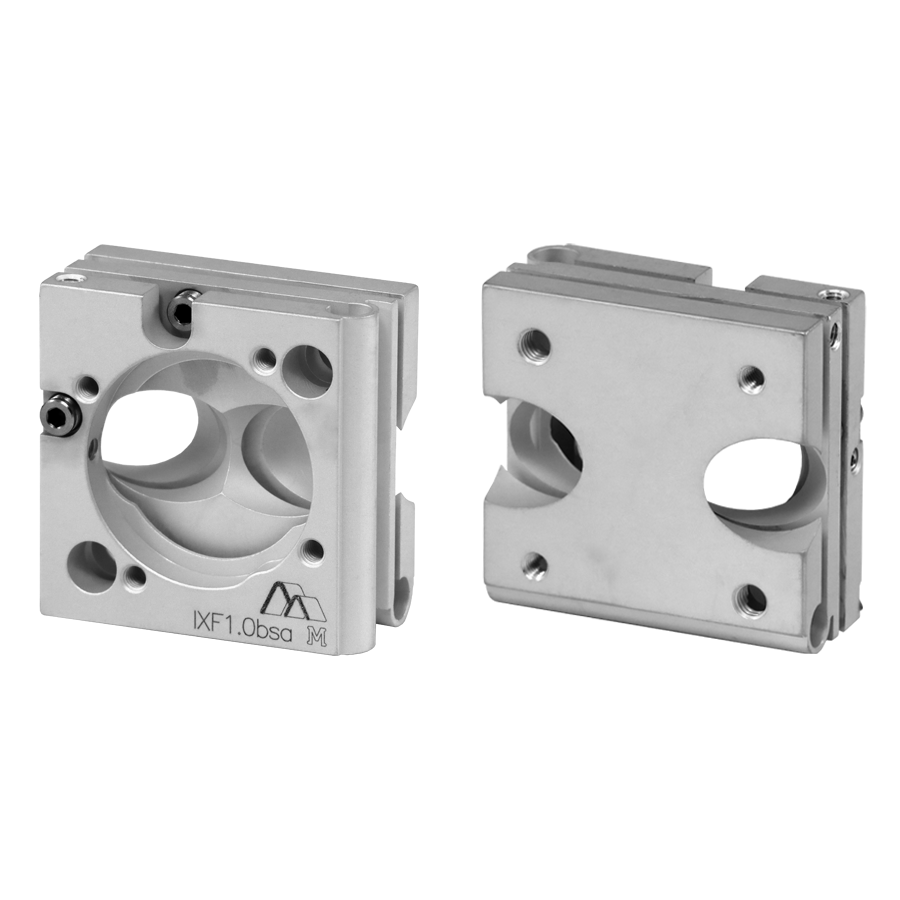

Mounting a beamsplitter cube or plate in a standard mirror mount usually means part of the mount body obstructs the beam path at the 45° angle a beamsplitter needs. This aluminum beamsplitter flexure mount from Siskiyou is built with clear aperture cut-outs set at 45° specifically to maximize beam clearance at full adjustment travel, holding 1,0 inch optics with front-adjustable pitch and yaw.

Key features

•

• Clear aperture cut-outs at 45° maximize beam clearance for beamsplitter applications, even at full adjustment travel.

• Monolithic one-piece construction, plate and springs machined from a single piece of aluminum, for better heat transfer and pointing stability under temperature change than traditional kinematic mounts.

• Pitch and yaw adjustment range of 5,0 ° per axis, with minimum controllable motion of 4,5 arc sec. per degree of adjustment screw rotation.

• Lockable 100 TPI rolled-thread adjustment screws with an integrated split-clamp lock, intended to be pre-loaded before adjustment and locked afterward.

• Front adjustment configuration, suited to installations where accessibility to the mount from the standard direction is limited.

• Vacuum- and UV-compatible, RoHS compliant.


Applications

The mount suits beamsplitter cube and plate applications in OEM optical systems where a standard mirror mount's body would otherwise obstruct the beam path, including interferometers, beam-combining and beam-sampling setups, and other configurations where clear aperture at the 45° beamsplitter angle is required alongside stable, repeatable alignment.
