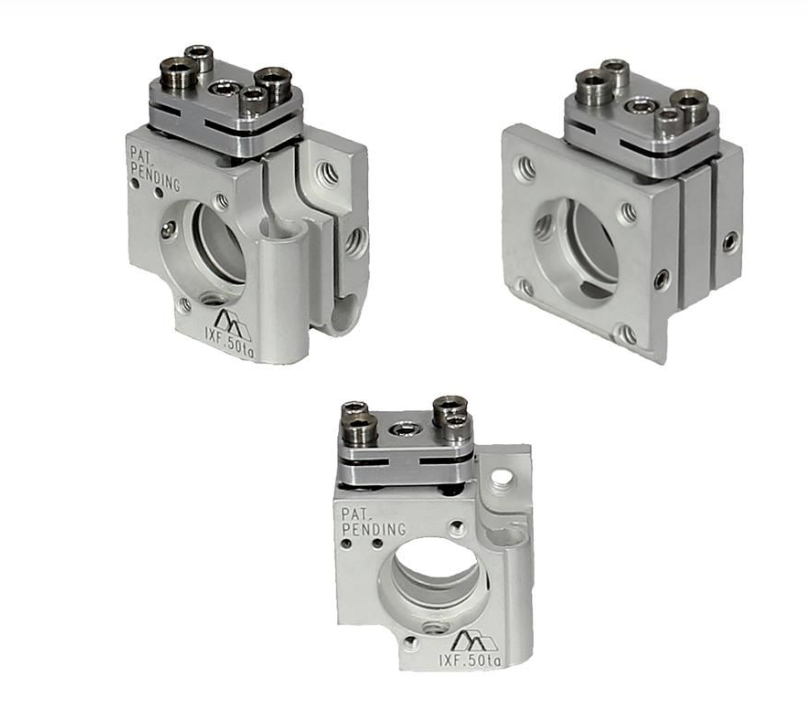

IXF.50ta M Optical Mounts
Regular price:
€194.50
Content:
1 pcs
Available in 10 days, delivery time 2-5 days
Product number:
C006242-6
Manufacturer:
Siskiyou
Product information "IXF.50ta M Optical Mounts"
Mirror Mount;Flexure;Two Axis;Top;0,50 inch
Properties "IXF.50ta M Optical Mounts"
| Quantity Per Set: | 1.0 |
|---|---|
| Mount Type: | Flexure |
| Mount Design: | Two Axis |
| Adjustment Location (Mount): | Top |
| Optic Size: | 0,50 inch |
| Material (Mount): | Aluminum |
| Adjustment Screws: | 100 TPI |
| Adjustment Range Pitch: | 6,0 °(±3 °) |
| Adjustment Range Yaw: | 6,0 °(±3 °) |
| Minimum Controllable Motion: | 8,2 arc sec. |
| Minimum Controllable Motion Based On: | 1° Of Adjustment Screw Rotation |
Manufacturer "Siskiyou"
Siskiyou Corporation, located in Oregon, USA, has been producing precision mechanical components since 1972. The company is thoroughly familiar with the technology involved in optical mounts, DC linear drives, manual and motorised stages as well as motion control devices. Siskiyou provides a diverse range of micromanipulators, microscope sample positioners, motion control systems and modular opto-mechanical building blocks to life science and photonics researchers. Unique among competitors, Siskiyou is a vertically integrated company with comprehensive in-house manufacturing capabilities.
