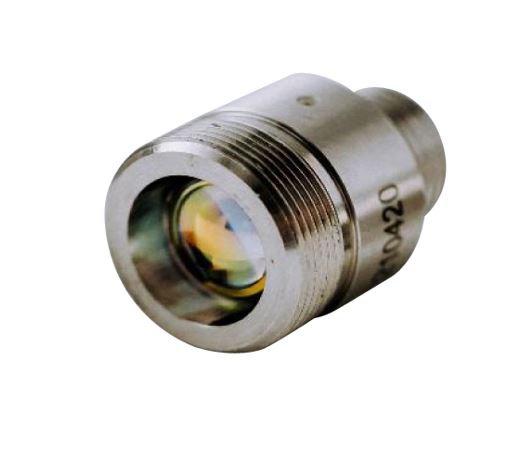

FD805021310 Receptacle Style Collimator

Collimators and Screw-on Focusers; Wavelength UV to IR; Focal Length 10 mm to 76 mm; Single Mode & Multi Mode Fibers, Connector Options SMA905, FC, ST Fiberguide’s Collimators and Focus Guides are for use in a wide variety of optical systems. These ruggedized modules are designed to collimate or focus light exiting an optical fiber to a desired beam diameter or spot size a specific distance away. Collimators and Focus Guides are used with laser diodes, photodiodes, acoustic-optic modulators and other fiber optic devices where a specific output is needed. Key Features: Collimator Focal Lengths: Micro (10 mm), Mid-Size (18 mm), Macro (38 mm) Focus Guide Focal Lengths: Mid-Size (18 mm, 25 mm, 38 mm), Macro (38 mm, 51 mm, 76 mm) Fiber Type: Single Mode, Multi Mode Core Sizes: < 1000 µm Wavelengths: UV – IR: 190 nm – 2400 nm Numerical Aperture (NA): 0.12, 0.22, 0.26, 0.37 Lens Materials: BK-7, Silica Connector Options: SMA905, FC, ST Standard Temperature Range: -40° C to +100° C / -40° F to +212° F

SMA Connector; 185-2100 nm; Focal Length 10 mm; Clear Aperture 5 mm; f# 2; Numerical Aperture 0.24 Mightex’s DCC-010-005 series of direct-coupling collimators are used to either coupling light from free space into a spectrometer or collimating light from a point light source to form a collimated (parallel) optical beam. Direct-coupling collimators are key components with numerous applications. For example, in spectroscopy, a direct coupling collimator can collect light in a narrow field of view into a spectrometer. In another example one collimator is connected to a point light source and the collimated beam passes through a cuvette. On the other side of the cuvette a second collimator couples light directly into a spectrometer. To maximize transmission wavelength range, Mightex DCC-010-005 direct-coupling collimators feature a single BK7 (DCC-010-005-V, 350 to 2000 nm) or UV fused silica lens (DCC-010-005-U, 185 to 2100 nm) without optical coating. The DCC-010-005 series collimator housing is machined from aluminium alloy for maximum durability. The collimators feature an internal SMA thread for direct connecting to spectrometers with popular SMA input ports When installed on a spectrometer, the full field of view (FOV) or full divergence angle can be calculated as FOV = 2atan(W/2f) where W is the width of the entrance slit of the spectrometer and f is the focal length of the lens. Alternatively, the linear field of view on an object placed a distance L away from the collimator is W(L/f). Focusing of the collimator is adjustable for object distance between 50 mm and infinity. Key Features: Wavelength Range: 350 to 2000 nm (DCC-010-005-V with BK7 Lens), 185 to 2100 nm (DCC-010-005-U with UV Fused Silica Lens) Focal Length: 10 mm Clear Aperture: 5 mm f#: 2 Numerical Aperture: 0.24 Adjustable Focus Aluminium Alloy Construction Internal SMA Thread Applications: Coupling Light into Spectrometers; Collimating Light from Light Sources; Spectroscopy

405 nm; 0.41 mrad; 1.25 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

532 nm; 0.44 mrad; 1.55 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

633 nm; 0.50 mrad; 1.61 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

780 nm; 0.59 mrad; 1.69 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

1310 nm; 1.15 mrad; 1.45 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

1550 nm; 1.30 mrad; 1.52 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/APC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

405 nm; 0.41 mrad; 1.25 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/PC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

532 nm; 0.44 mrad; 1.55 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/PC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

633 nm; 0.50 mrad; 1.61 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/PC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.

780 nm; 0.59 mrad; 1.69 mm; Lens EFL 8.0 mm; Lens NA 0.50; FC/PC; M12x0.5-6g ThreadThe Zemax file of the precision molded aspheric lens built into this collimator can be downloaded here: file. Do you need a customised collimator? Click here to contact us. All products supplied by GH Optics are RoHS compliant and meet the requirements of the current EU RoHS Directive 2011/65/EU. The RoHS certificate can be provided on request.
